Woodworking one-head hinge boring machine wood drilling machine for sale
- Quantity
Woodworking one-head hinge boring machine wood drilling machine for sale
|
Product name |
Portable manual hinge drill |
|
Voltage |
220V，50Hz |
|
Spindle speed |
2880r/min |
|
drill |
35mm*1+3mm*2 |
|
Drilling depth |
0~40mm(can adjust) |
|
Max. Drilling diameter |
35mm |
|
Power |
1.1kw |
|
Dimension |
420*380*520mm |
|
Weight |
25kg |
|
Application |
Hinge drilling |
|
Package weight |
30kg (carton box package) 35kg (plywood package) |
Woodworking one-head hinge boring machine wood drilling machine for sale

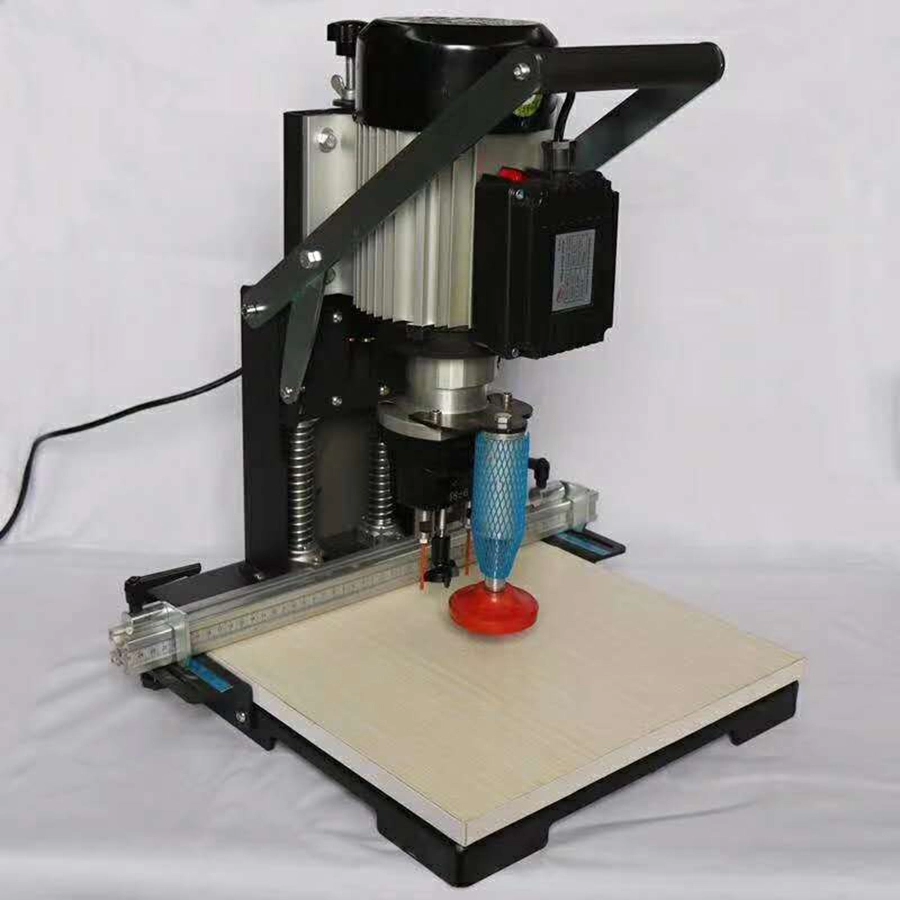

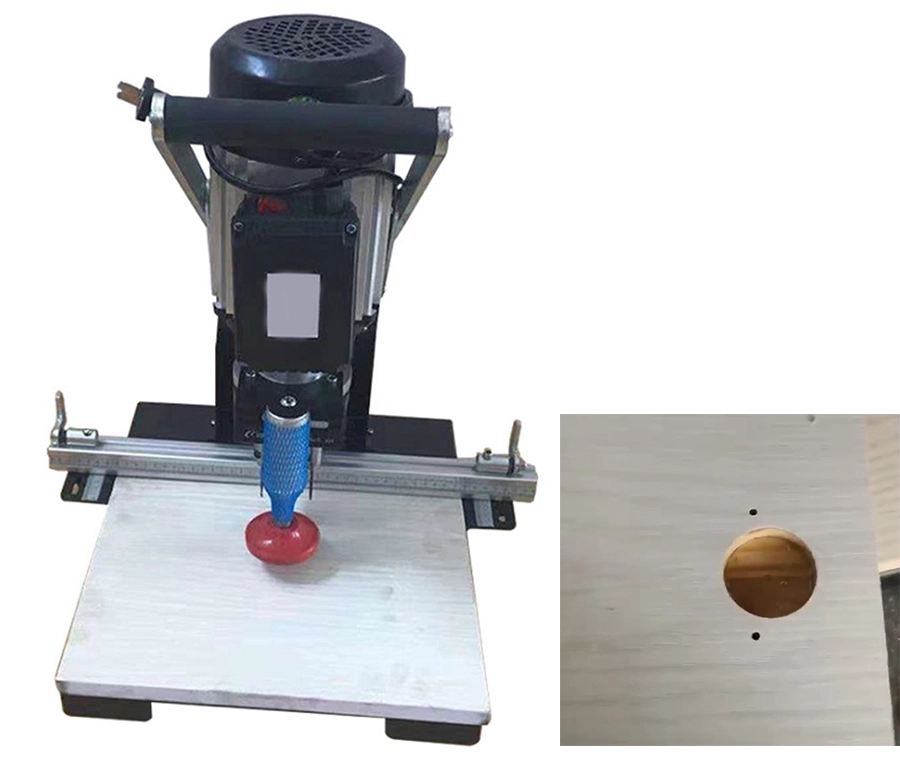

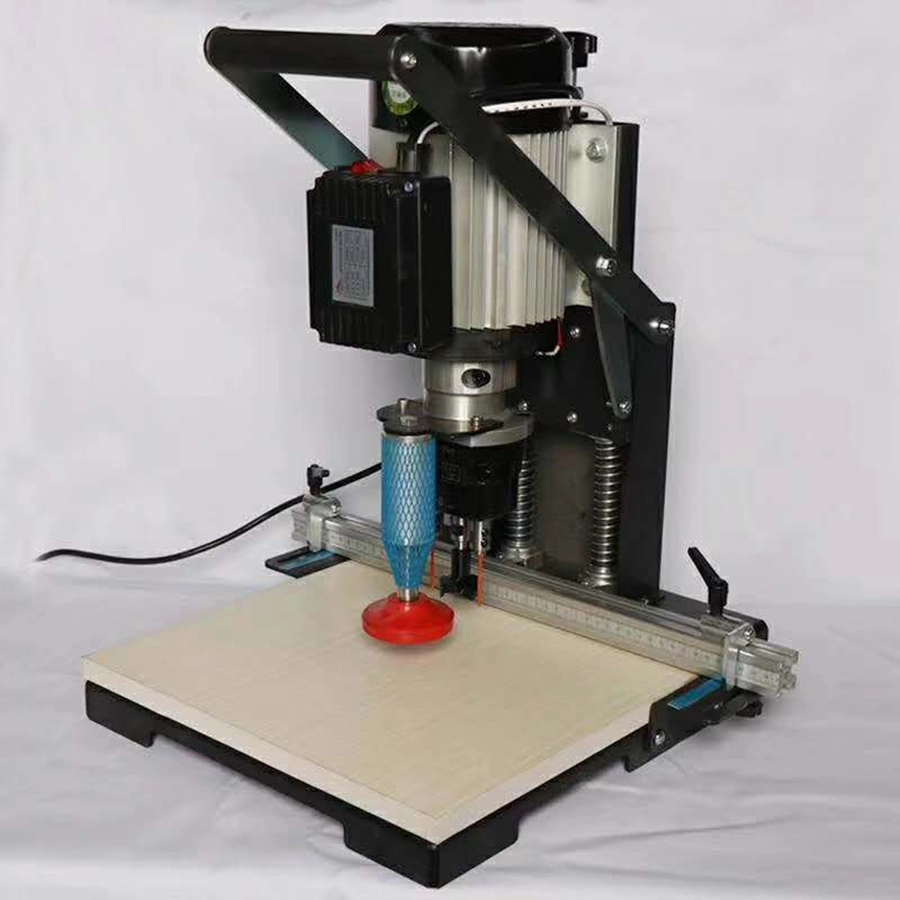

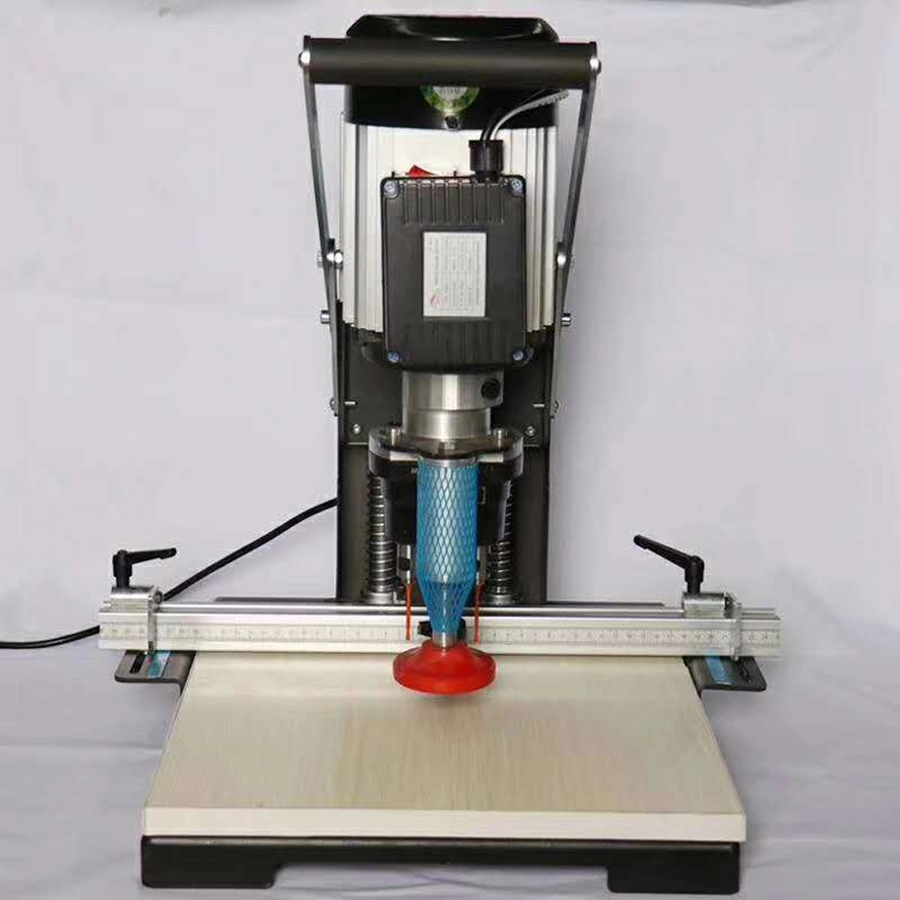

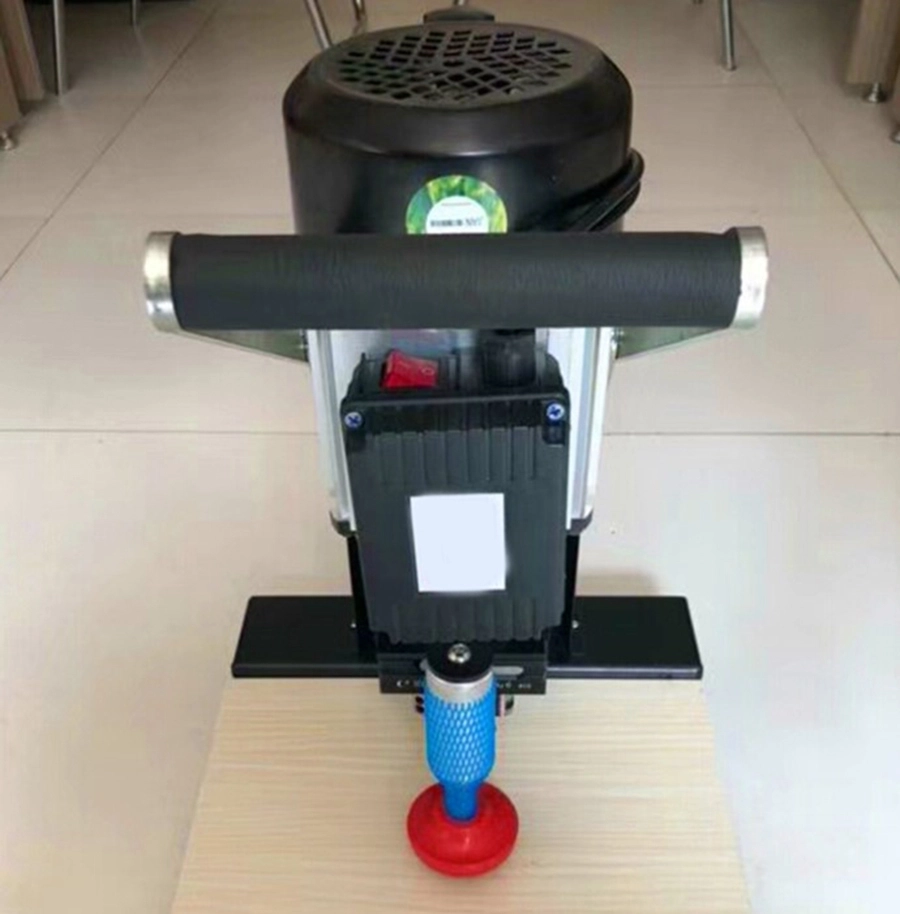

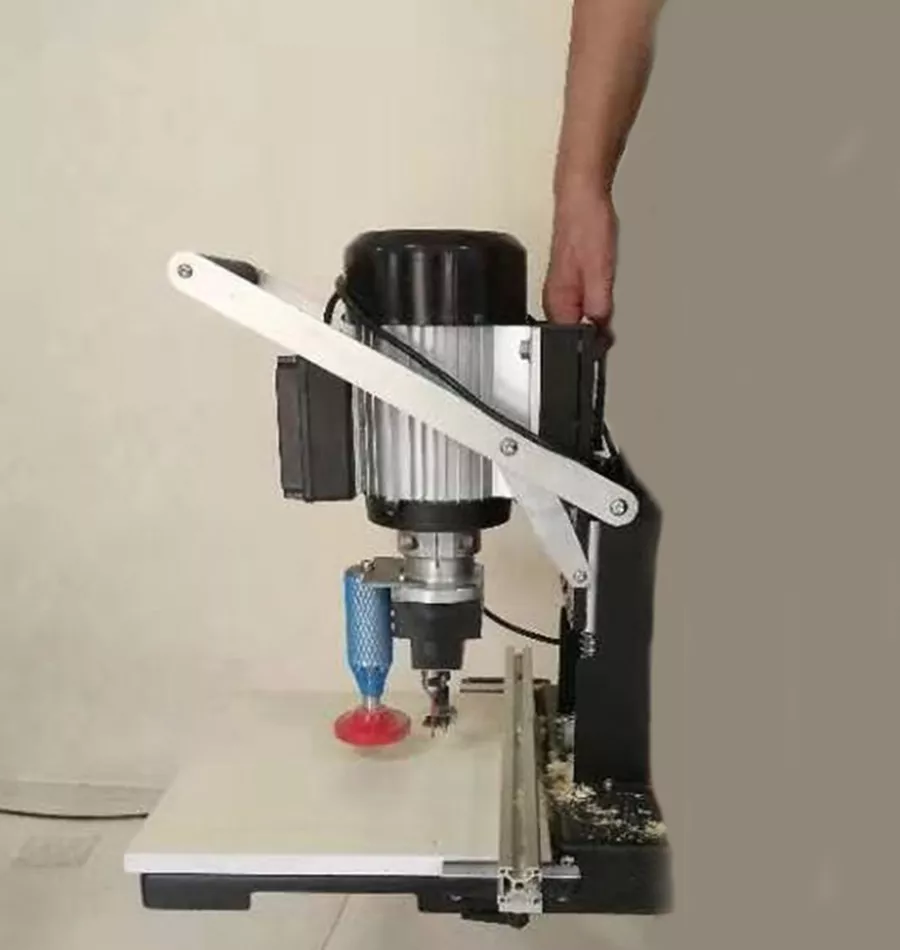

This machine is primarily used for hinge drilling on furniture door panels, such as those for wardrobes, cabinets, and office furniture.
It allows for both longitudinal and horizontal adjustment of the drilling position, ensuring quick and easy operation.
In a single setup, it can simultaneously drill hinge limits and screw holes on both sides, significantly enhancing production efficiency.
The accurate positioning system, along with a pneumatic pressing device, ensures precise hinge placement that meets the required standards.
The foot switch control provides a safe and labor-saving operation, making it an essential tool for furniture manufacturing.
