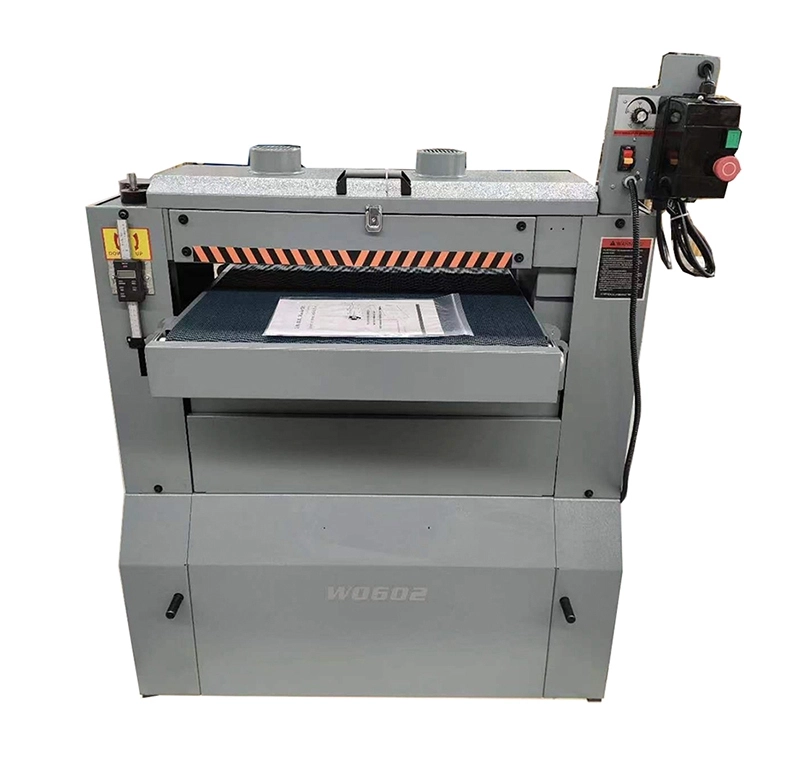

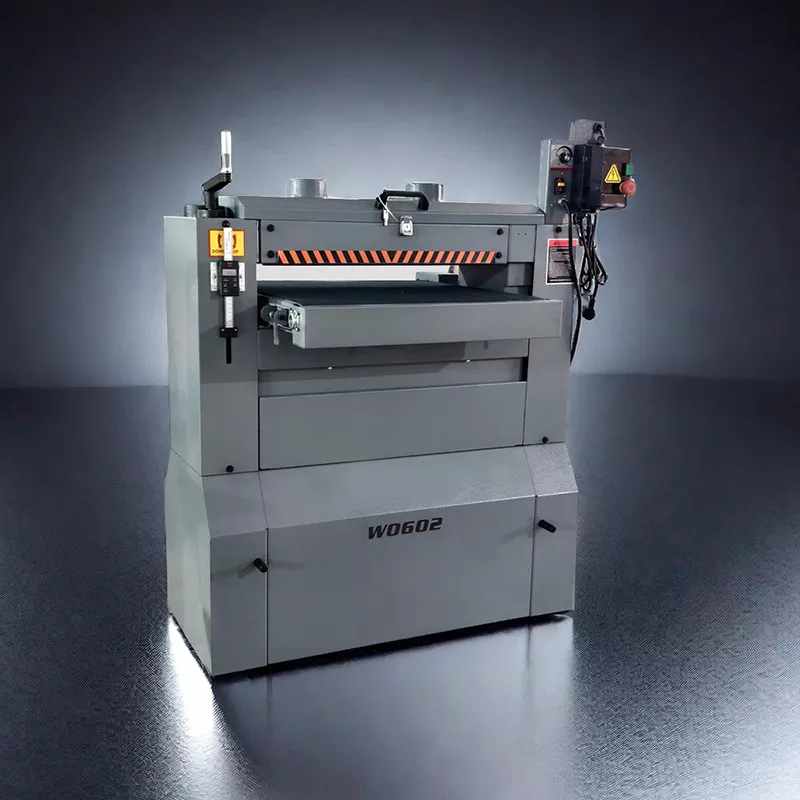

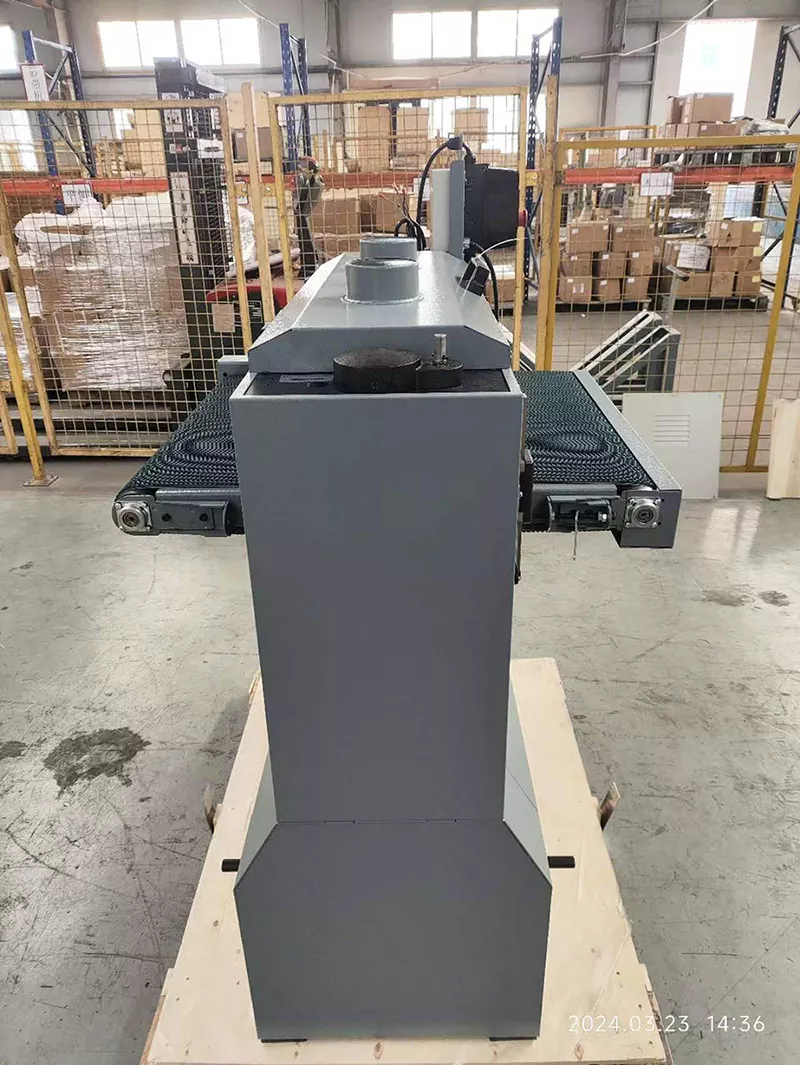

W0602 26-Inch Stepless Transmission Dual Roller Drum Sander: Precision Wood Sanding Machine for Professional Woodworkers
drum sander woodworking machine
- Quantity
Parameter of W0602 26-Inch Stepless Transmission Dual Roller Drum Sander: Precision Wood Sanding Machine for Professional Woodworkers
|
Model |
W0602 |
|
Keywords |
26”variable speed dual drum sander |
|
Motor |
3HP(2.2KW) |
|
Drum length |
26” |
|
Max. Sanding width |
26”(660mm) |
|
Min. Sanding length |
5”(127mm) |
|
Max. Sanding thickness |
5”(127mm) |
|
Min. Sanding thickness |
1/4”(6mm) |
|
Conveyor DC motor |
1.6HP(120W) |
|
Speed |
Infinitely variable 3~20FPM |
|
Drum diameter |
5”(125mm) |
|
Drum length |
26”(660mm) |
|
Speed |
50Hz,1280RPM / 60HZ, 1550RPM |
|
Dust hole |
4”(102mm)*2PCX |
|
Dimension |
1260*790*1300mm |
|
Package size |
1150*860*1290mm |
|
Weight |
NT 223kgs/ 273kgs |
W0602 26-Inch Stepless Transmission Dual Roller Drum Sander: Precision Wood Sanding Machine for Professional Woodworkers
W0602 26”variable speed dual drum sander combines rough and fine sanding in one pass, ideal for heavy-duty woodworking.
The smart Intel-Sanding Control adjusts feed rates to prevent overload, ensuring smooth finishes. Perfect for professional woodworkers and furniture makers.
Feature of W0602 26-Inch Stepless Transmission Dual Roller Drum Sander: Precision Wood Sanding Machine for Professional Woodworkers

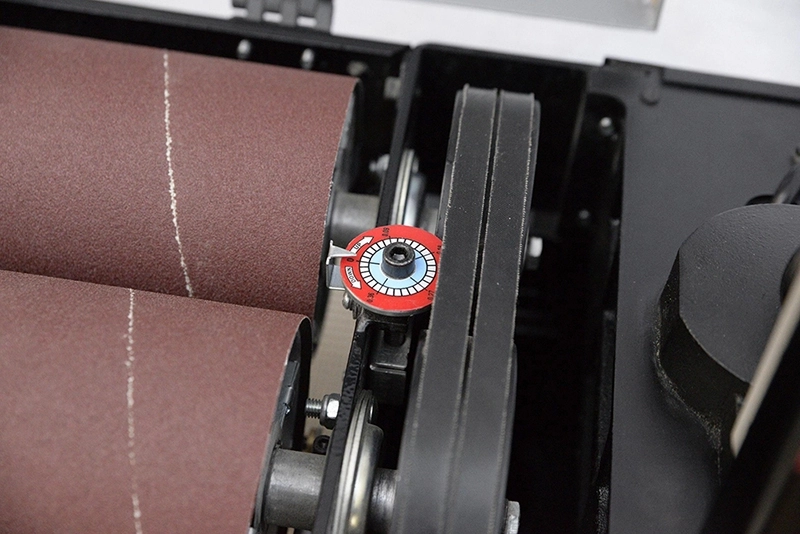

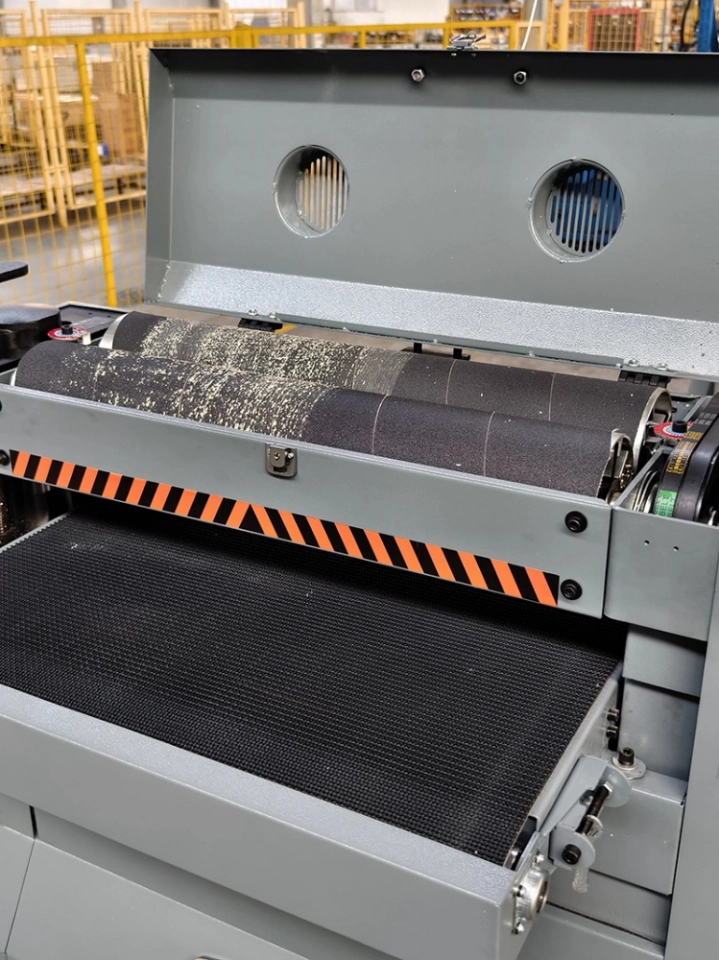

1. Dual Drum Design: The dual-drum setup allows for two different grits of sanding paper to be used—one for rough sanding at the front and another for fine sanding at the rear—ensuring optimal sanding results.
2. Robust Machine Structure: The close-up design ensures enhanced strength, making it capable of handling heavy-duty sanding tasks with ease.
3. Intel-Sanding Control: A smart system continuously monitors the load on the drum motor and automatically adjusts the speed of the conveyor motor, maintaining the highest feed rate without risking overload.
4. Precision-Machined Aluminum Drum: The extruded aluminum drum is precision-machined and dynamically balanced, helping dissipate heat and prevent heat damage to the work surface.
