W0101 12-Inch Cast Iron Woodworking Bench Planer for Precision and Durability, Jointer-Planer

Achieve Perfect Cuts with the W0101 12-Inch Cast Iron Woodworking Planer

Parameter of W0101 12-Inch Cast Iron Woodworking Bench Planer for Precision and Durability

Model	W0101 12inch planer	W0101P 12inch planer

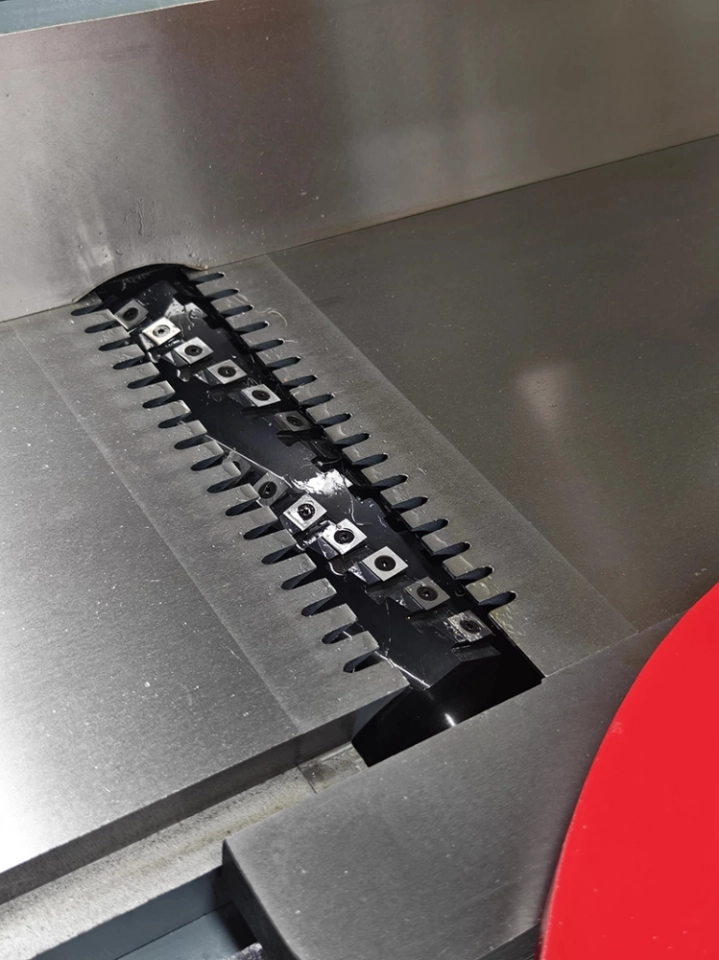

Blade	12” striaght flat blade	12inch Radius spiral cutter
Motor power	3HP (380V/220V)	3HP ((380/220V)
Max. planing width	12“/304mm	12“/304mm
Max. Planing depth	3.1mm	3.1mm
Rabbeting cut capacity	12.7mm	12.7mm
Cutter head weight	Spindle speed : 4800RPM	Spindle speed : 4800RPM
	Blade number: 4PCS(high speed steel)	Blade number: 6 slots 78 pieces
	Blade size:306303mm	Blade size:15152.5mm
	Shaft diameter: 98mm	Shaft diameter: 98mm
Working table	Length:2250mm	Length:2250mm
	Height from floor: 820mm	Height from floor: 820mm
Backing	Size: 1195*150mm	Size: 1195*150mm
	Angle: 45~135 degree	Angle: 45~135 degree
Appendix	Switch bracket,magnetic starter,100mm dust collection port ,push handle*2	Switch bracket,magnetic starter,100mm dust collection port ,push handle*2
Feature	Dovetail workbench lifting structure, hand wheel lifting, rack and pinion backing system	Dovetail workbench lifting structure, hand wheel lifting, rack and pinion backing system
Dimension	22509901170mm	22509901170mm
Package size	23007201550mm	23007201550mm
weight	Net weight 430kg/ Gross weight 500kg	Net weight 430kg/ Gross weight 500kg

W0101 12-Inch Cast Iron Woodworking Bench Planer for Precision and Durability

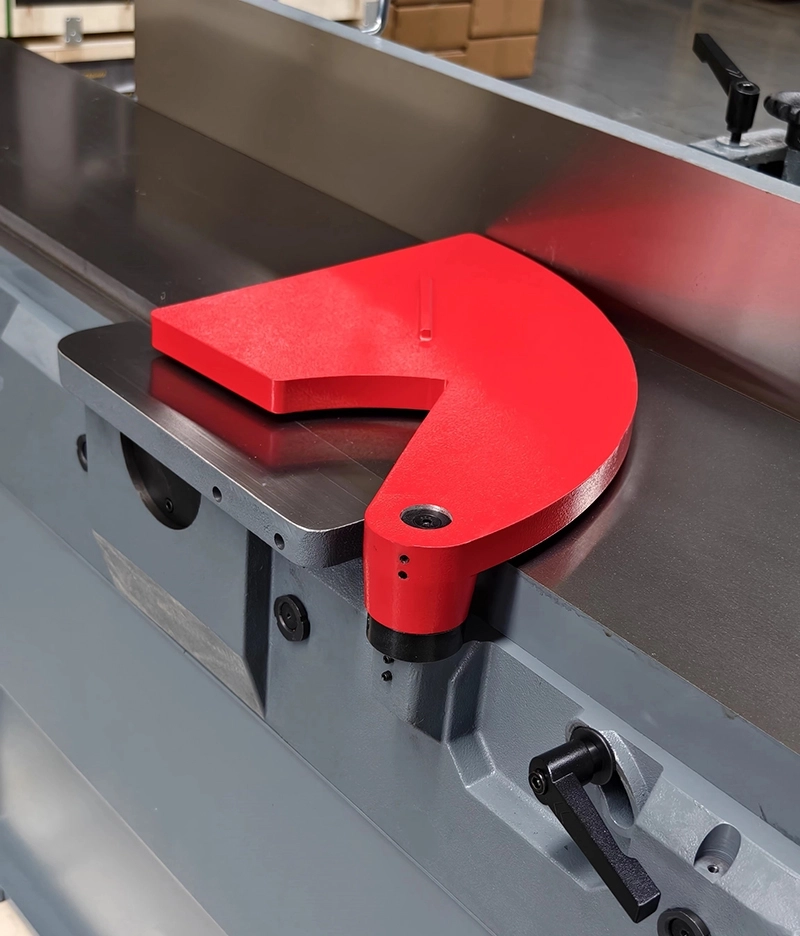

Enhance your woodworking experience with our Professional Planer, featuring a center-mounted fence for safe cutting

and precise adjustments. The easy-adjust infeed and outfeed tables enhance efficiency, while the parallelogram support

system reduces tear-out. Quick access to the motor and belts is provided by the hinged door and removable panel.

Ideal for both hobbyists and professionals, this planer offers exceptional performance and reliability.
