Variable frequency Power Feeder | Automatic Woodworking Spindle Moulder Feeder | Router and Milling Machine Feeder
|
Model |
MX48 |
|
Feeding speed |
3.5/5/7/10/13/17/26/34 m/min |
|
Motor |
0.75kw /5-120hz/ 140-3360rpm/ 380v-480v/ 1ph |
|
Speed control by |
Inverter |
|
Roller size |
∅120mmx60mm(w) shore 60HA |
|
Suspension |
17mm |
|
Max.roller coverage |
416mm |
|
Min.length allowed |
165mm |
|
Machine size |
609x258x473 |
|
Package size |
705x325x537 |
|
N.W. |
28.7kg |
|
G.W. |
31.3kg |

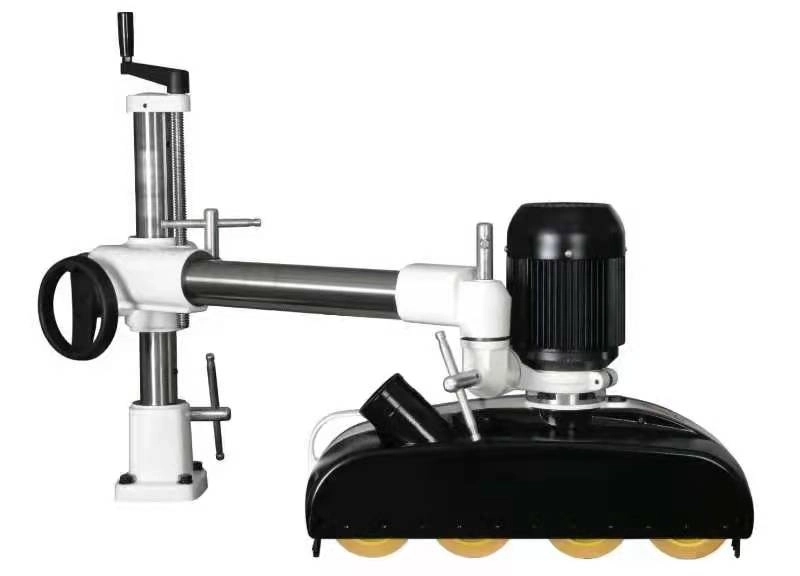

MX48 Variable frequency Power Feeder | Automatic Woodworking Spindle Moulder Feeder | Router and Milling Machine Feeder

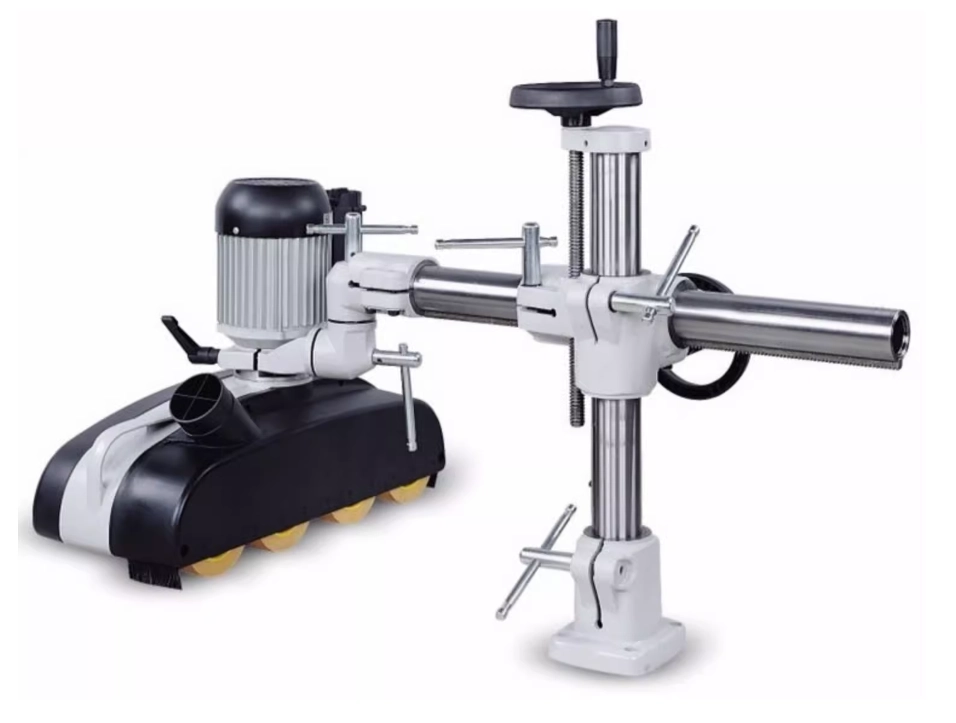

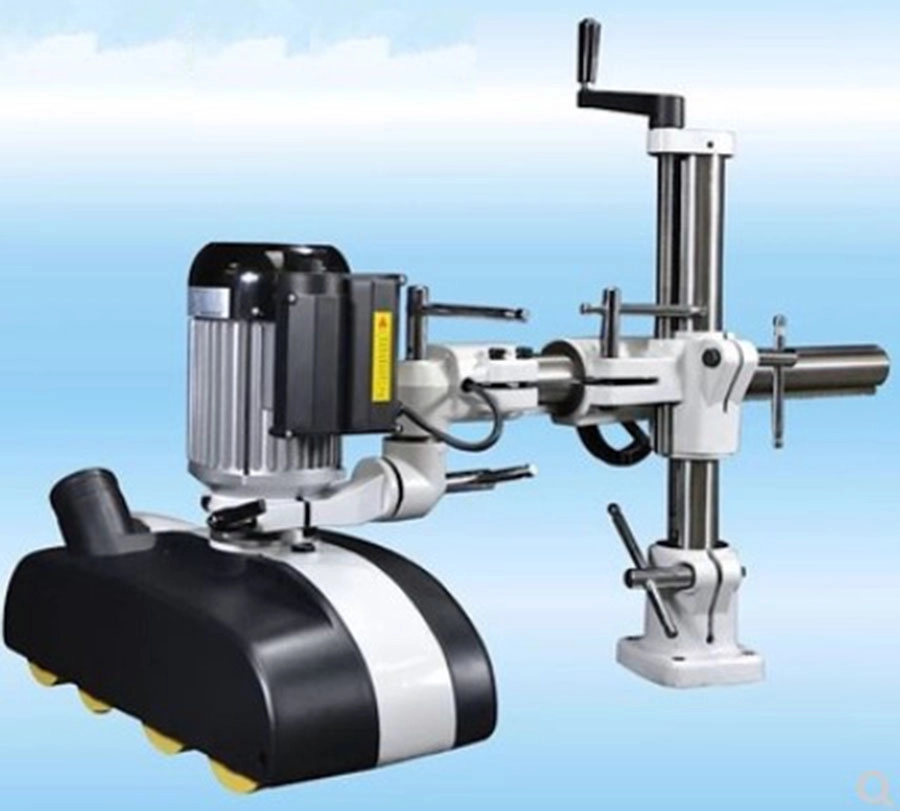

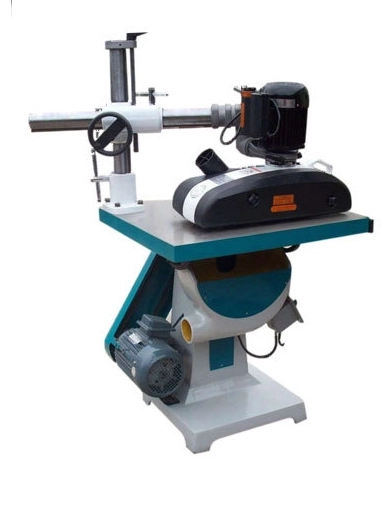

This heavy duty 4 rollers feeder can be adapted easily to shapers, table saws and many other woodworking machines. The MX48 power Feeder is built with both robust construction and reliability.
Heavy Duty Model Our MX48 power Feeder can be mounted easily to shapers, table saws and many other woodworking machines.
Feed Speed: Build in storage hanger for spare gears and with a range of eight speeds, the MX48 provides best speed options.

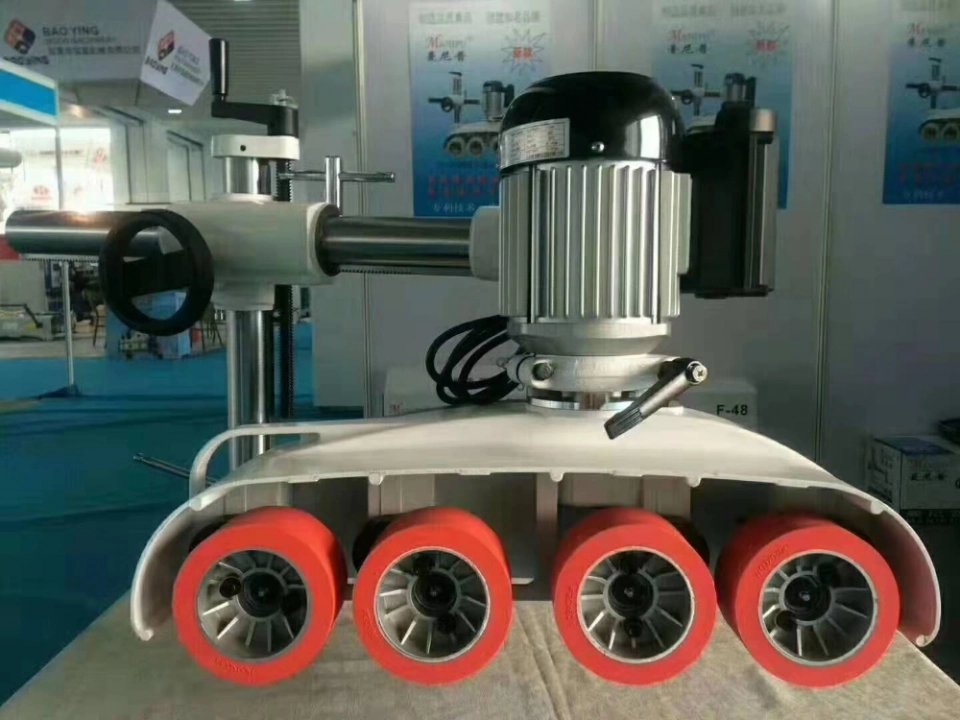

4 Rollers and Roller Suspension
These rollers with abrasion resistance provide excellent secure non-marking grip, ensure better operation condition. Rollers are all spring loaded to maintain a constant pressure, with roller suspension up to 16mm (5/8″).

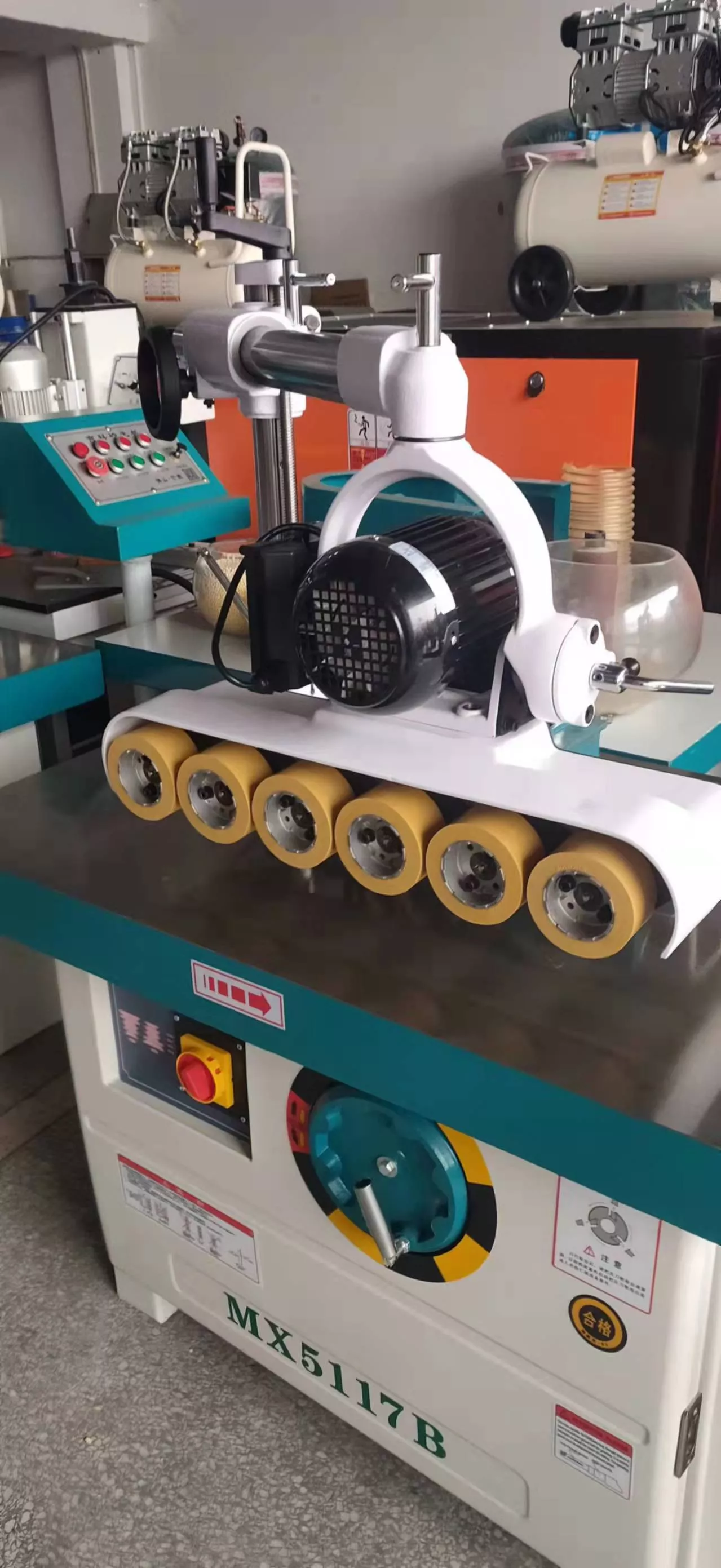

We can also supply 1 roller, 3rollers, 6rollers, 8rollers.
