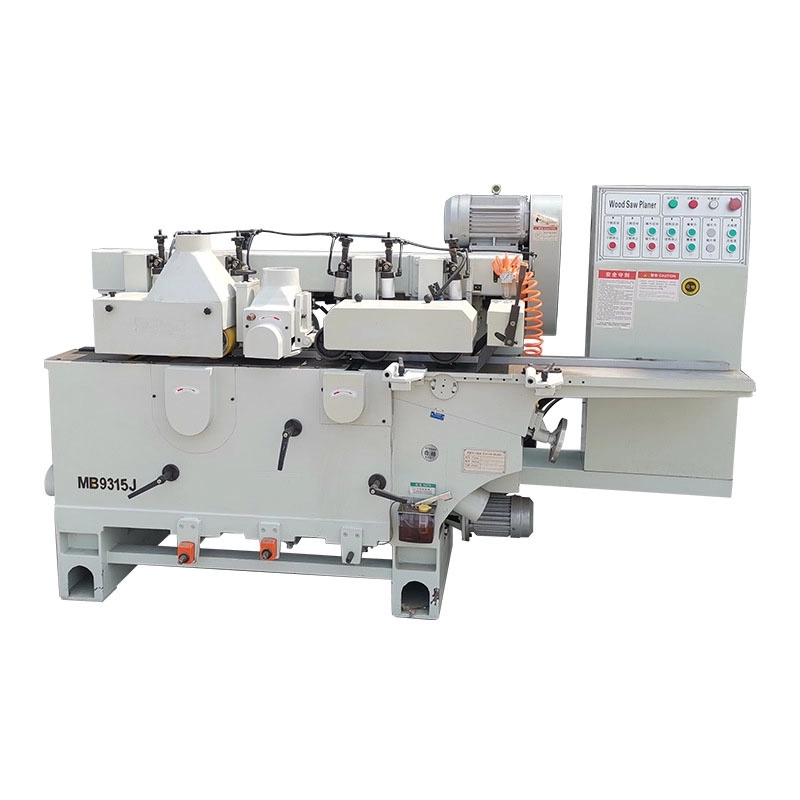

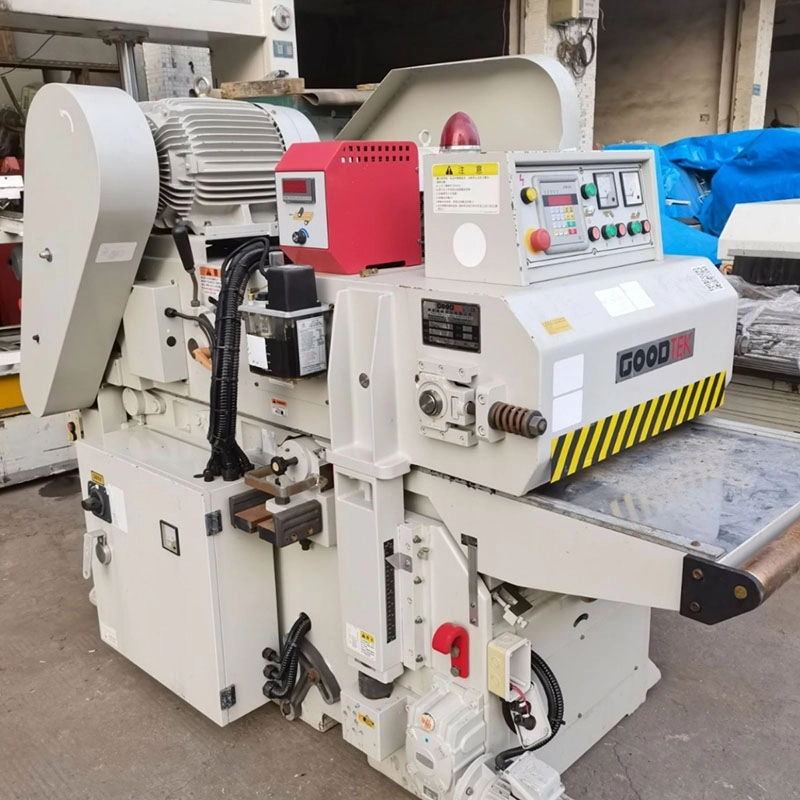

Top & Bottom Planer,Horizontal double side thickness planern Double Surface Planer
|
Max. Planing width |
450mm |
|
Max. Working thickness |
150mm |
|
Min. Working thickness |
15mm |
|
Min. Working length |
320mm |
|
Side cutter shaft revolutions |
4500r/min |
|
Feeding speed |
7-16m/min |
|
Upper blade motor power |
7.5kw |
|
Lower blade motor power |
5.5kw |
|
Feeding motor power |
2.2kw |
|
Lifting motor power |
0.37kw |
|
Total motor power |
15.57kw |
|
Dimension |
2700*1270*1680mm |
