PRODUCTS

400/500/650mm Solid wood Saw Machine Horizontal Band Saw Machine, Band Resaws

Band saws
  • Quantity

Product name

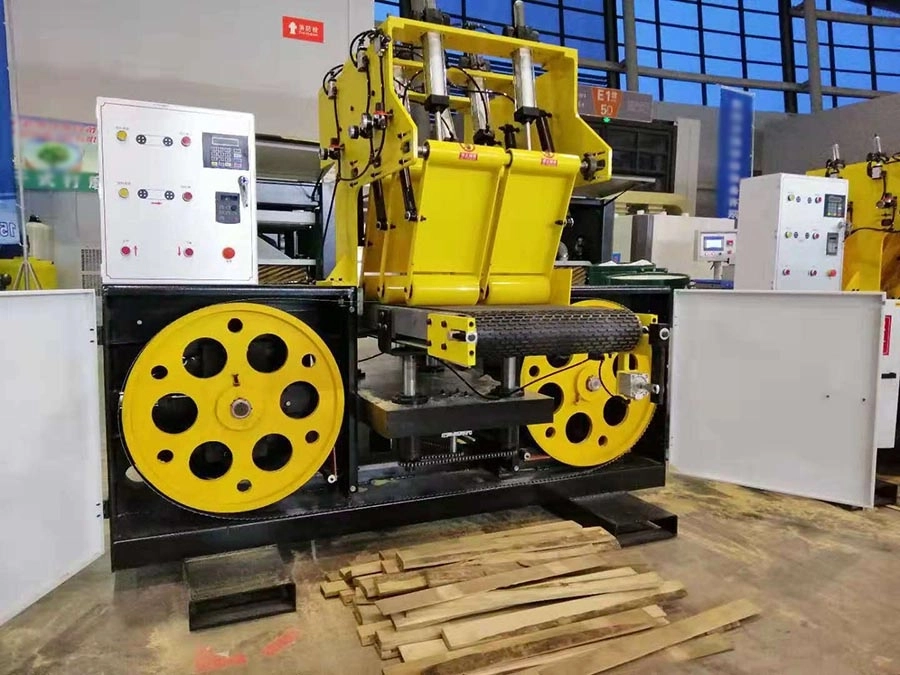

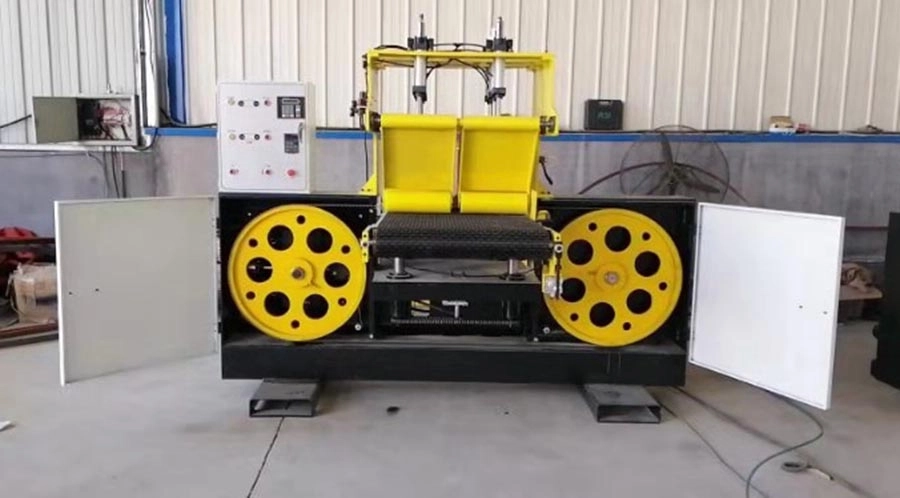

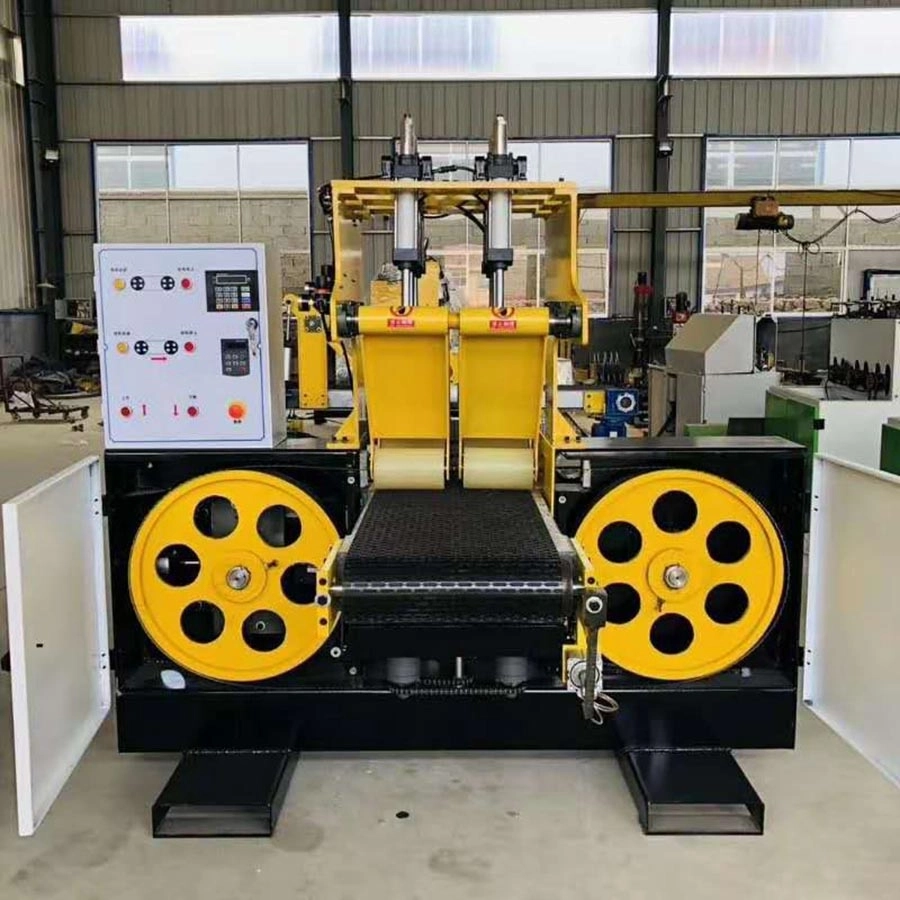

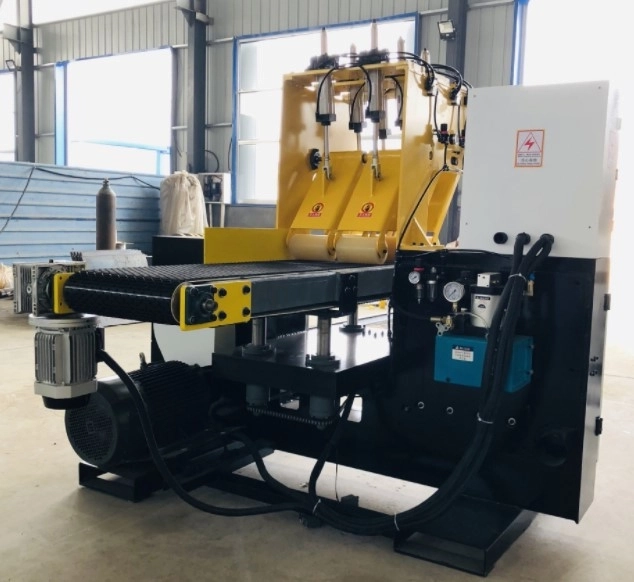

horizontal band saw

Model

WMJ-380

WMJ-500

WMJ-650

Saw wheel diameter

600mm/700mm

700mm

700mm

Max. Sawing width

400mm

500mm

650mm

Max. Sawing thickness

260mm

Min. Sawing thickness

5mm

Main motor power

15kw

18.5kw

22kw

Feeding speed

adjustable frequency conversion

Feeding motor power

1.1kw

Lift motor power

0.37kw

Dimension(mm)

2450*2000*1850

2300*2300*1850

2250*2450*1850

Weight

1650kg

1850kg

2000kg

We can customized according to your wood width

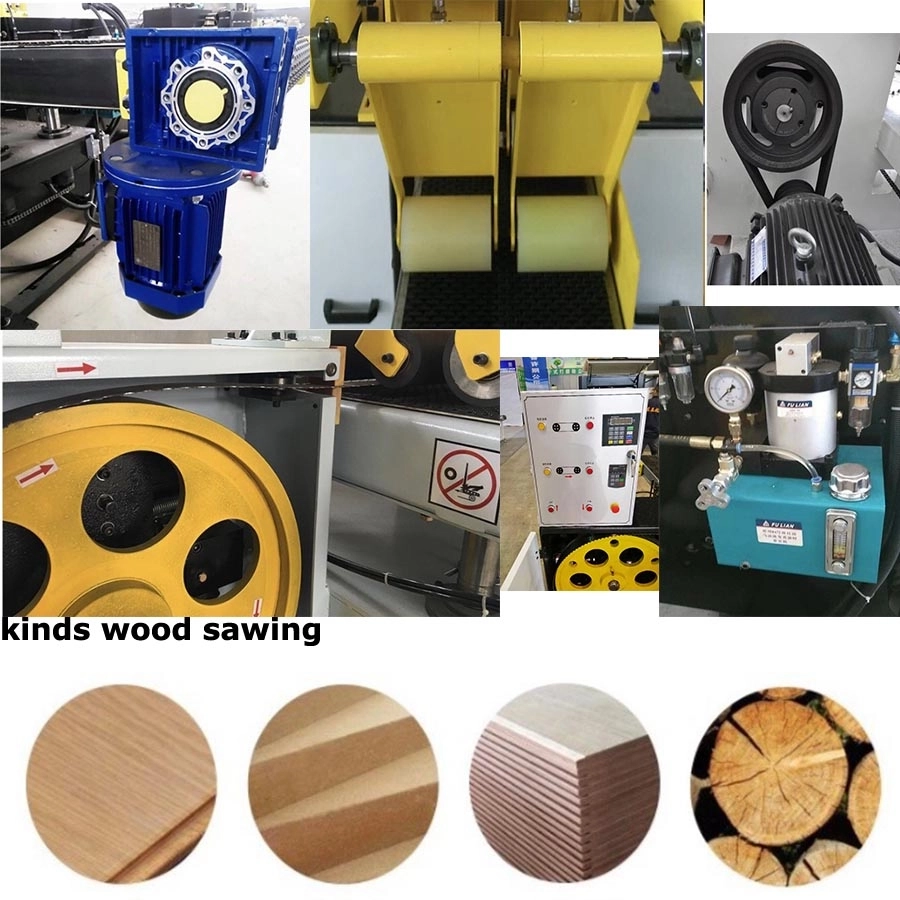

Horizontal band saw is widely used in sawing boards, like solid wood boards (hardwood, pine and other soft wood) splicing boards, decorative adhesive boards, composite boards, etc. (such as: floor, door panels, bed panels, various furniture panels), High precision and fast speed for ultra-thin sawing.

Feature:

1. Compared to multi saws, irregular wood and wider wood like 800mm or 1000mm can be easily sawing .

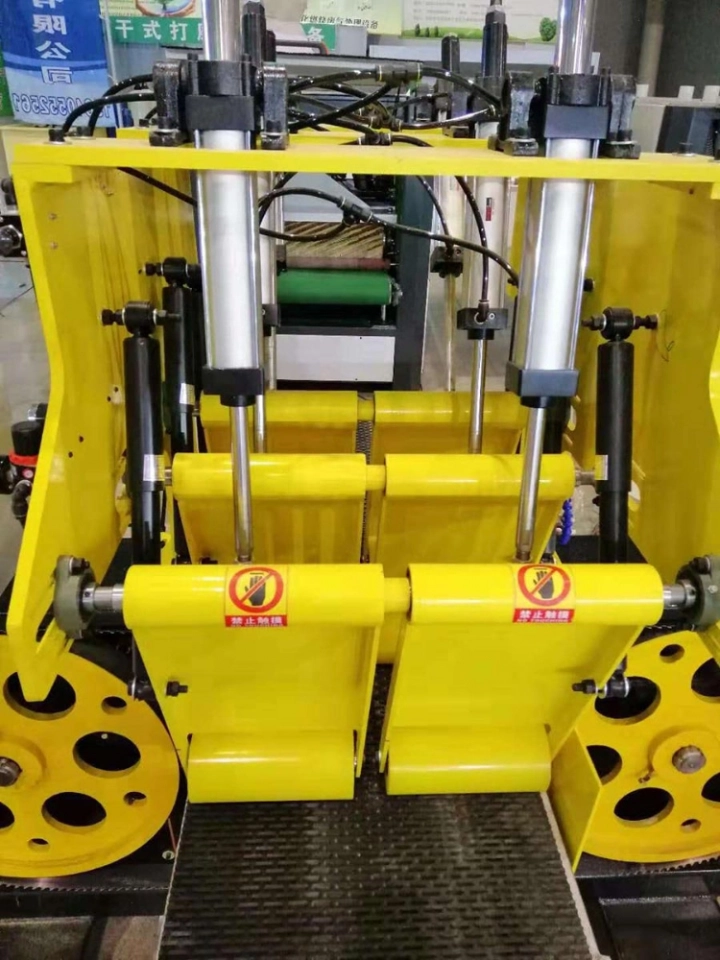

2. band saw is the necessary equipment for furniture factory, the sectional type pressure roller pressing system, can cut wood of different thickness at the same time, more flexible, no waste of wood.

3. Digital display and operation panel, automatically adjust the sawing thickness, high precision, easy operate and convenient.

4. The main track adopts 30cm high-precision bearing steel, and the straight track is light and flexible, which greatly reduces the labor intensity of the user.

5. Our band saw give 1.6mm alloy saw blades with machine, The alloy saw blade has good flatness, small sawing path and small error. The sawn plate can be directly sanded with a sander to save wood.
