Small Jidong Style Automatic Edge Banding Machine

Edge banders　391　　　　　

Chat with us on Whatapp for instant quotes& support

MOQ: 1 set one year warranty

FOB Price:$ 5730 - $ 5980/ Set

(Prices vary depending on configuration and quantity)

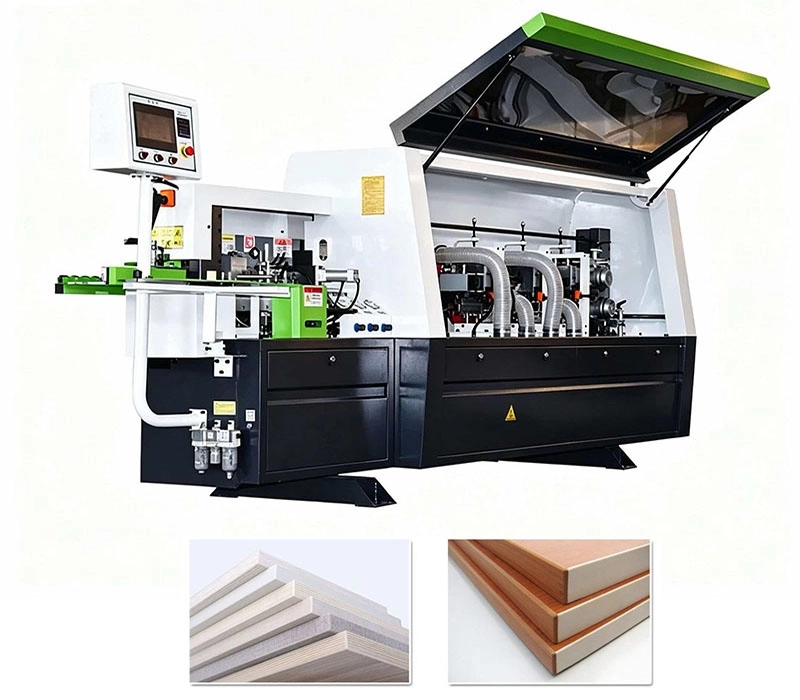

Small Jidong Style Automatic Edge Banding Machine

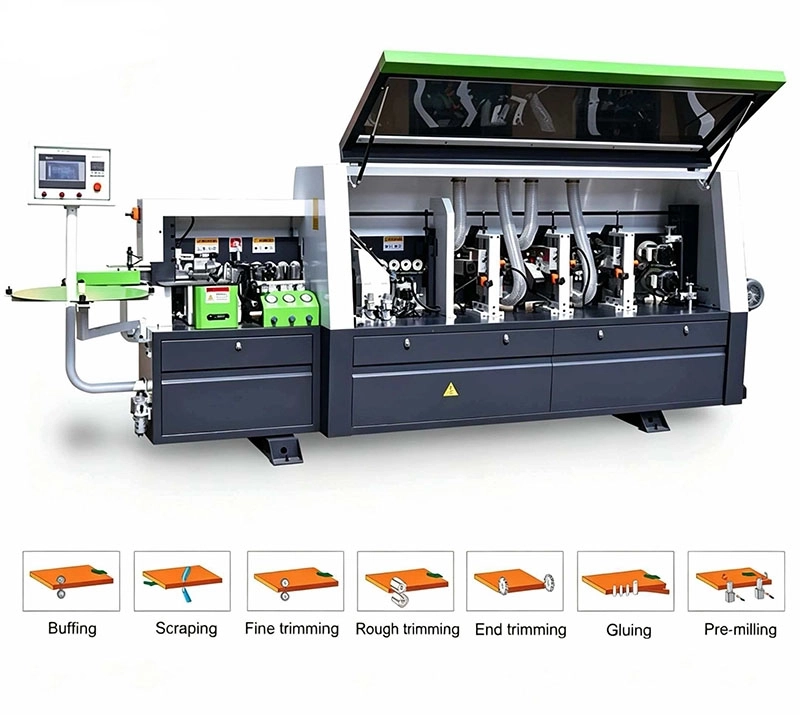

Standard Functions: Pre-milling, Gluing, End Trimming, Rough Trimming, Fine Trimming, Scraping, Buffing

Optional Functions: Double glue pot, Corner rounding, Slotting Configuration PLC control, servo motor, linear guide, brand electric parts

Technical parameter

Edge Band Thickness:	0.4–3.0 mm
Edge Band Height:	10–60 mm
Workpiece Thickness:	10–60 mm
Min. Workpiece Length:	120 mm
Feeding Speed:	12–18 m/min (adjustable)
Total Power:	7–8 KW
Voltage:	220V / 380V (optional)
Air Pressure:	0.6–0.8 MPa
Machine Weight:	1500 KG
Overall Dimension:	3500 x 950 x 1450 mm

edge banding machine

This Small Jidong Style Automatic Edge Banding Machine is a high cost-effective automatic edge bander for small and medium-sized furniture factories, cabinet workshops and woodworking plants.

It integrates complete functions including pre-milling, gluing & edge banding, automatic end trimming, rough trimming, fine trimming, scraping and buffing, providing smooth, firm and beautiful edge sealing for MDF, plywood, particleboard and solid wood panels.

Advantages:

Compact structure, light weight, easy for shipping and installation

Stable performance, low failure rate, easy maintenance

High working efficiency, automatic feeding & automatic processing

Suitable for PVC, ABS, wood veneer edge banding

Export standard quality, widely used in global furniture market

It is the best choice to upgrade from semi-automatic to automatic edge banding production.

Product details

Please contact us for exact pricing and detailed configuration.

We support one round of trial order, one year warranty and fast after-sales service.
