Single-spindle woodworking milling W0401F four-speed high-speed woodworking end milling machine
- Quantity
Single-spindle woodworking milling W0401F four-speed high-speed woodworking end milling machine
|
Model |
W0401F |
|
Keywords |
Spindle moulder |
|
Motor power |
Input 2200W, output: 2800W |
|
Spindle diameter |
30/35mm |
|
Spindle cutter Max. height |
60mm |
|
Spindle direction |
Forward/ Reverse |
|
Spindle speed |
4000/6000/8000/10000RPM |
|
Table size |
716*556MM |
|
Extend table |
716*220mm |
|
Backing board size |
400*120*20mm |
|
Max spindle's travel |
100mm |
|
Machine size(LxWxH) |
762MMx711MMx1118MM |
|
Switch |
NHD electromagnetic switch |
|
N.W./G.W. |
190/220KG |
|
Machine configuration |
Four speed pulley Treading-type movable casters Magnetic starter magnetic ON/OFF/emergency stop switch forward/off/reverse switch European type protective cover |
Single-spindle woodworking milling W0401F four-speed high-speed woodworking end milling machine

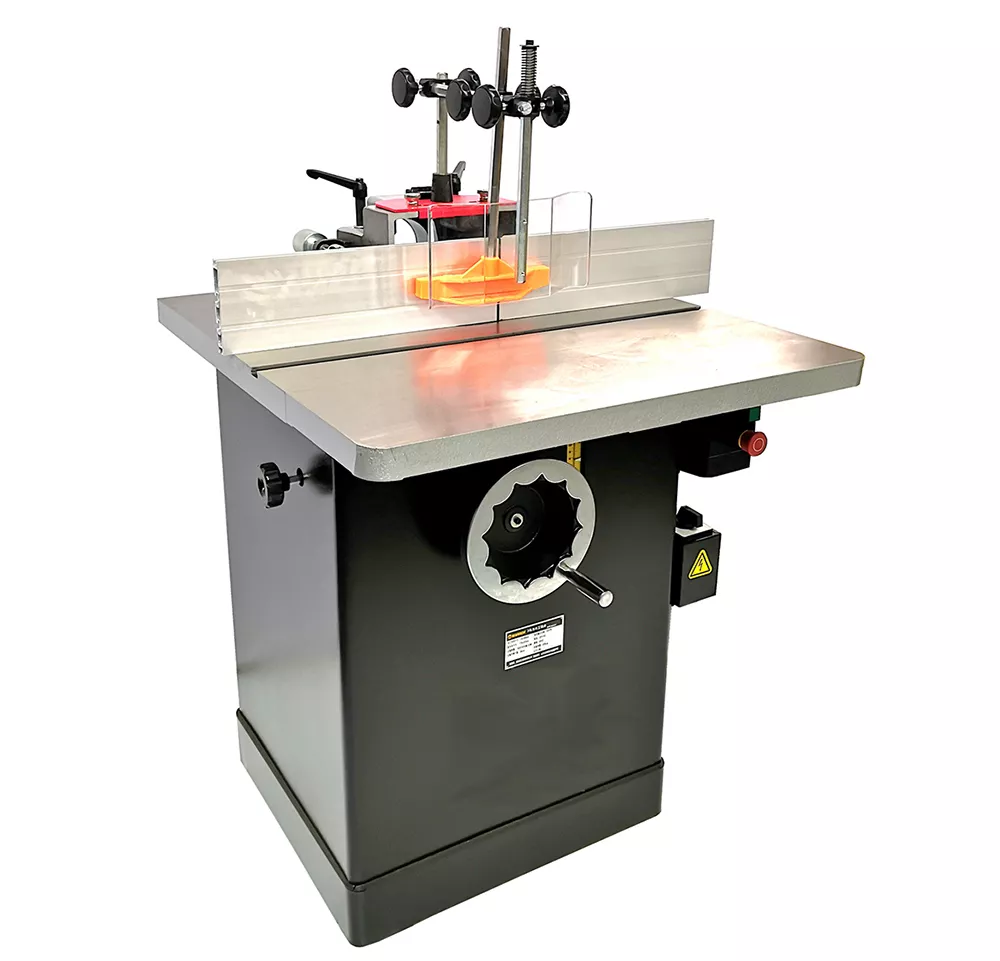

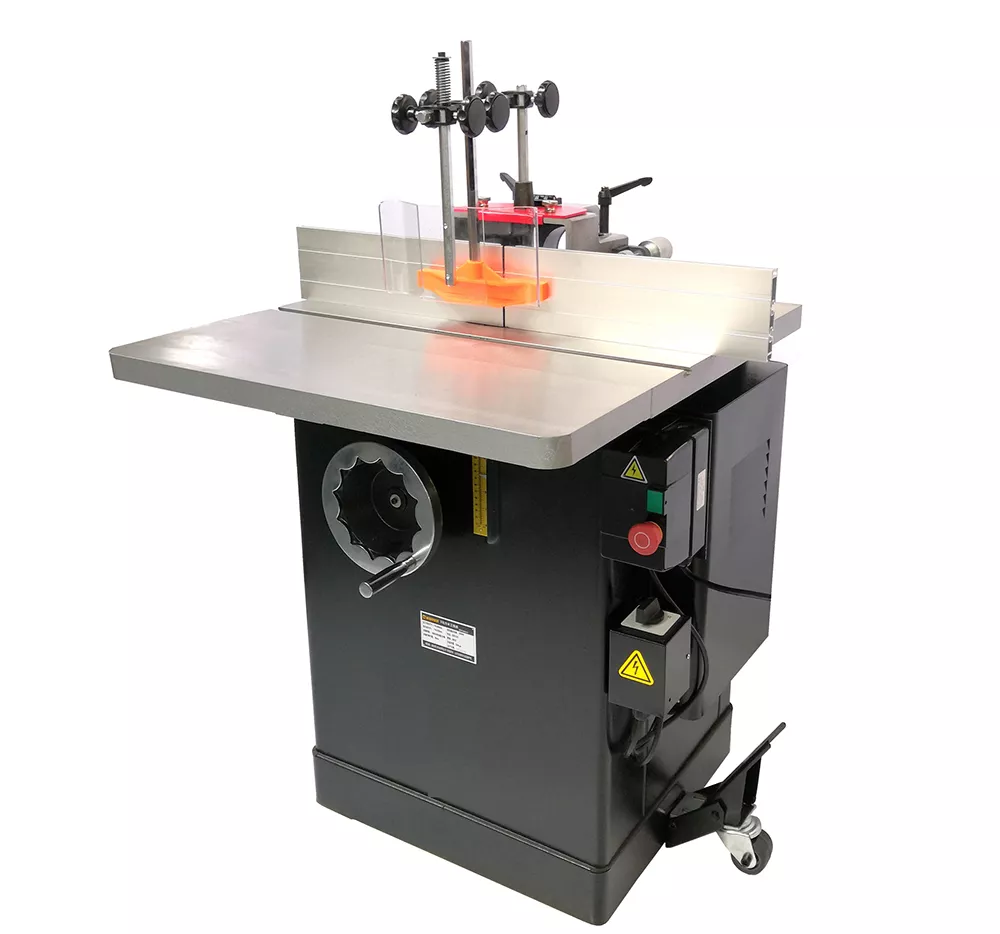

3HP Industrial Woodworking Shaper
Built for power and precision, this industrial-grade spindle moulder features a robust 3HP motor capable of handling a wide range of shaping tasks with ease. The 716×556mm cast iron table provides a stable, spacious work surface, complemented by a 716×200mm extension table for larger projects.

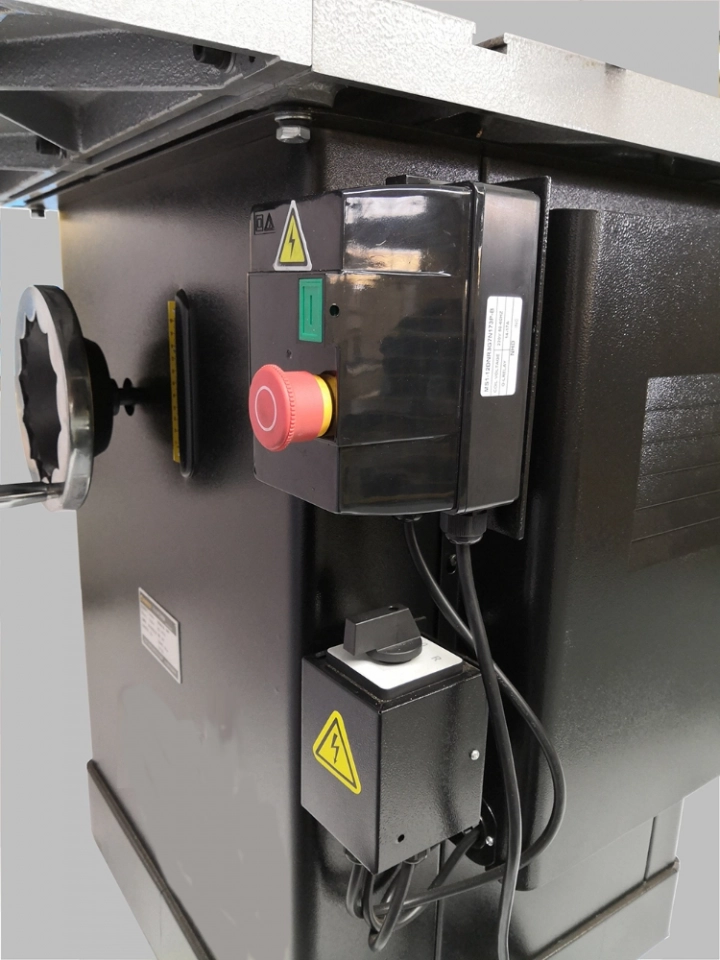

Key features include a forward/off/reverse switch, a spindle height adjustment handwheel with locking knob, and user-friendly control placement—ensuring both versatility and operator safety. Whether you're shaping profiles, cutting grooves, or edge-finishing panels, this shaper delivers reliable performance and precision every time.
