MB102GH / MB1025GH / MB103GH / MB104GH Upgraded High Speed Single Side Wood Thickness Planer
MB102GH/MB103GH/MB104GH High Speed Single Side Wood Thickness Planer
Chat with us on Whatapp for instant quotes& support
Upgraded high‑speed single side wood planer with multi‑function design, wide processing range and ultra‑lightweight body, ideal for professional woodworking workshops.
Technical Parameters
Spindle Speed: 8440‑9000 r/min
Feeding Speed: 8‑11.5 m/min
Max Planing Thickness: 4‑170 mm
Min Planing Length: 160 mm
Max Cutting Depth: ≤3 mm
Models Specification
MB102GH: Max Width 200 mm, Motor 2.2kW/380V, Weight 180kg
MB1025GH: Max Width 250 mm, Motor 2.2kW/380V, Weight 198kg
MB103GH: Max Width 300 mm, Motor 3kW/380V, Weight 210kg
MB104GH: Max Width 400 mm, Motor 4kW/380V, Weight 230kg

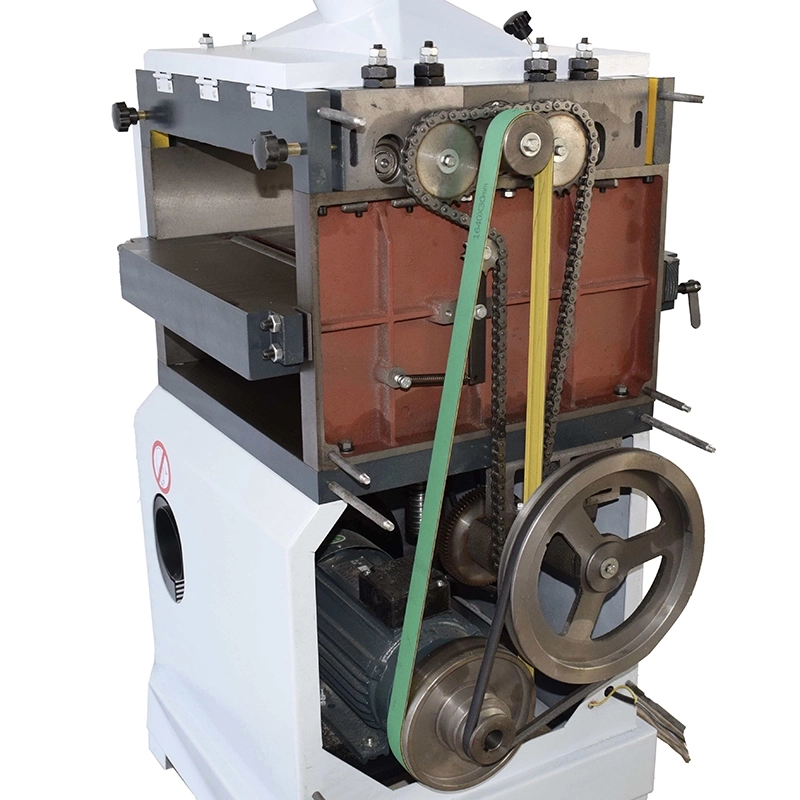

Upgraded single side thickness planer adopts double infeed & outfeed segmented structure with high‑frequency quenched straight feeding rollers, more solid, durable and anti‑breakage.
It supports both flat wood planing and wood moulding processing.

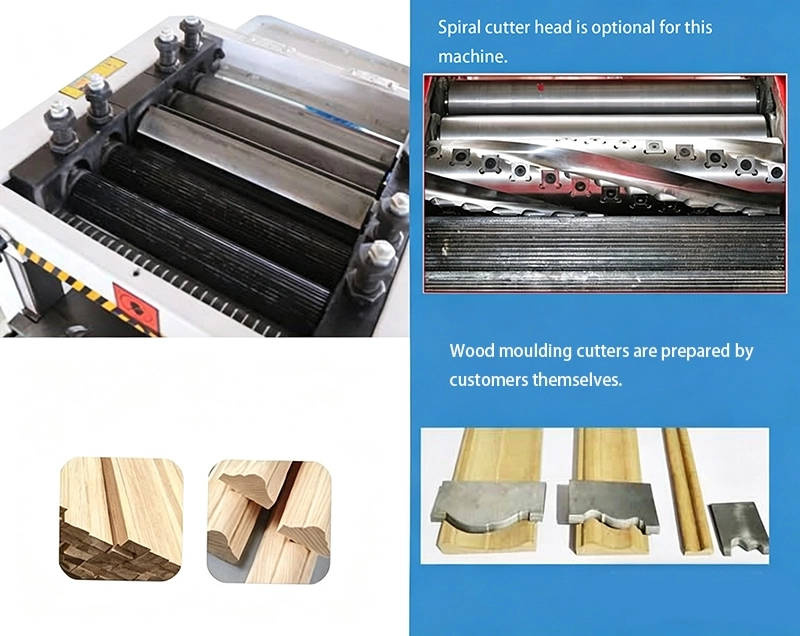

Wood moulding cutters are prepared by customers themselves.
Spiral cutter head is optional for this machine.
Equipped with adjustable roller pressure system, double support rollers reduce friction and ensure smooth feeding.
Triple locking structure keeps table stable and improves processing accuracy.
Independent dust outlet ensures clean working environment.
Compact lightweight body, high spindle speed and wide thickness adjustment range make it perfect for furniture factories and wood processing workshops worldwide.
