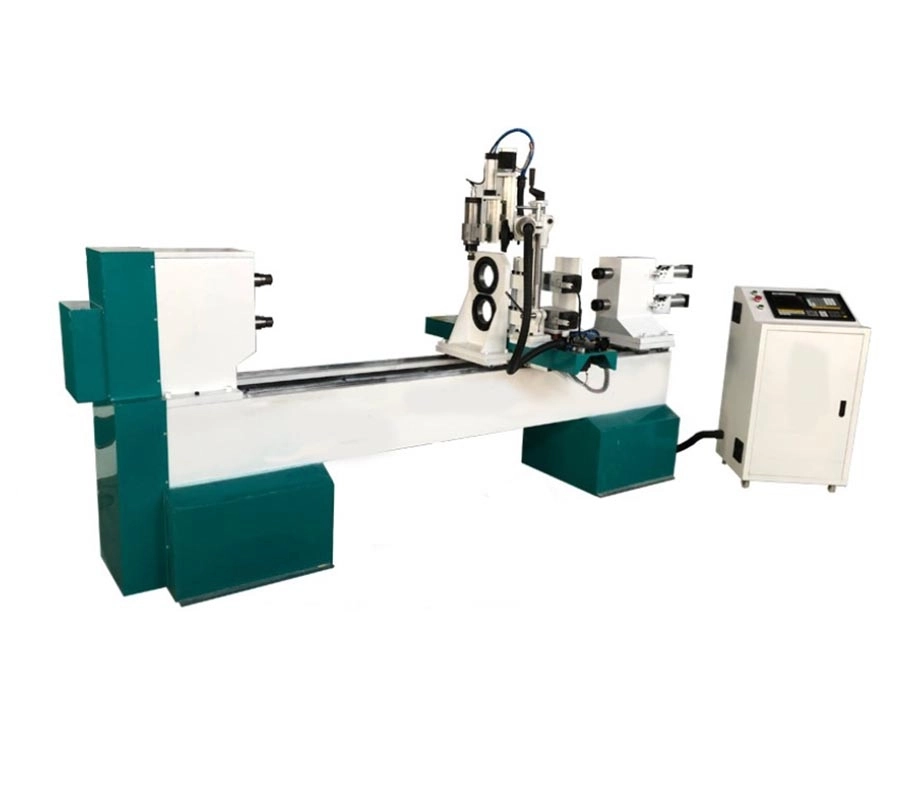

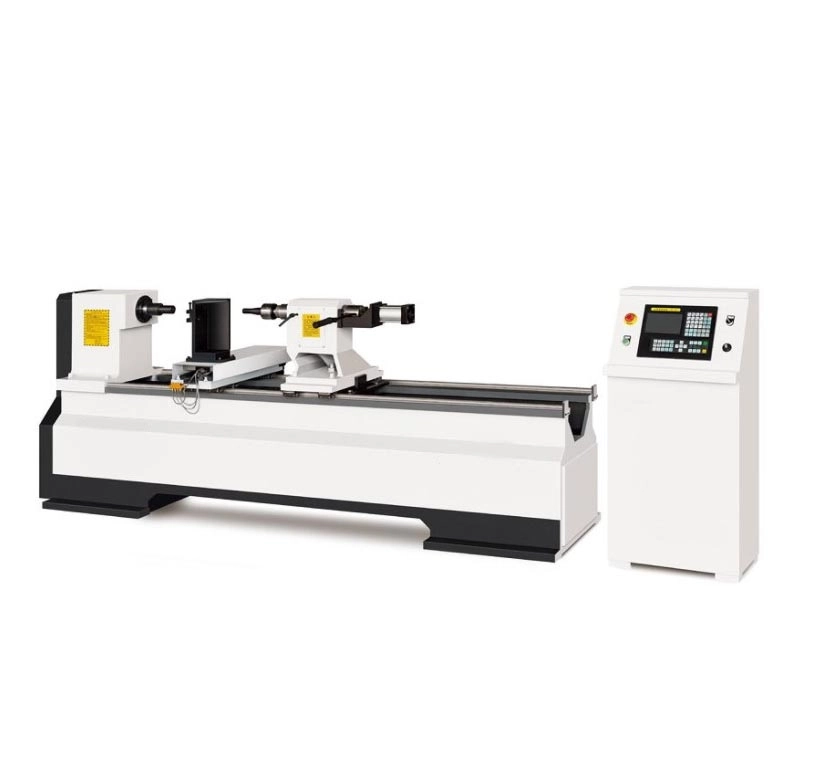

Single /Double-axis CNC woodworking lathe large woodworking lathe for stair column, Roman column lathe, table and chair leg lathe
- Quantity
Model |
AI-CNC310 |
AI-CNC315 |
AI-CNC415 |
AI-CNC420 |
AI-CNC425 |
Machining dimension |
1000*300mm |
1500*300mm |
1500*400mm |
2000*400mm |
2500*400mm |
Motor power |
4~5.5kw( CVT) |
||||
Control |
CMC-PC /DSP |
||||
Machine type |
wooden |
||||
Working speed |
3000mm/min |
||||
Voltage |
220V/380V,50HZ/60Hz, 3 PH |
||||
Dimension |
(2700~3700)*(1400~1800)*1700mm |
||||
Weight |
1550kg |
1600kg |
1750kg |
1900kg |
2500kg |
Suitable for: bed head, bed top, sofa legs, dining chair feet, coffee table legs, coat rack poles, table legs, wooden stools, wooden vases. Cylindrical, conical, curved, spherical and solid wood furniture, solid wood stairs, solid wood Roman columns, solid wood floor hangers, home improvement, wooden crafts and other complex shapes of revolving wood or semi-finished products and Rotary engraving, Helix, Line engraving, flat engraving, slot, turning and hollow,etc.
Suitable for the industry: furniture factory, stair factory, decoration company, wooden handicraft production plant, etc.
Processing materials: It can process various wooden materials such as oak, beech, birch and teak. Sapele, ash, pineapple, sandalwood, rosewood, etc.
