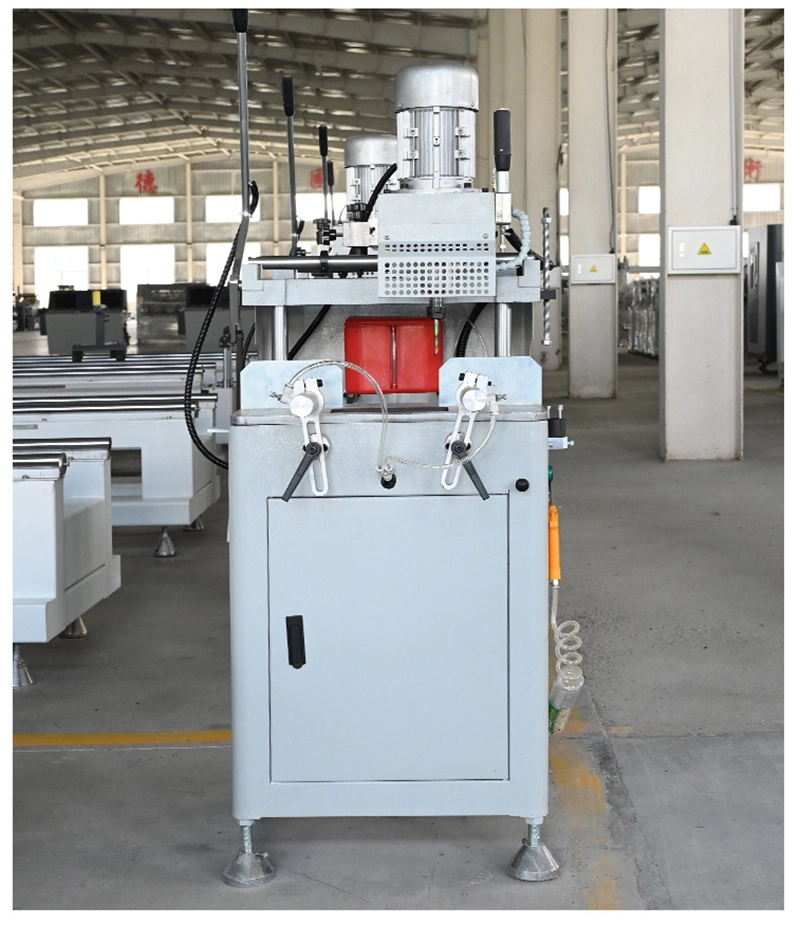

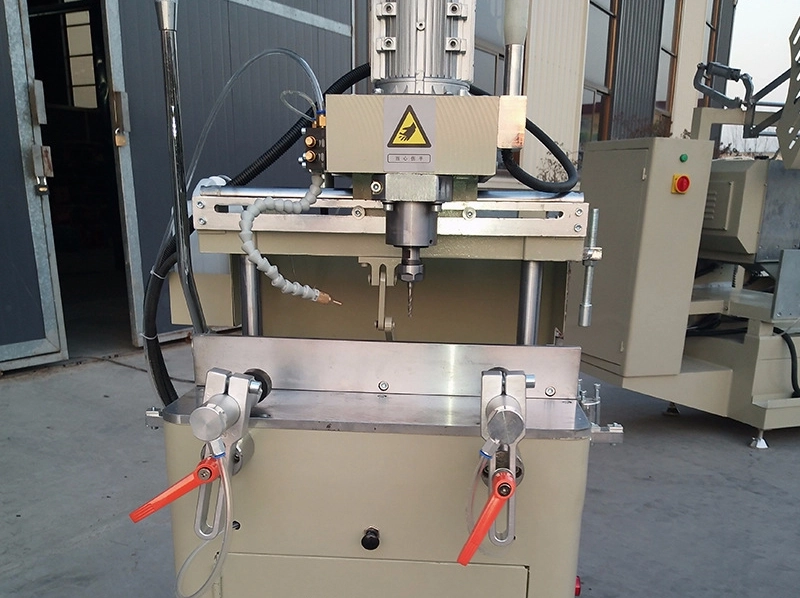

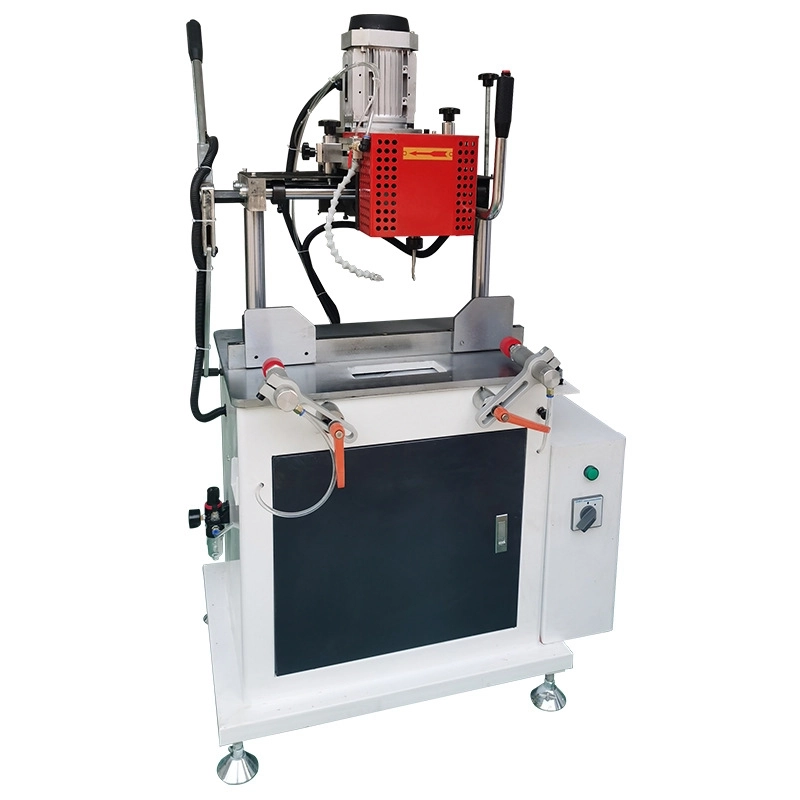

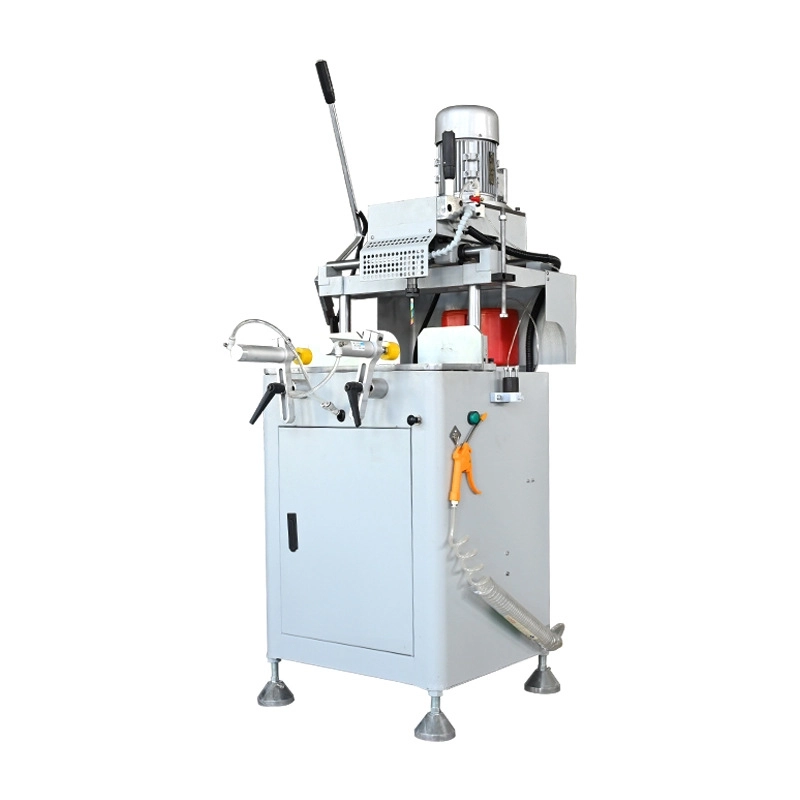

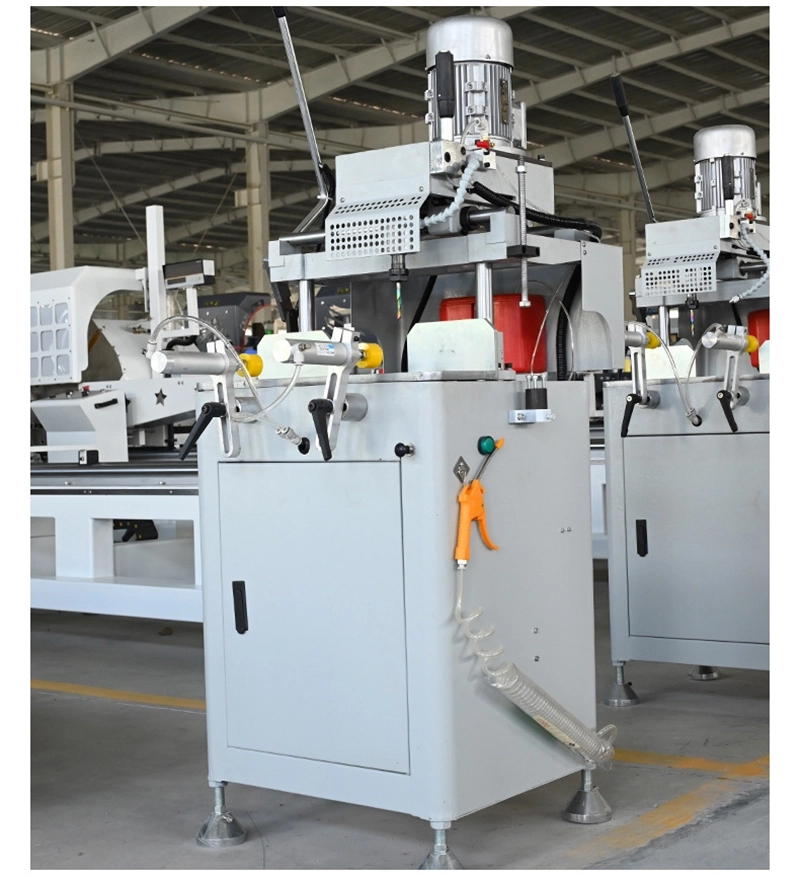

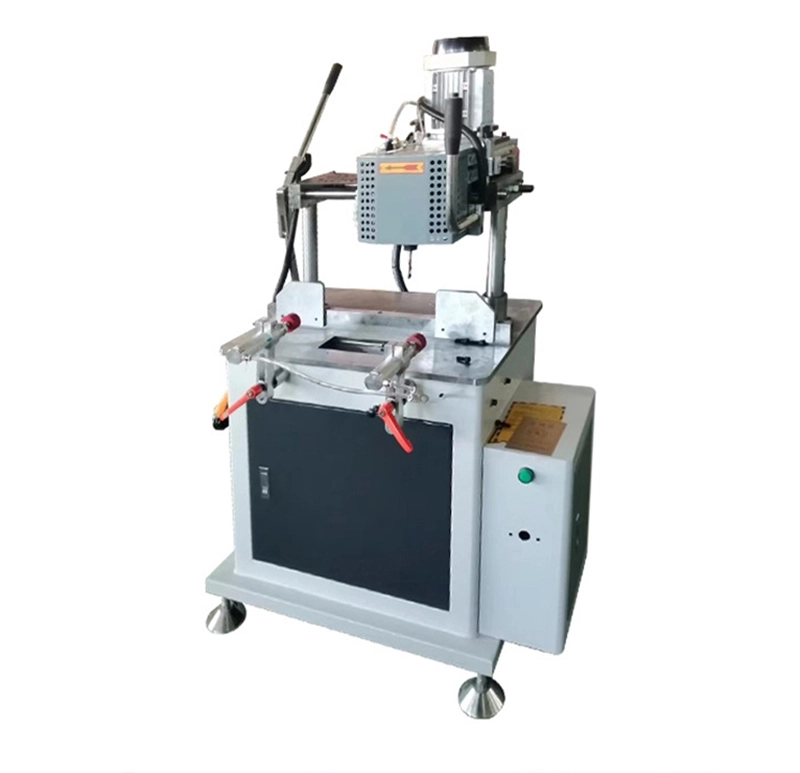

Single Axis Copy Milling Machine for Aluminum Profile Lock Hole Processing

This high speed single axis copy milling machine is specially designed for aluminum profile and broken bridge aluminum processing. It is mainly used for milling lock holes, hinge holes, drainage slots and various notches on aluminum profiles.

The machine adopts pneumatic control and stable structure, which is easy to operate and maintain. With high processing accuracy and reliable performance, it is widely used in small and medium-sized aluminum door and window factories.

It supports different milling cutters to meet various processing requirements. Suitable for export to North America, Middle East, Southeast Asia and other markets.

Technical Parameter

Machine Name: Single Axis Copy Milling Machine

Processing Range: 235 × 100 mm

Motor Power: 1.5 kW

Working Voltage: 380V/220V (customizable)

Air Pressure: 0.5~0.8 MPa

Milling Cutter Diameter: 5mm / 8mm

Overall Dimension: 870 × 700 × 1500 mm

Feature: Simple structure, easy operation, low failure rate, suitable for aluminum door & window lock hole, hinge hole, slot processing.
