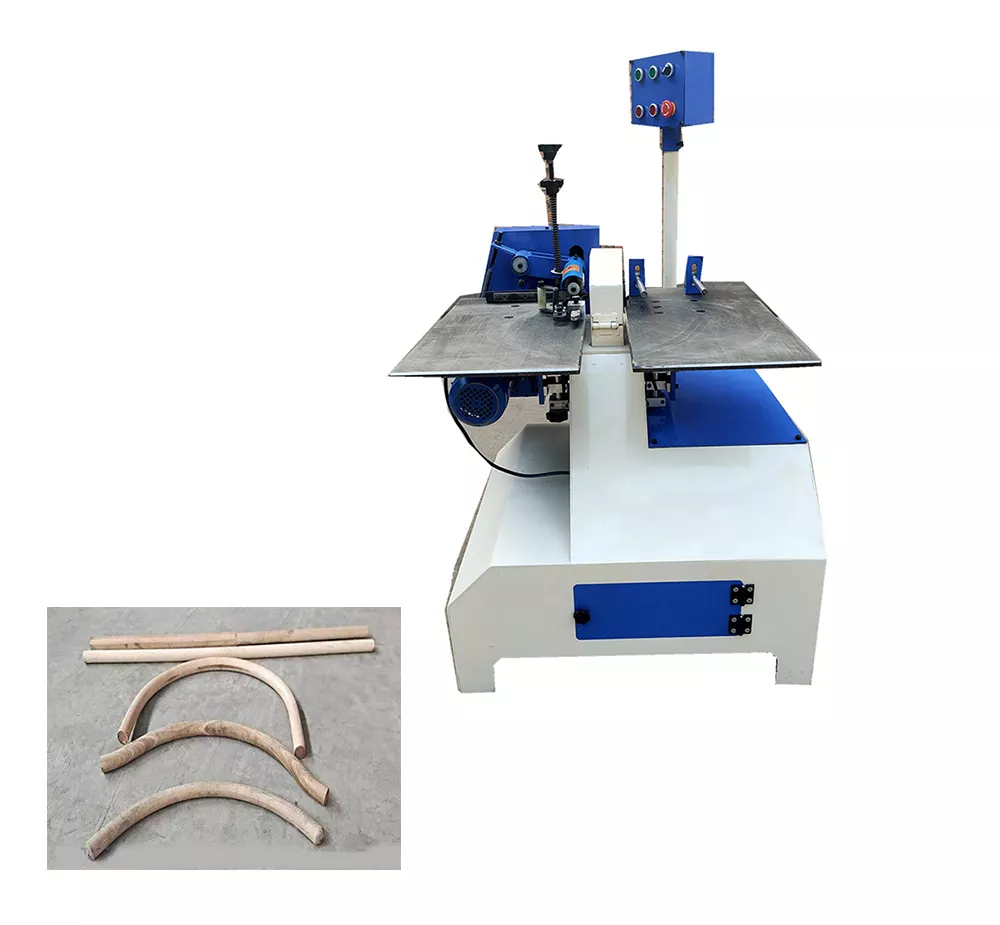

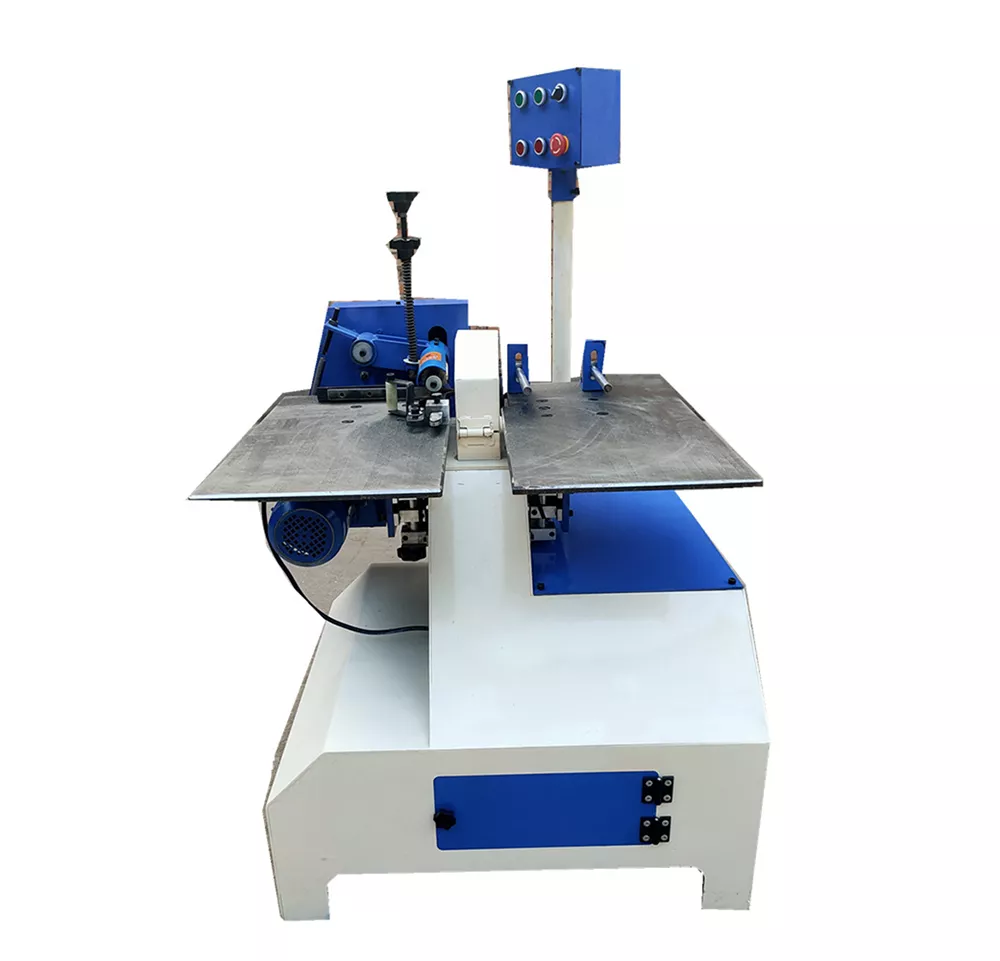

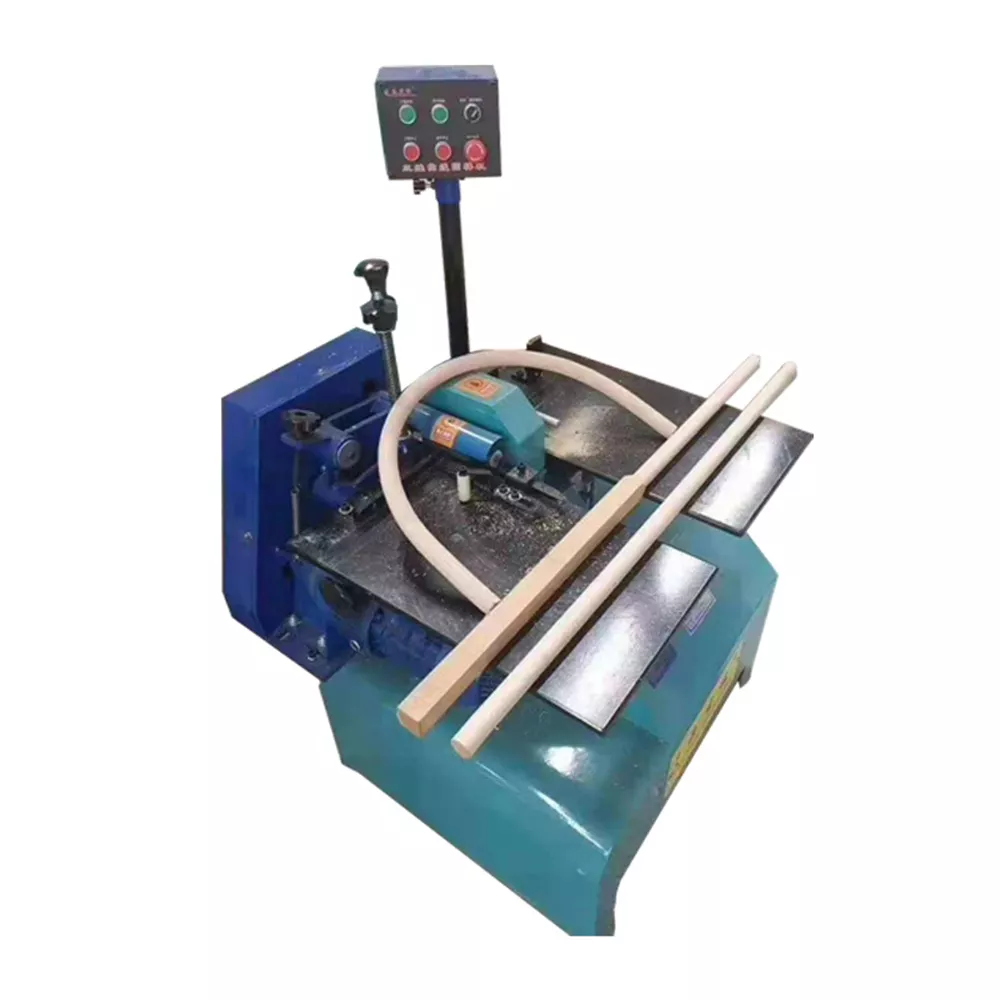

Round Curved Wood Bar Machine Wood Dowel Rounding Machine Wooden Pole Making Machine

  • Quantity

Round Curved Wood Bar Machine Wood Dowel Rounding Machine Wooden Pole Making Machine

Product name

three-dimensional Curved round rod milling machine

Main motor power

3KW

Feeding motor power

0.18kw

Feeding speed

6~15m/min

Min. Processing length

370mm

Max. Processing width

80mm

Max. Processing height

80mm

Processing diameter

16~60mm

Spindle speed

3200r/min

Dimension

800*800*1350mm

Weight

235kg

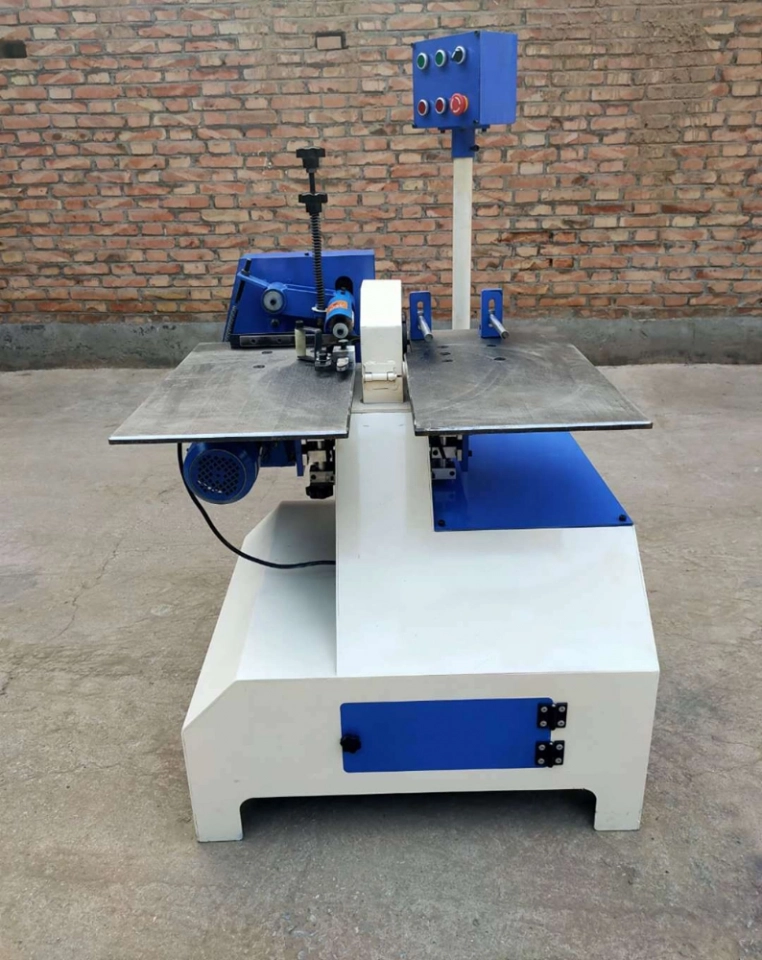

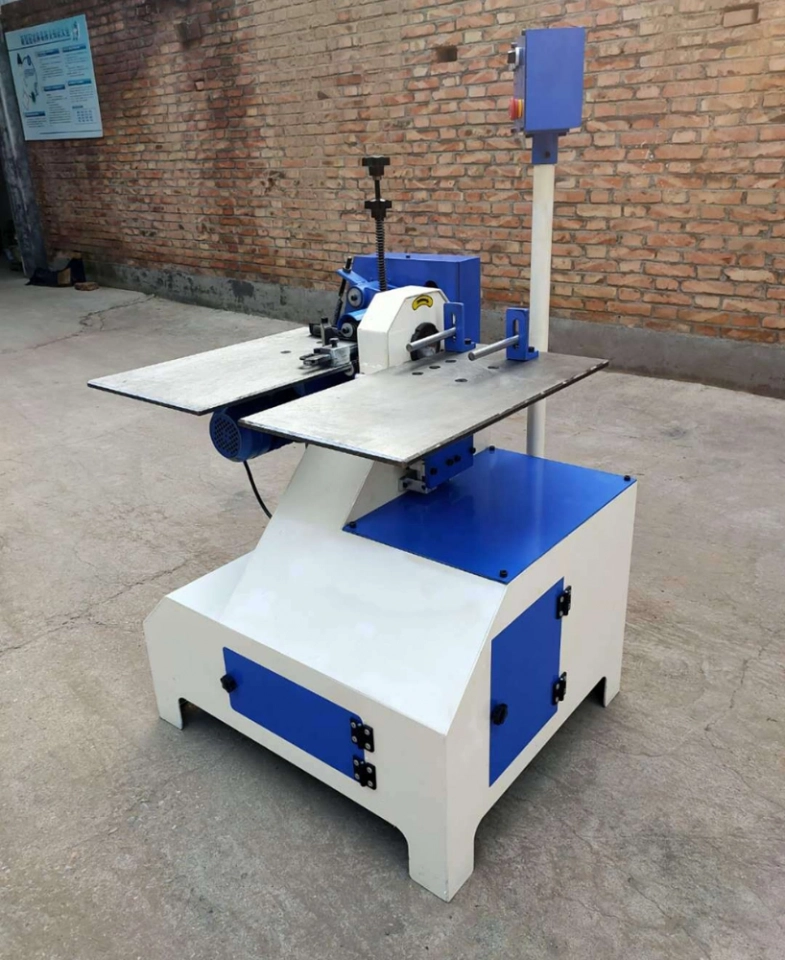

Round Curved Wood Bar Machine Wood Dowel Rounding Machine Wooden Pole Making Machine

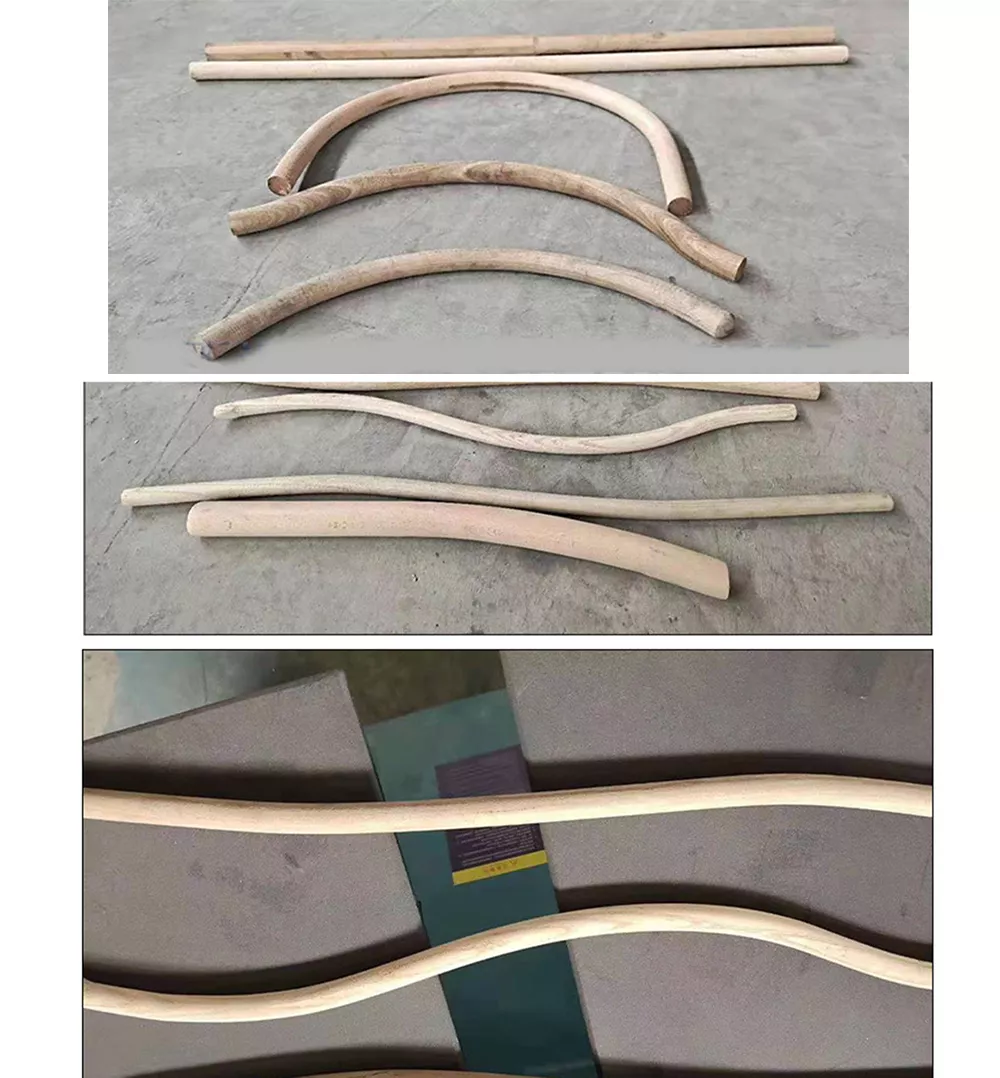

The machine is suitable for very curved chair components or furniture accessories, as well as spiral stairs and curved handrails and some round handles of wood products,

the outer round sanding treatment, for complex shaped round rods, especially three-dimensional materials to spray primer polishing treatment, increase the surface finish

and appearance of the workpiece, is one of the antique wood furniture manufacturing standing woodworking machinery.



Pure copper motor high power, safe use, fast speed, high efficiency, suitable for making a variety of curved round rod. The resulting strip has a smooth surface. The shape is complete without notch.

Curved rod milling (6)Curved rod milling (4)Curved rod milling (9)Curved rod milling (8)
