Pneumatic Small End Milling Machine for Aluminum Window & Door Profiles

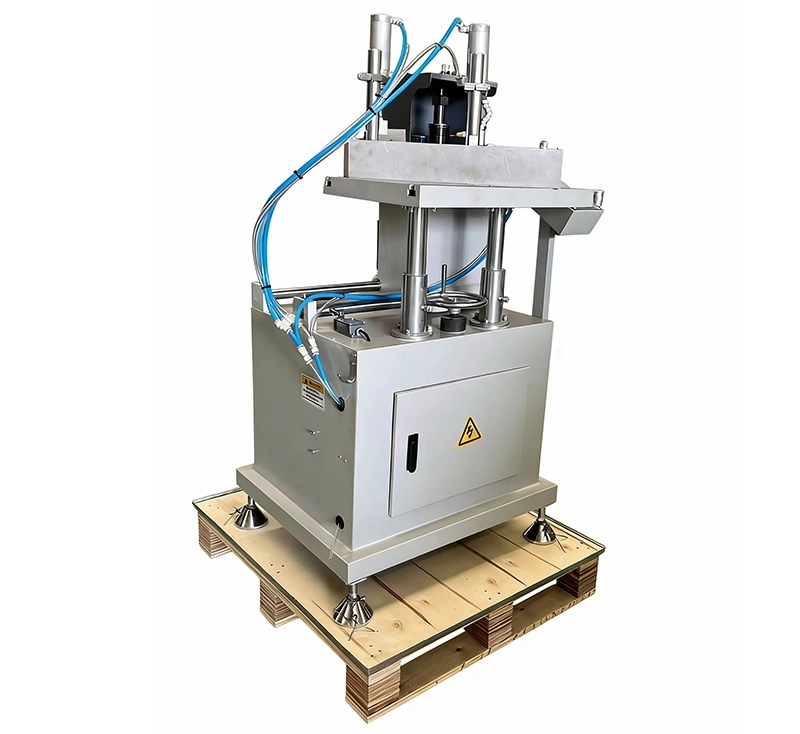

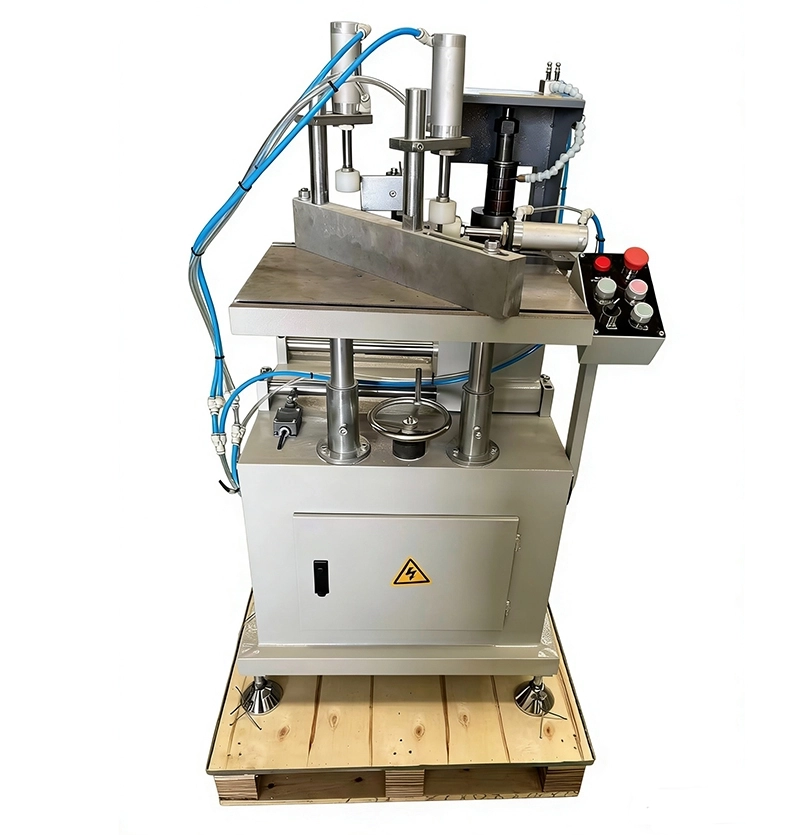

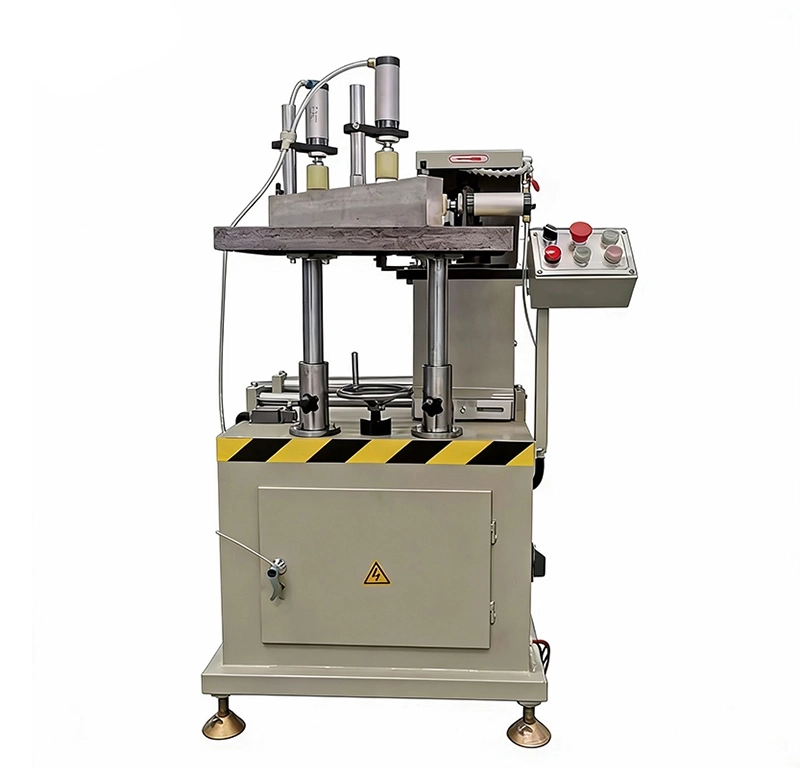

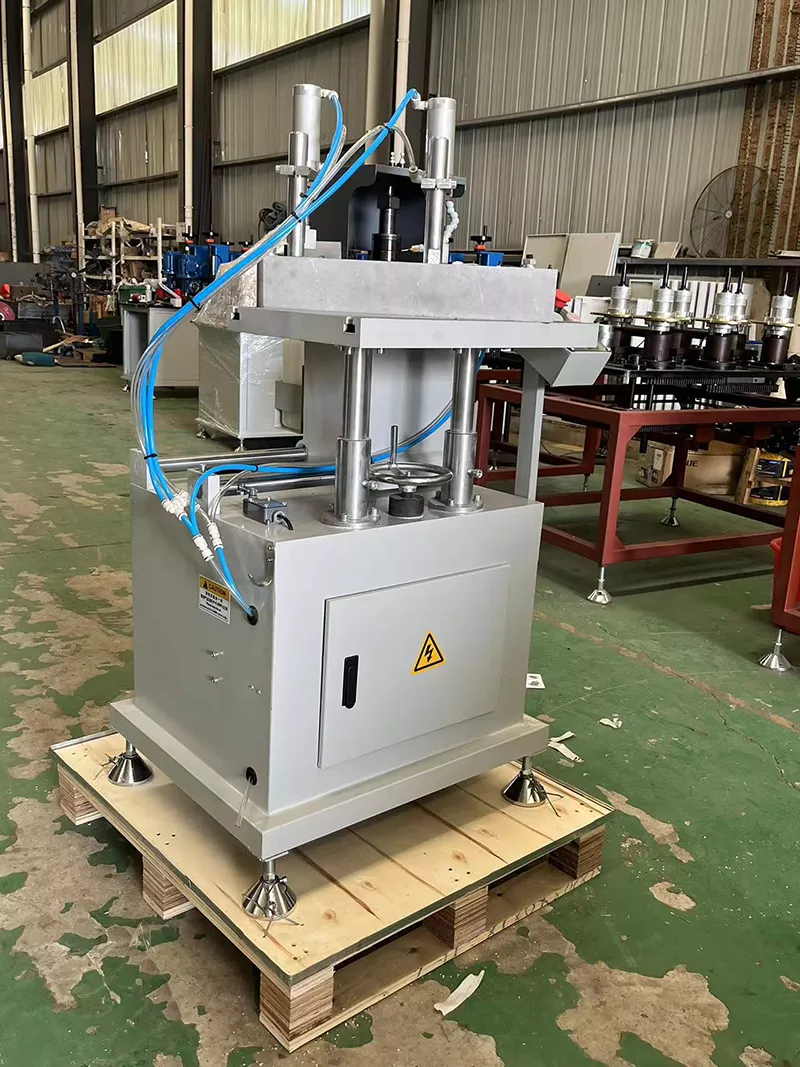

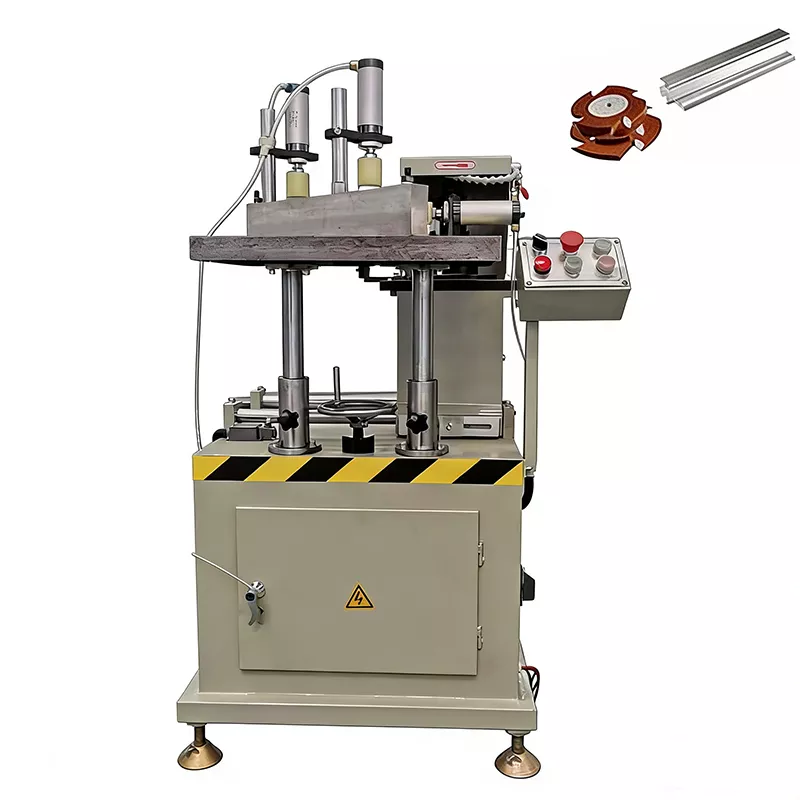

Pneumatic Small End Milling Machine

This machine is designed for aluminum and thermal break window profiles. It uses pneumatic automatic feeding and a high-power motor for efficient one-pass milling. The stable structure ensures high precision, smooth surface and perfect splicing. Easy to operate, low failure rate, CE certified and suitable for global export.

Key Features

Pneumatic automatic feeding with adjustable speed

High-power motor for stable and efficient milling

High precision with smooth surface and seamless splicing

Heavy-duty frame, durable and low vibration

CE certified, neutral packaging available

Compact size, easy transport and low shipping cost

Applications

Aluminum window & door profile end milling, mullion processing, tenon milling and decorative profile processing.

Technical Specifications

Model: Standard

Suitable Material: Aluminum & Thermal Break Profiles

Motor Power: 1.5kW

Feeding Type: Pneumatic Automatic

Spindle Speed: 3000r/min

Max. Processing Height: 0-120mm

Worktable Size: 300×200mm

Air Pressure: 0.6-0.8MPa

Overall Dimension: 800×600×1300mm

Net Weight: 220kg

Certification: CE
