PFA 16"400mm Multipurpose Wood Planer Multifunctional Combination Woodworking Machine
- PFA 16", Max. planing width
- 400mm
- Quantity
PFA 16"400mm Multipurpose Wood Planer Multifunctional Combination Woodworking Machine
|
Model |
PFA 16" |
|
Function (10 ) |
Sawing, planing and jointing, thicknessing, sharpening saw blade and planing blade, drilling square or round hole(mortise), chop spring, grooving, cutting mouth, tenoning |
|
Max.planing width |
400mm |
|
Max.planing depth |
3mm |
|
sawing thickness |
10~120 mm |
|
Max.sawing depth |
100mm (when use 12inch saw ) |
|
Motor power |
3kw |
|
Min. thickness length |
150mm |
|
Max. Mortise depth |
10mm |
|
Feeding speed |
10m/min |
|
Spindle speed |
4200RPM |
|
Net weight |
235kg |
|
Working table length |
1500mm |
|
Dimension |
1500*1000*810mm |
|
Package list (1 piece) |
40T 10inch alloy saw blade, thicknss planer blade, Square bit 10mm , Sharpening grinding wheel, Sharpening saw blade grinfing wheel, Slotting saw balde , Cast iron ruler and sliding table, saw blade prot |
PFA 16"400mm Multipurpose Wood Planer Multifunctional Combination Woodworking Machine

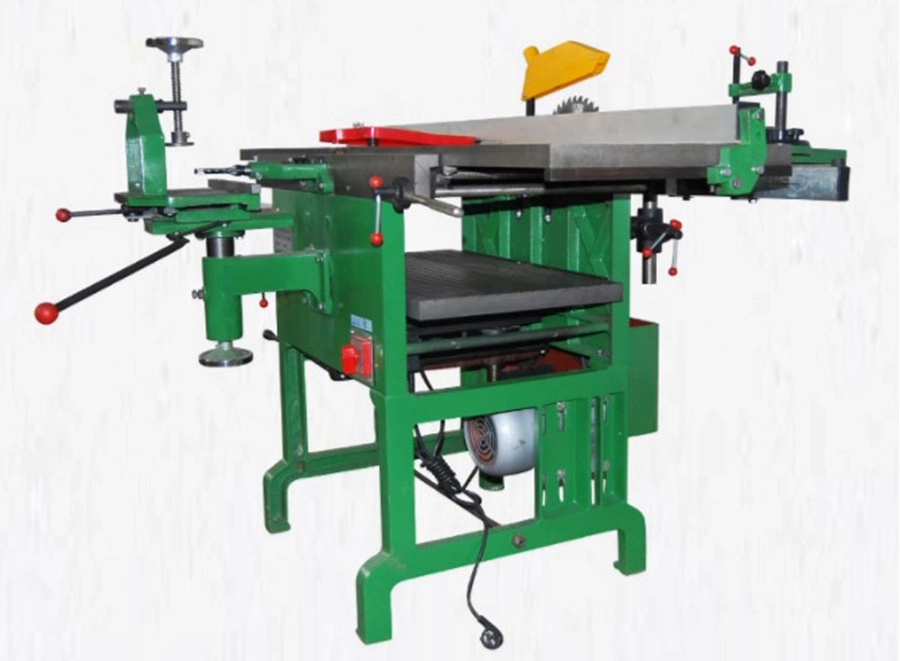

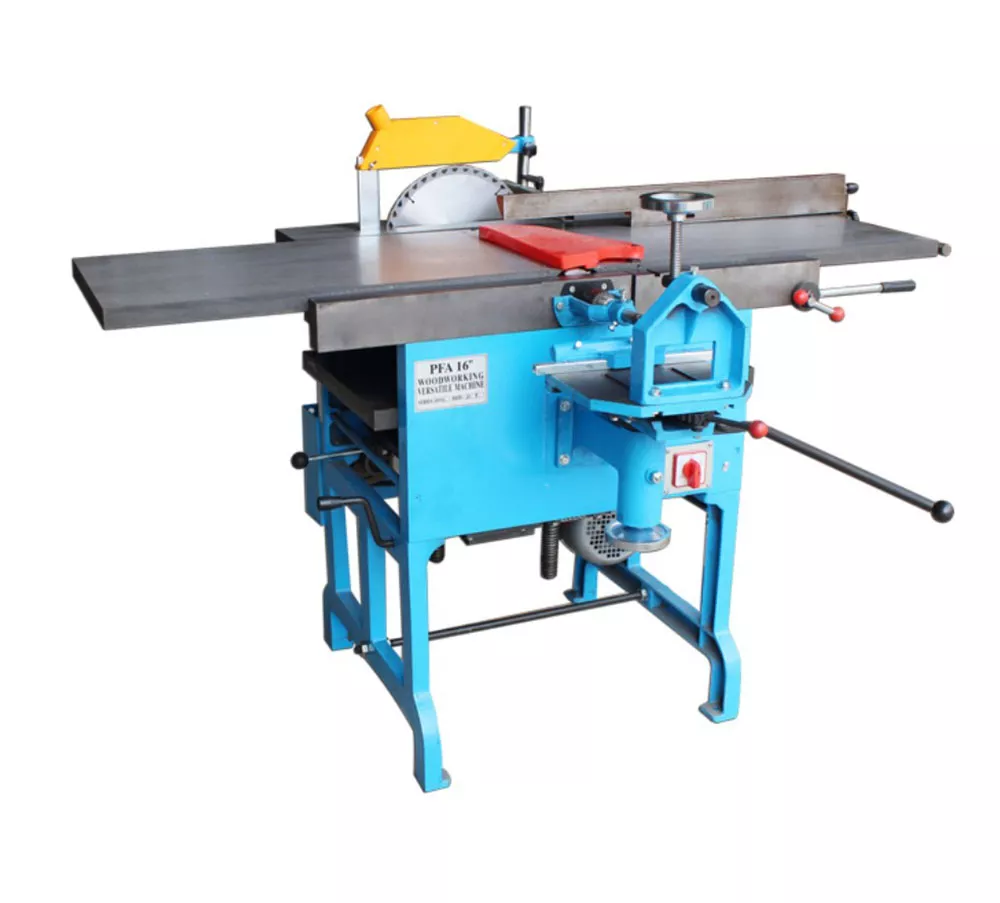

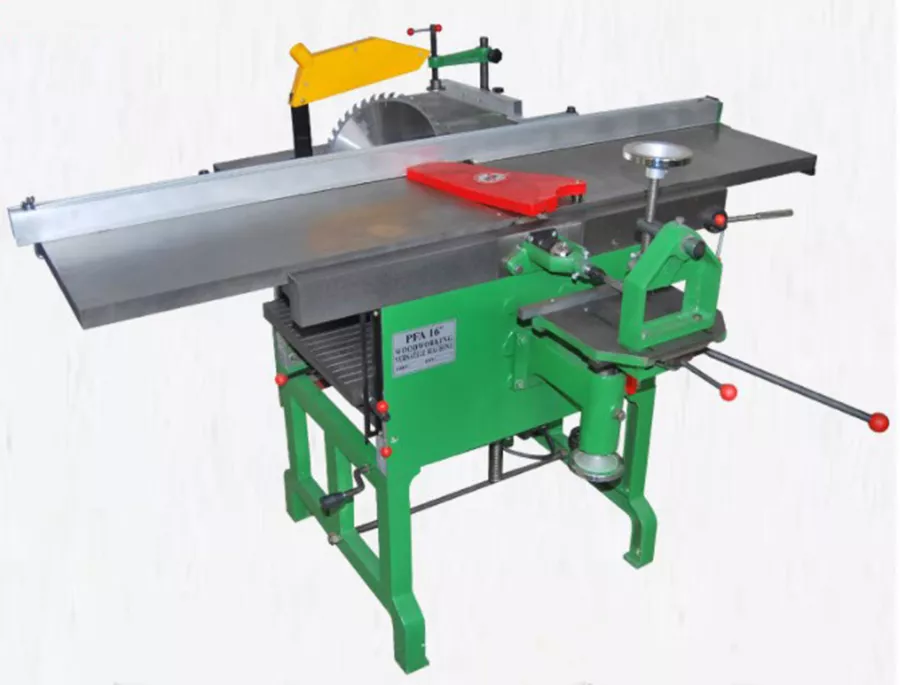

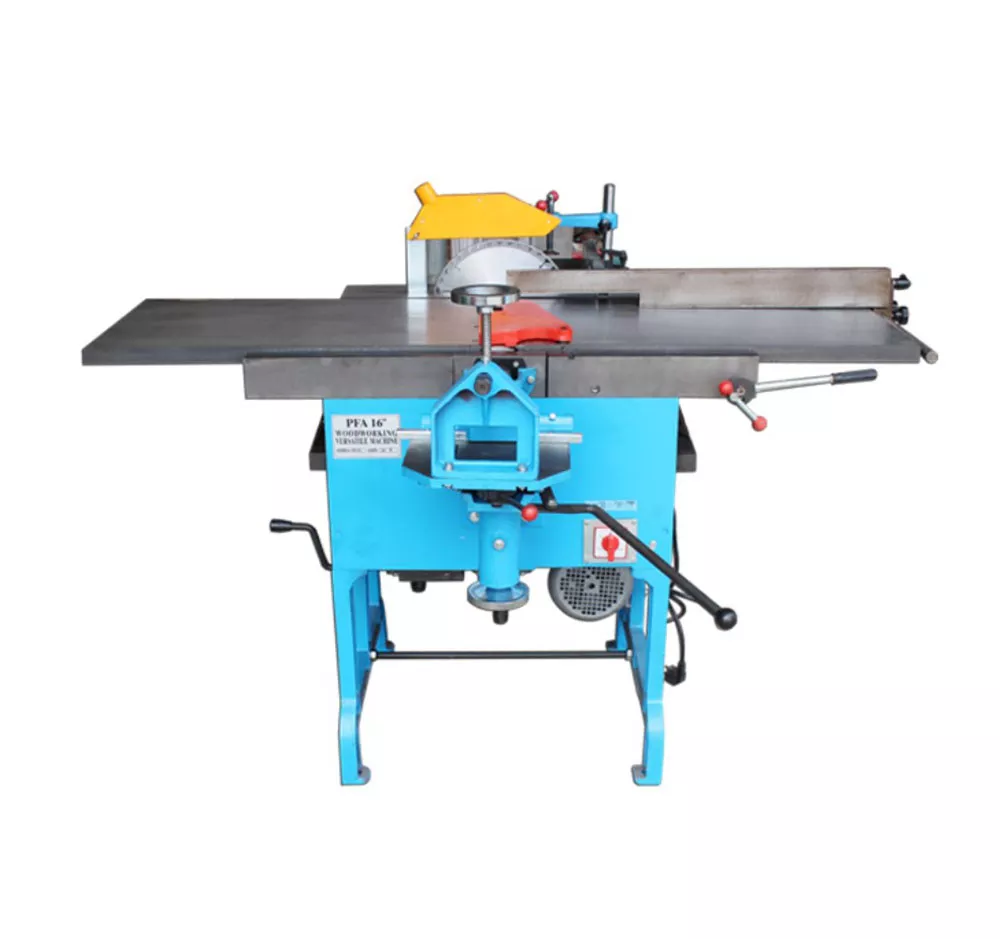

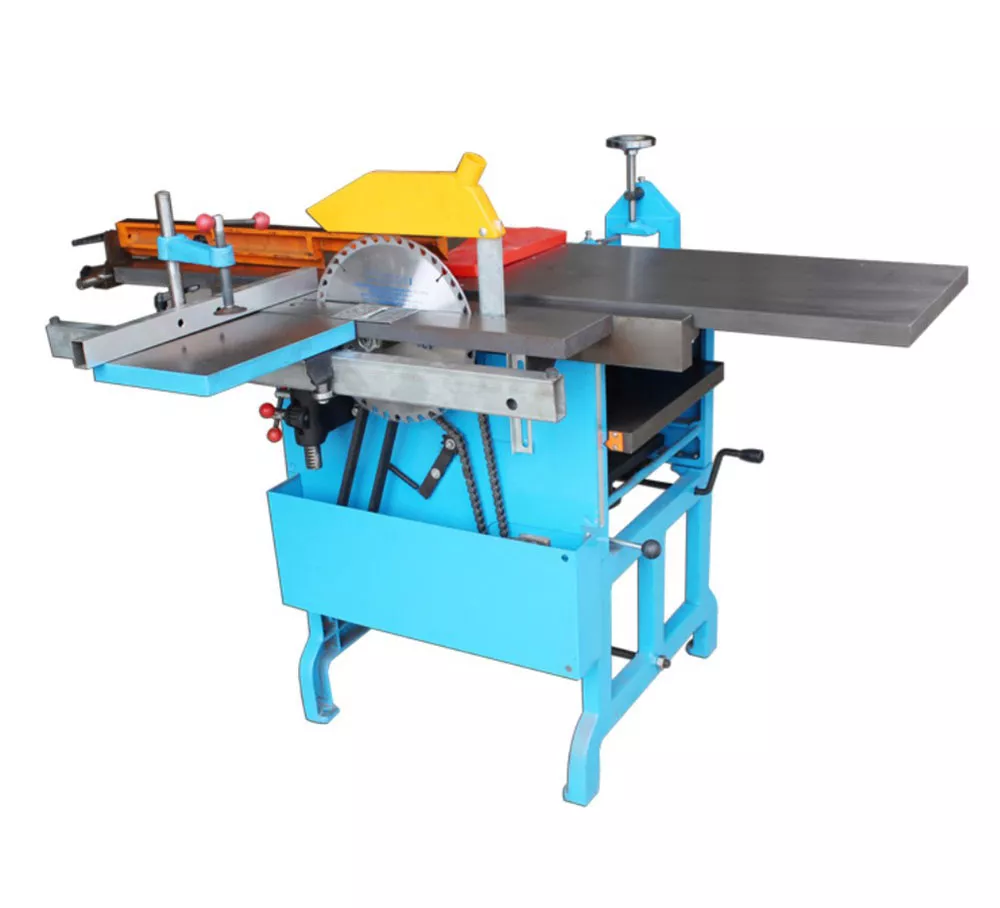

PFA 16inch 400MM is a multi-functional heavy-duty woodworking combination machine, which has multiple functions such as cutting,
planing, planing, grooving, tenoning, drilling, sharpening, sharpening saw blades, and cutting. The cast iron of the planer is finely ground
as a whole, with high machining accuracy and good jointing effect. Standard mobile sliding table, can cut and cut small materials at an oblique angle,
standard saw blade and planer guard, safer to use.
