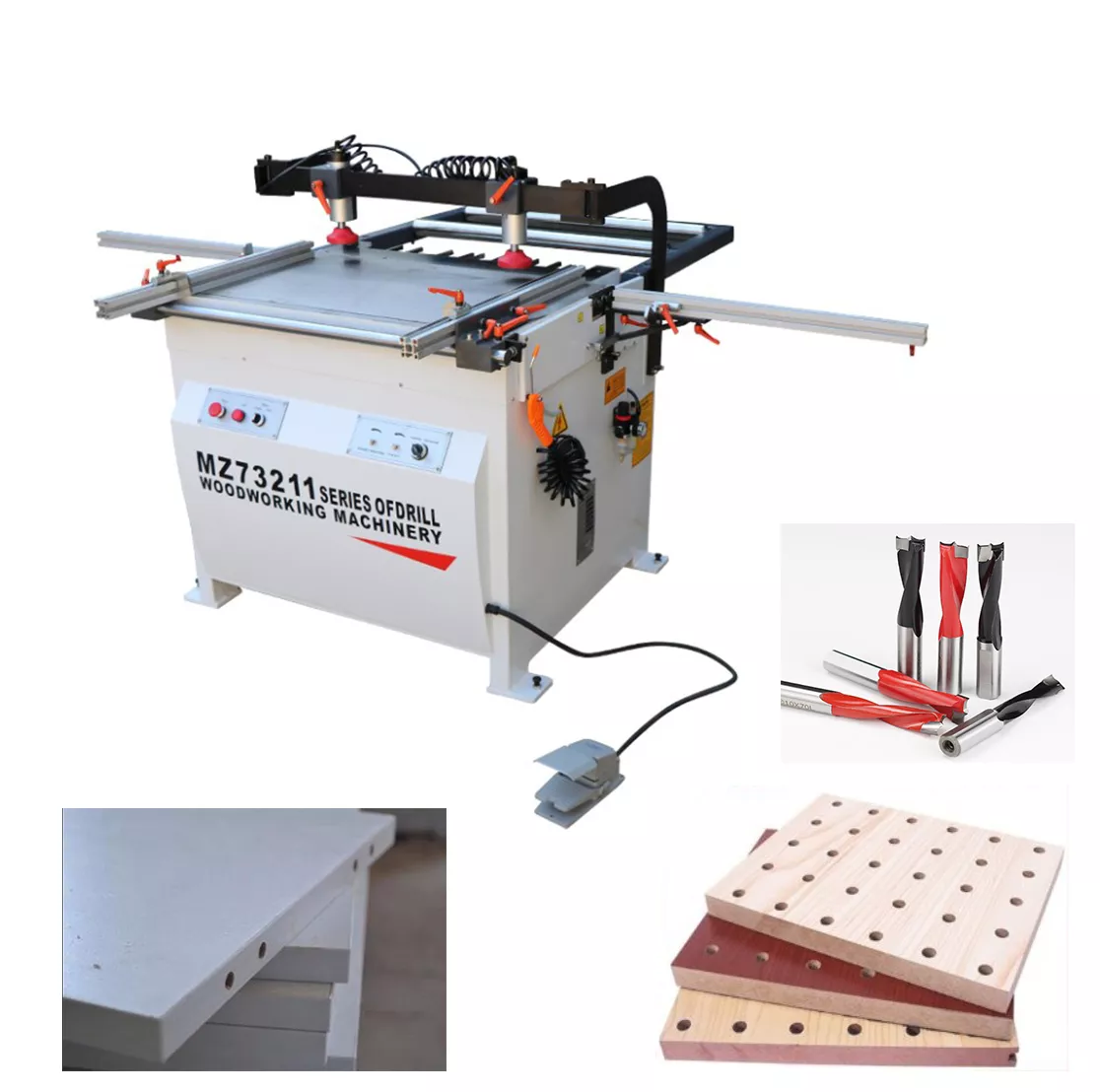

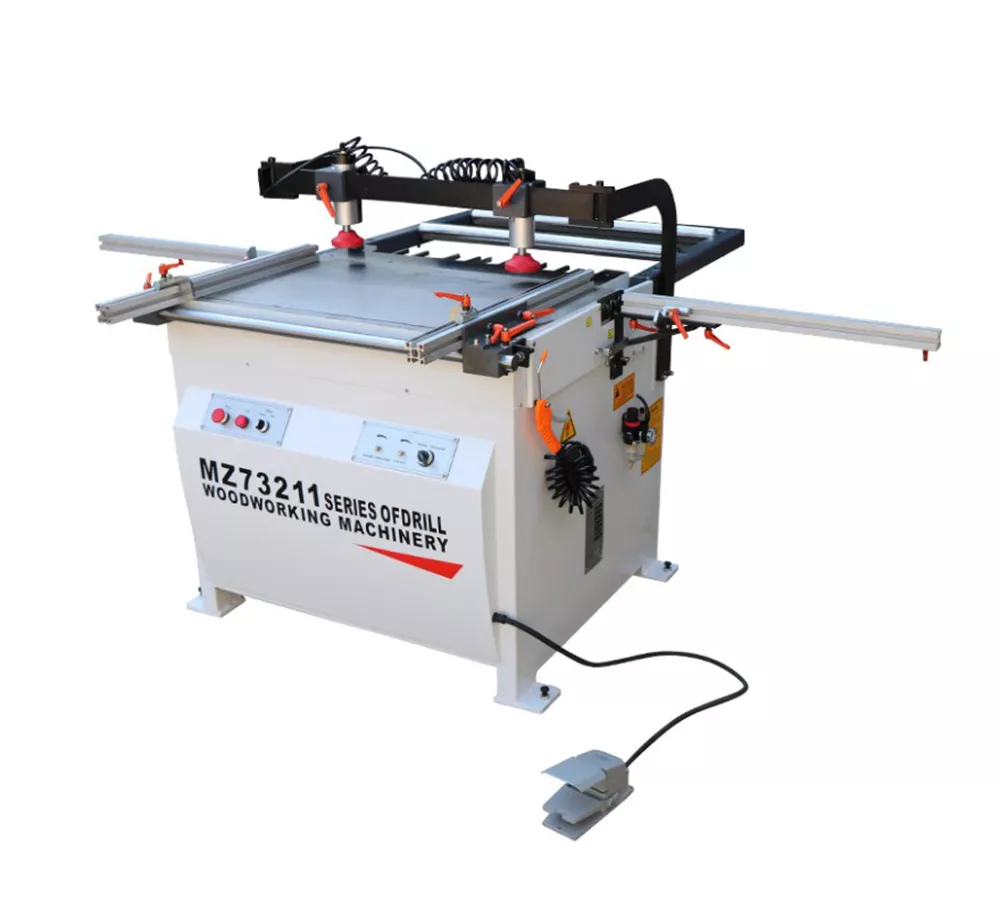

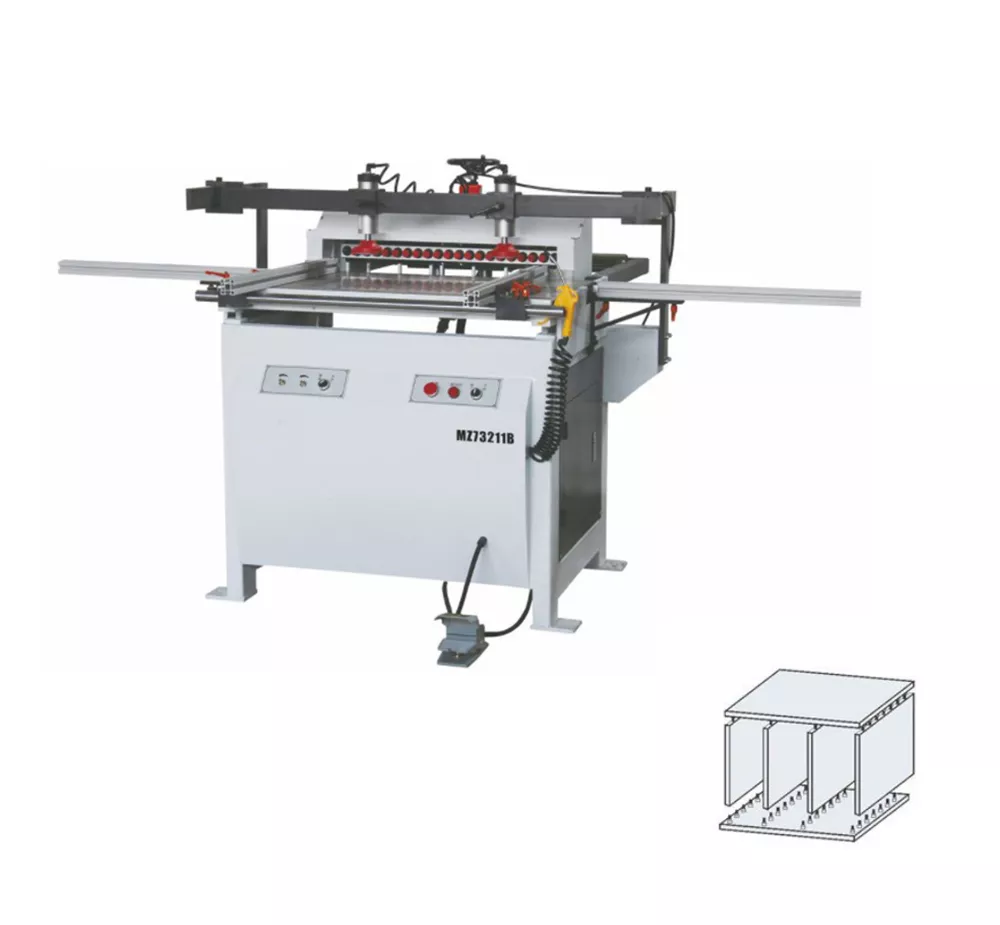

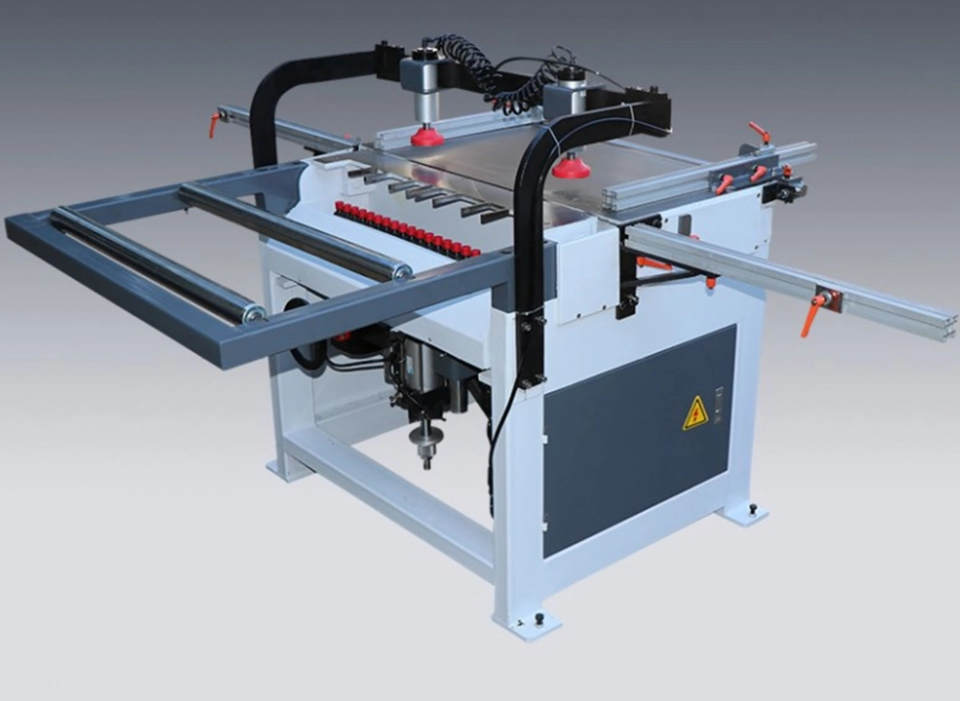

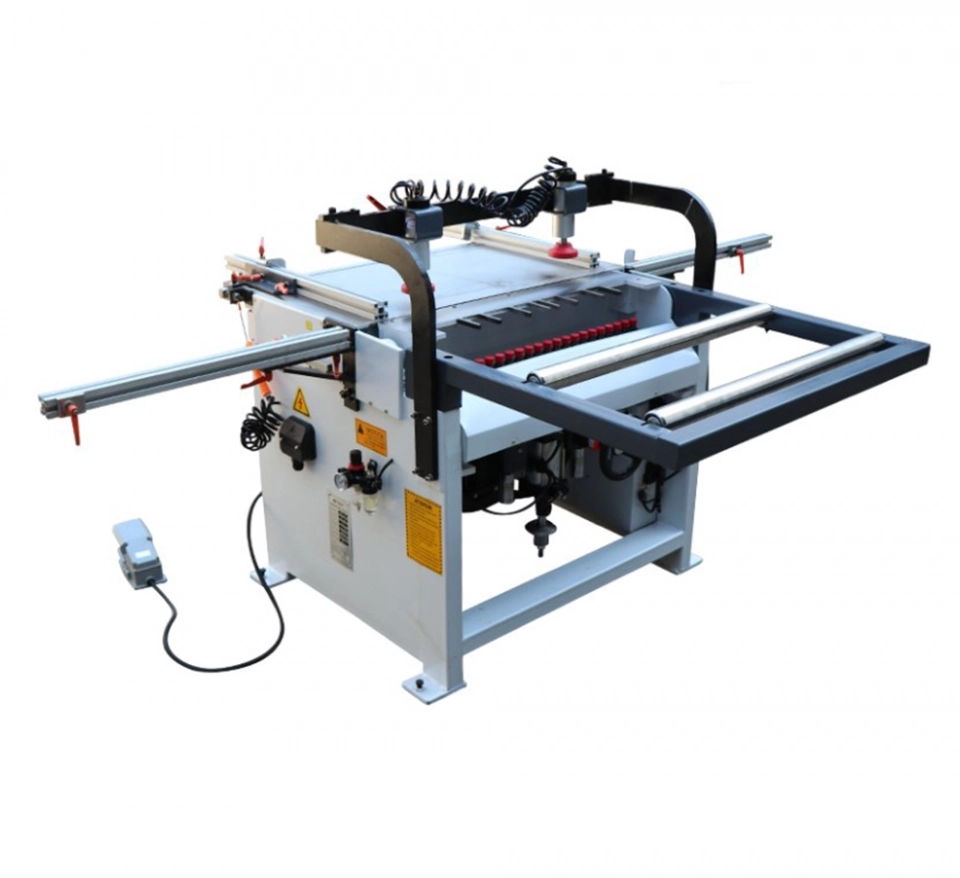

MZ73211/MZ73211B Woodworking Single Row Multiple Head Multi-boring Drilling Machine

Multi-boring Drilling Machine

  • Quantity

MZ73211 single row multi-spindle woodworking drilling machine boring machine

Model
MZ73211
Manimum drilling diameter
35mm
Manimum drilling depth
60mm
Number of auger shaft
21
Rotational Speed
2840r/min
Motor Power
1.5kw
Air pressure
0.6-0.8MPa
Packing Size
1140x1100x1270mm
Overall size(LxWxH)
1040*1000*1170mm
Weight (KG)
300kg
Voltage
220V/380V/Customed

MZ73211/MZ73211B Woodworking Single Row Multiple Head Multi-boring Drilling Machine

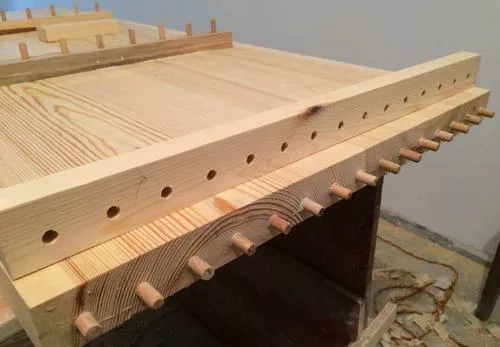

It is suitable for drilling all kinds of density board, particleboard, wood-based board, PVC board, plexiglass board and solid wood.

The overall frame structure, the table, column and beam are made of cast iron; the unique turnover structure, with 0-90 ° free rotation function,

solves the special angle vacancy demand of some products. The machine is equipped with a locking device and a new auxiliary backer,

which makes the performance of the machine more stable and durable.

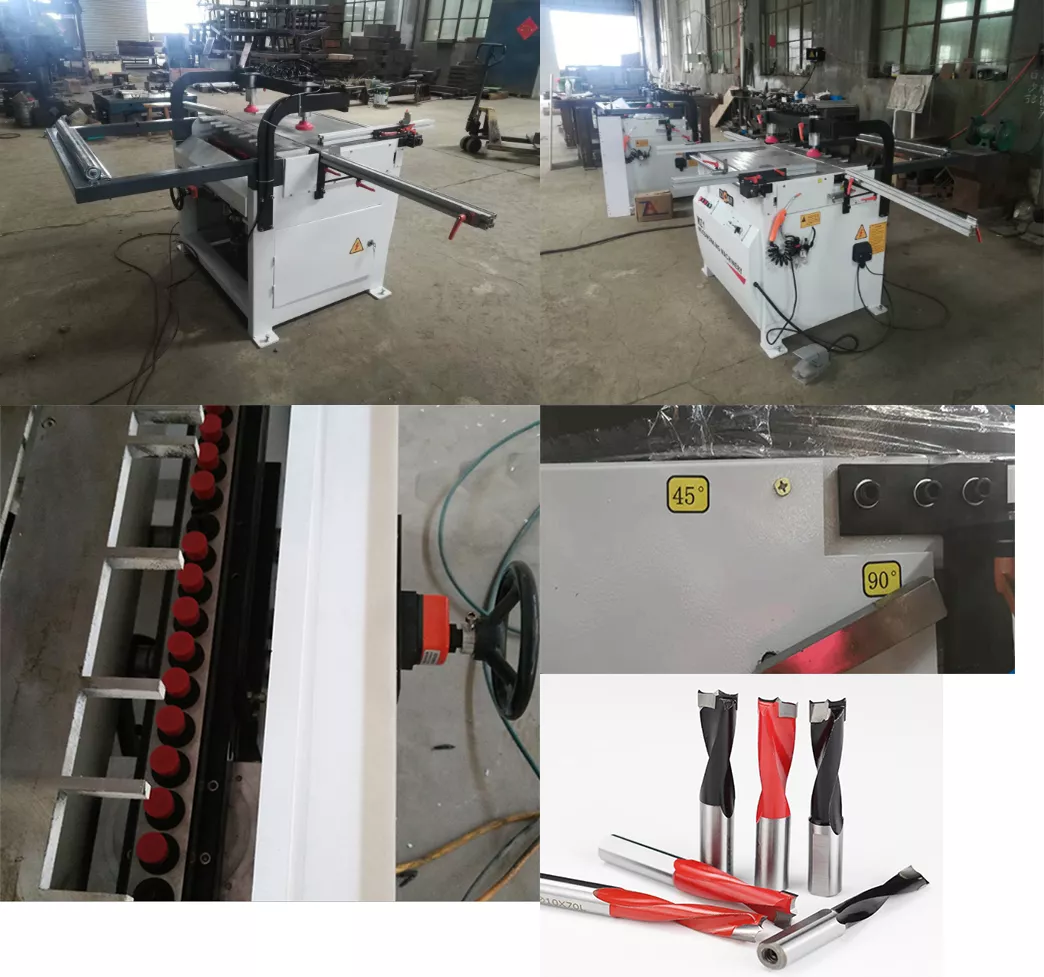

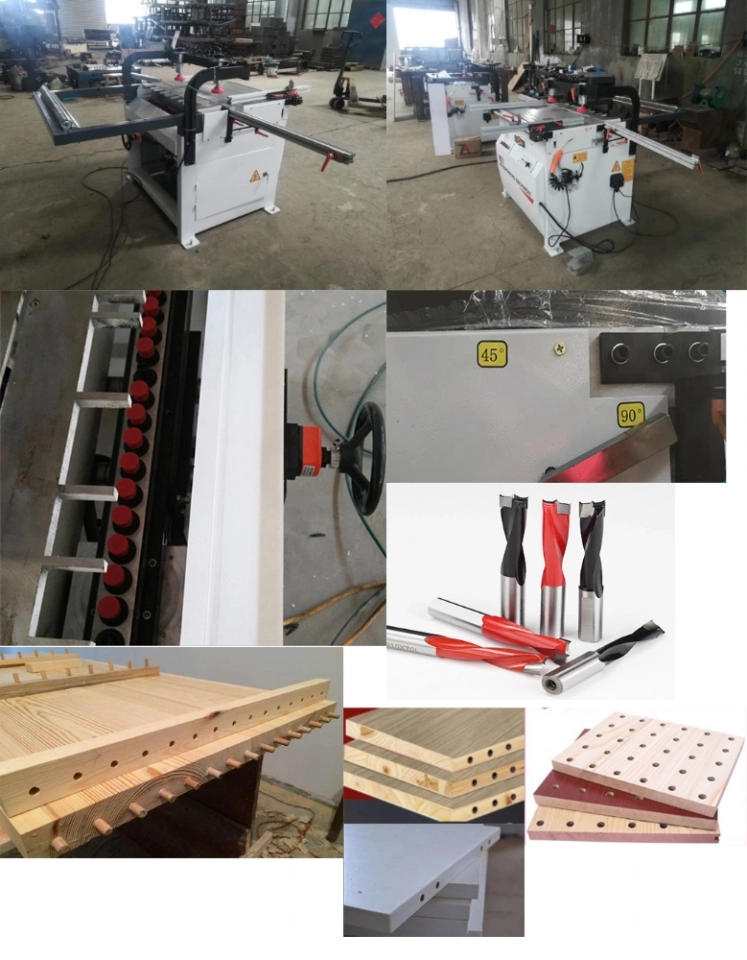

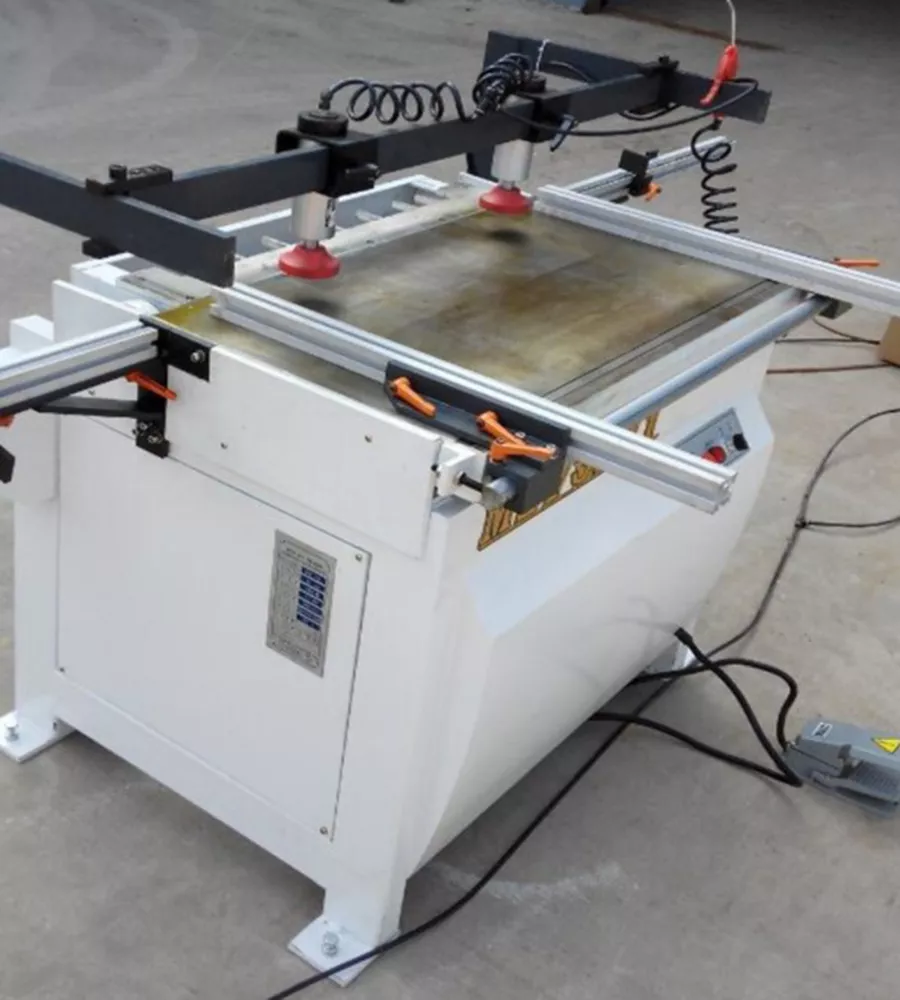

multi boring machine  (4)
