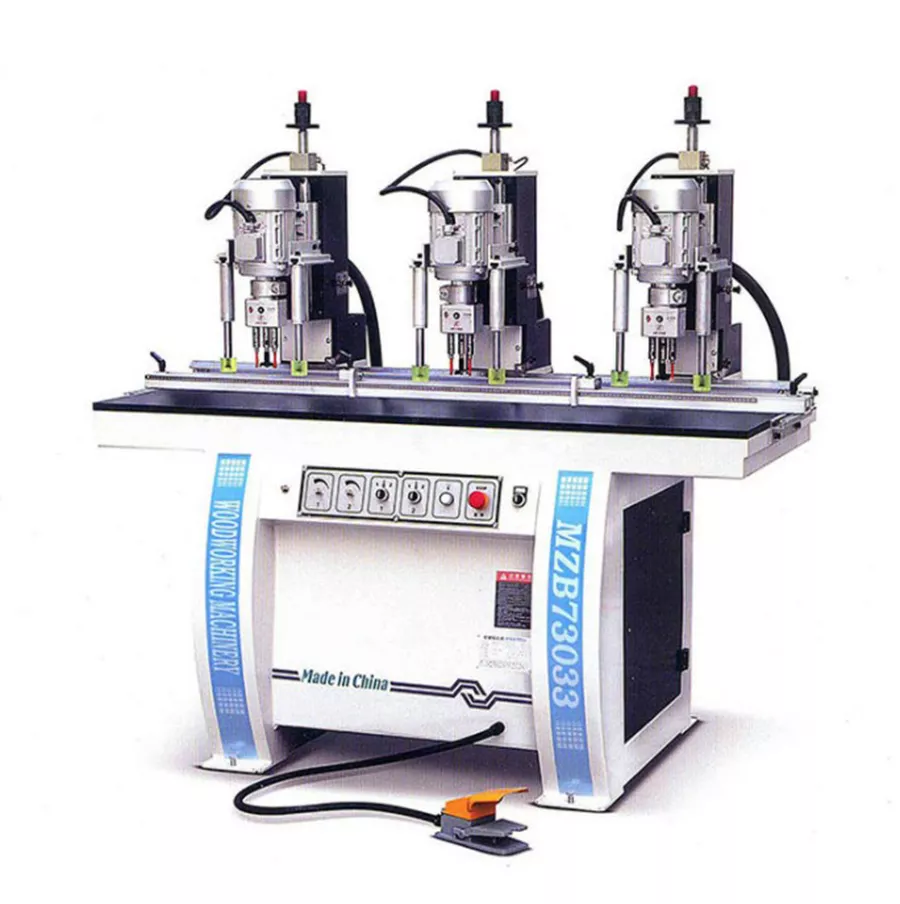

MZ73033/MZ73034 three/four-head hinge drill boring machine door lock hole cabinet hinge boring drilling machinery for wood furniture
- Quantity
MZ73033/MZ73034 three/four-head hinge drill boring machine door lock hole cabinet hinge boring drilling machinery for wood furniture
Drilling diameter 35mm
Max. Drilling depth 60mm
Drilling hole distance : 180~2400mm
Total motor power 1.5KW*3/ 1.5kw*4
Spindle speed 2880rpm
Number of drilling spindles 3*4
Air pressure 0.6~0.8Mpa
Dimension : 2000/2500*800*1550mm
weight 650/850kg
MZ73033/MZ73034 three/four-head hinge drill boring machine door lock hole cabinet hinge boring drilling machinery for wood furniture
Mainly for loose-leaf and hinge drilling, the drilling position can be adjusted longitudinally and horizontally,
which is convenient and quick to adapt to the drilling processing requirements. It is an ideal equipment for cabinet, wardrobe, and door processing manufacturers.
