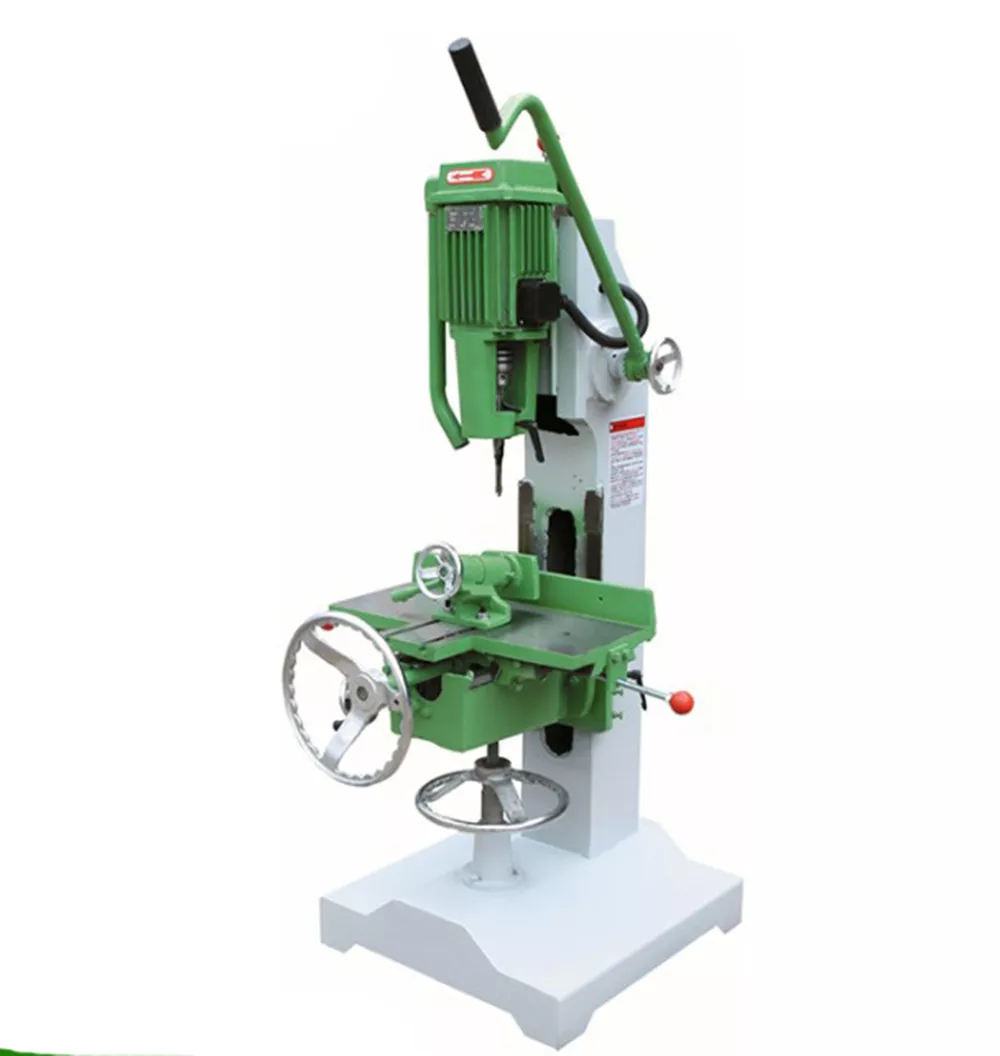

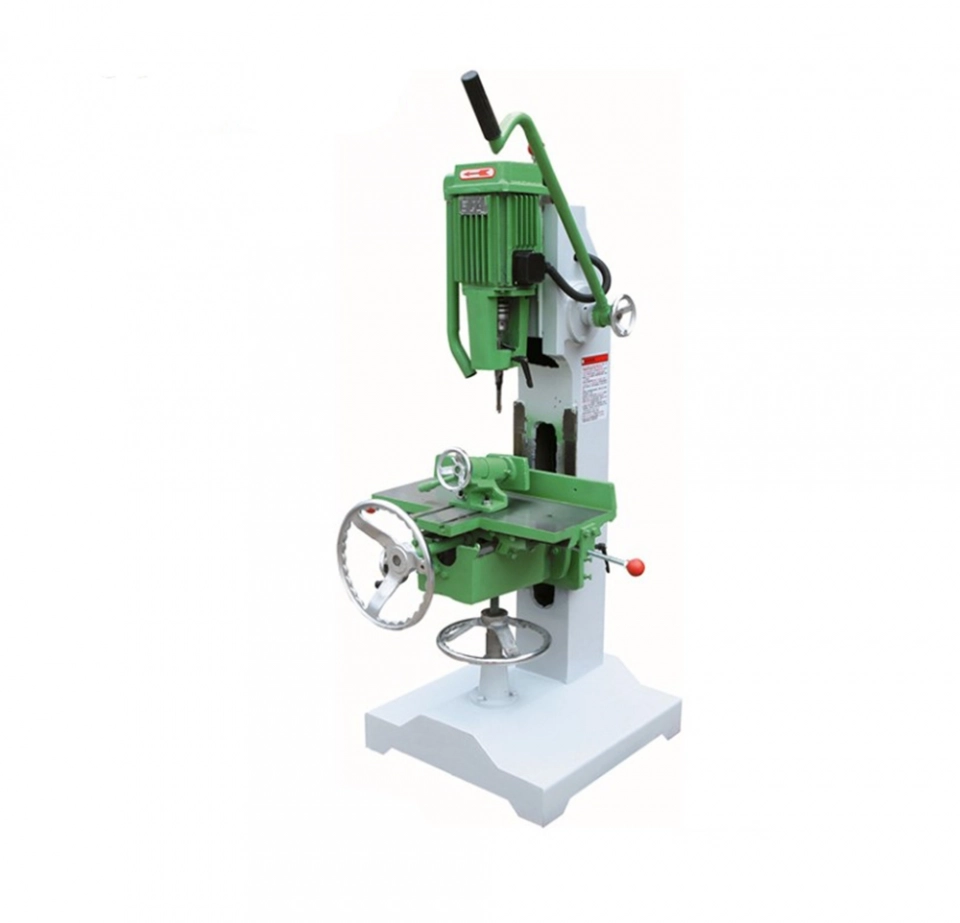

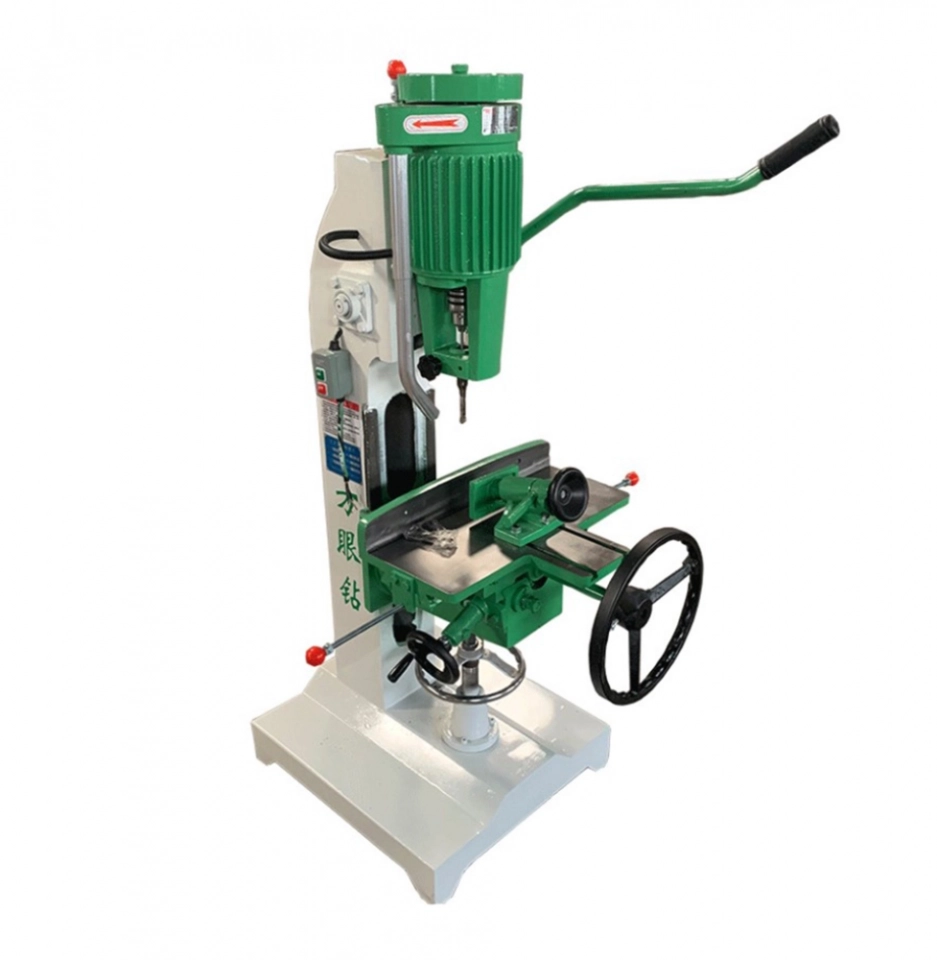

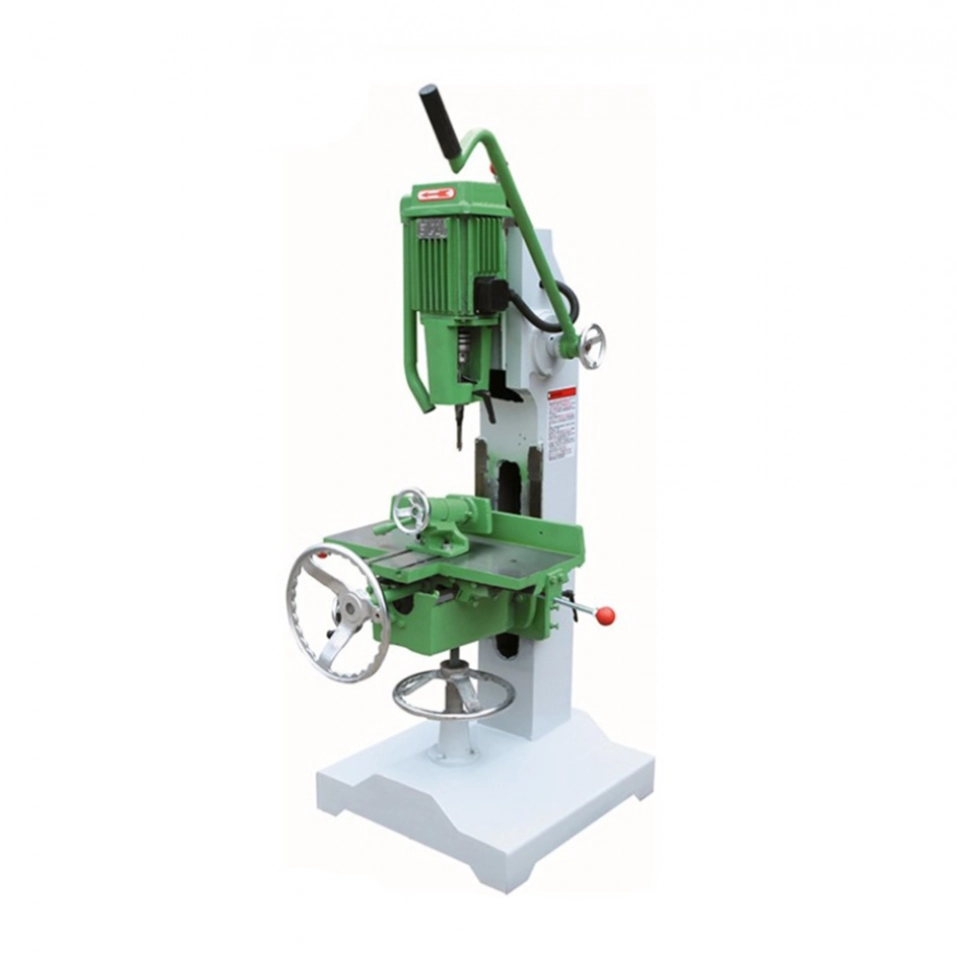

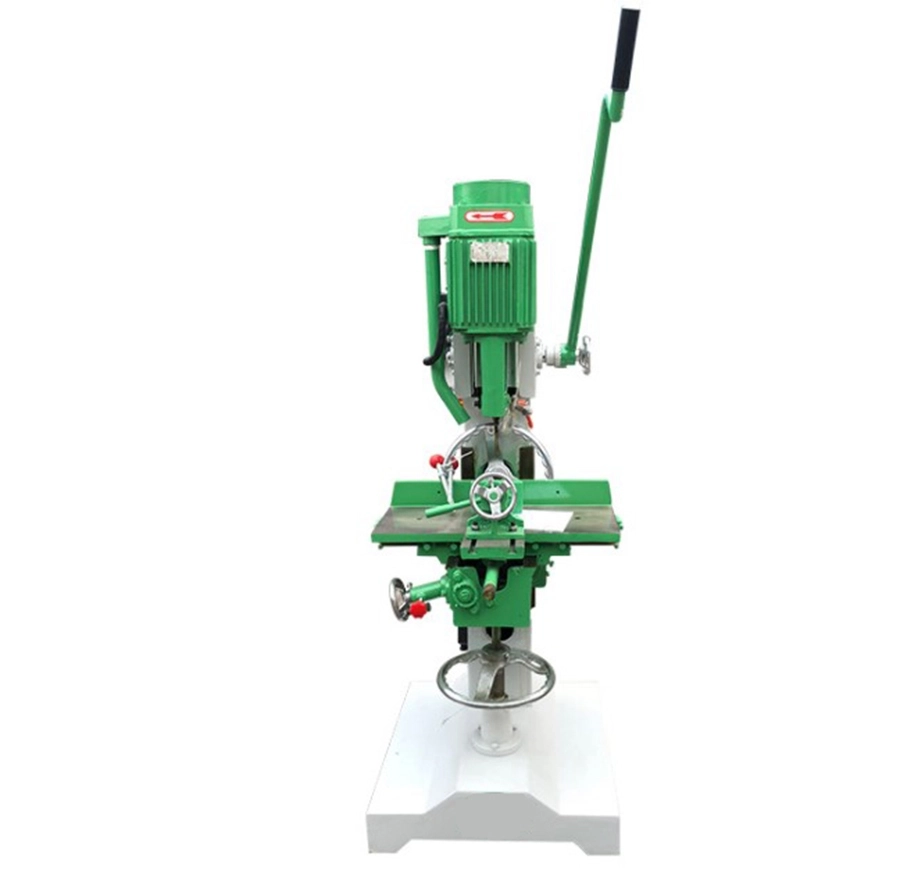

MZ1610 Manual type Vertical Chisel Mortiser machine with air blow
- Quantity
Parameter of MZ1610 Manual type Vertical mortiser machine with air blow
|
Product name |
Vertical single axis mortise machine |
|
Model |
MZ1610 |
|
Max. Mortise size |
200*25.4mm |
|
Max. Mortise depth |
100mm |
|
Max. Mortise width |
6~120mm |
|
Spindle speed |
2840r/min |
|
Motor power |
1.5kw/2.2kw/3KW |
|
Table tilt angle |
±30° |
|
Type |
Manual type /pneumatic/with air blow |
|
Worktable lifting stroke |
450mm |
|
Worktable longitudinal stroke |
150mm |
|
Drill shank diameter |
3~13mm |
|
Dimension |
600*860*1470mm |
|
Weight |
260kg |
MZ1610 Manual type Vertical mortiser machine with air blow

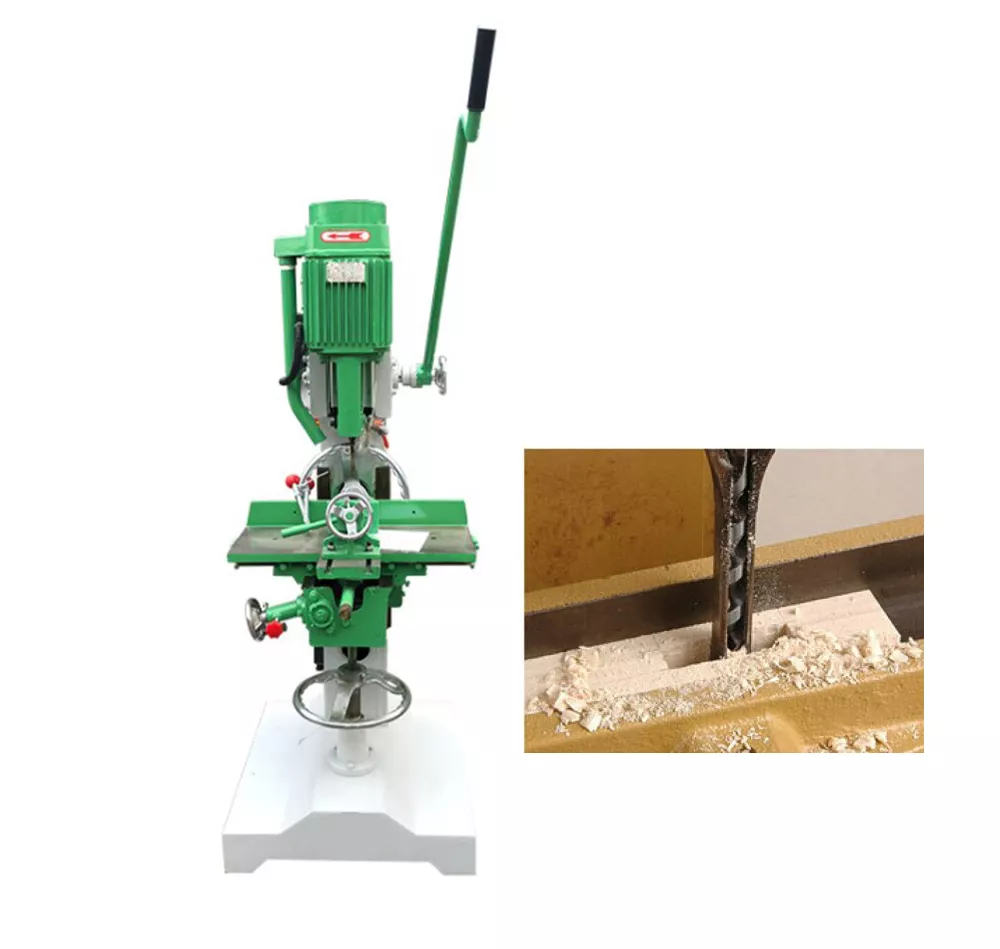

The vertical single-axis mortise machine is mainly used for wood drilling and opening of the eye.
It is a woodworking machine that retains the traditional furniture manufacturing process and can be mechanized efficiently.

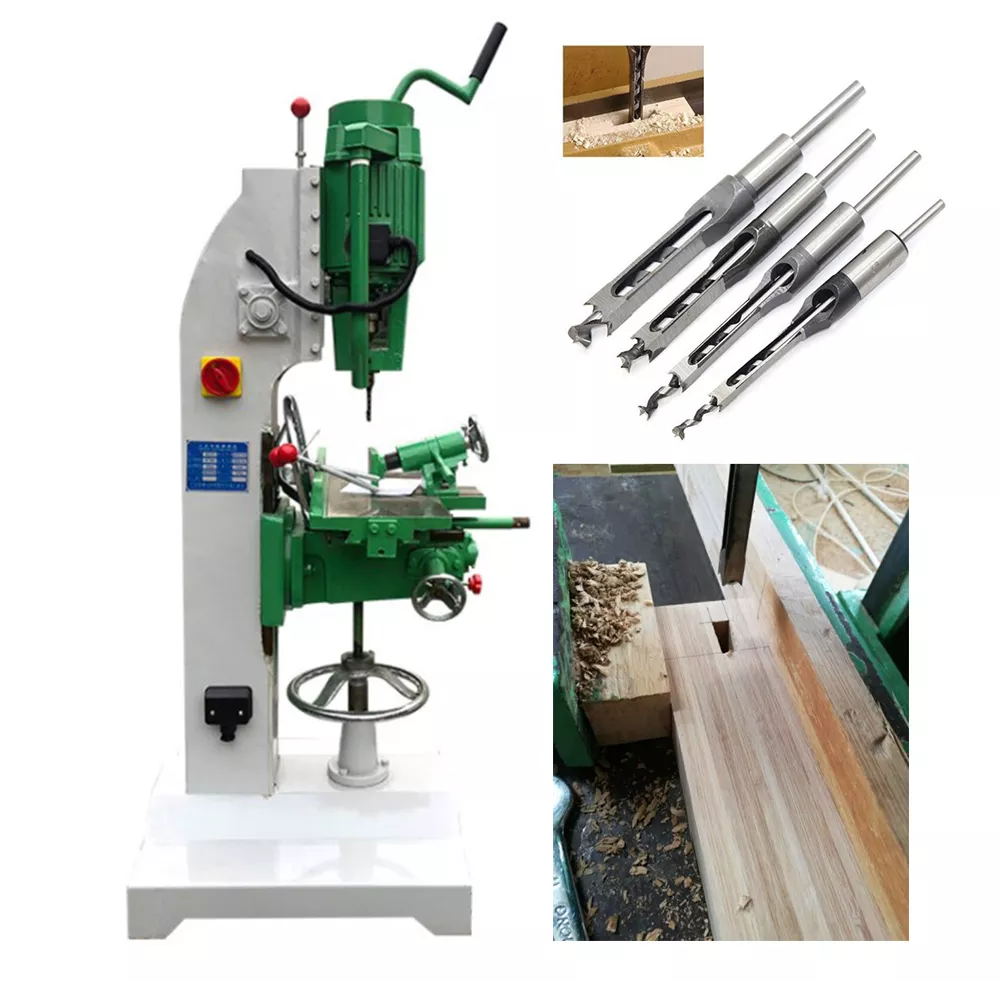

This machine can easily open a variety of round/elliptical/square blinks.
It is an indispensable machine for solid wood furniture and classical furniture making.
