MX7212/MX7512 Automatic Woodworking Profiling copy spindle moulder Router Edge Milling and Shaping Machine
- Quantity
MX7212/MX7512 Automatic Woodworking Profiling copy spindle moulder Router Edge Milling and Shaping Machine
|
Model |
MX7212 |
MX7512 |
|
keywords |
Auto copy shaper milling machine |
|
|
Max. Milling rectangle |
2:1 |
2:1 |
|
Millable diameter range |
90 ~1200mm |
90~1200mm |
|
Max. Processing thickness |
130mm |
130mm |
|
Working table diameter |
700mm |
700mm |
|
Spindle diameter |
30mm |
30mm |
|
Spindle number |
1PCS |
2PCS |
|
Spinlde power |
5.5kw |
5.5*2KW |
|
Working drive power |
1.5kw |
1.5kw |
|
Working pressure |
0.6~0.8Mpa |
0.6~0.8Mpa |
|
Vacuum port diameter |
100mm*4PCS |
100mm*8PCS |
|
Guiding roller diameter |
100mm |
100mm |
|
Spindle speed |
9000rpm |
9000rpm |
|
Table speed |
1.5~6r/min |
1.5~6r/min |
|
Dimension |
1560*1400*2120mm |
1630*1400*2400mm |
|
Weight |
930kg |
1130kg |
MX7212/MX7512 Automatic Woodworking Profiling copy spindle moulder Router Edge Milling and Shaping Machine

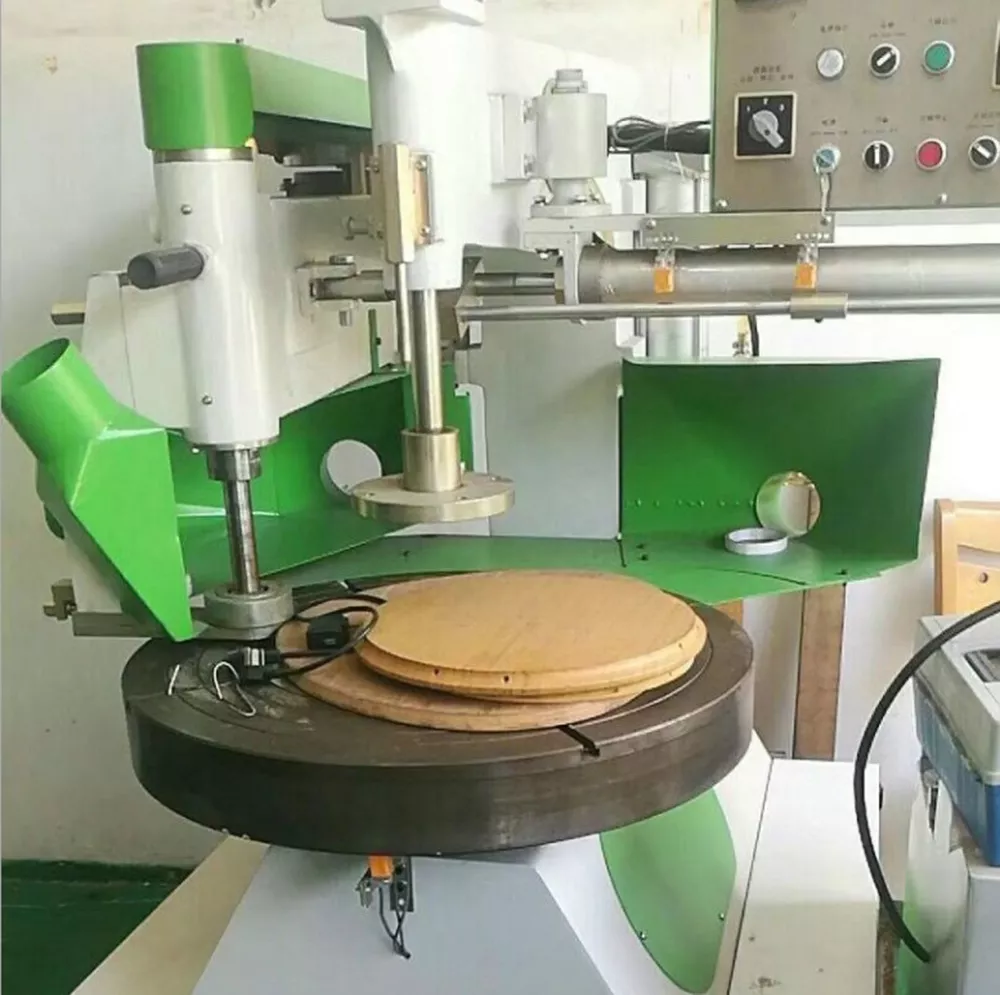

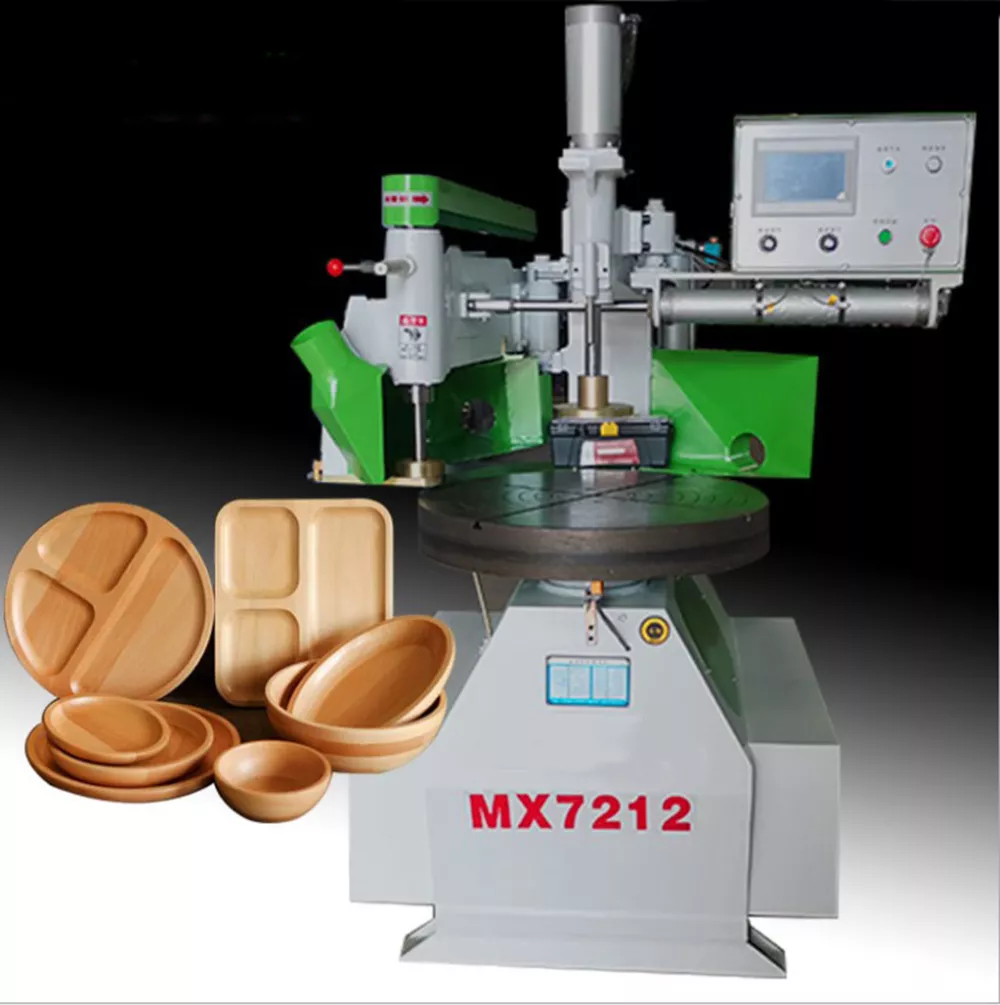

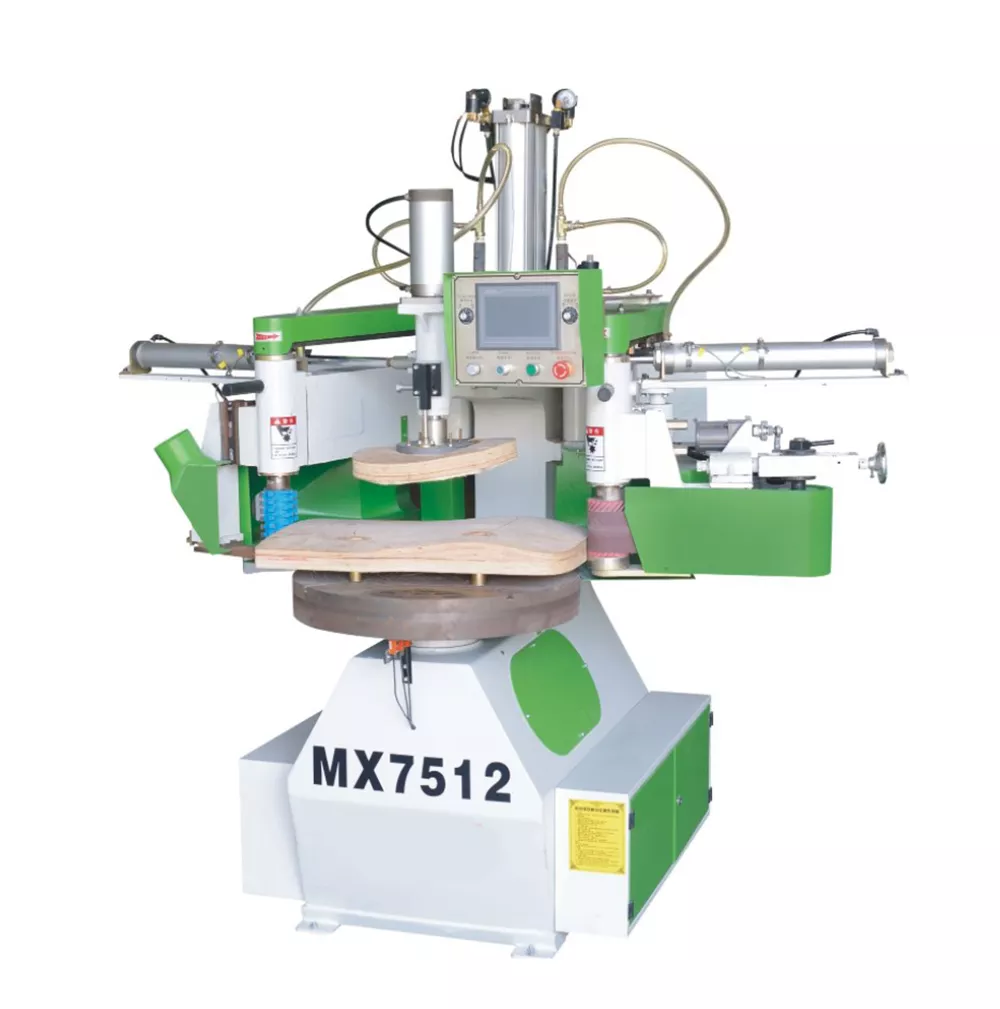

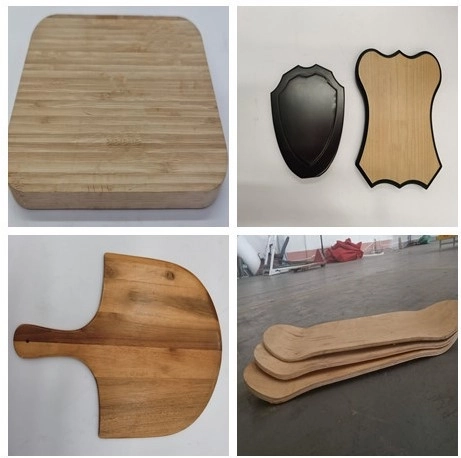

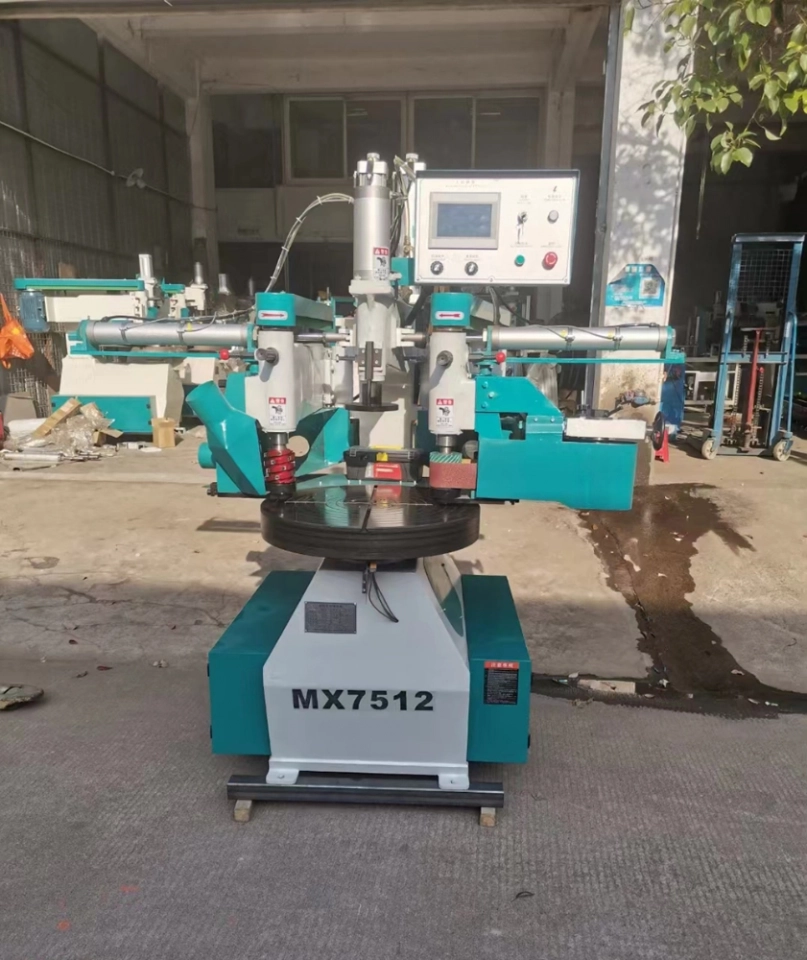

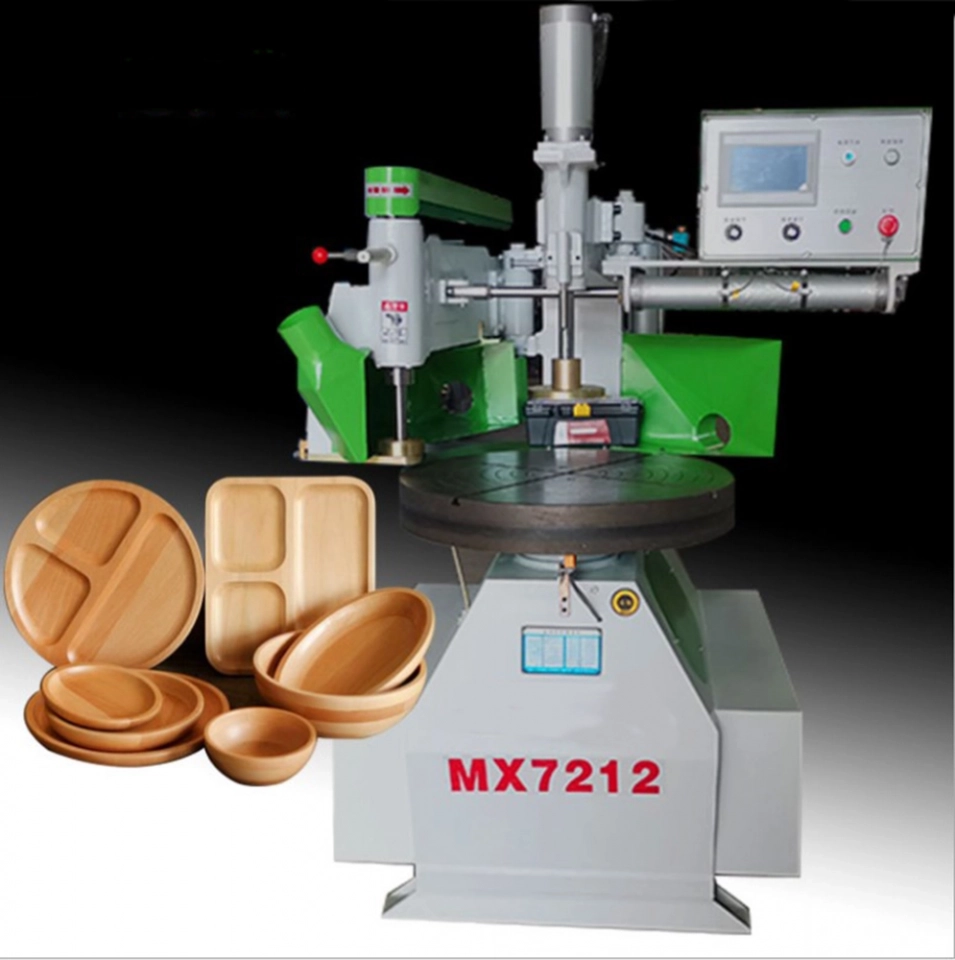

The Auto Copy Shaper Milling Machine is designed for peripheral shaping of circular, oval, and rectangular workpieces, such as seat boards, pizza discs, coffee tables, and skateboards.
Widely used in furniture, construction, decoration, and more, it delivers smooth cutting, high precision, and efficient operation.
Featuring PLC program control, it supports both automatic and manual modes for convenient, labor-saving, and safe processing.
