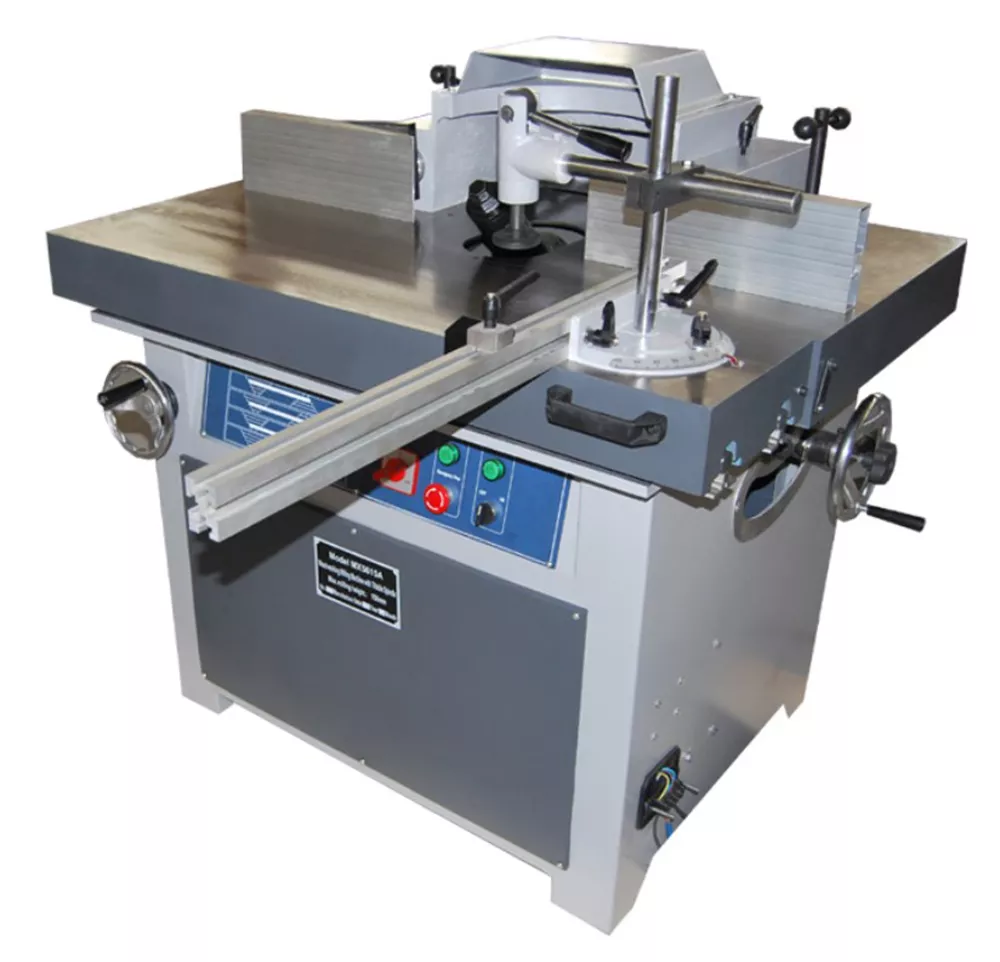

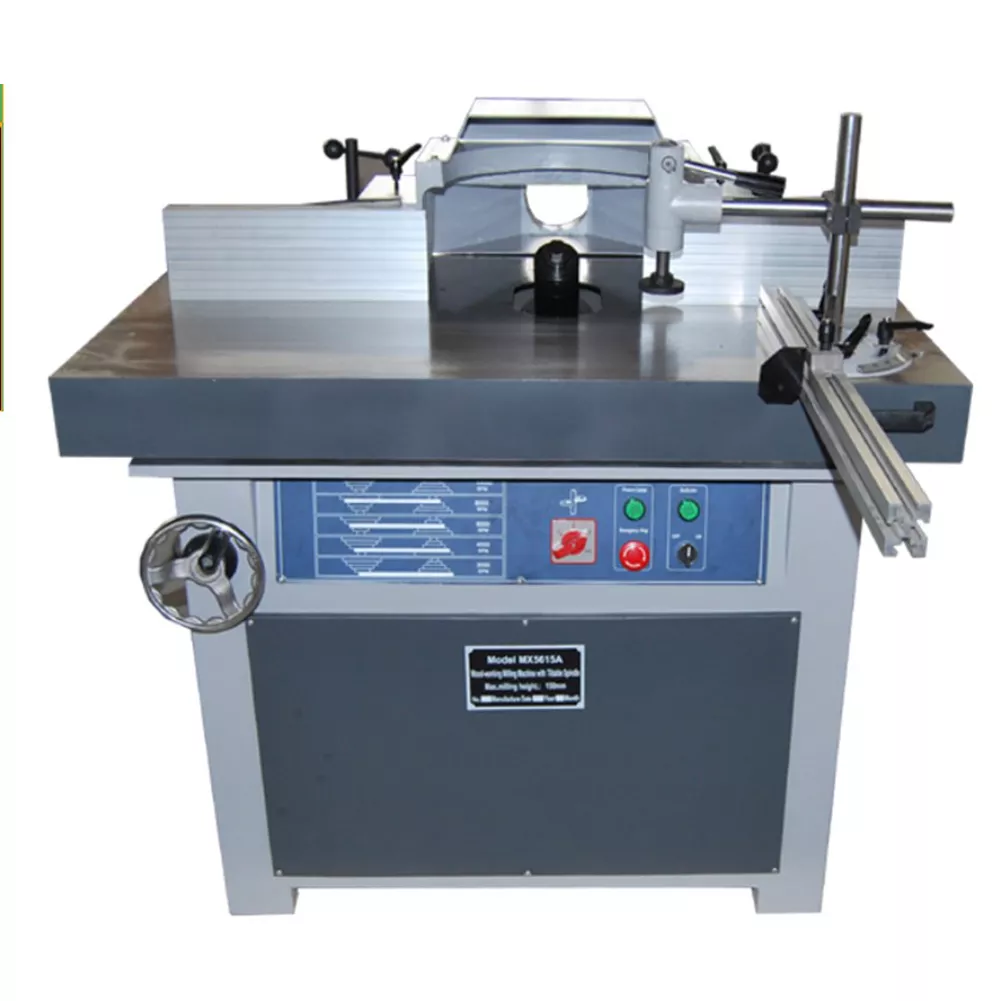

MX5615A Heavy-Duty Sliding Table Woodworking Milling Tilting Spindle Moulder
- Quantity
MX5615A Heavy-Duty Sliding Table Woodworking Milling Tiltable Spindle Router moulder
|
Model |
MX5615A Tilting spindle moulder |
|
Spindle speed |
3000/4000/6000/8000/10000RPM |
|
Spindle shaft |
35mm |
|
Shaft lift height |
0~190mm |
|
Moving pushing table stoke |
800mm |
|
Motor power |
4KW |
|
Pushing table size |
1110*260mm |
|
Cutter blade tilting angle |
0~45 degree |
|
Dimension |
1135*1525*1140mm |
|
Weight |
480kg |
MX5615A / MQ45 Heavy-Duty Sliding Table Woodworking Milling Tiltable Spindle Router

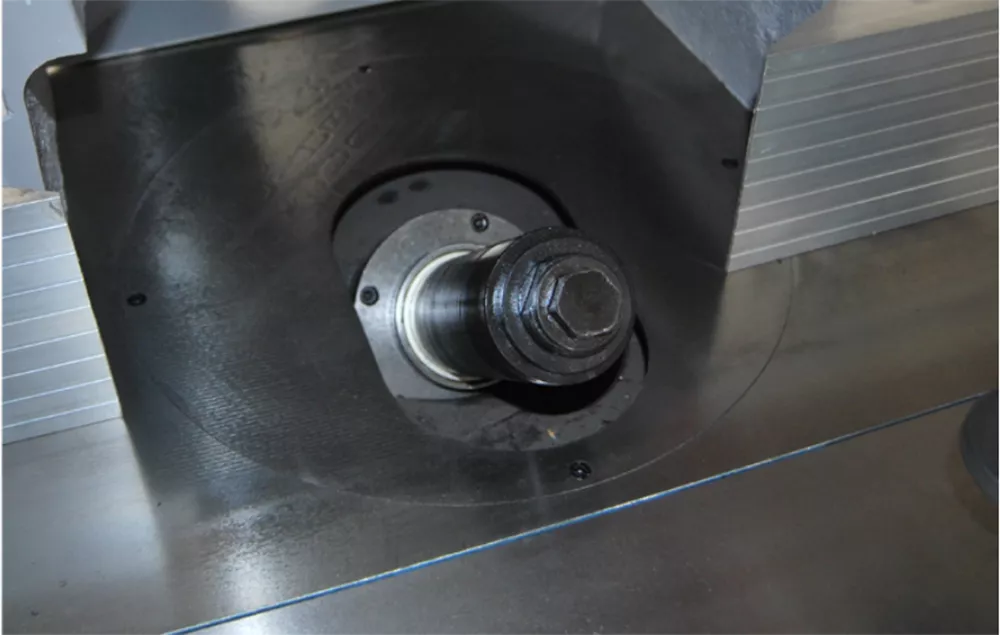

1. The knife shaft can be tilted 45 degrees, and can be equipped with circular saw blades and large cutterheads.

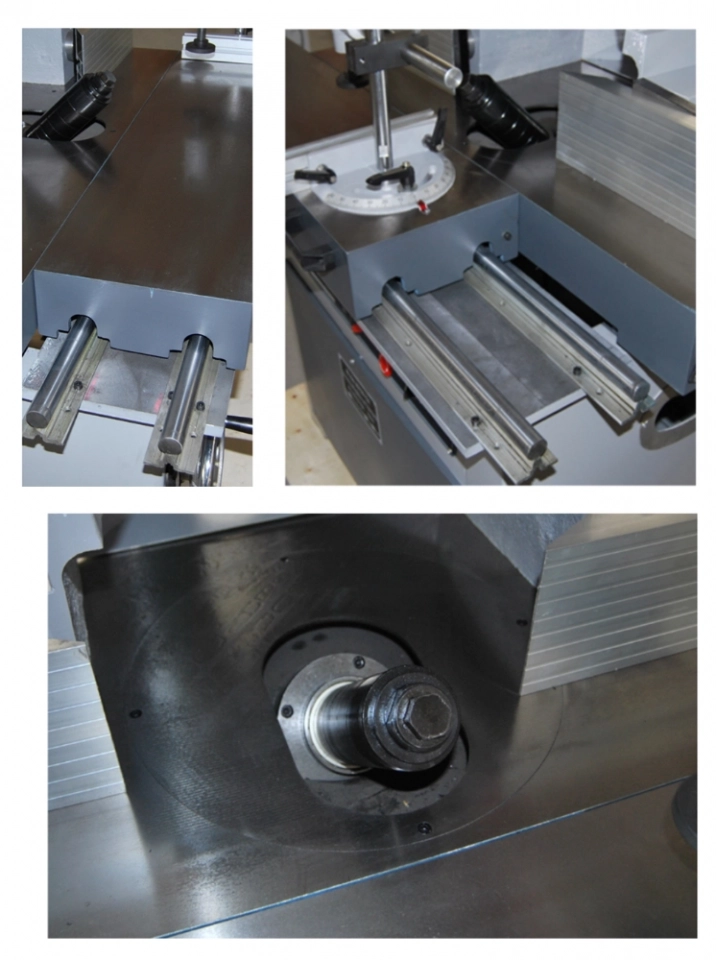

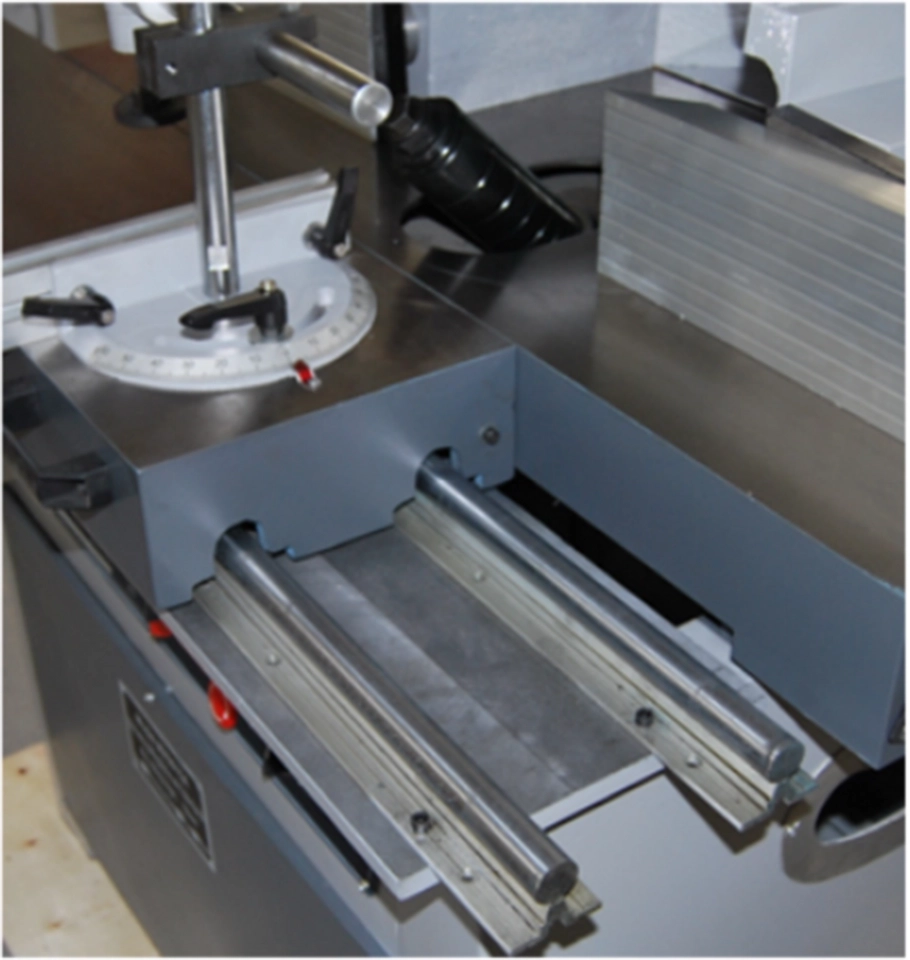

2. The mobile pusher adopts a double linear guide structure to ensure the parallelism of the running trajectory and the axis.
3. Base cast iron precision machined.
