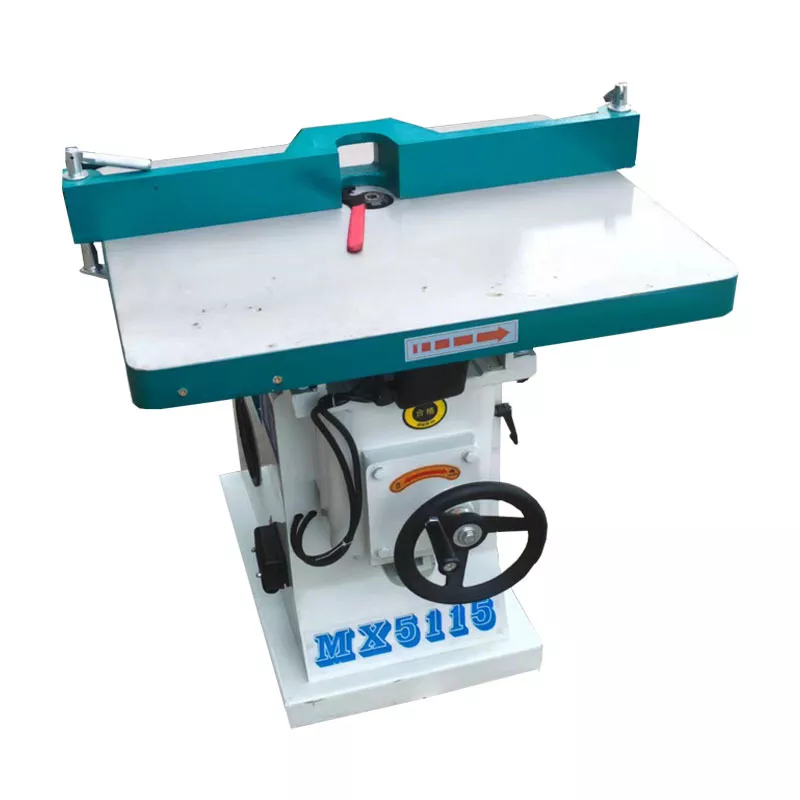

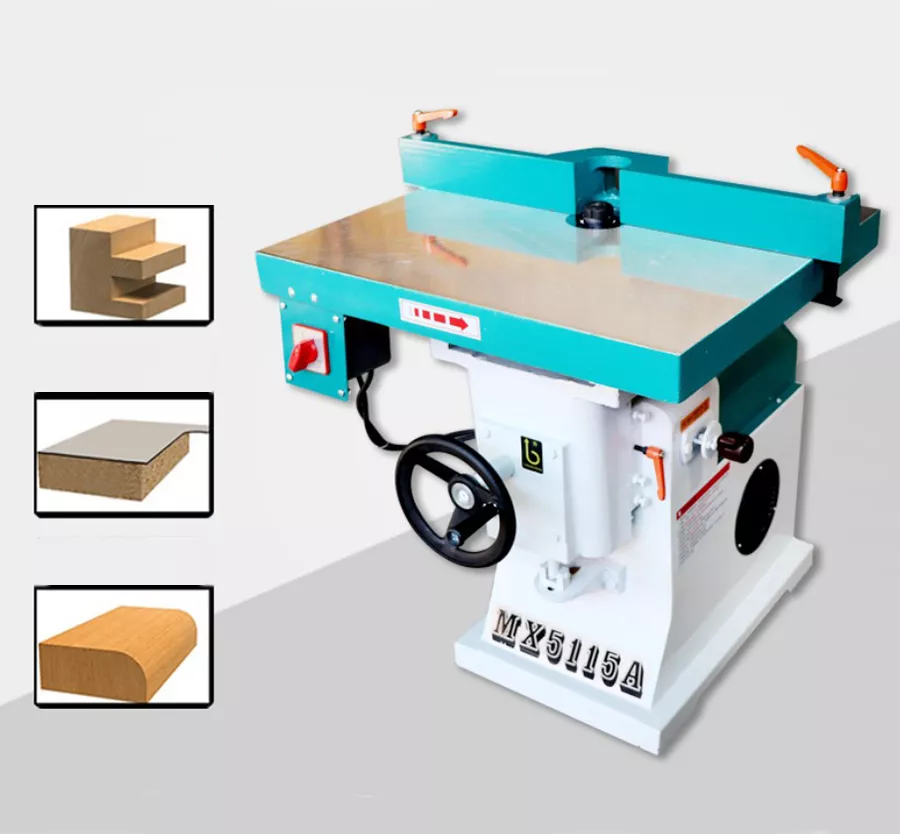

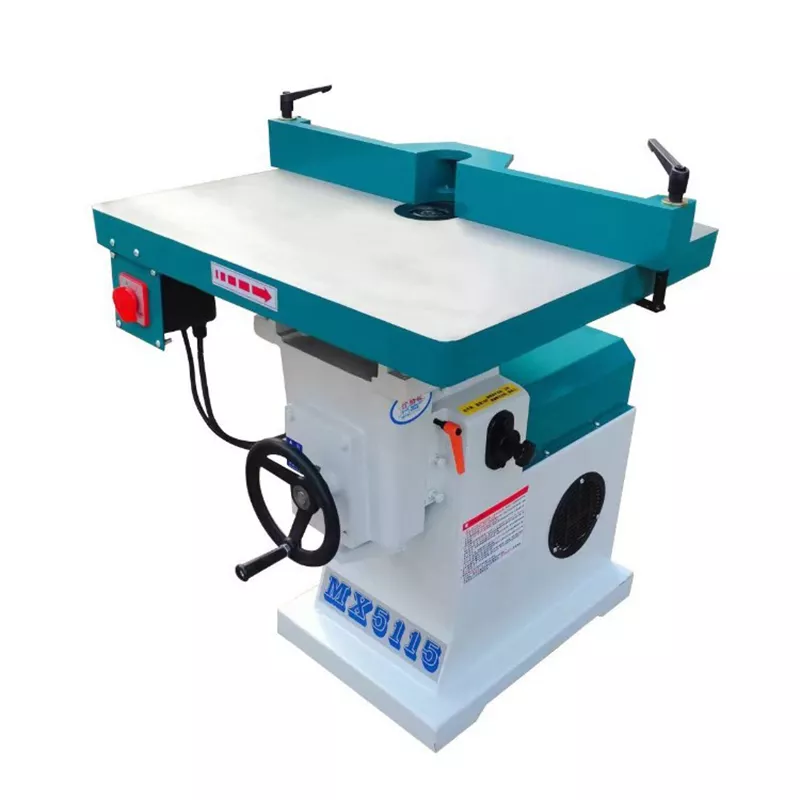

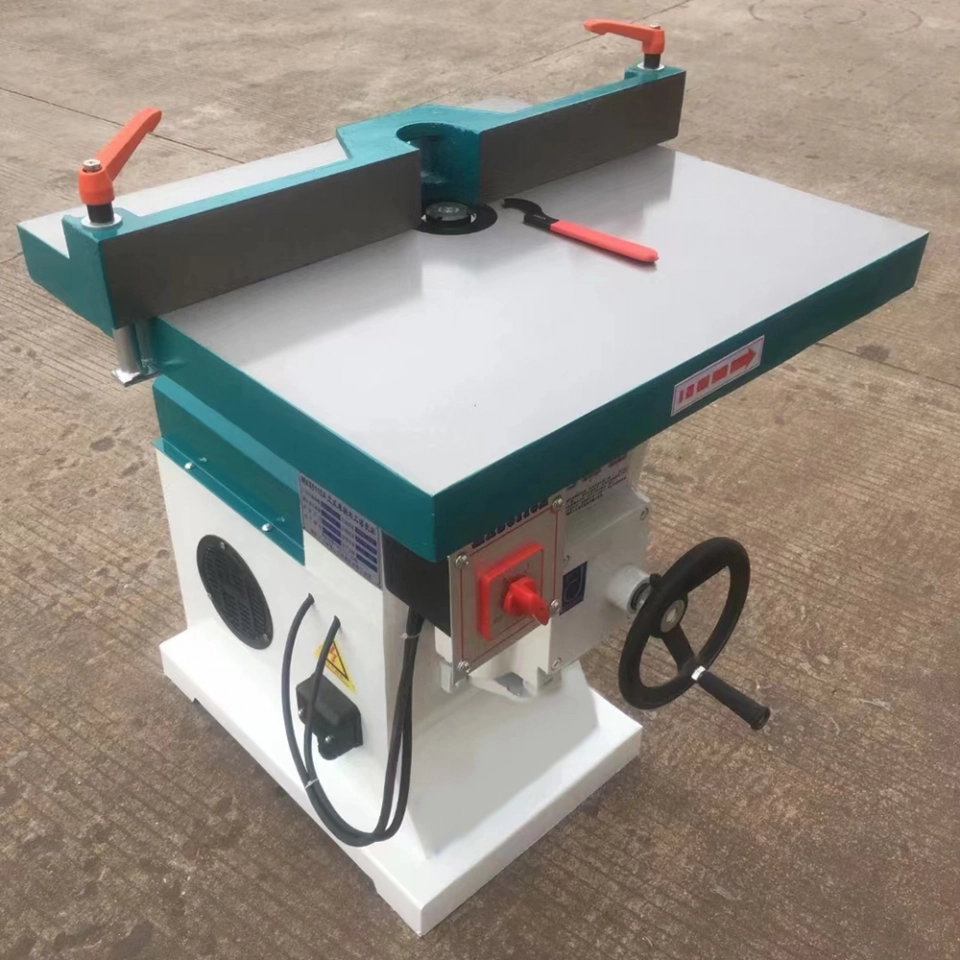

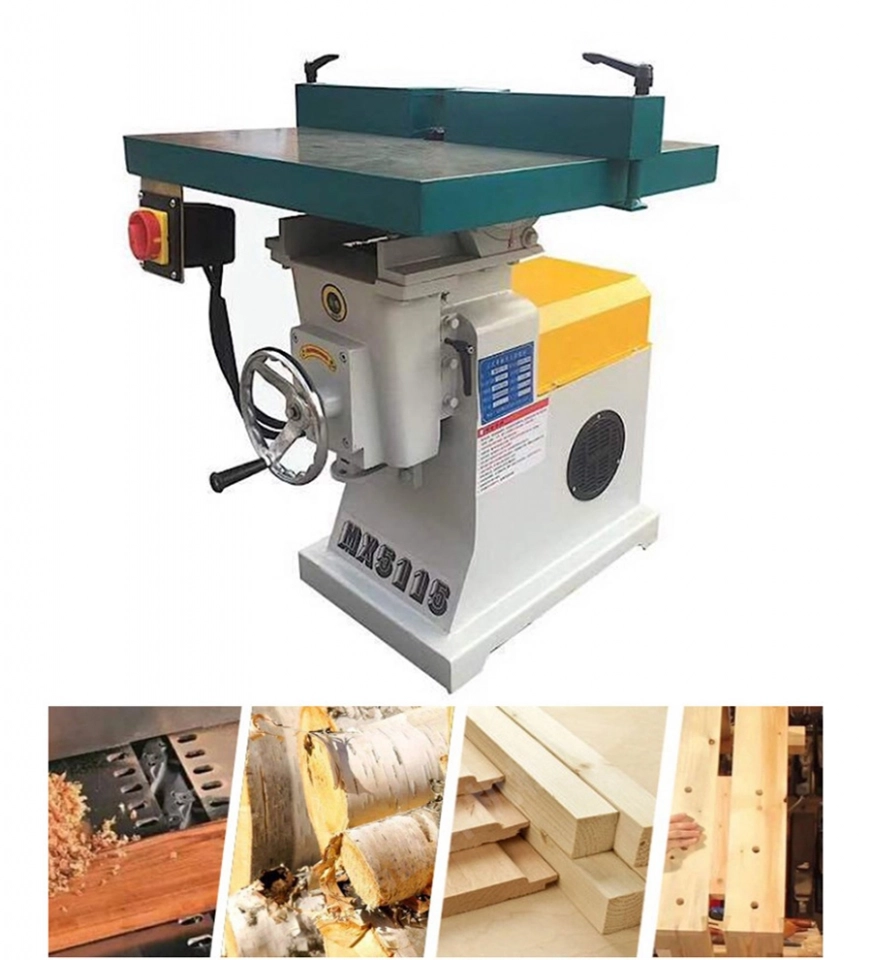

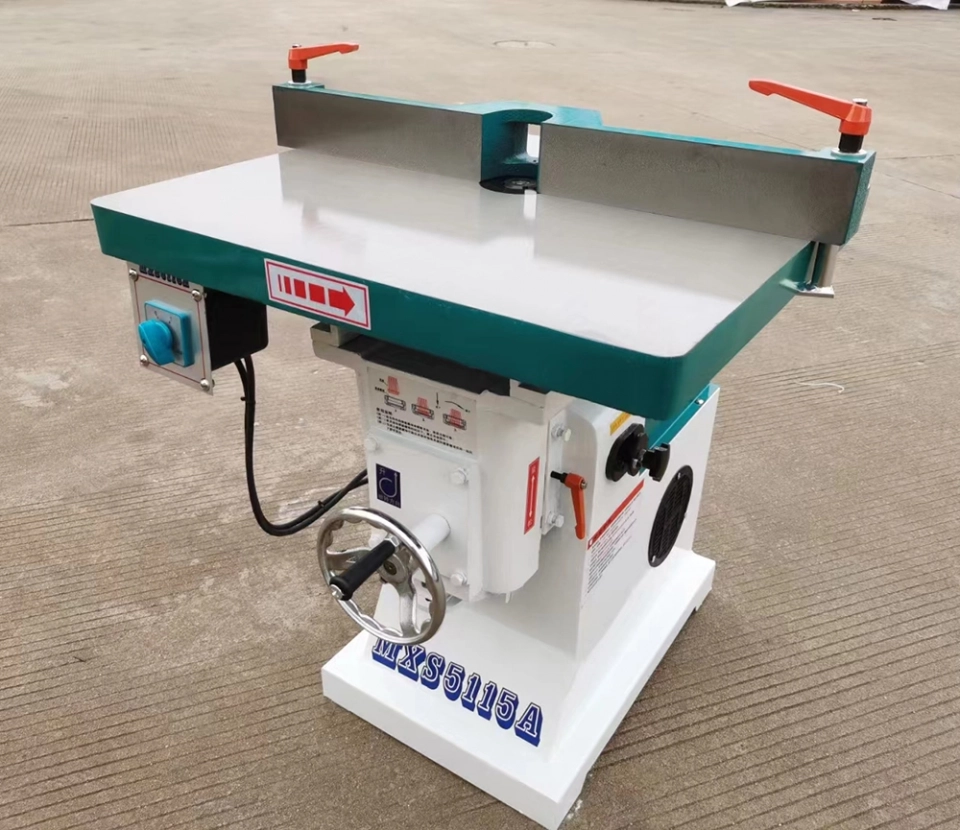

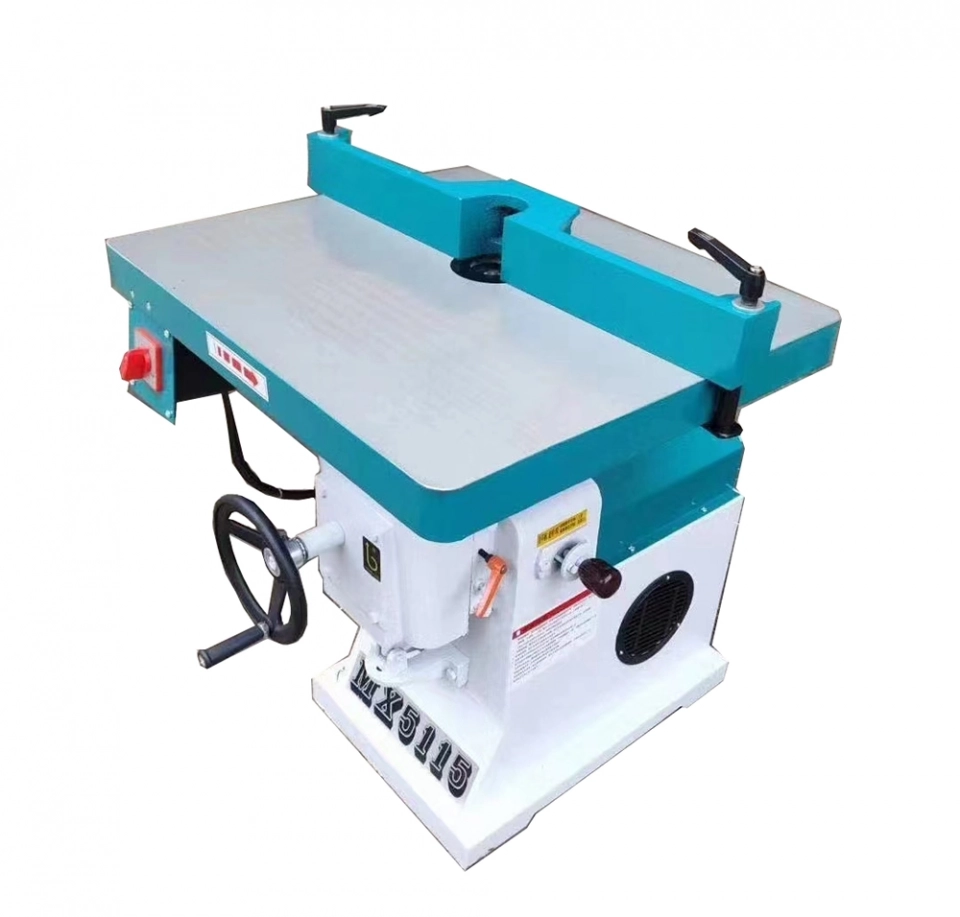

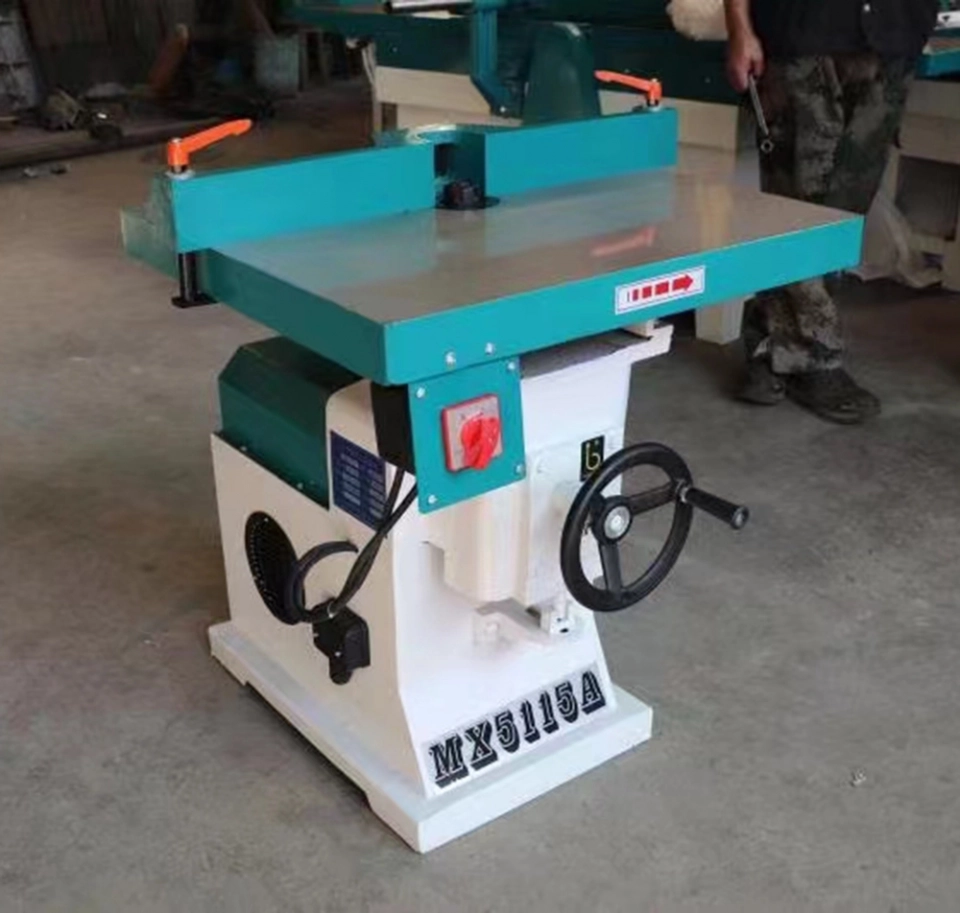

MX5115 Cabinet Door Small Vertical Router Milling Wood shaper Spindle Moulder Machine
MX5115 MDF cabinet door small vertical router milling woodworking machine
- Quantity
Technical parameter of MX5115 Cabinet Door Small Vertical Router Milling Wood shaper Spindle Moulder Machine
|
Model |
MX5115/MXS5115A |
|
Product name |
Vertical single axis milling machine |
|
Table tilt angle |
45 degree |
|
Knife handle diameter |
6.3/12.7mm |
|
Spindle speed |
18000r/min |
|
Table size |
640*580mm |
|
Motor power |
2.2kw/3KW(3HP/4HP) |
|
Max. processing thickness |
50mm |
|
Elevator travel |
100mm |
|
Dimension |
780*710*900mm |
|
Weight |
150kg |
|
Customized is acceptable |
|
MX5115 Cabinet Door Small Vertical Router Milling Wood shaper Spindle Moulder Machine

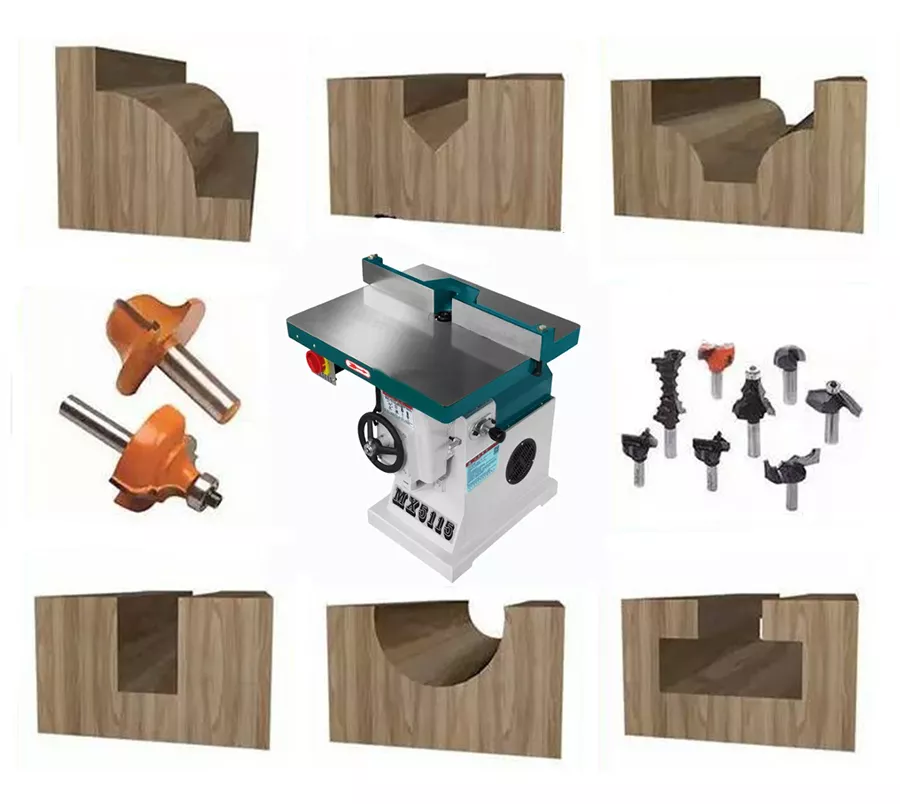

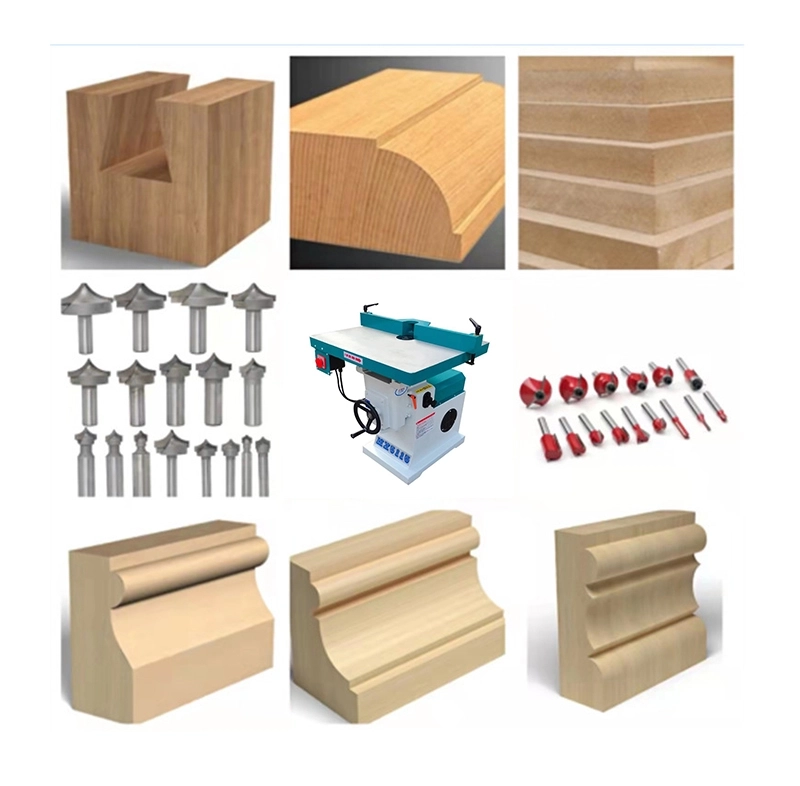

Wood shaper is applied to milling planes, grooves, teeth, threads and spline shafts, milling machines can also process more complex curved surfaces,
trimming with high efficiency and It can be used to install all kinds of boring and milling tools, chamfering the workpiece, cutting straight grooves,
straight lines, sliding the table to the T-slot, etc. It is the first choice for solid wood,Acrylic and panel furniture.
Feature of MX5115 Cabinet Door Small Vertical Router Milling Wood shaper Spindle Moulder Machine
1. cast iron countertops, fine workmanship, wear-resistant shock absorption
2. Pure copper motor, locking spindle and precision sleeve shrink lock mouth, high precision and safe to use.

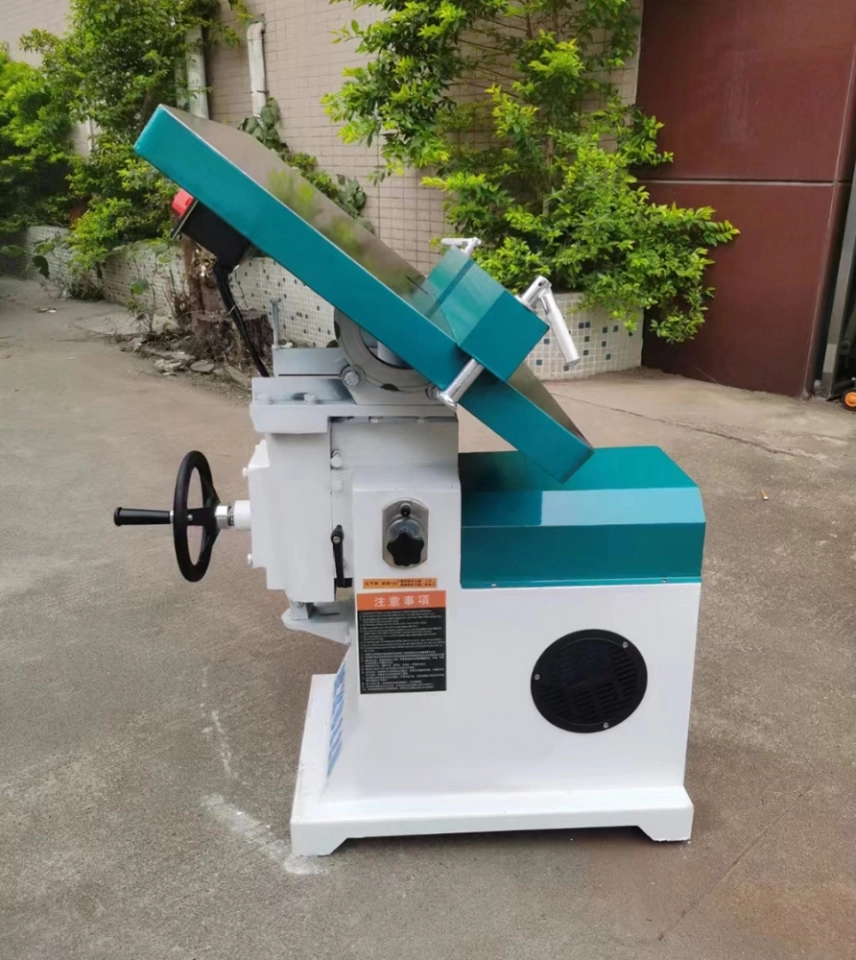

3. Adjust the handwheel, knob switch, the table can be tilted 45 degrees, safe and convenient.
