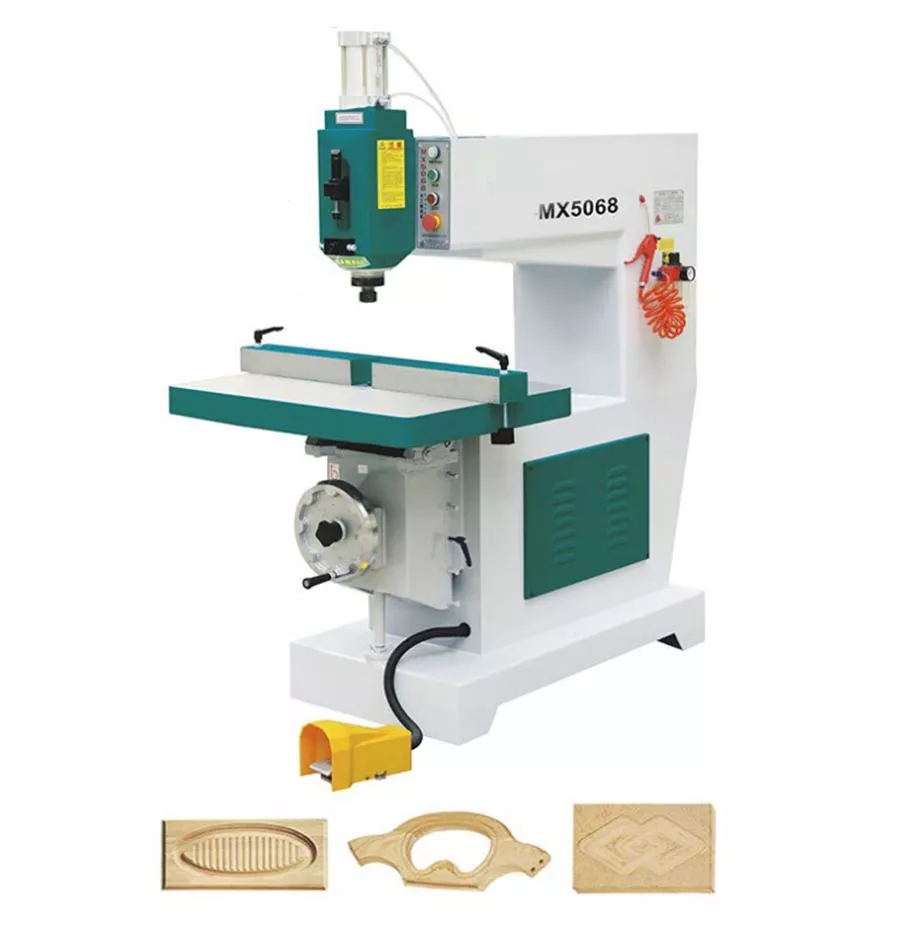

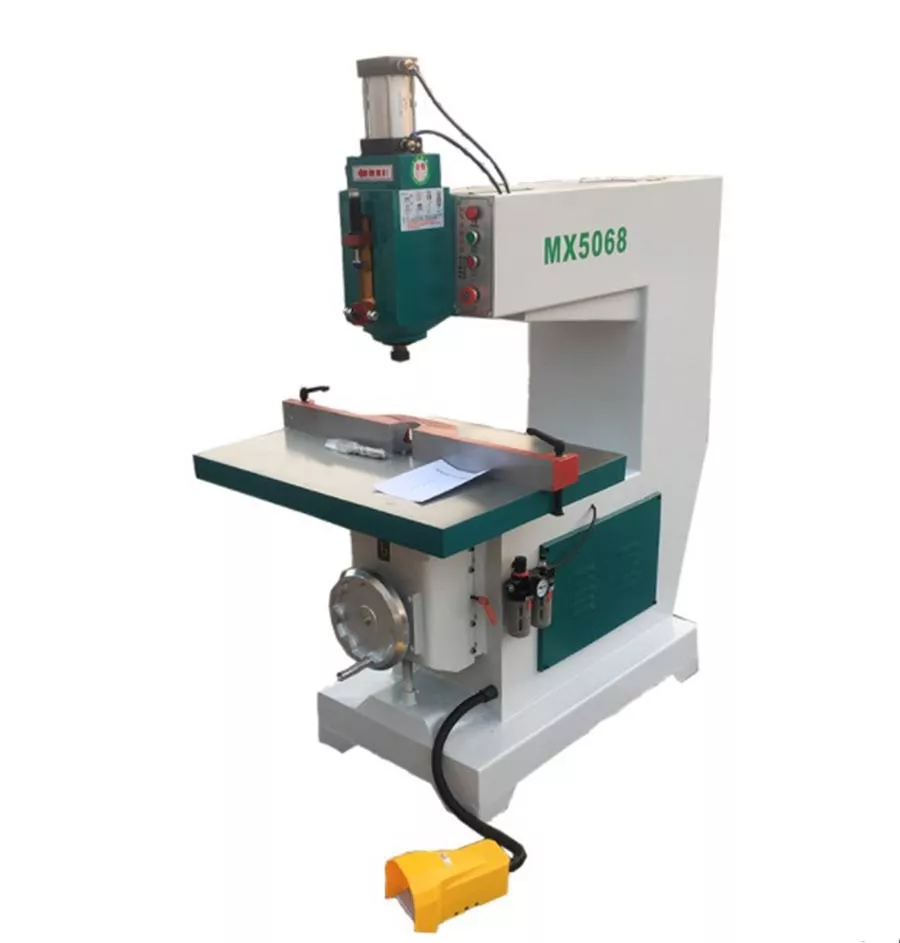

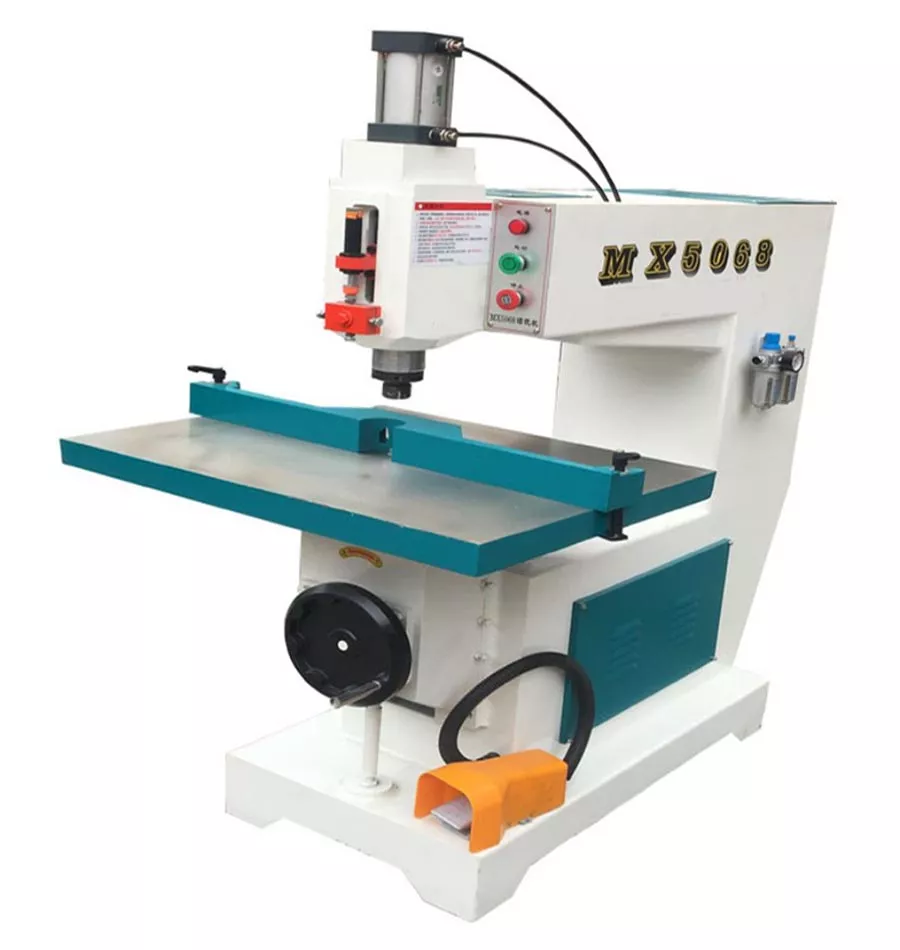

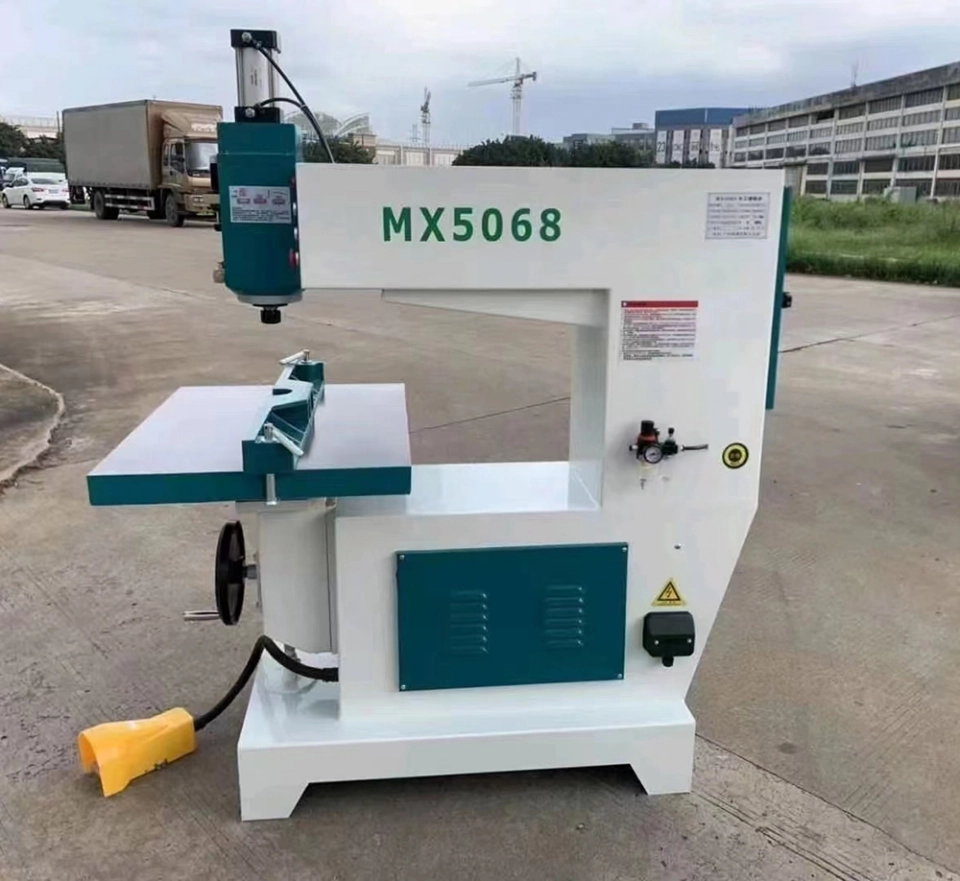

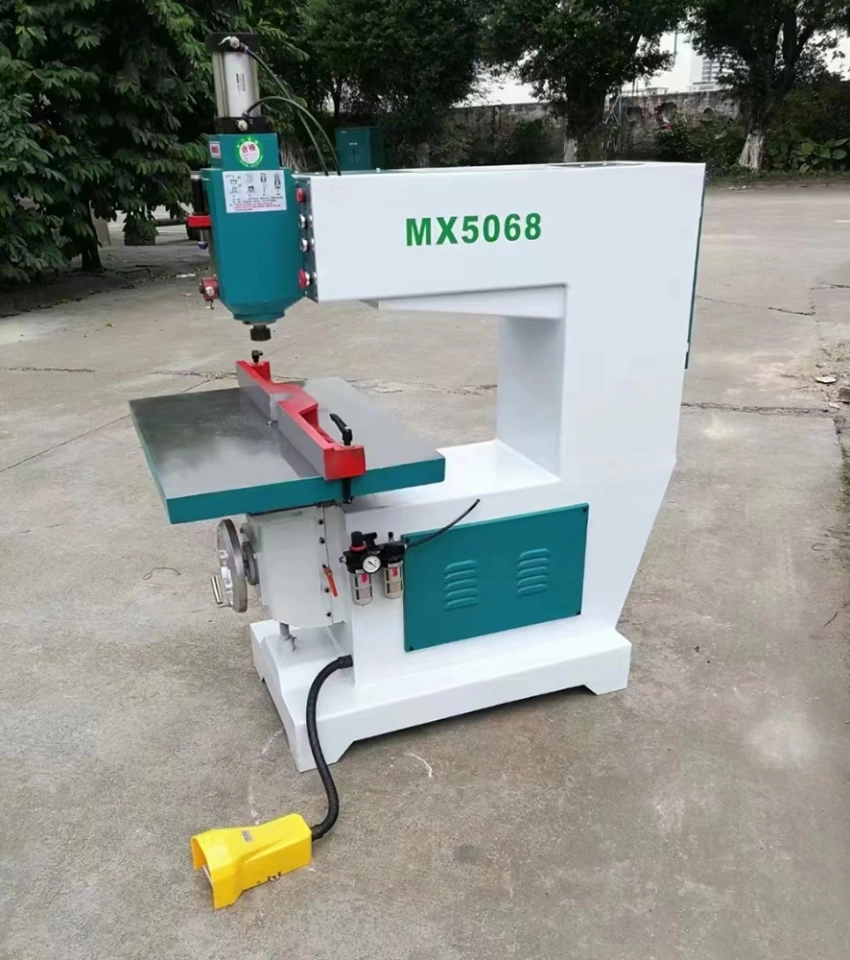

MX5068 Pneumatic Router Machine | Spindle Lift Woodworking Profiling under table Router | Grooving and Contouring Milling Machine
- Quantity
MX5068 Pneumatic Router Machine | Spindle Lift Woodworking Profiling Router | Grooving and Contouring Milling Machine
|
Model |
MX5068 |
|
Motor power |
3kw/4kw |
|
Working table |
800*700mm |
|
Working table tilting angle |
0~45degree |
|
Working air pressure |
0.6~0.8Mpa |
|
Spindle speed |
18000r/min or 10000/20000r/min |
|
Working table Lifting stroke |
180mm |
|
Max. Processing thickness |
150mm |
|
Max.spindle stroke |
65mm |
|
Type |
Single speed or double speed type |
|
Spindle clamp diameter |
6.3/12.7mm |
|
Dimension |
1500*900*1700mm |
|
Weight |
400kg |
MX5068 Pneumatic Router Machine | Spindle Lift Woodworking Profiling Router | Grooving and Contouring Milling Machine
MX5068 Woodworking Router Machines are versatile tools designed for various milling applications.
They can accommodate a wide range of router bits to perform tasks such as chamfering, polishing, profiling, drilling round and irregular holes, and contour milling simple relief patterns.
These machines are the preferred choice for the production of solid wood and panel furniture.
