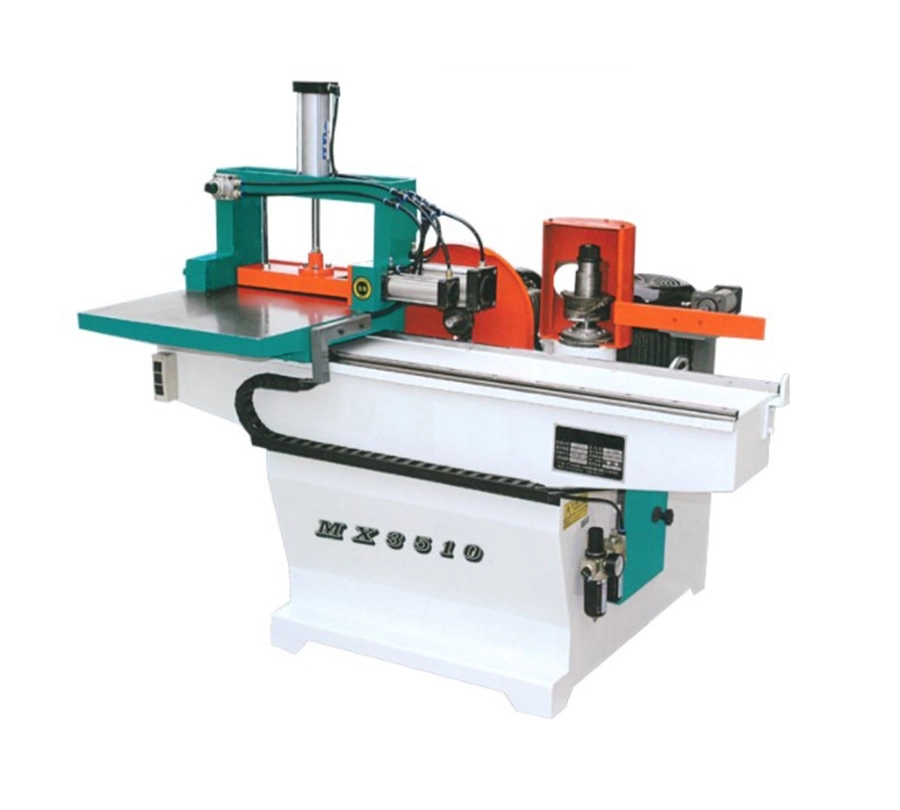

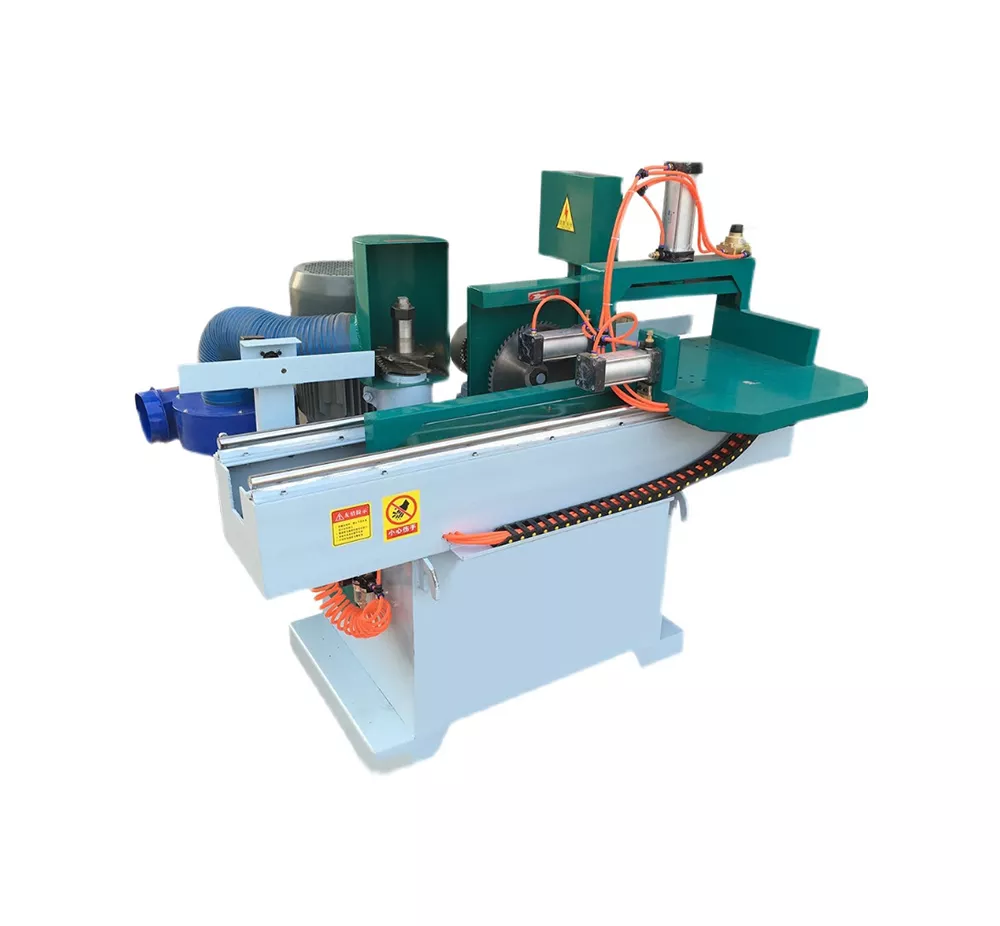

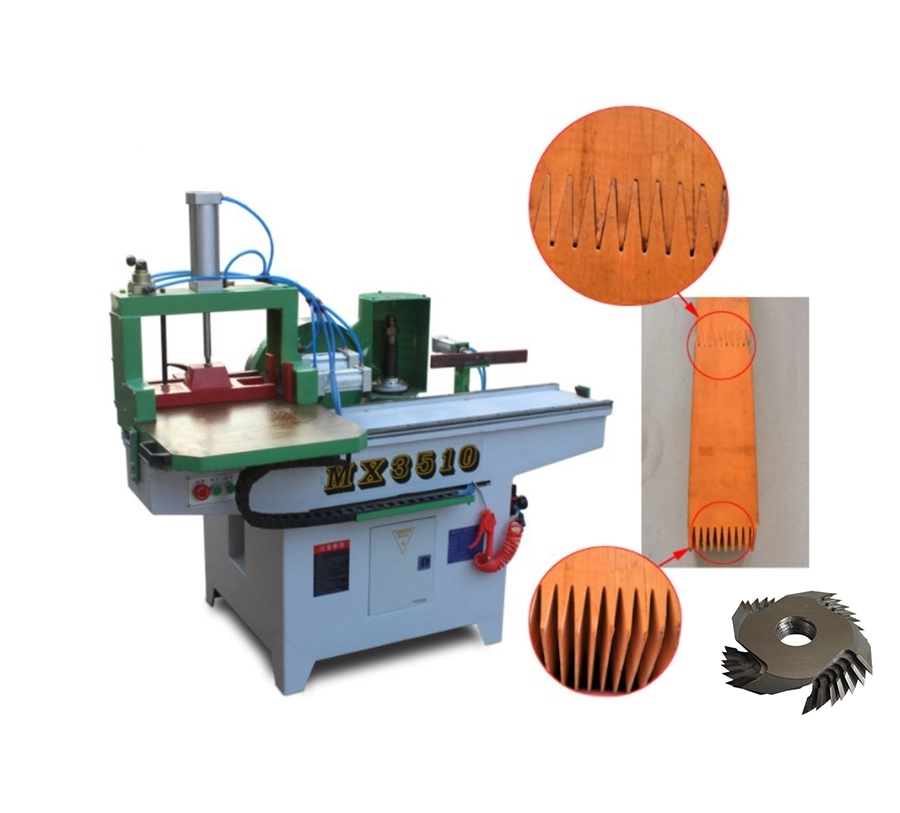

MX3510 Semi-Automatic Wood Tenon Mortising and Finger Joint Machine for Wooden Comb Making

Model

MX3510

Keyword

FINGER JOINTER Comb Tenoning Machine

Max. Processing width

360mm

Max.processing thickness

1200mm

Shaper blade diameter

160mm

Tooth tenon length

6~25mm

Shaper spindle diameter

35/50mm

Saw blade diameter

305mm

Trimming head motor power

2.2kw

working air pressure

0.6~0.8Mpa

Cutter Spindle speed

5500~6500RPM

Comb head motor power

7.5kw

Total motor

9.7kw

Dimension

1500*1300*1200mm

Weight

600kg
