MX300/MX500/MX600 wood dovetail jointer drawer machine used for woodworking machine
Dovetail Jointer
- Quantity

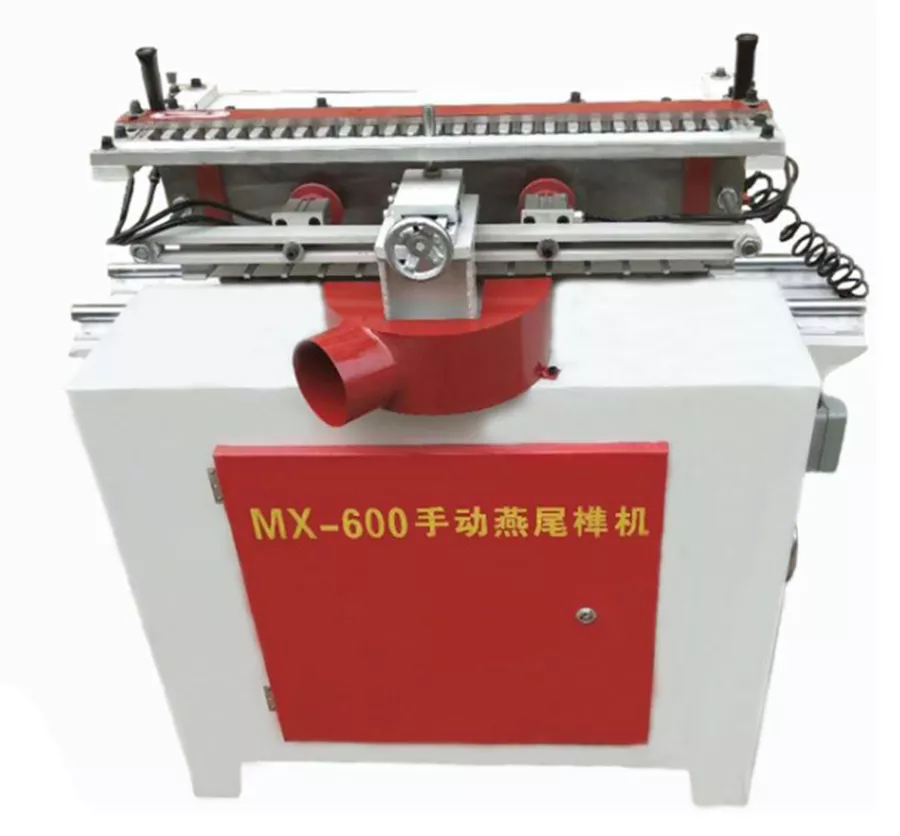

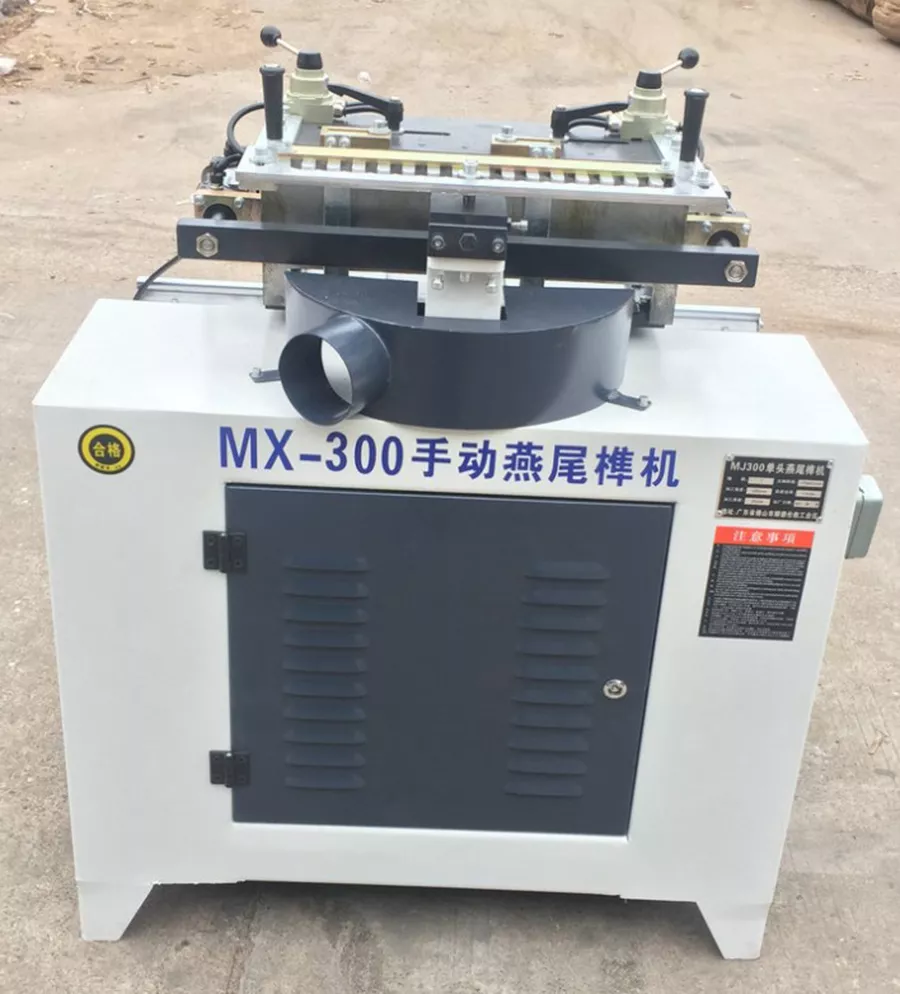

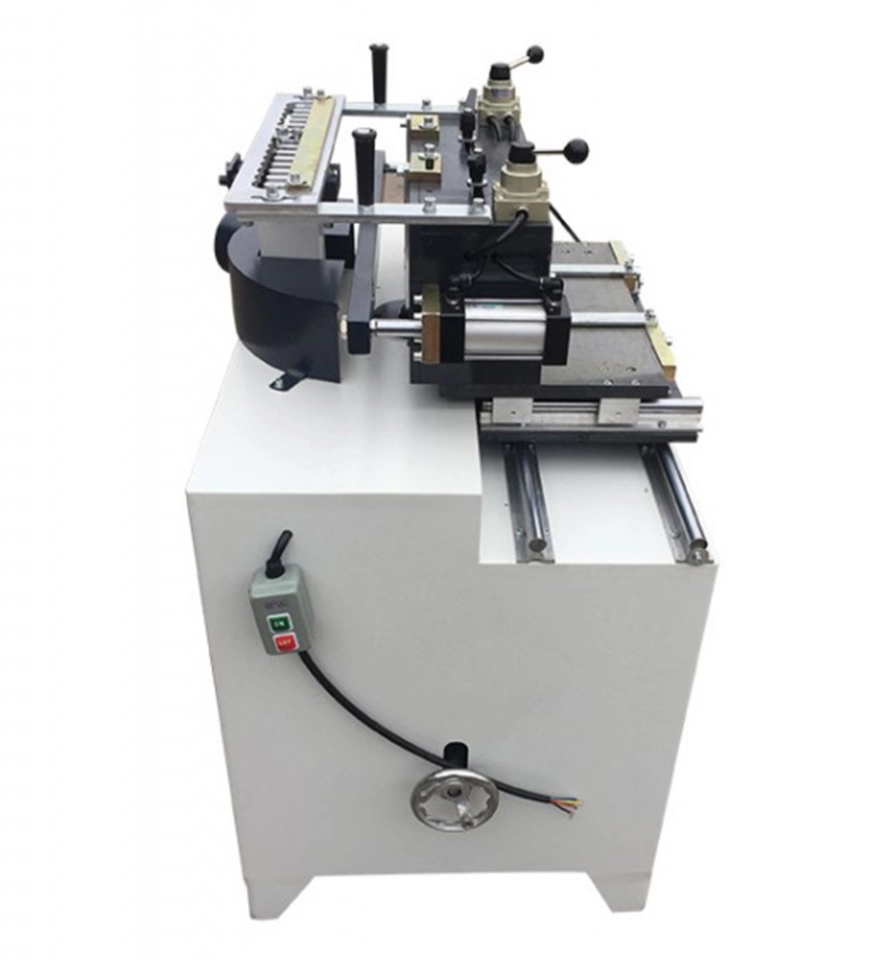

MX300/MX500/MX600 wood dovetail jointer drawer machine used for woodworking machine
|

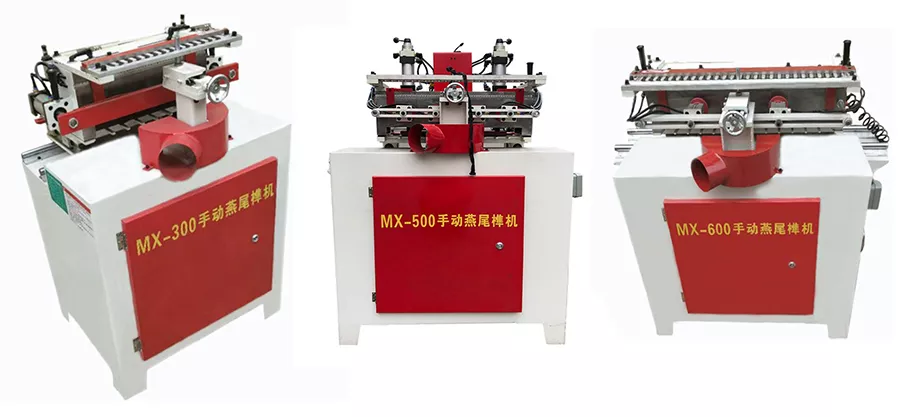

Model |
MX-300 |
MX-500 |
MX-600 |
|
Name |
Dovetail tenon machine |
||
|
Number of axes |
Single head |
||
|
Knife axis rotating speed |
13000RPM |
||
|
Max. Processing width |
300mm |
500mm |
600mm |
|
Voltage |
380V,50Hz |
||
|
Max. Processing thickness |
20~25mm |
||
|
Installed power |
1.5kw |
||
|
Cutter diameter |
12.7mm |
||
|
Feed stroke |
50mm |
||
|
Dimension |
900*600*1200mm/1100*550*1180mm |
||
|
Weight |
200~300kg |
||
MX300/MX500/MX600 wood dovetail jointer drawer machine used for woodworking machine

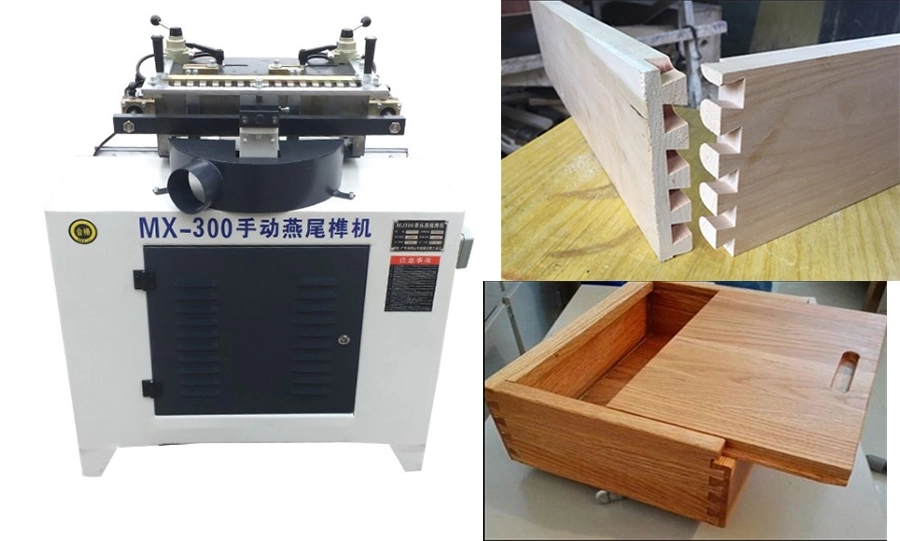

Manual dovetail machine: suitable for processing all kinds of gutters, such as drawers, wooden boxes, and wood splicing.

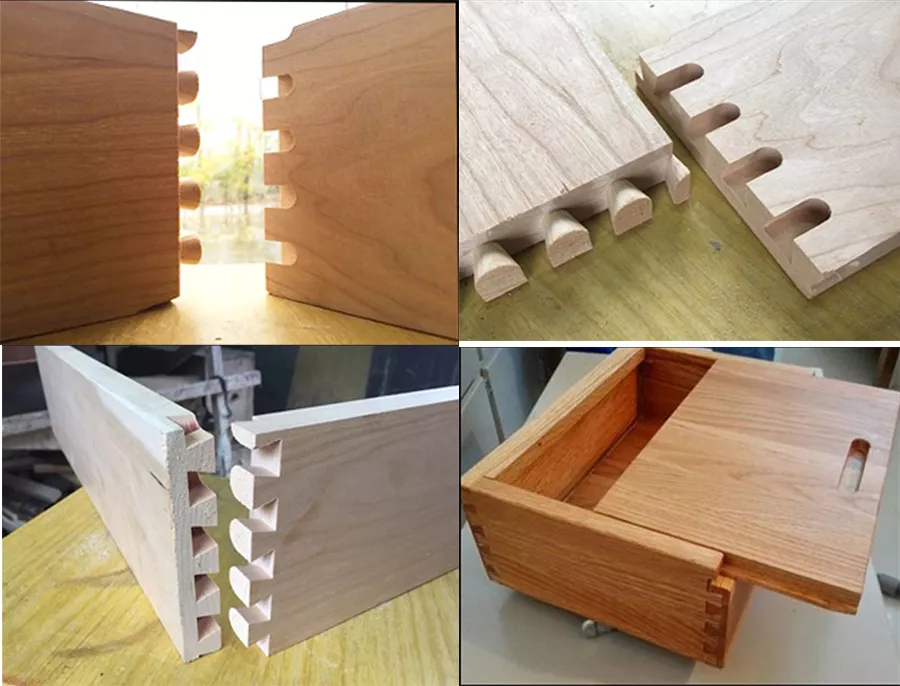

For processing through the dovetail / semi-hidden dovetail / through straight / through the triangle.

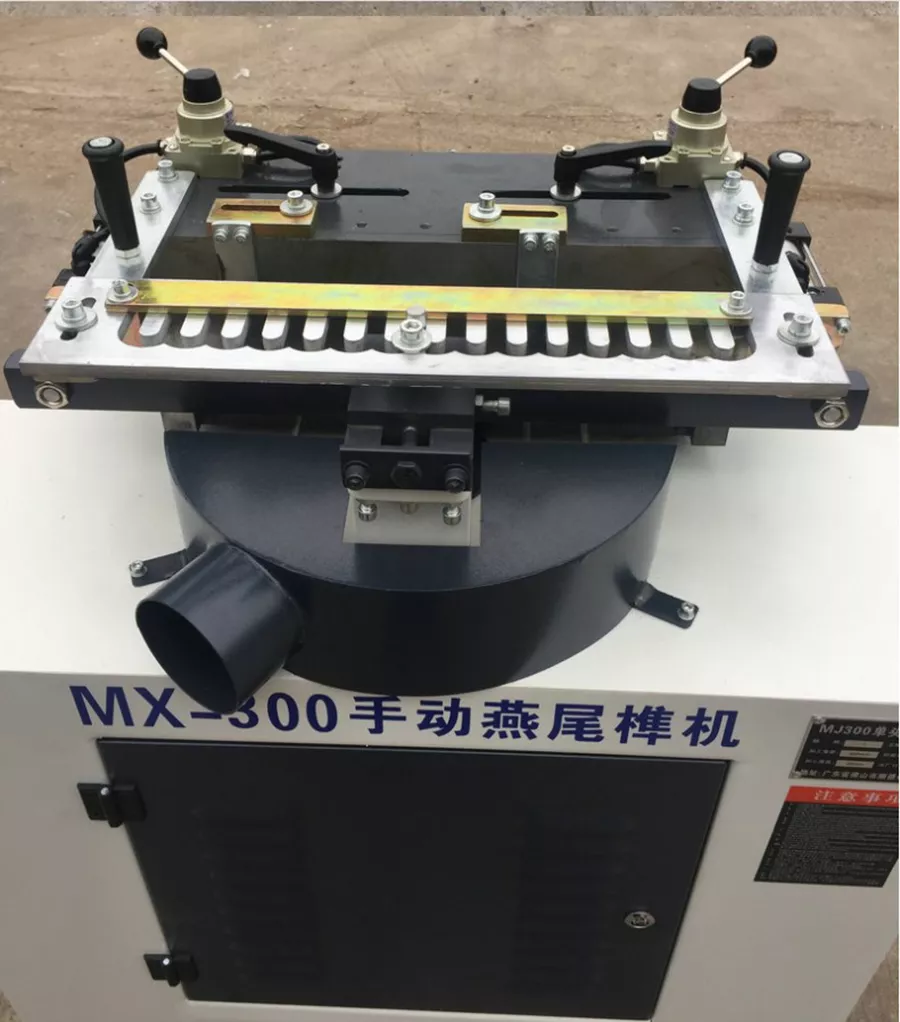

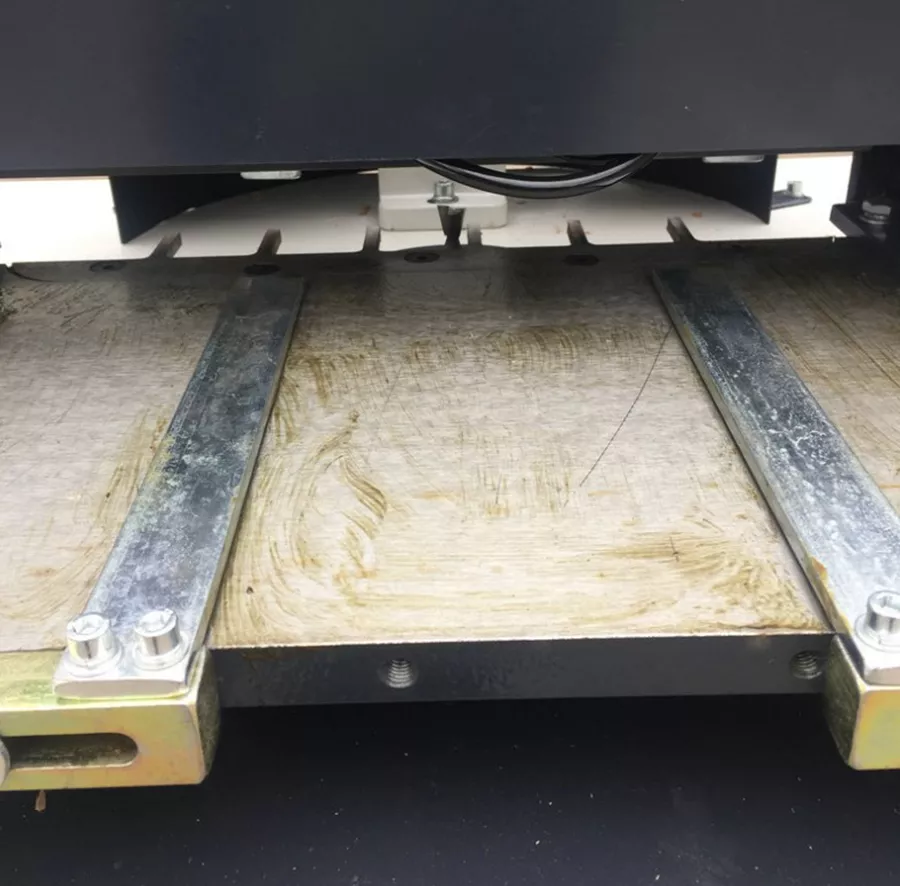

When used, the milling cutter is mounted on the vertical main shaft, and the sheet workpieces are clamped perpendicularly to each other on the worktable.

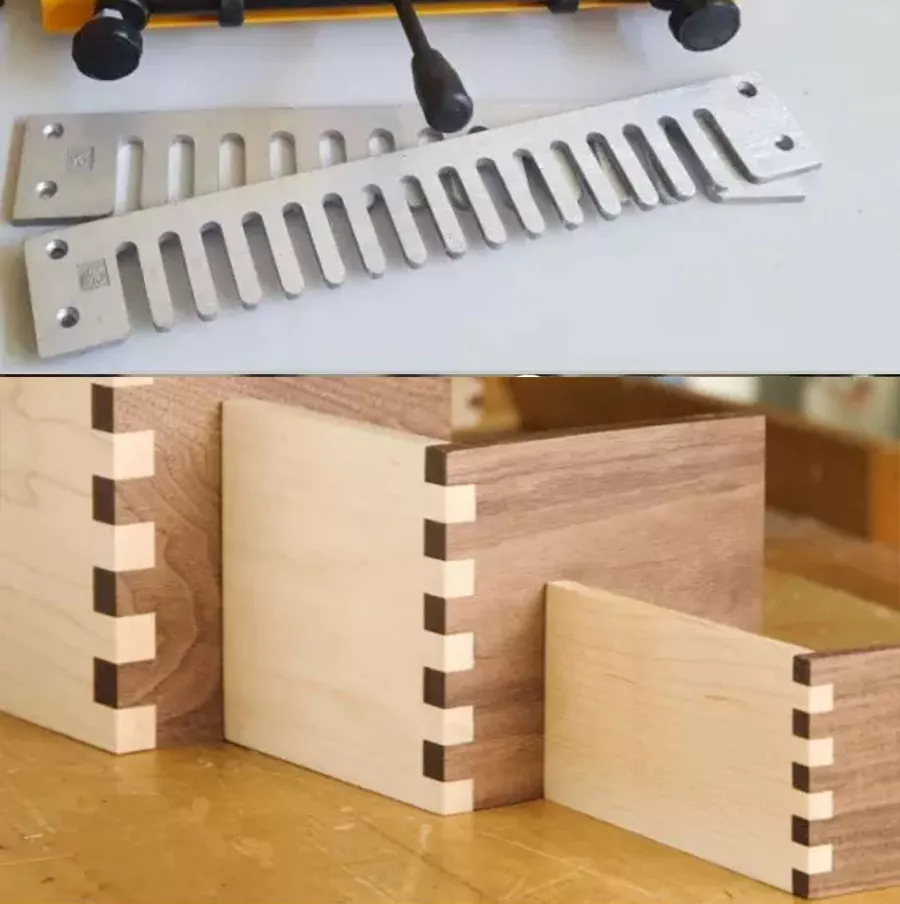

The main shaft drives the profiling needle to move along the mold as a "U" and "V" shaped locus to process the male and female grooves.
