Pneumatic Mortising Machine
- Quantity
Pneumatic Square Hole Mortising Machine
|
Product name |
Automatic square chisel mortiser drilling machine |
|
Model |
1610H |
|
Worktable lifting stroke |
400mm |
|
Motor power |
3kw (infinitely variable speed ) |
|
Output speed |
9-45r/min;15-75r/min;20-100r/min |
|
Maximum mortise width |
30mm |
|
Solenoid Pump |
Pump oil once every 1800 seconds (adjustable |
|
Maximum mortise depth |
65mm/126mm |
|
Worktable lifting stroke |
400mm |
|
Left and right tilt angle |
±30 degree |
|
Dimension |
1720×700×850mm |
|
weight |
270kg |
|
Workbench transmission mode |
Linear precision rails |
|
Main motor up and down transmission mode |
Linear precision rails |

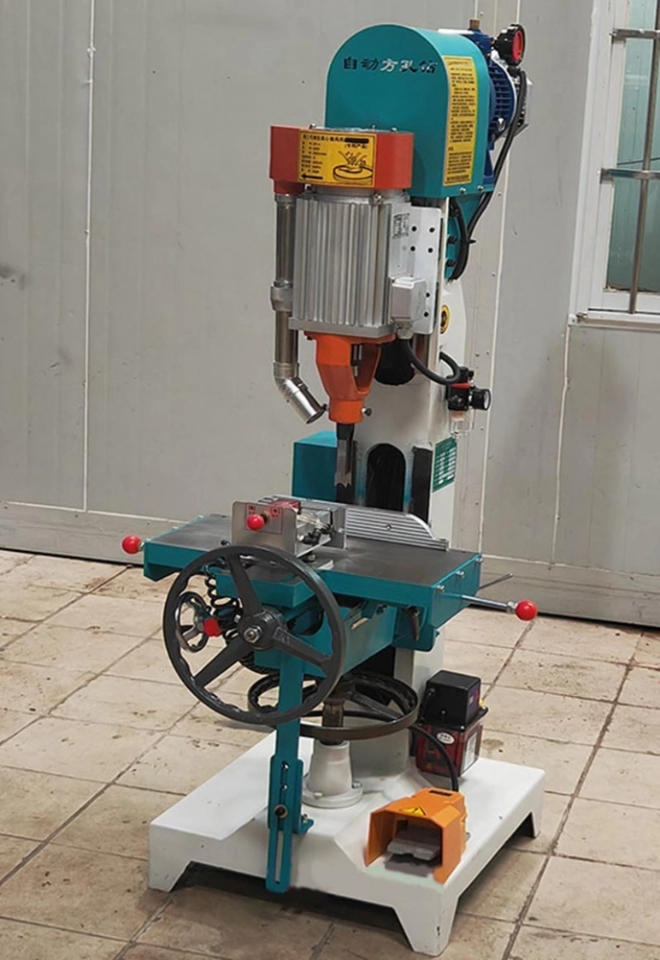

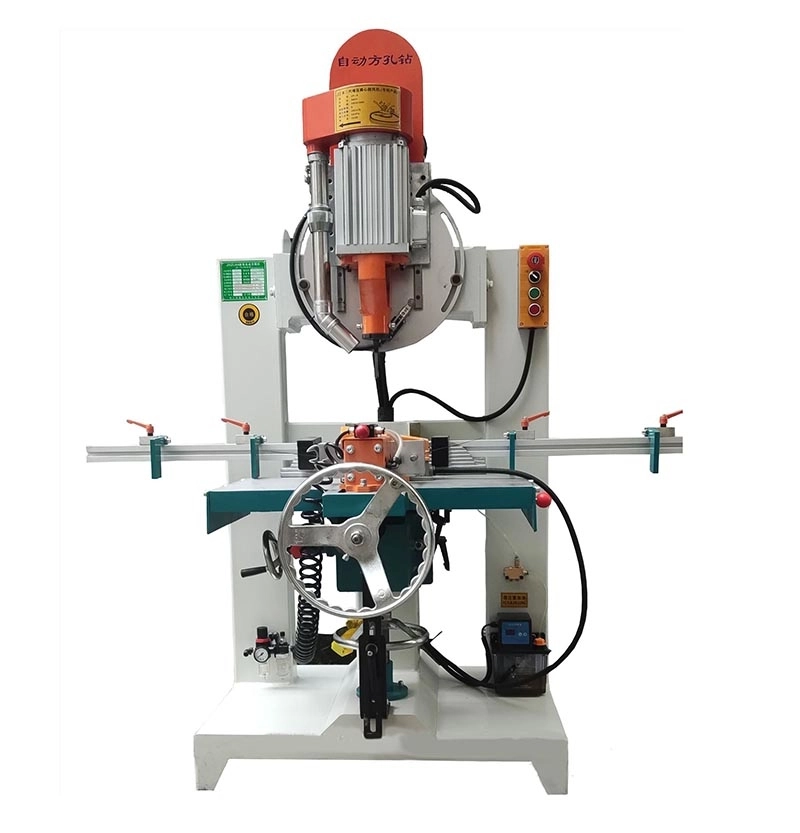

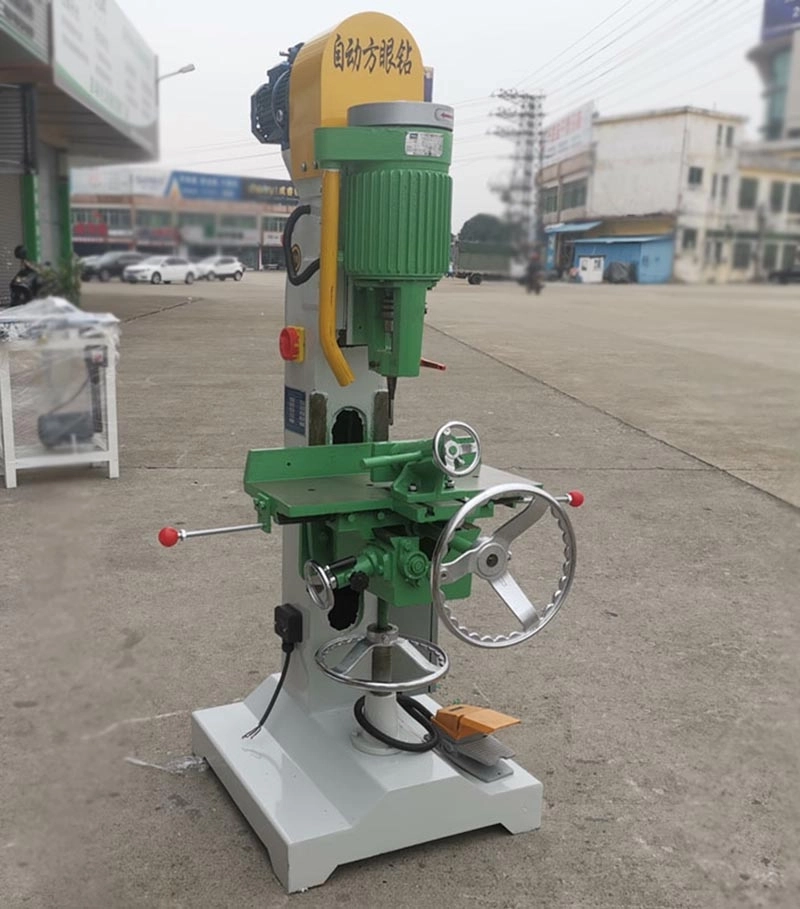

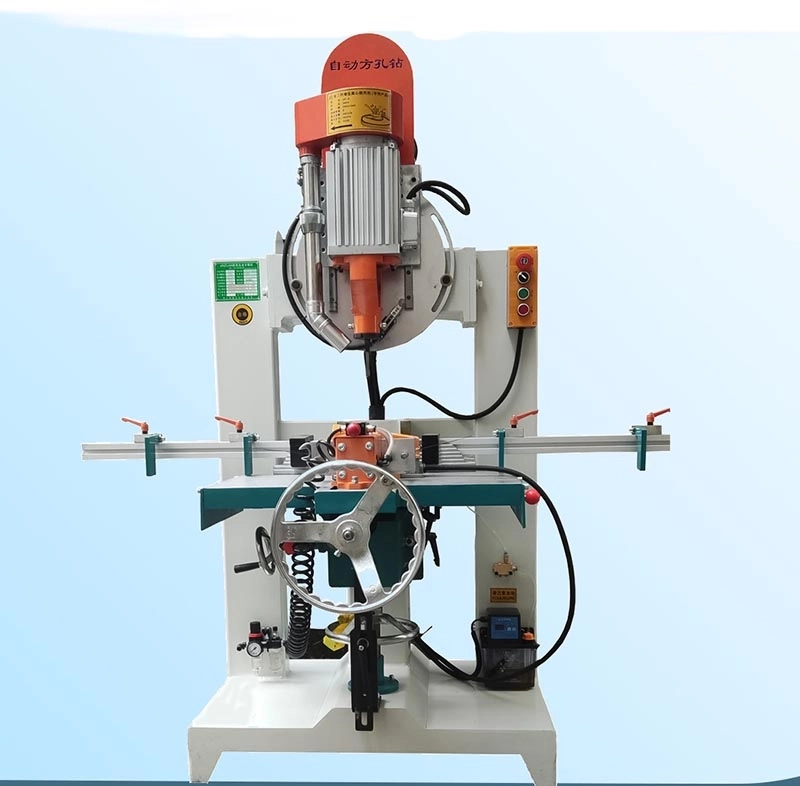

pneumatic Square Hole Mortising Machine
This versatile woodworking mortising machine is designed for high-efficiency processing of square holes, round holes, and slots. Featuring a powerful motor with 0-45° left and right angle adjustment, automatic up-and-down feed with adjustable speed, and precision linear guide rails, it ensures smooth and accurate operation. The worktable angle is also adjustable to meet diverse processing needs, while pneumatic clamps provide stable and safe material holding.

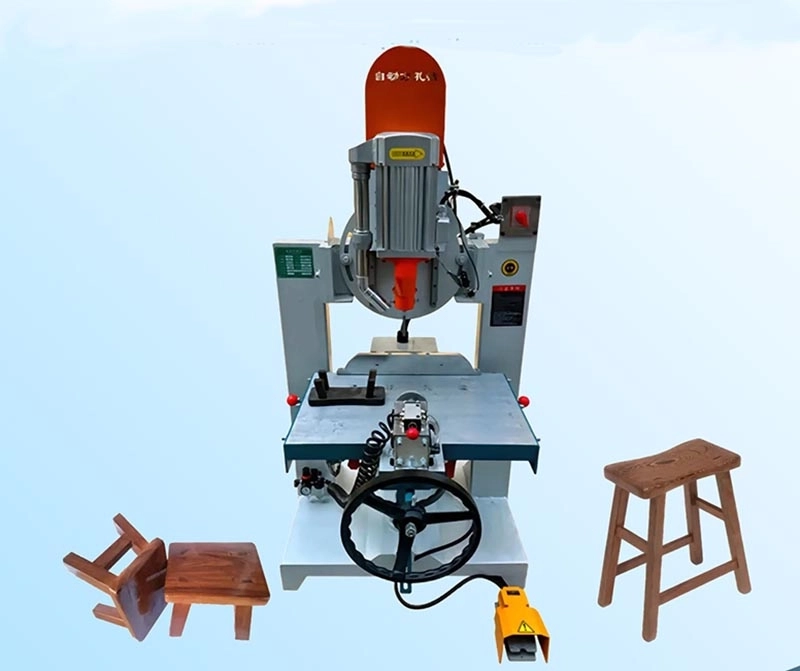

Widely used in traditional and modern furniture manufacturing, this machine is an essential tool for creating various square and round mortise joints with high precision and productivity.
Applications:

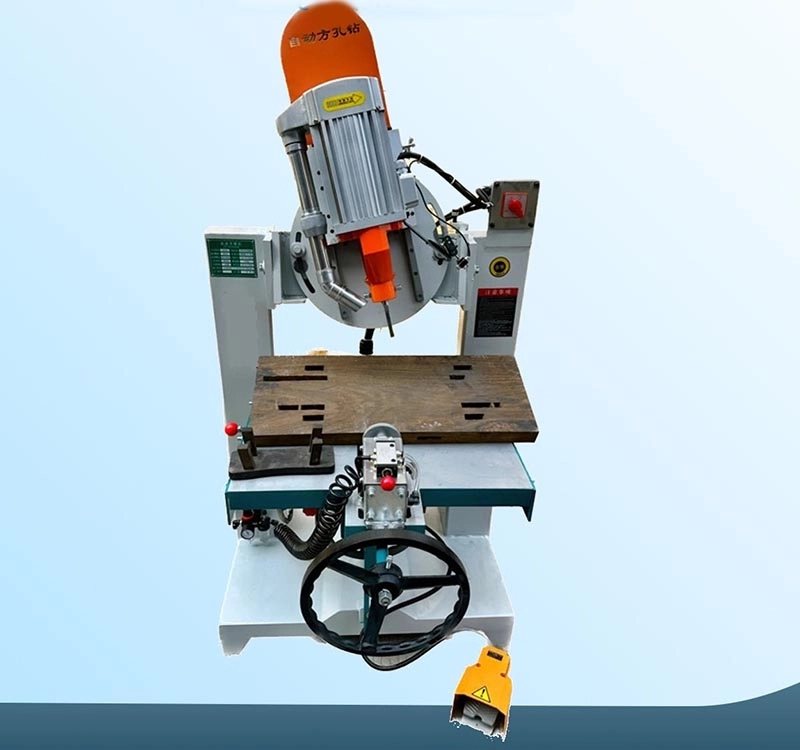

Furniture square mortise, round mortise, slot milling, woodworking joint hole drilling, and more.
