MS3112A/MS3112B single shaft Pneumatic Slot Grooving mortiser machine, Oscillating Mortiser, Automatic Slot Mortiser
- Quantity

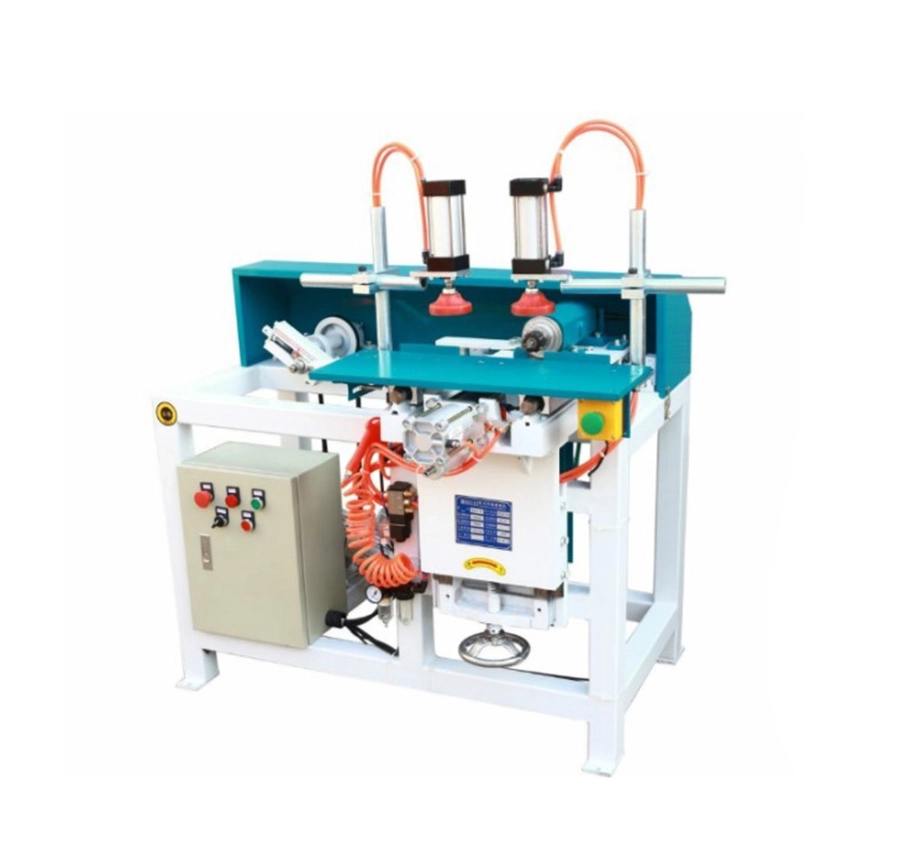

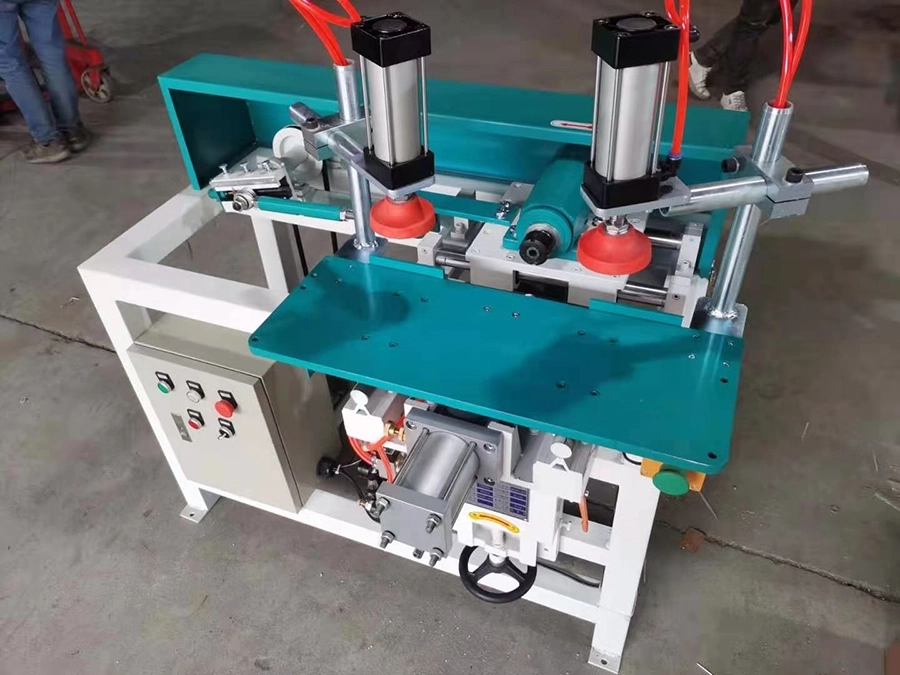

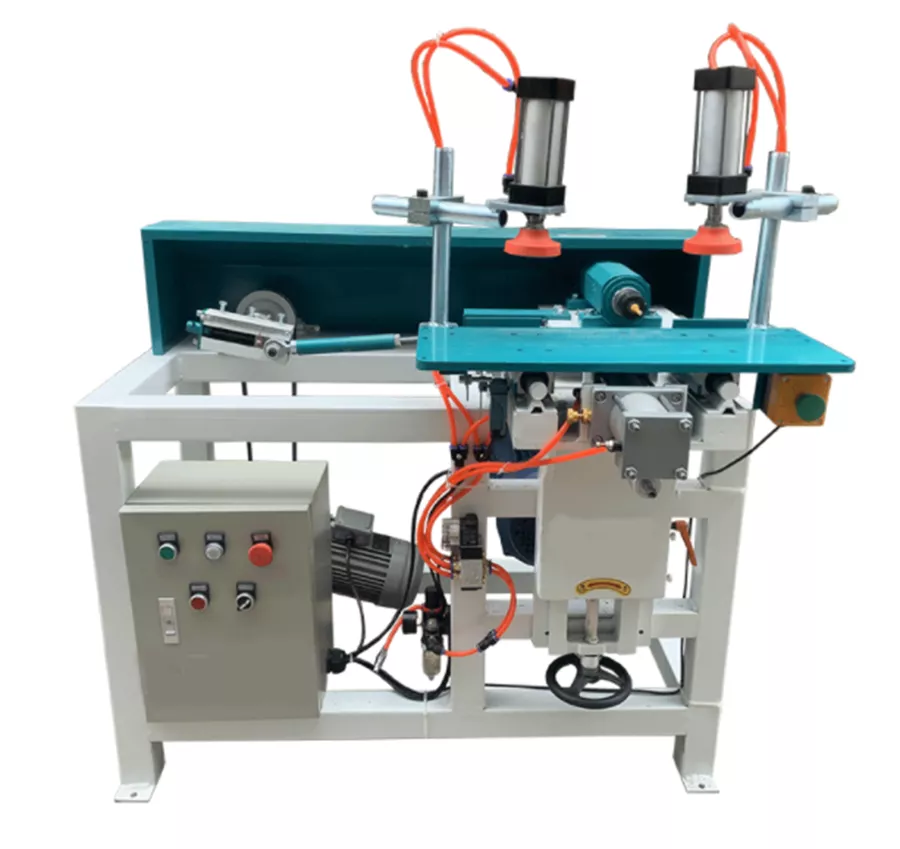

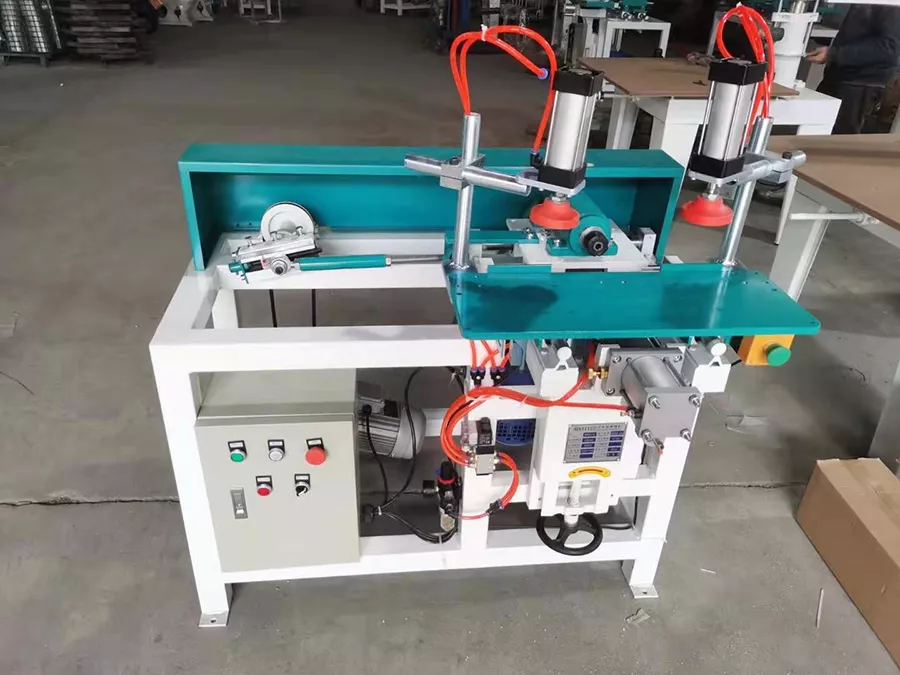

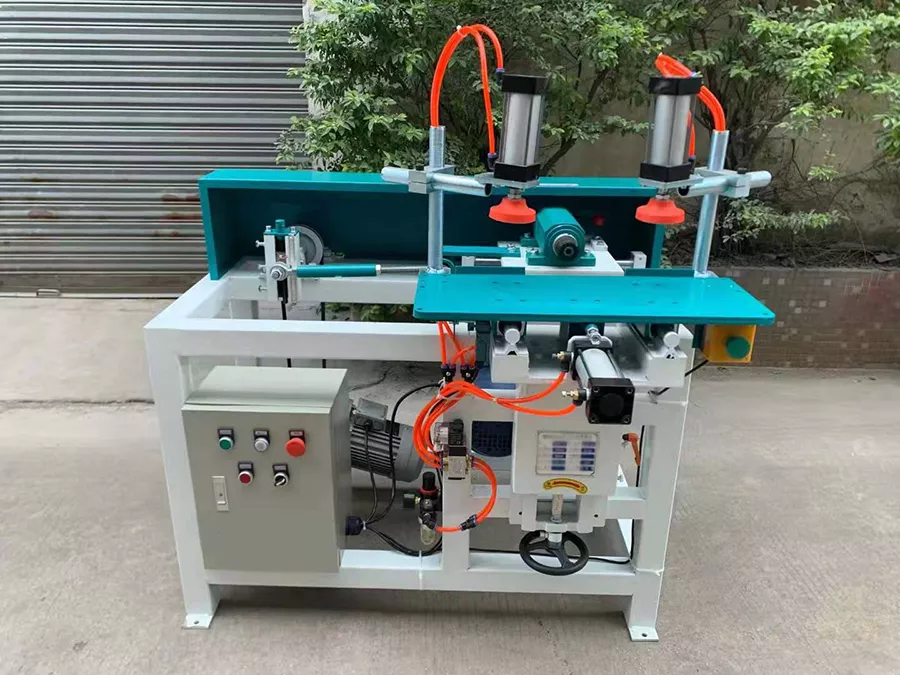

MS3112A/MS3112B single shaft Pneumatic Slot Grooving mortiser machine
|
Model |
MS3112A |
MS3112B |
|
Type |
Single shaft |
Single shaft |
|
Tongue and groove width (mm) |
120 |
120 |
|
Tongue and groove depth (mm) |
60 |
60 |
|
Worktable lifting stroke(mm) |
80 |
80 |
|
Spindle speed（RPM） |
14400 |
14400 |
|
Motor power (kW) |
(3+0.75)3.75 |
(3+0.75)3.75 |
|
Air push device |
Ordinary cylinder |
Oil push cylinder |
|
Working table (mm) |
600*220 |
600*220 |
|
Max. Spacing(mm) |
No limited |
No limited |
|
Min. Spacing(mm) |
No limited |
No limited |
|
Dimension(mm) |
1150*1000*1200 |
1150*1000*1200 |
|
Keywords |
mortise and groove machine |
mortise and groove machine |
MS3112A/MS3112B single shaft Pneumatic Slot Grooving mortiser machine

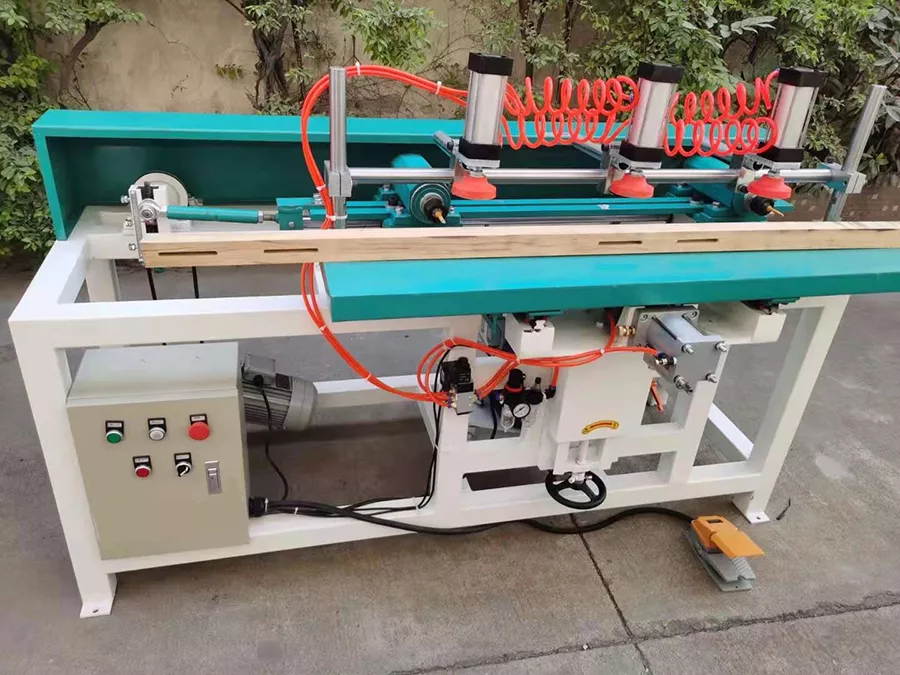

Double shaft
