MS3112 Double-End Mortise Oscillation slot mortiser wood working machine for Sofa and Chair Legs
mortiser drilling machine
- MS3112
- double shaft2.2kw(3HP)
- Quantity
MS3112 Double-End Mortise Oscillation slot mortiser wood working machine for Sofa and Chair Legs
|
Product name |
HORIZONTAL DOUBLE END MORTISING MACHINE |
|
table height adjustment |
80mm |
|
Table tilting angle |
±20° |
|
Max.tongue and groove depth |
90mm |
|
Max.tongue and groove width |
140mm |
|
lnstall power |
2.2kw |
|
spindle speed |
9500r/min |
|
Dimensions |
1600*1200*1200mm |
|
Weight |
500kg |
MS3112 Double-End Mortise slot mortiser wood working machine for Sofa and Chair Legs

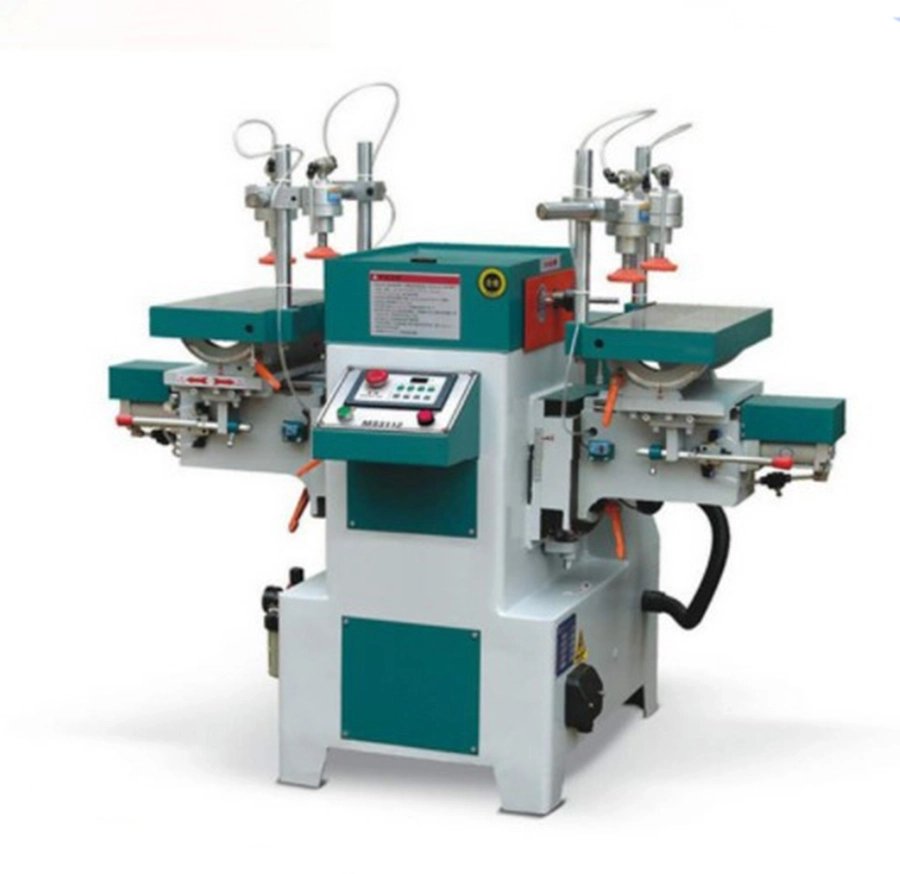

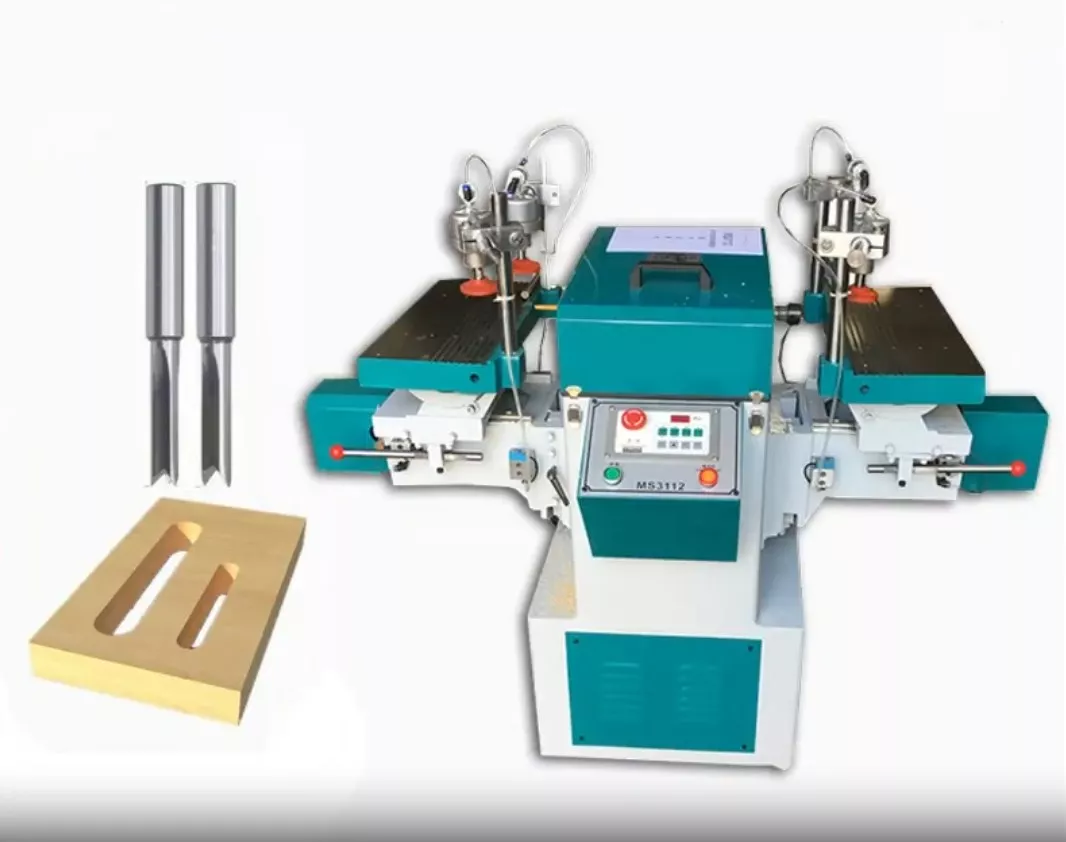

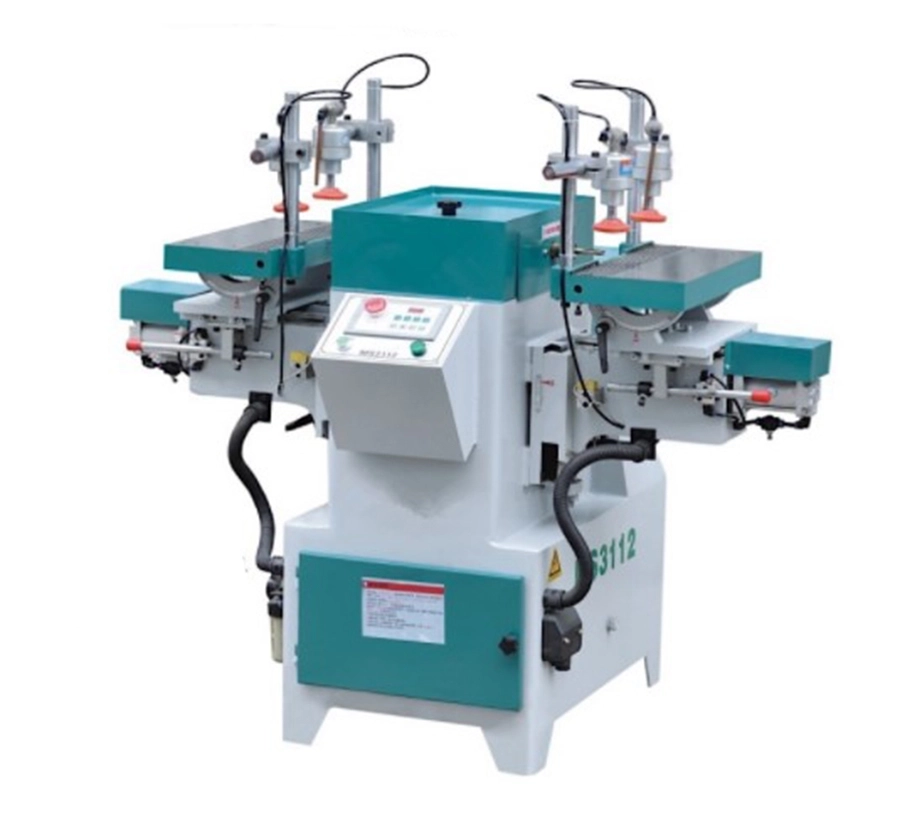

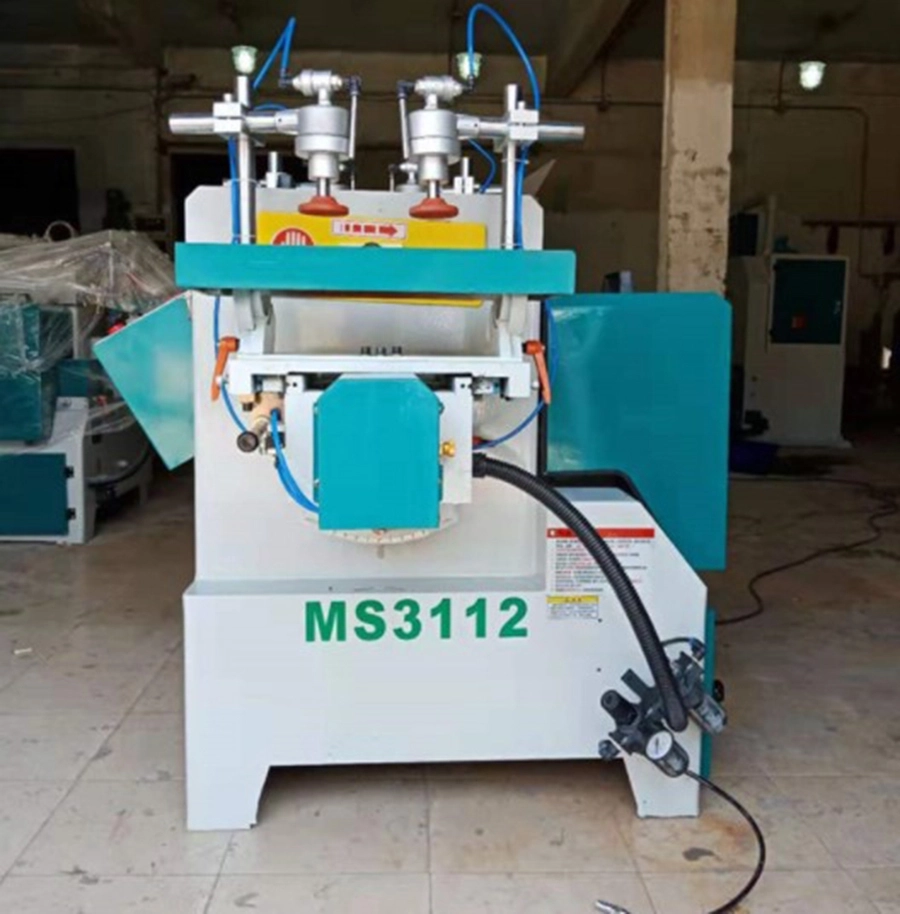

The MS3112 Horizontal Double-End Grooving Machine, also known as a Solid Wood Drilling Machine,

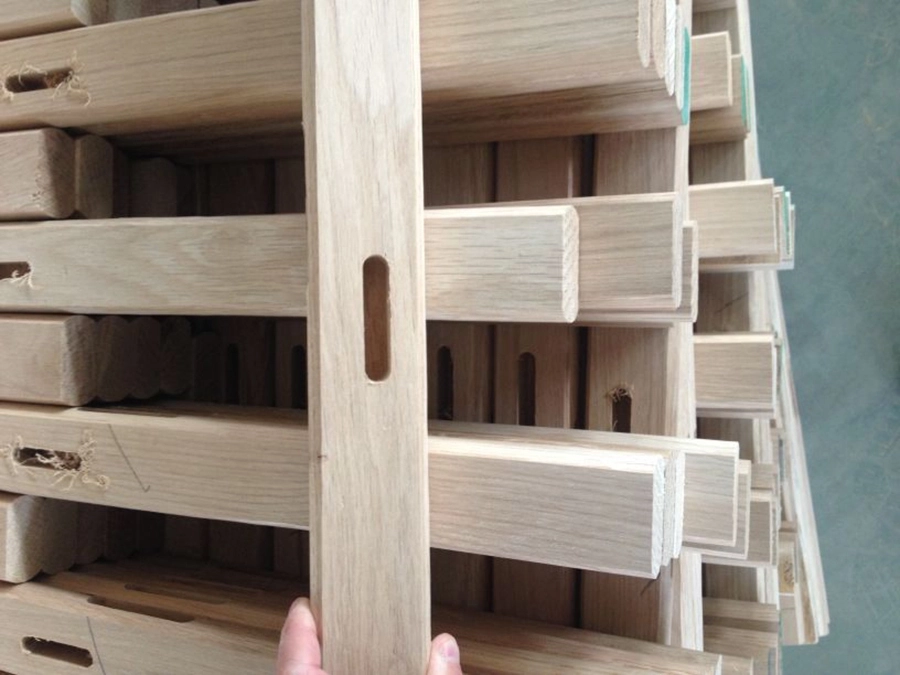

is designed for processing lumbar round grooves in solid wood furniture production.

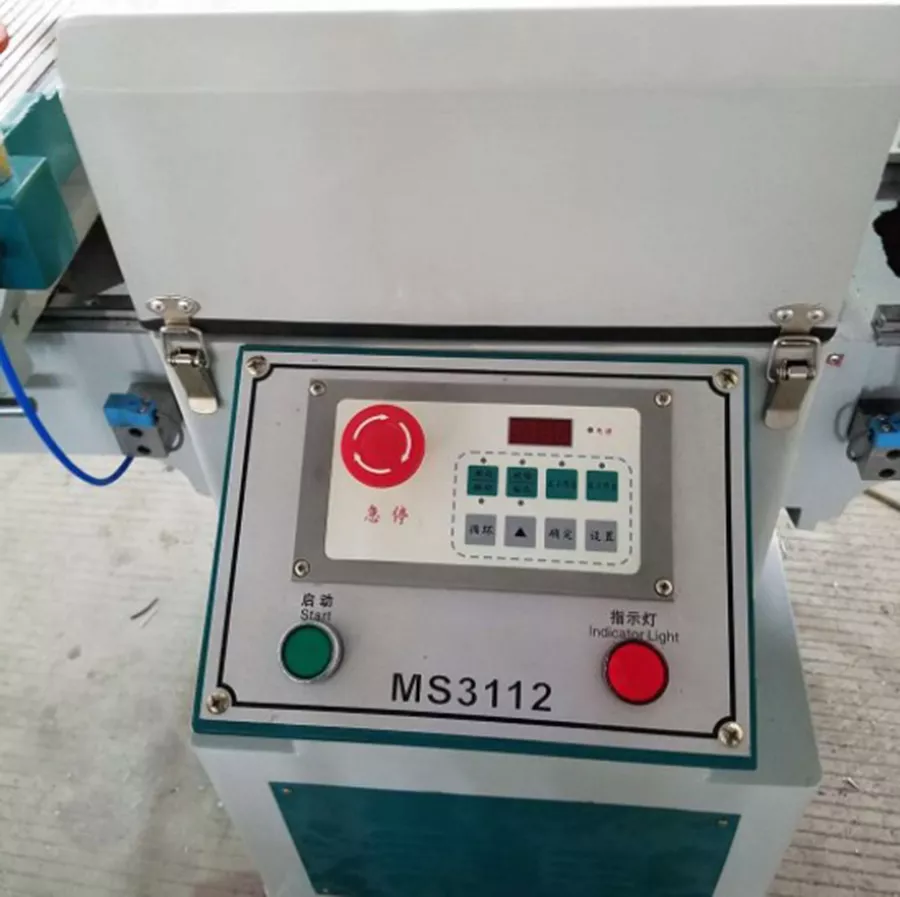

It features a connecting rod drive system and an automatic control mechanism.

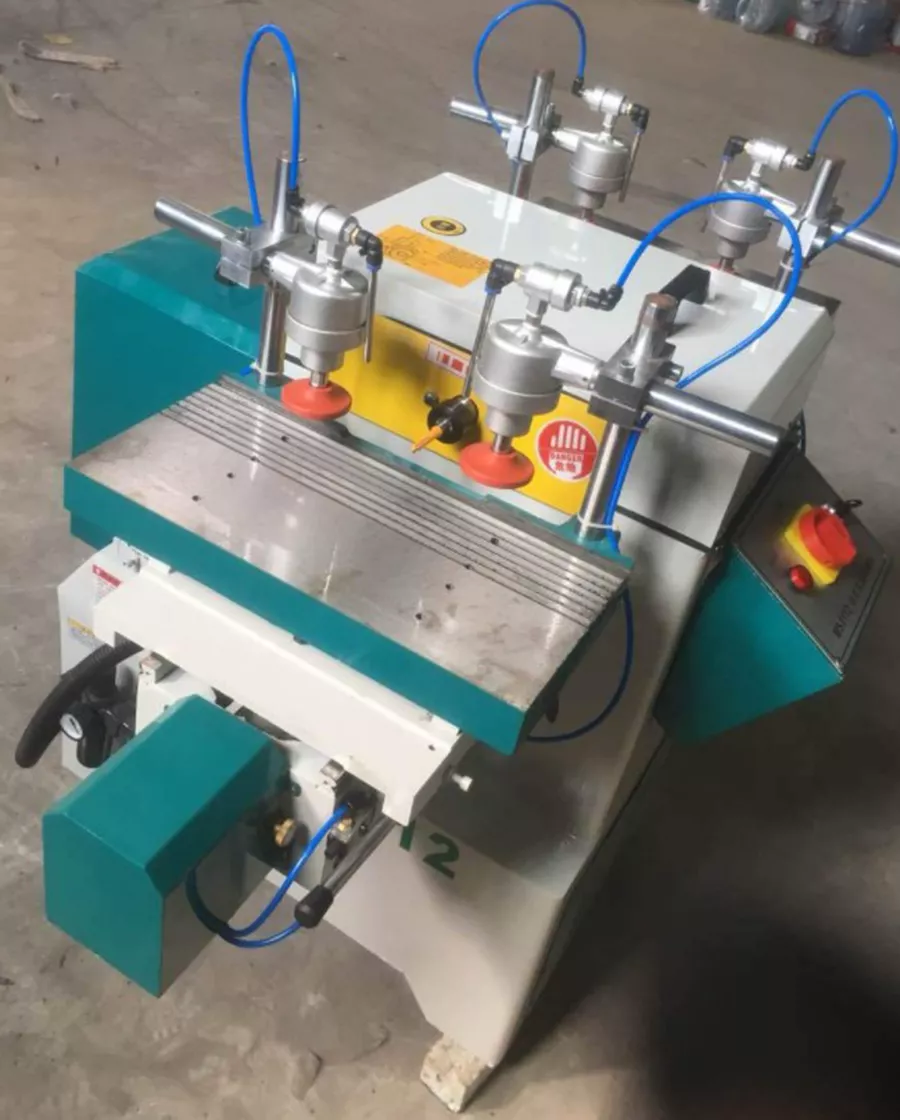

The machine is equipped with dual worktables, allowing simultaneous operation.
The worktables can be tilted to specific angles to meet guttering requirements.

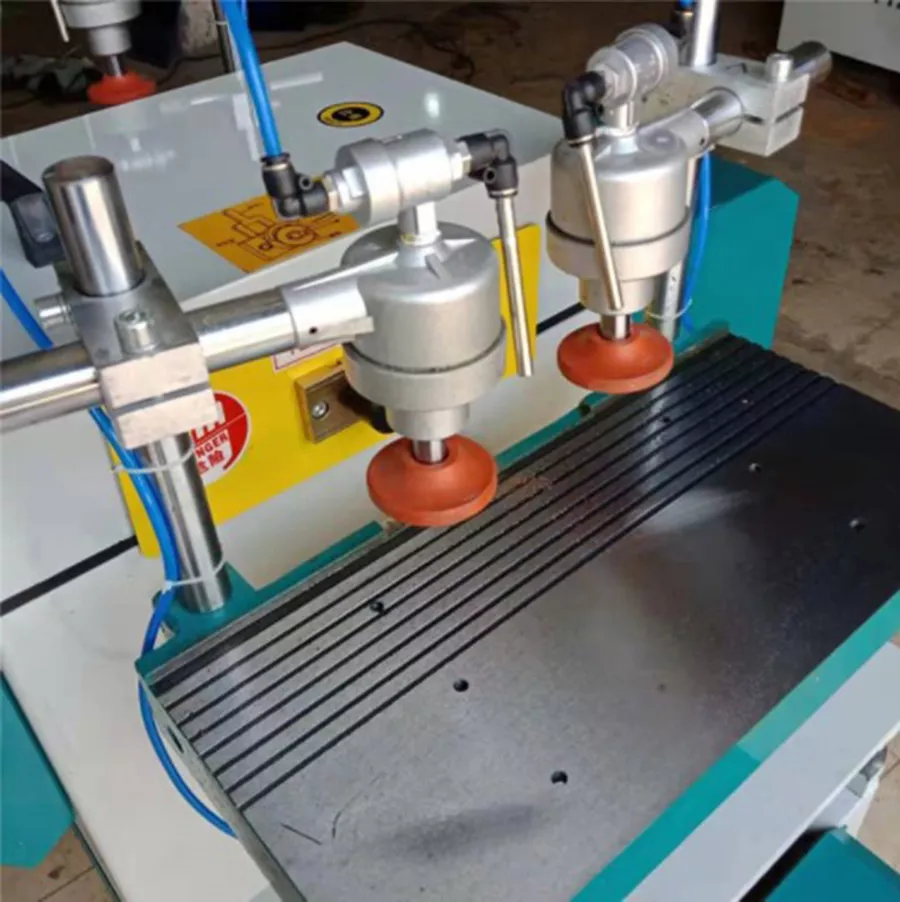

Its main components include a sturdy machine base, worktables, a pneumatic clamping system,
a table lifting mechanism, a pneumatic horizontal feeding system, and a horizontal axis swinging mechanism.
