MS302 Single Head slot Mortiser Boring Machine
- MS302
- 2.2kw(3HP)
- Quantity
MS302 Single Head slot Mortiser Boring Machine
|
Model |
MS302 |
|
Max. mortising length |
200mm |
|
Max. mortising Width |
0-20mm |
|
Max workpiece width |
300mm |
|
Max. mortising Depth |
100mm |
|
Working table moving height |
160mm |
|
Max tilt angle of working table |
0-30degree |
|
Spindle Speed |
3500r/min |
|
Motor Power |
2.2kw |
|
Overall Dimensions |
1183*628*1136mm |
|
Net Weight |
200kg |

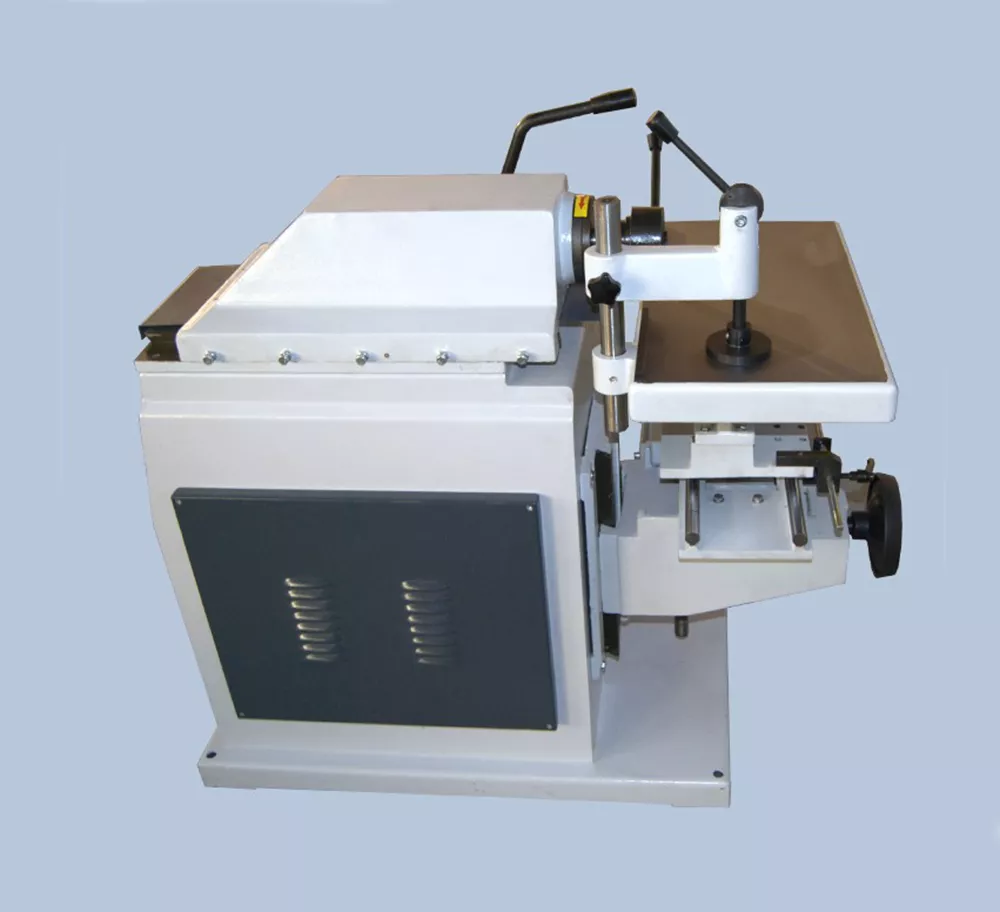

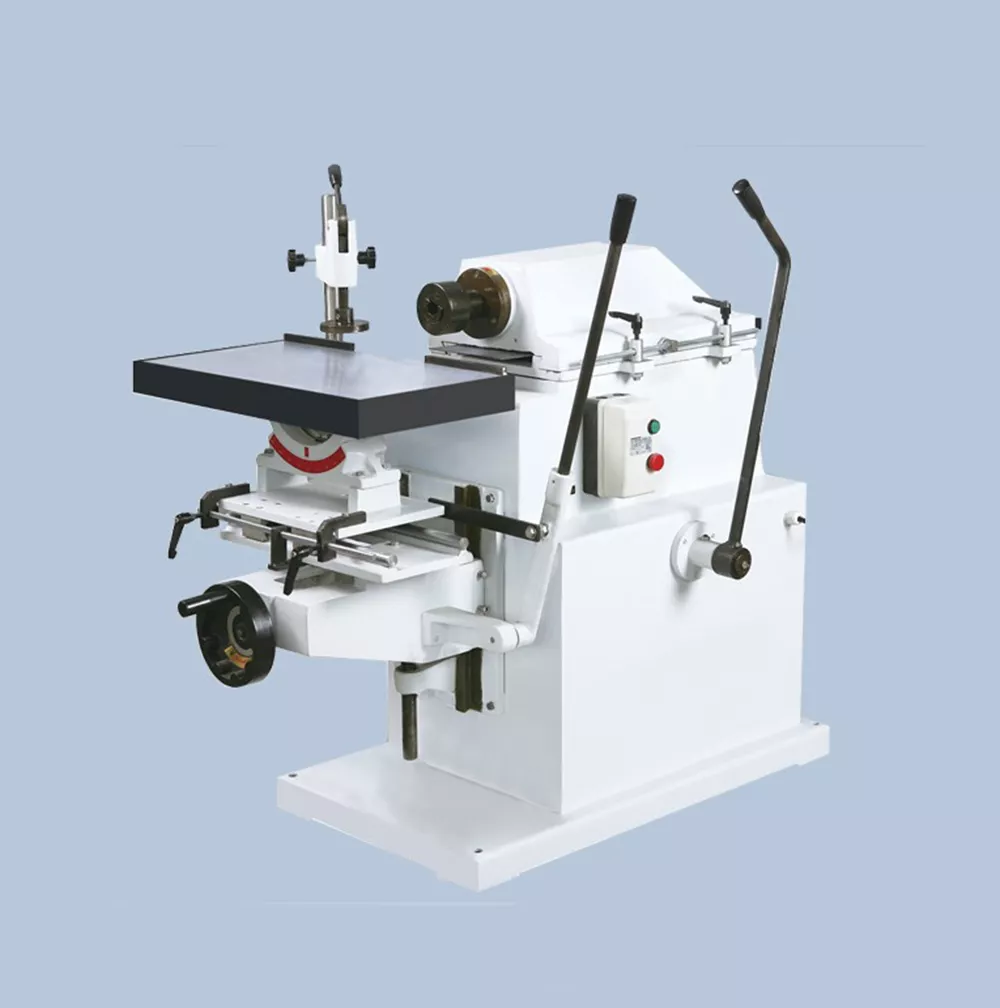

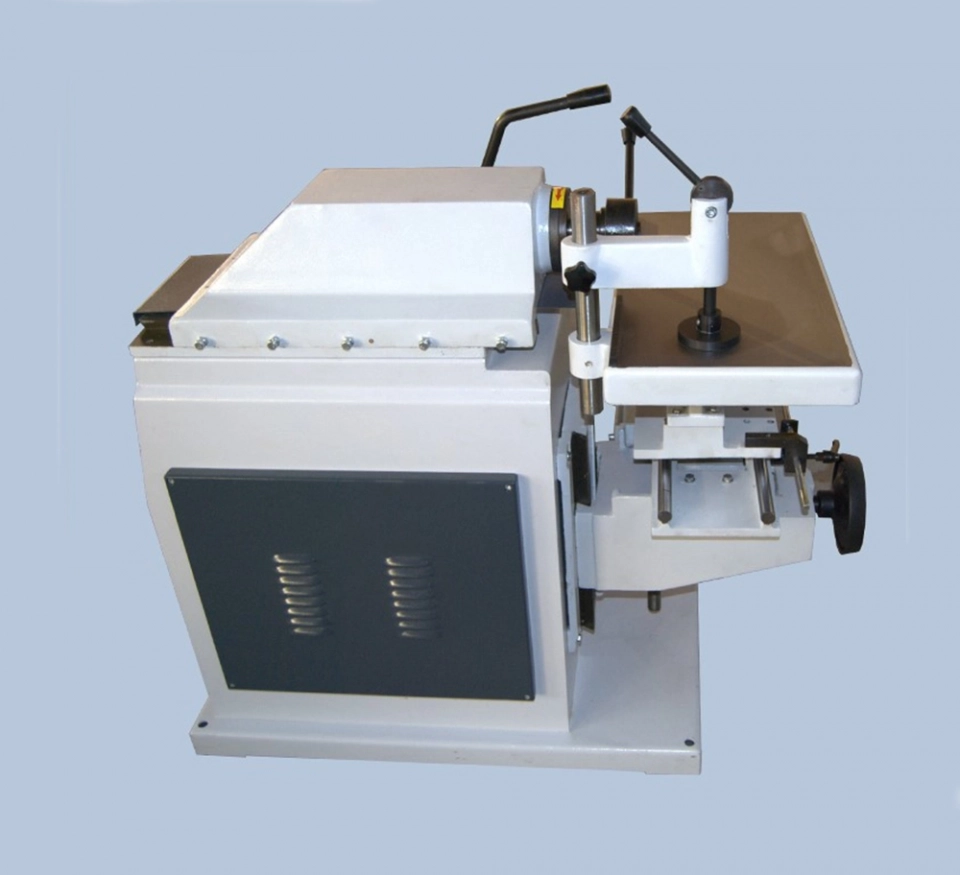

MS302 Single Head slot Mortiser Boring Machine

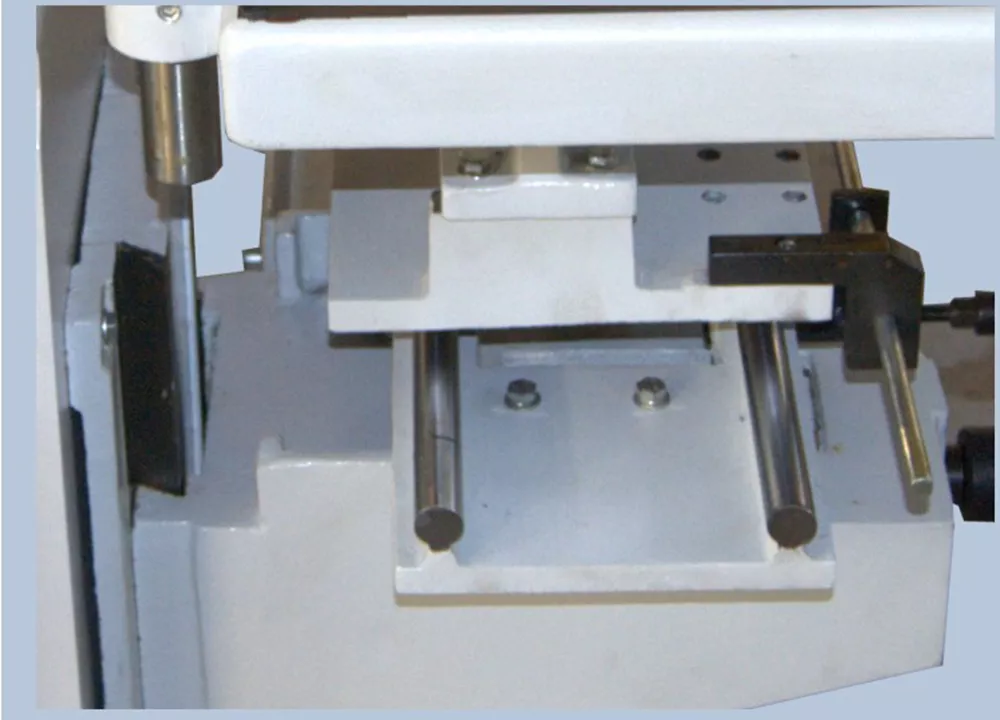

Double linear guide rails are used to move the worktable around, dovetail structure is used to lift up and down. Improved stability.

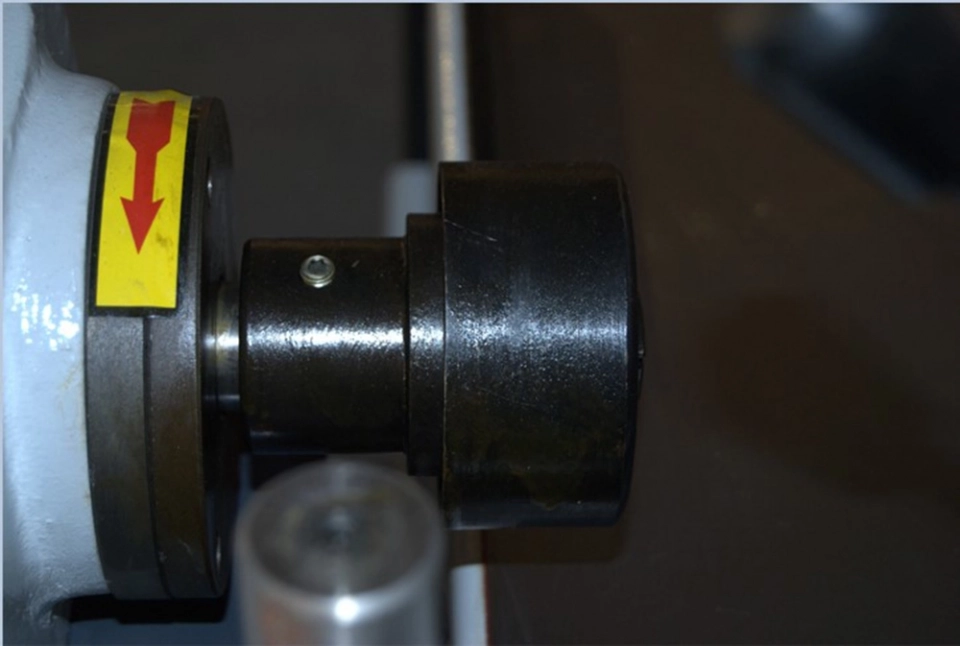

Precision machining, can hold up to 20mm drill.
