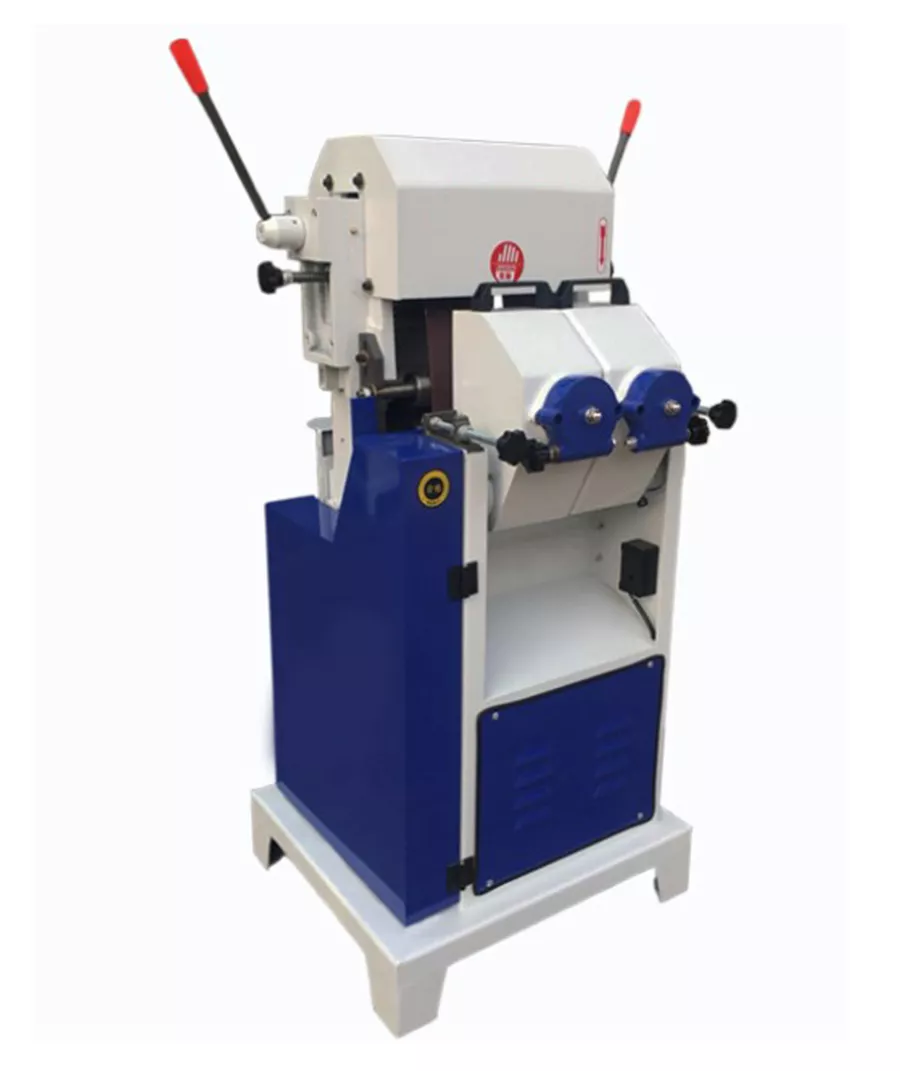

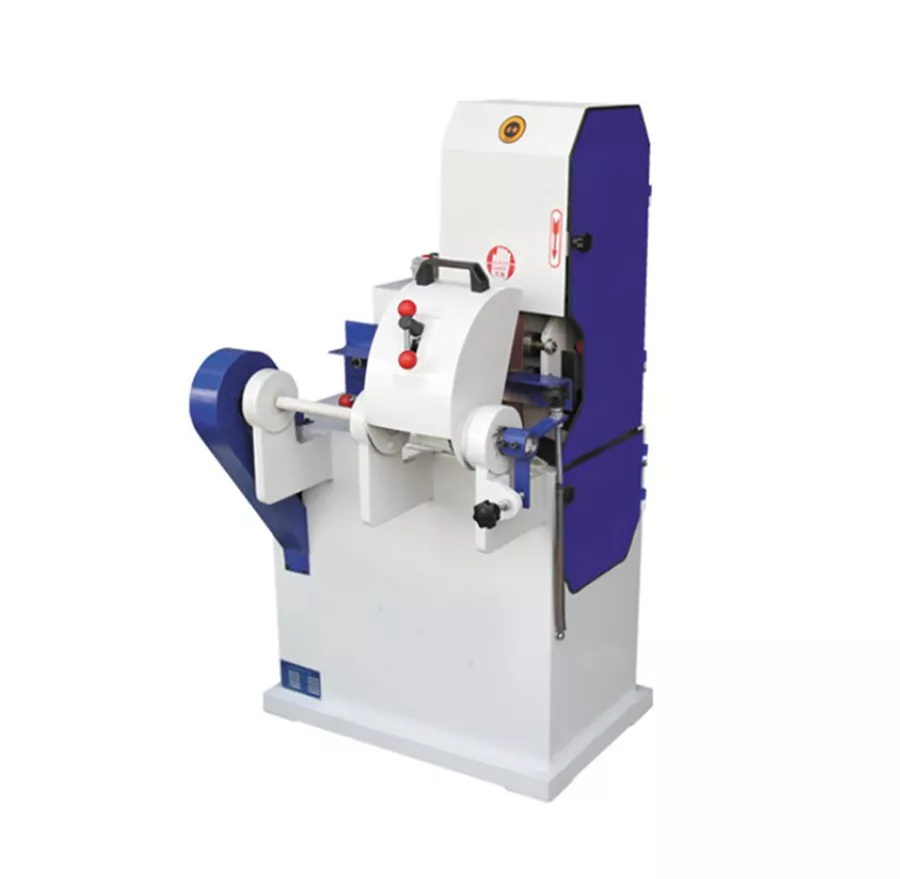

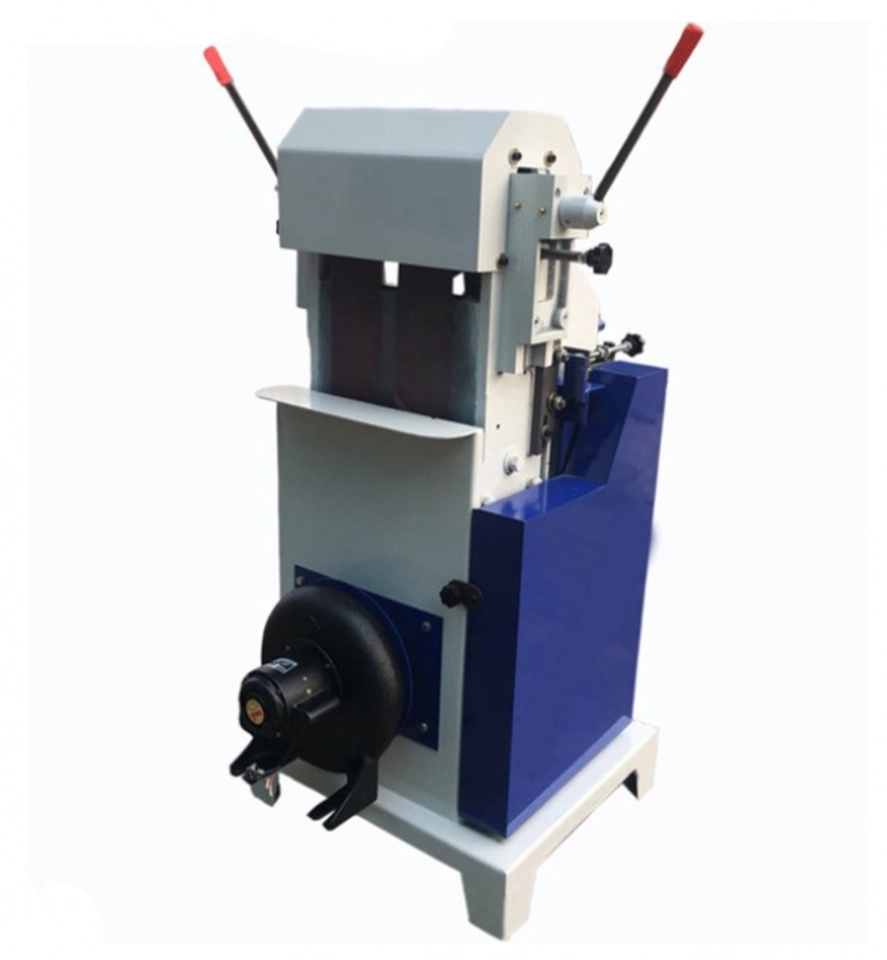

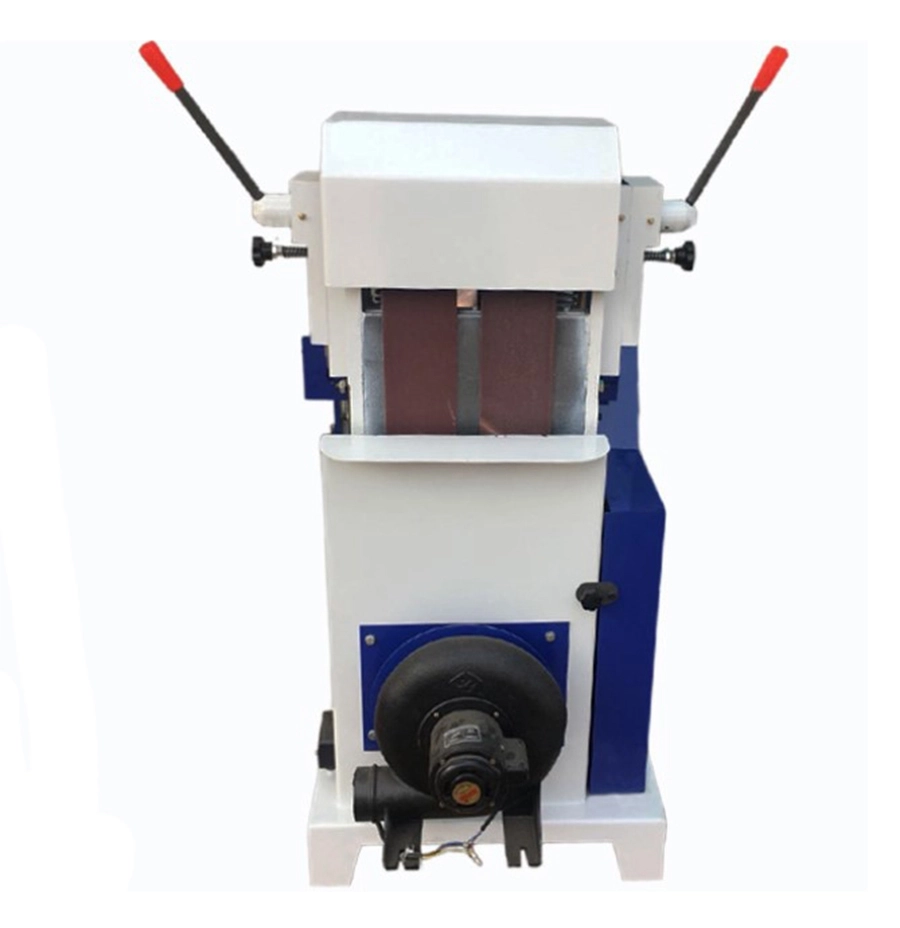

MM2012 Wood Round Bar Machine Double Belt Round Rod Sanding Machine Dowel Sanding Machine
- MM2012
- single belt
- MM2012A
- double belt
- Quantity
MM2012 Wood Round Bar Machine Double Belt Round Rod Sanding Machine Dowel Sanding Machine
|
Model |
MM2012 (Single belt) |
MM2012A (Double belts) |
|
Driving-wheel velocity |
1420r/min |
1420r/min |
|
Abrasive band line speed |
890mm/min |
890mm/min |
|
Feeding wheel velocity |
70r/min |
70r/min |
|
Feeding speed |
5-10m/min |
5-10m/min |
|
Abrasive belt specification |
1820X120mm |
1880X120mm |
|
Process diameter range |
10-60mm |
10-60mm |
|
Main motor power |
2.2kw |
2.2kw |
|
Fan motor power |
0.44kw |
0.44kw |
|
Size |
800X700X1350mm |
880X900X1350mm |
|
Weight |
210kg |
360kg |
MM2012 Wood Round Bar Machine Double Belt Round Rod Sanding Machine Dowel Sanding Machine

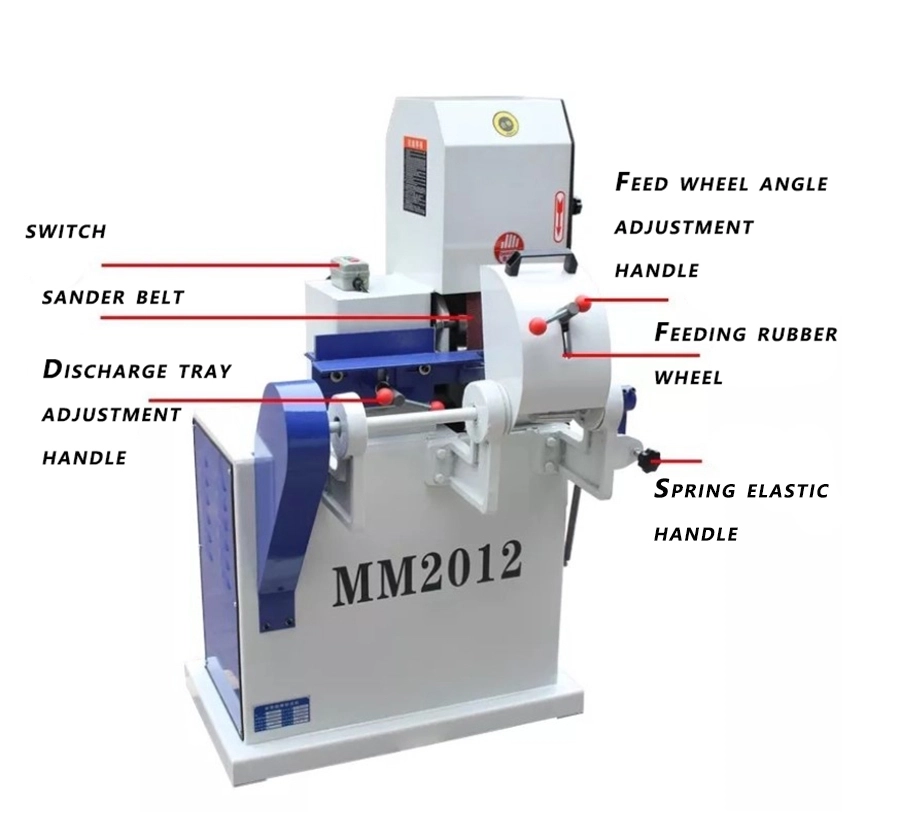

The round bar sander, the main components include a base, a fuselage and a transmission and feeding device,The belt and the rubber wheel move in opposite directions,
so that the round rod to be processed enters from the feeding end and rotates automatically, sanding and polishing during the rotation,
and adjusting the angle of the rubber wheel by adjusting the bolt, according to the round rod The size and processing precision requirements achieve the purpose of adjusting the feeding speed.
The utility model has the advantages of high production efficiency, safe operation, good sanding and polishing effect.
It have Single belt round bar sander and double belt round bar sander two type.
