Product name |
10 in 1 combination multi wood planer |
|
|
Model |
MLQ342 |
MLQ343 |
|
Max. Planing width |
260mm |
310mm |
|
Max. Planing thickness |
3mm |
|
|
Press planing thickness range |
6~120mm |
|
|
Max. Sawing thickness |
80mm |
120mm |
|
Cutting mouth depth |
10mm |
|
|
Max. Mortise size |
16*16mm |
|
|
Max. Mortise depth |
120mm |
|
|
planer shaft diameter |
78mm |
|
|
Thicknesser feeding speed |
6.5m/min |
|
|
Circular saw blade diameter |
250mm（10inch) |
300mm(12inch) |
|
Type |
Turbine pole single screw |
Turbine pole single screw / Turbine pole double screw |
|
Spindle speed |
4200r/min |
|
|
Motor power |
2.2kw, 220V/380V, 50Hz |
|
|
Dimension |
1000*900*800mm |
1200*900*800mm |
|
Weight |
160kg |
190kg |
|
Function |

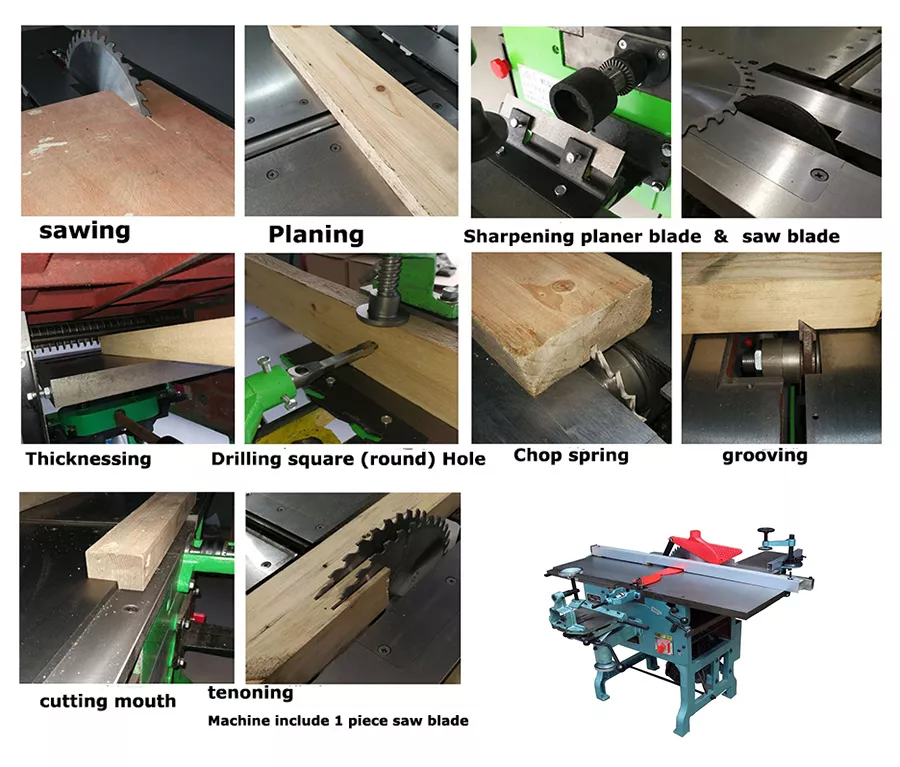

Sawing, planing and jointing, thicknessing, sharpening saw blade and planing blade, drilling square or round hole(mortise), chop spring, grooving, cutting mouth, tenoning |
|
|
Optional |
Mobile pushing table, blade cover,backing ruler, we give 1 piece 10inch saw blade,for extra you need purchase. |
|
