MK361/MK361A model Bench Wood Tenon Chisel Mortiser Machine For Woodworking
Chisel Mortiser
- Quantity
MK361/MK361A model 1200W Bench Wood Tenon Chisel Mortiser Machine For Woodworking
|
Product name |
Single-axis vertical woodworking Mortise machine |
|
Keyword |
tenon and mortise machine |
|
Maximum groove length |
120mm |
|
Maximum groove depth |
120mm |
|
Blinking bit width |
6~16mm |
|
Drill diameter |
13mm |
|
Insert diameter |
19.05mm (groove cutter mounting hole size) |
|
Motor speed |
2860rpm |
|
Left and right stroke |
100mm |
|
Front and rear stroke |
40mm |
|
Motor power |
550W |
|
Voltage |
220V,50Hz |
|
Workbench size |
200 *120mm |
|
Dimension |
390*315*740mm |
|
Weight |
52kg |
MK361/MK361A model 1200W Bench Wood Tenon Chisel Mortiser Machine For Woodworking

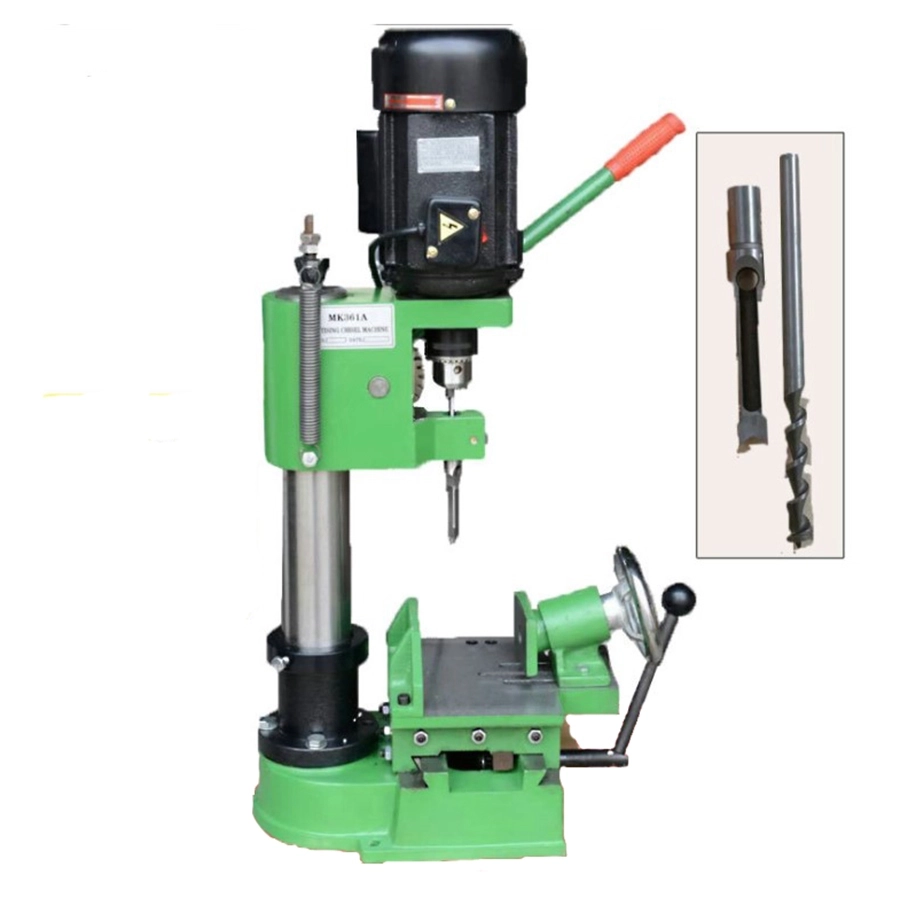

Single-axis vertical woodworking Mortise machine also called square mortising and groove machine,commonly known as drilling machine.
Mainly used for square wood, wooden frame and other parts or components on the surface of processing square or rectangular mortise groove.
its cutting tool adopts the hollow square chisel with drill bit inside, which is used to chisel square L or long tenon in the joint of wooden parts.
It is an ideal tool for the wood processing industry and individual households to open tenon.
