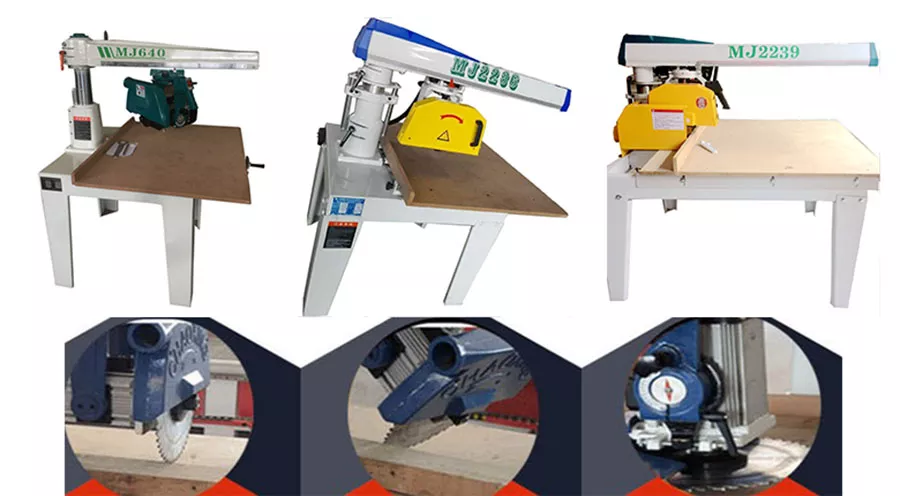

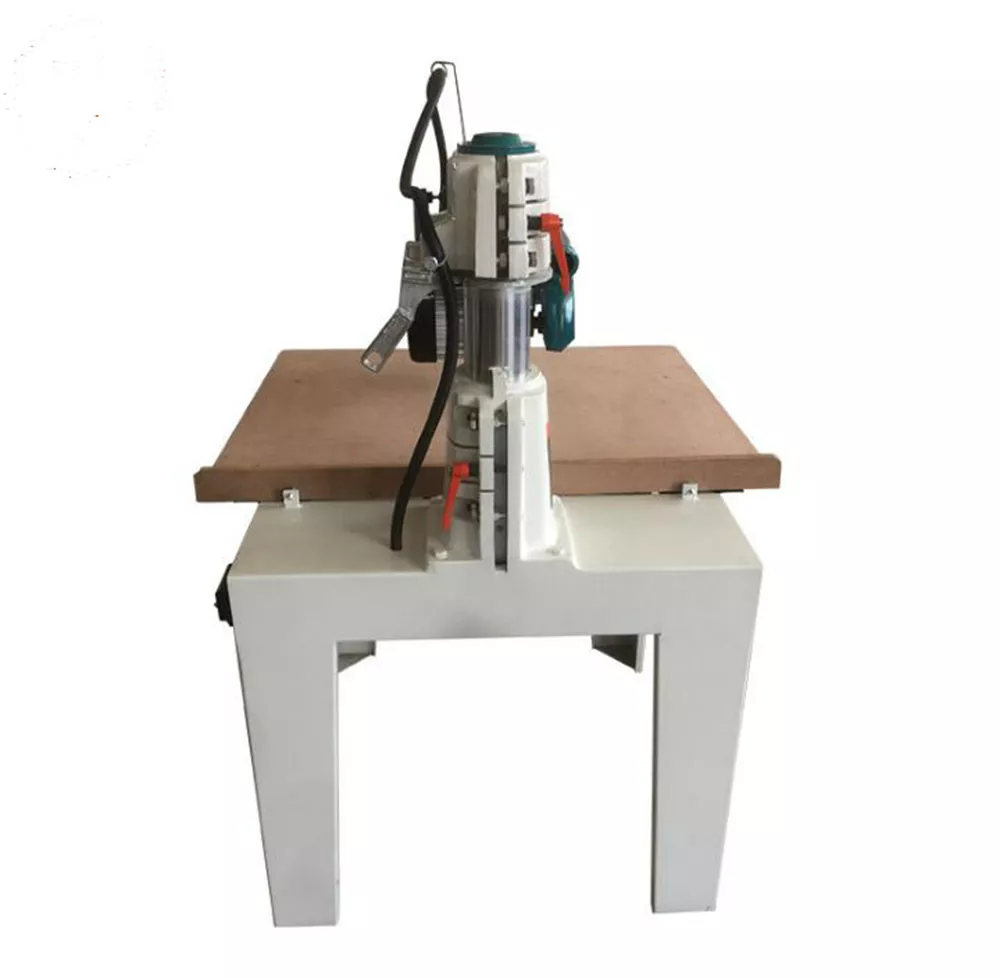

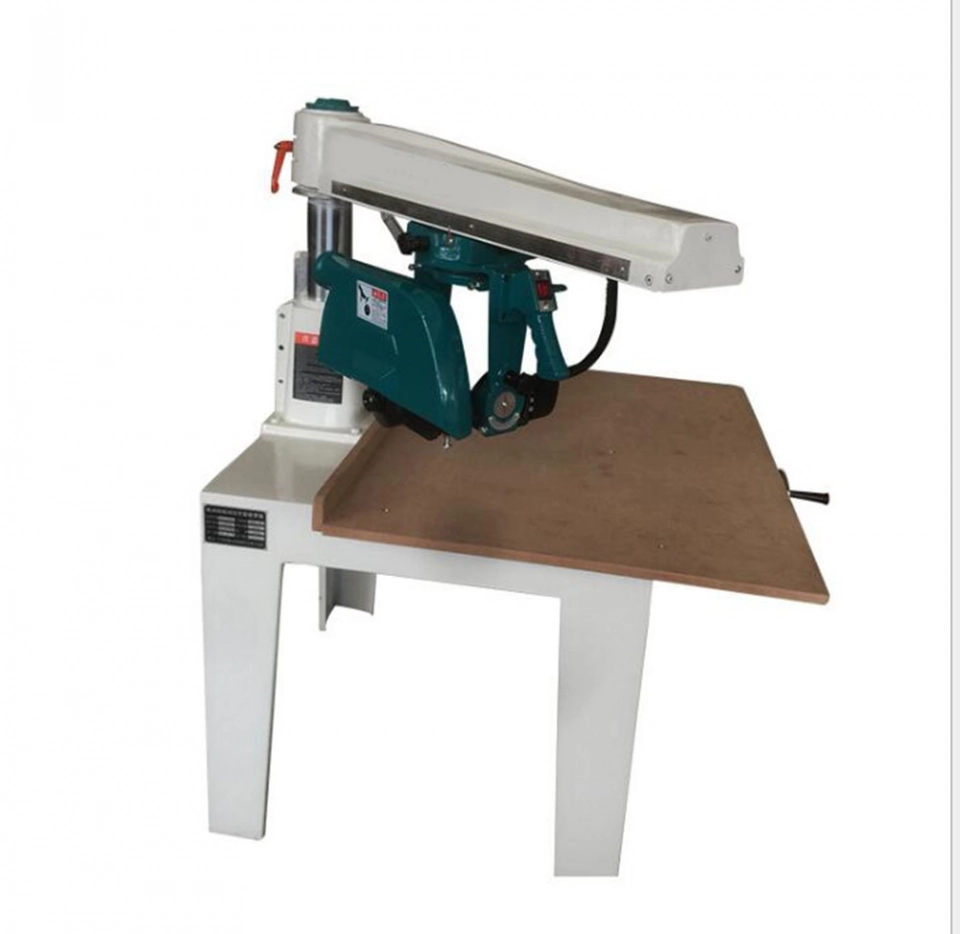

MJ640/MJ930/MJ2336/MJ2338 Universal Multi-Purpose Woodworking Radial Arm pull sawing saw
- Quantity
MJ640/MJ930/MJ2336/MJ2338 Universal Multi-Purpose Woodworking Radial Arm pull saw
|
Model |

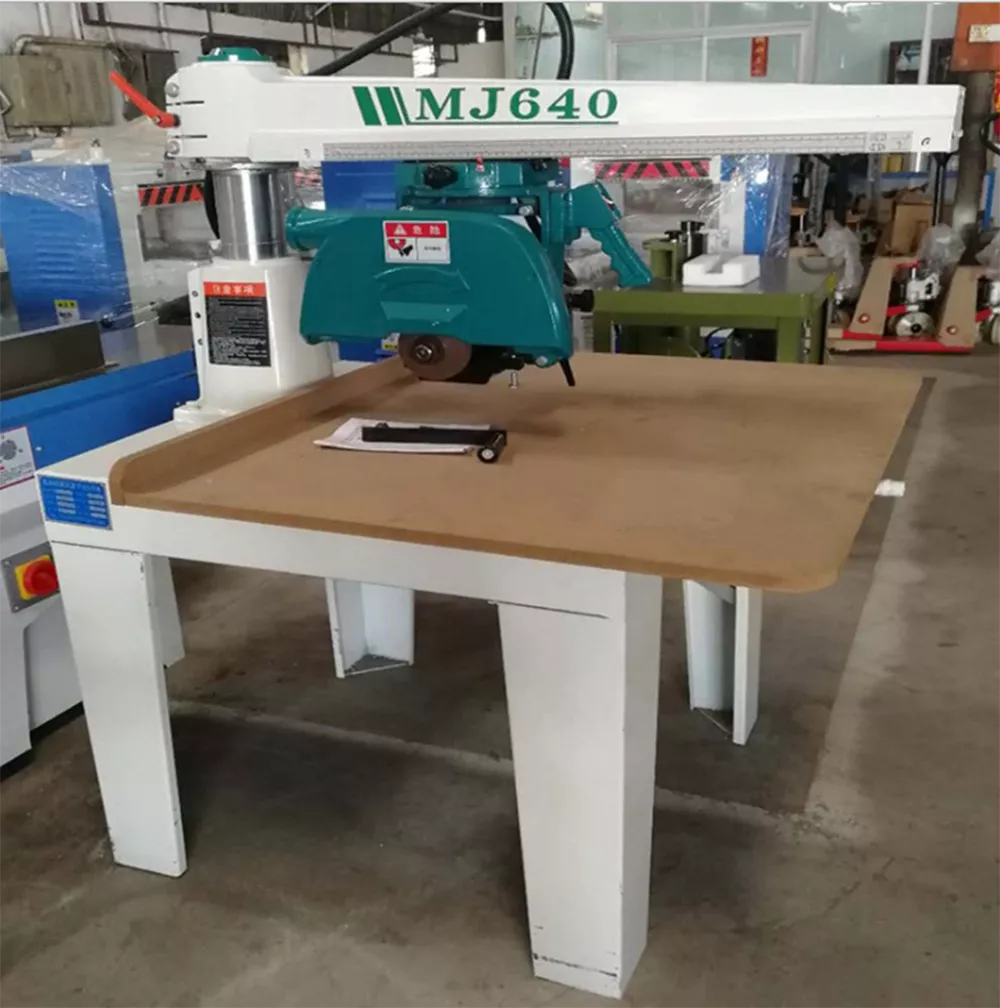

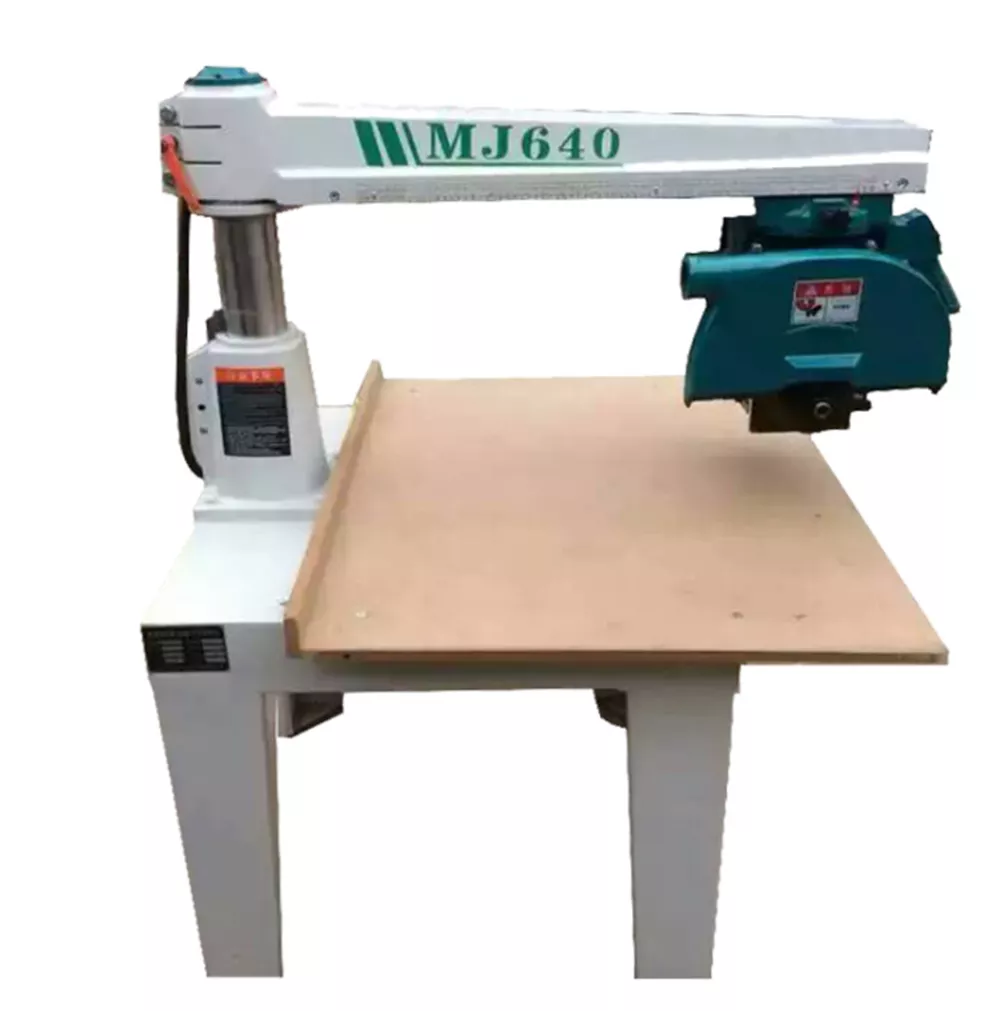

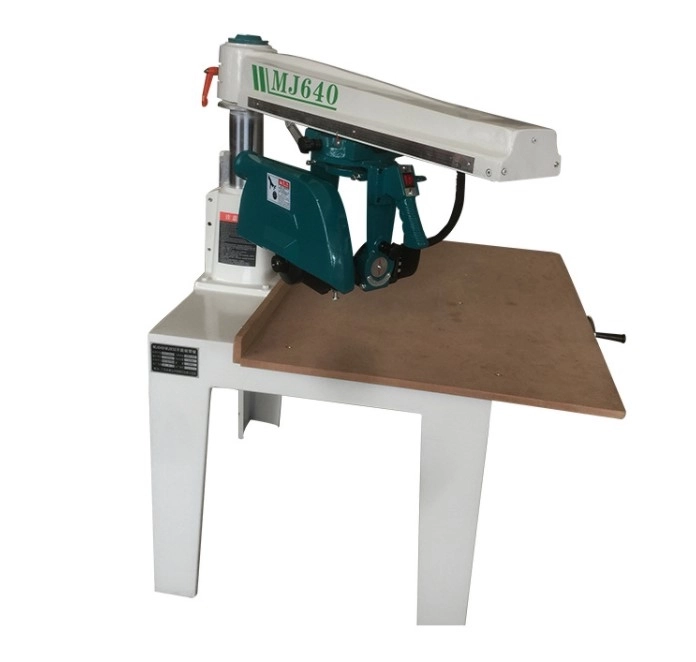

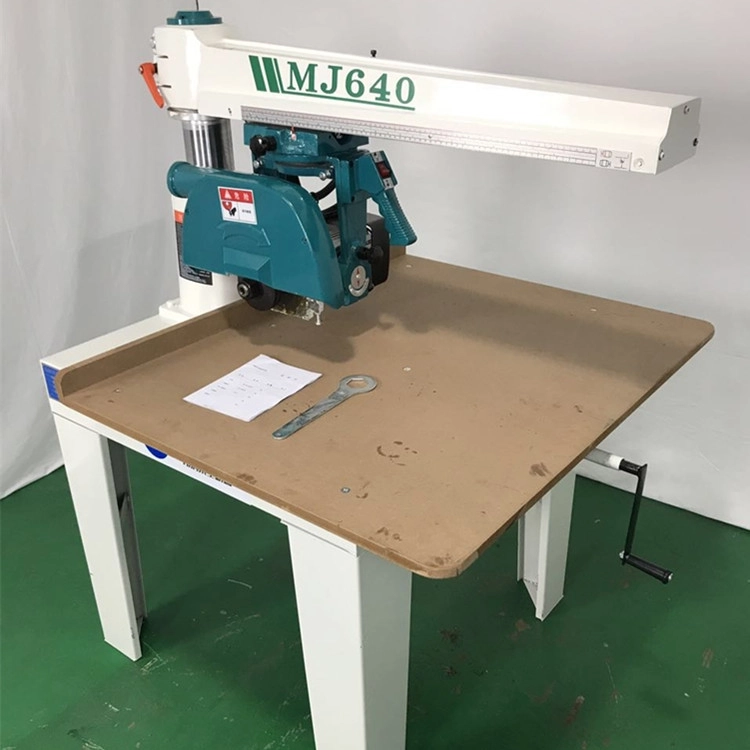

MJ640 |
MJ930 |

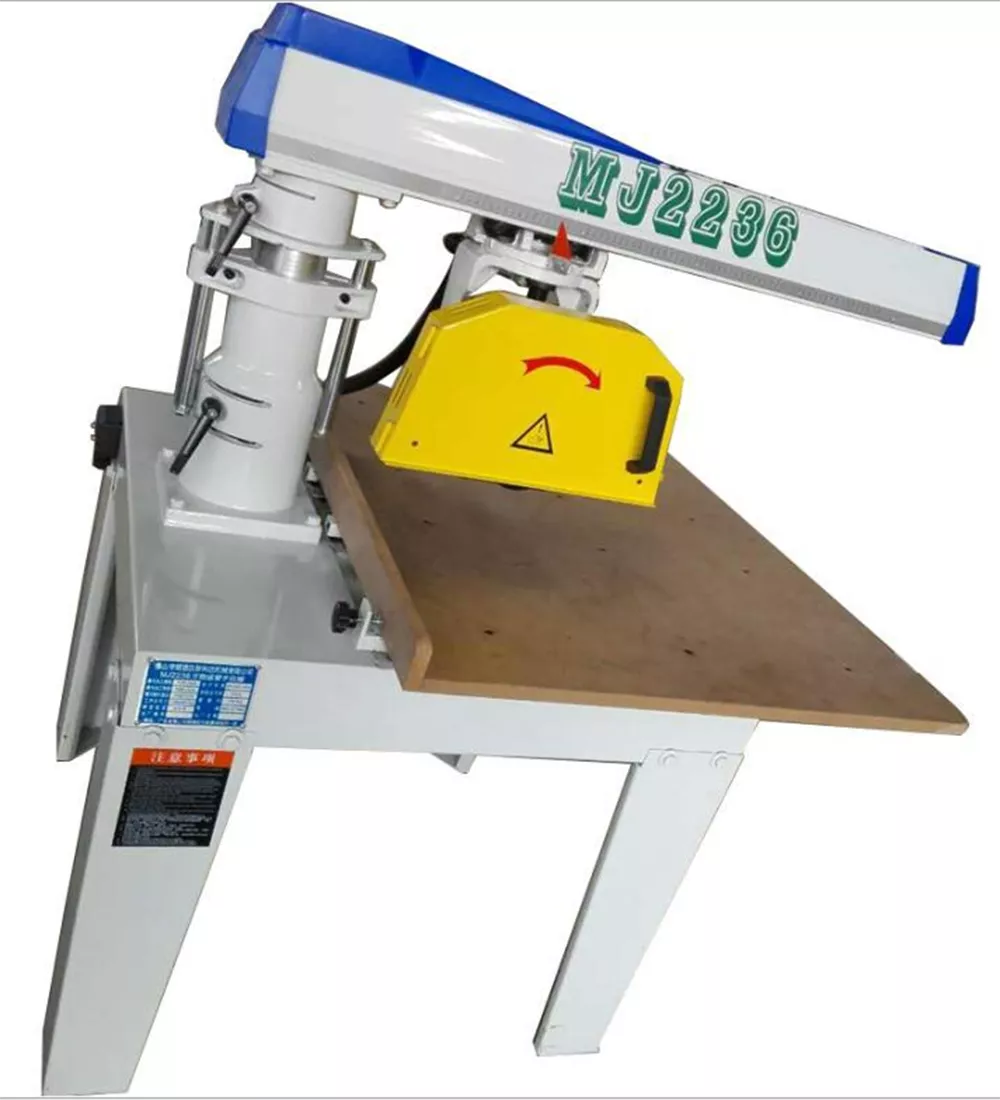

MJ2336 |
MJ2338 |
|
Saw blade diameter |
350mm |
350mm |
350mm |
350mm |
|
Maximum sawing length or width |
640mm |
930mm |
640mm |
800mm |
|
Maximum blade thickness |
120mm |
|||
|
Rock-arm revolving angle(each at left or right) |
45° |
|||
|
Main spindle level revolving angle |
360°
|
|||
|
Main Spindle speed |
2860r/min |
2860r/min |
2860r/min |
2860r/min |
|
Motor power |
2.2kw(3HP) |
3kw(4HP) |
||
|
Voltage |
220V/380V |
|||
|
Dimension |
1100*1030*1600mm |
1300*1030*1600mm |
1100*1030*1600mm |
1100*1030*1600mm |
|
Weight |
258kg |
288kg |
150kg |
160kg |
|
MJ2236 and MJ2338 is new light type, function is same. |
||||
