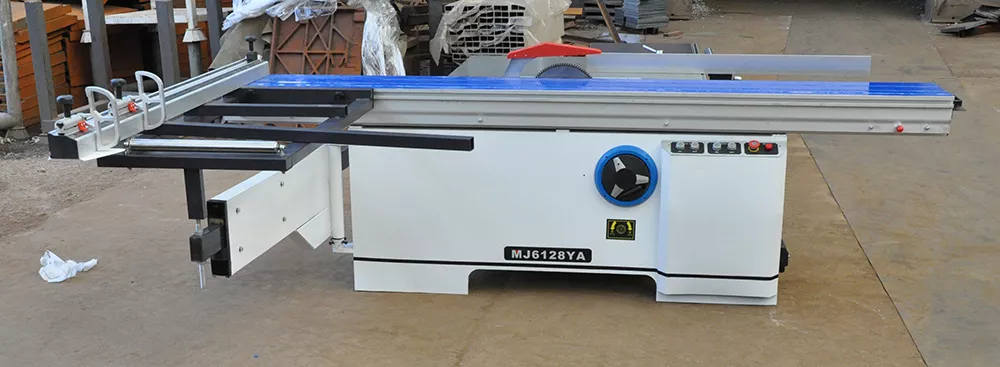

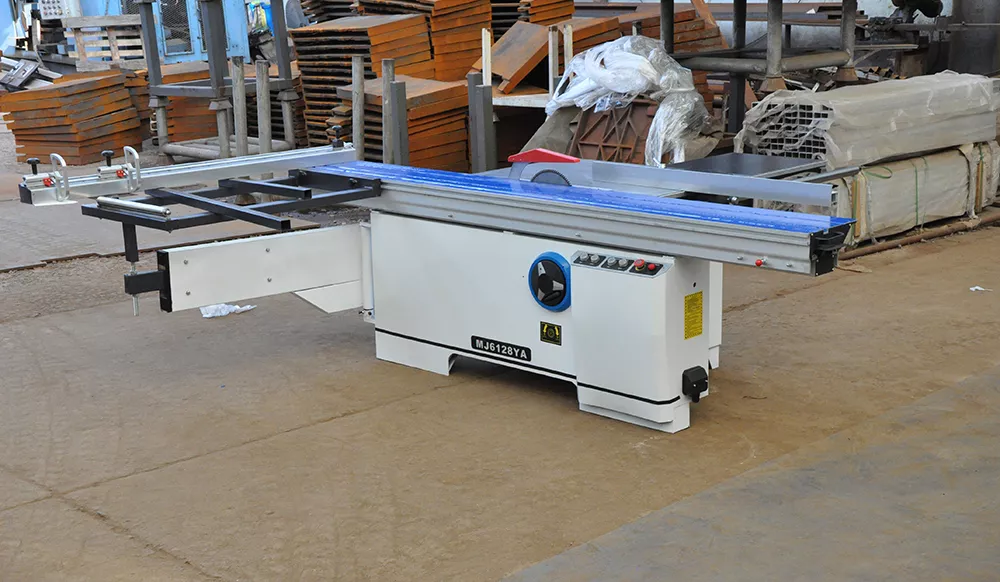

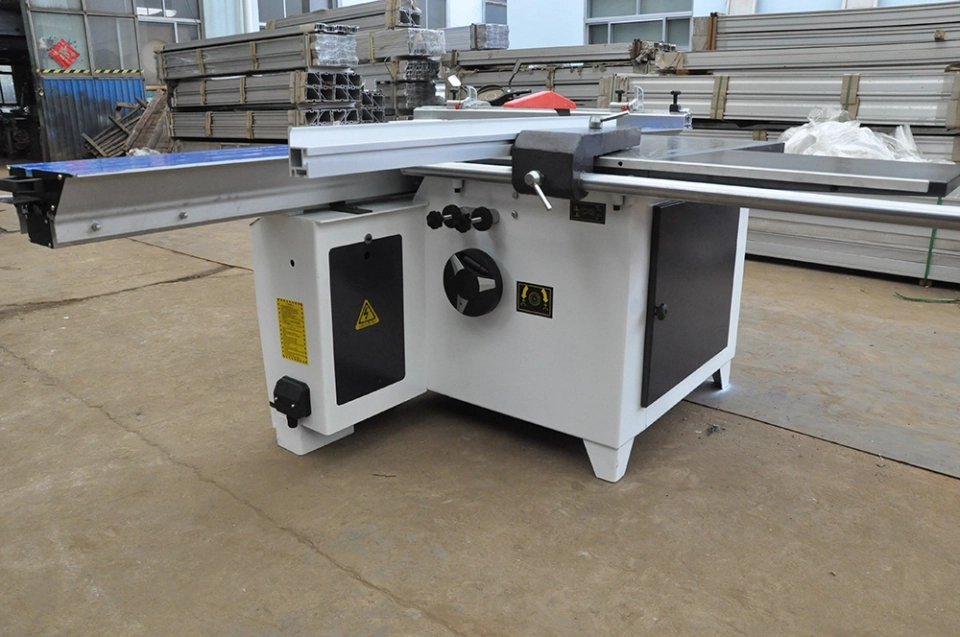

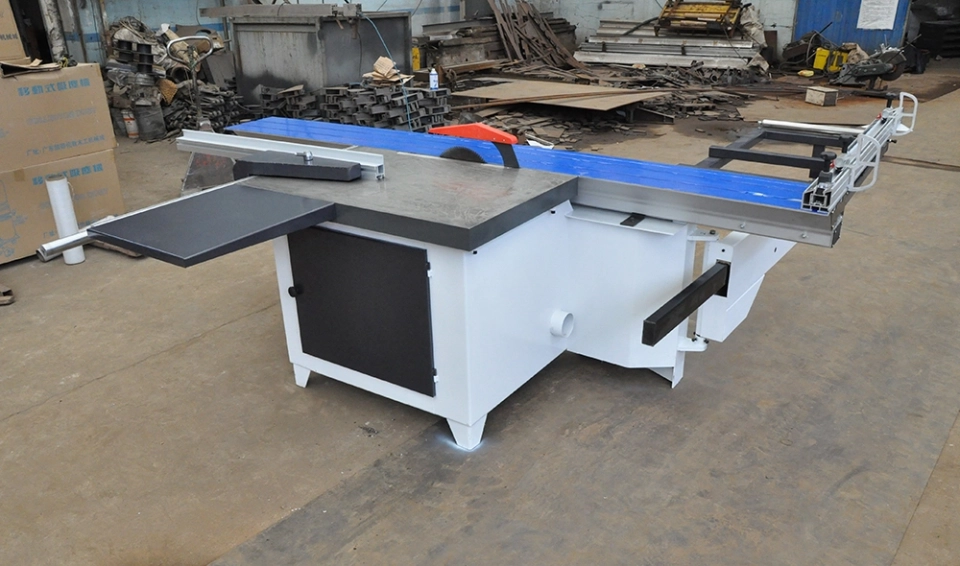

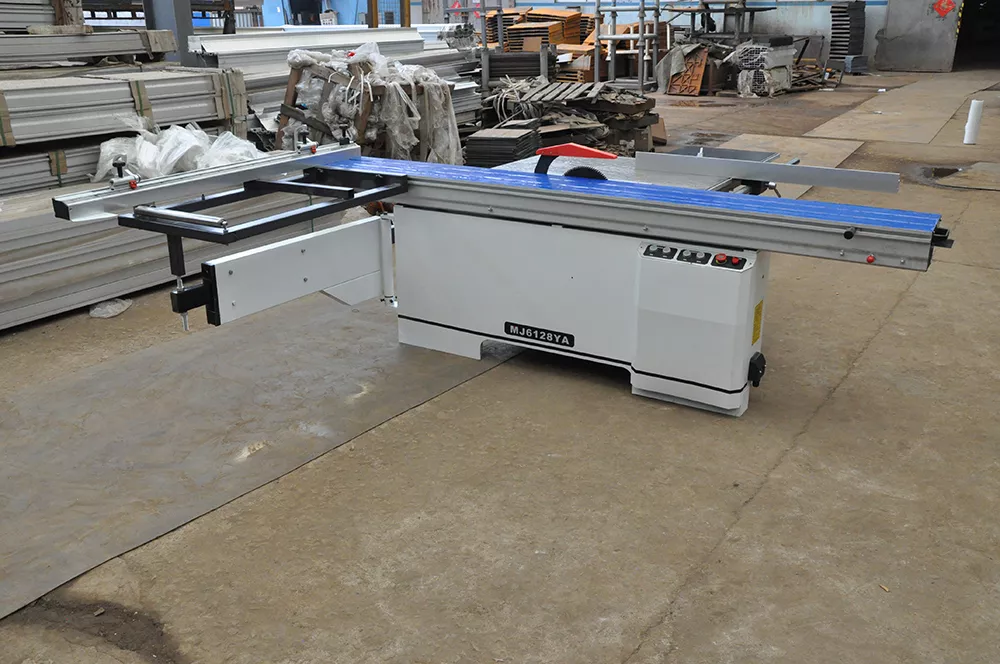

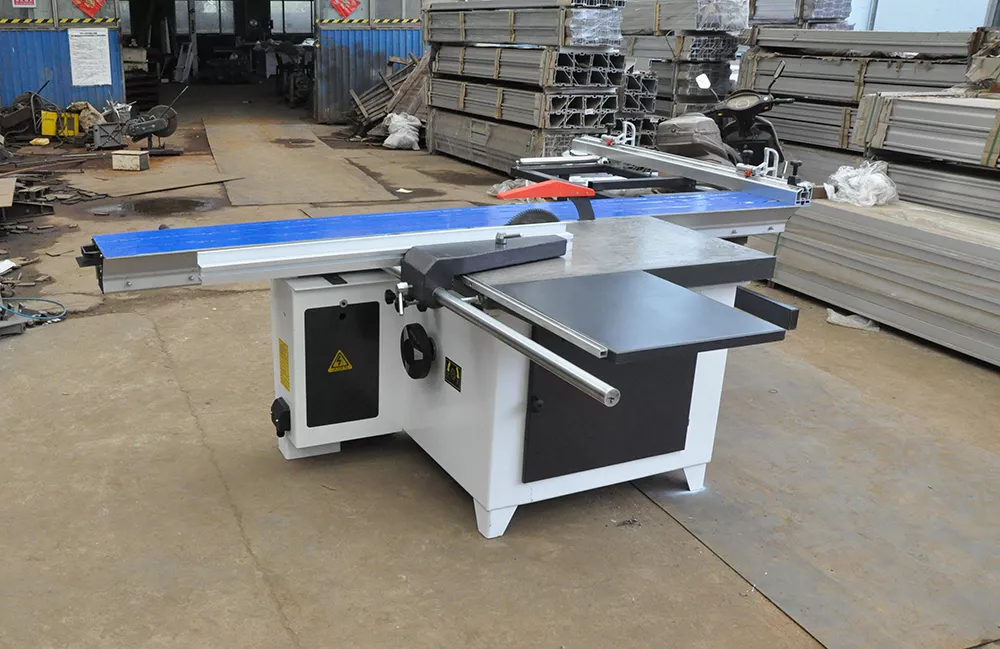

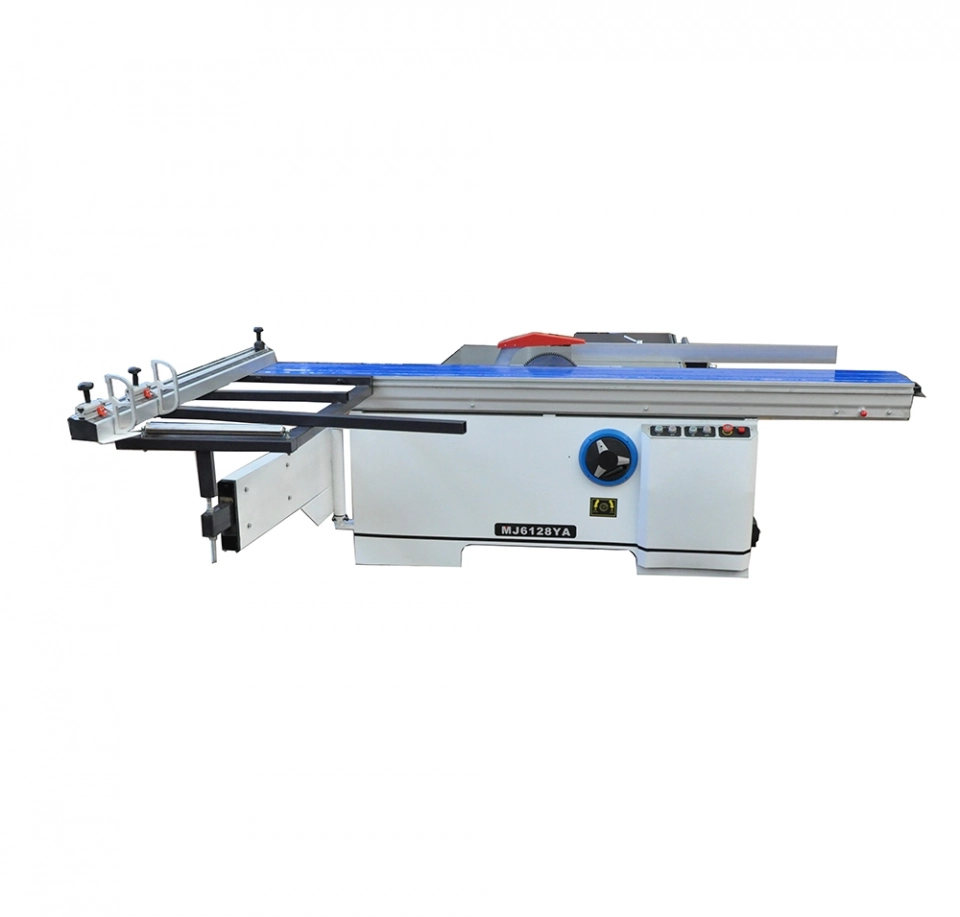

MJ6116/MJ6128/MJ6130/MJ6132/MJ6138 precision 45degree/90degree sliding table panel saw

Model

MJ6116

MJ6128

MJ6130

MJ6132

MJ6138

Saw blade angle

0~45°/90°

Max. Saw length

1600mm

2800mm

3000mm

3200mm

3800mm

Max. Saw width

1250mm

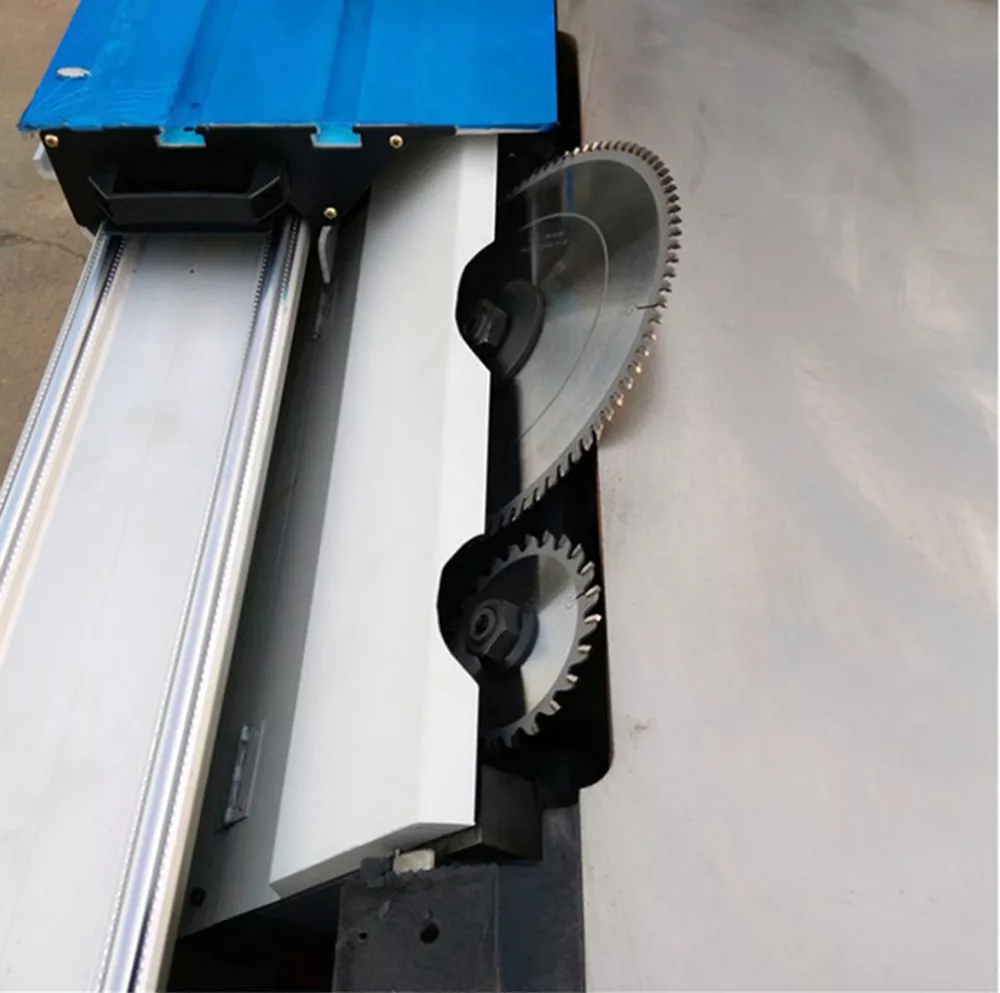

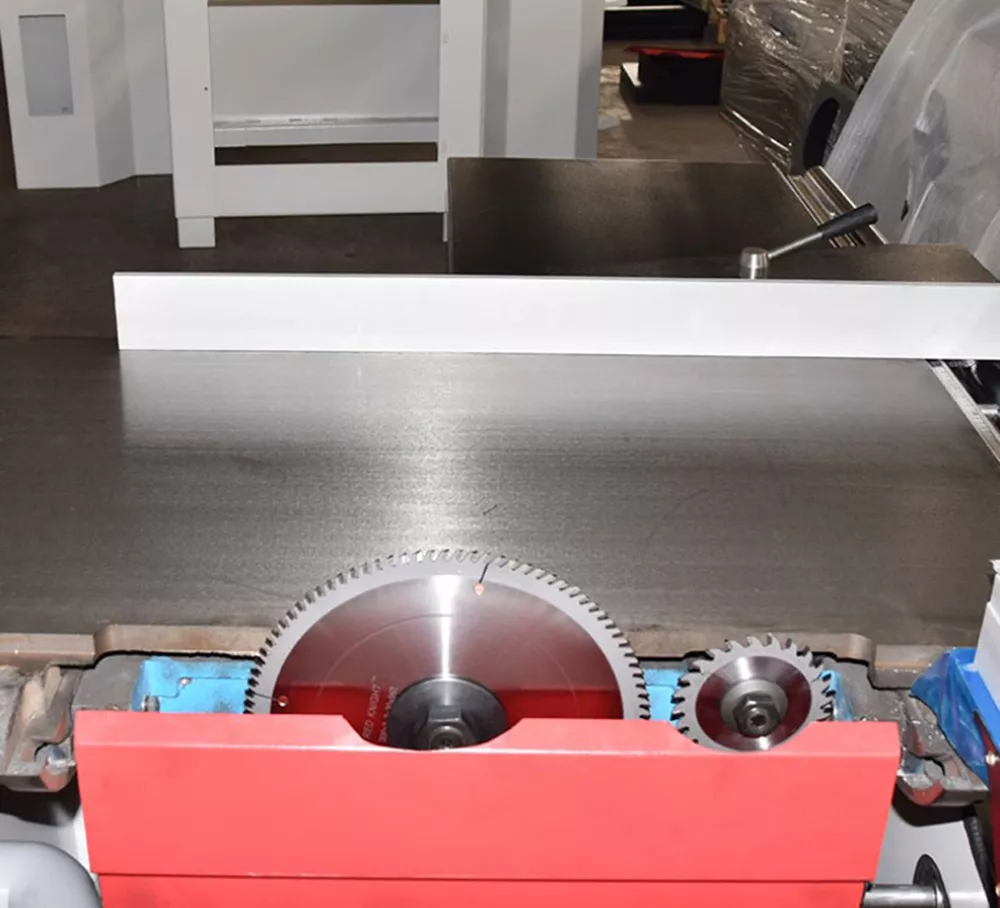

Main saw blade diameter

250~300mm

Slotted saw diameter

120mm

main saw blade speed

4000~6000r/min

Slotted saw blade speed

7000~8000r/min

Main saw motor power

4kw/5.5kw

Slotted saw motor power

0.75kw/1.1kw

Saw blade lifting

Manual or electric

Weight

450kg

650kg

750kg

800kg

950kg

Dimension(cm)

165*315*90

285*315*90

305*315*90

325*315*90

385*315*90

The difference between 0~45° and 90° panel saw

90° panel saw can only be cut at right angles for the production of panel furniture, cabinets, wardrobes and the construction industry; 0~45° panel saw can be cut obliquely, not only can cut the right angle, but also can effectively cut the 0~45 degree plate for solid wood, soft bag and other.
