MJ274/MJ276 Pneumatic High-Speed Precision Cutting Saw | Automatic Square Timber Cross-Cut Saw Pneumatic Jump Saw
- Quantity
MJ274/MJ276 Pneumatic High-Speed Precision Cutting Saw | Automatic Square Timber Cross-Cut Saw
|
Technical Specification |
MJ274 |
MJ276 |
|
Max.sawing width |
220~250mm |
520mm |
|
Max. sawing thickness |
70mm |
200mm |
|
Main spindle speed |
2500 r/min |
3000 r/min |
|
Gas source pressure |
0.5Mpa |
0.6Mpa |
|
Saw blade size |
Φ400mm |
Φ600mm |
|
Voltage |
220V/380V |
|
|
Installation power |
4/5.5kw |
7.5kw |
|
Net. weight |
350kg |
550kg |
|
Dimension |
2520*760*1200mm |
3700*2000*1260mm |
|
Other demand can be customized |
||
MJ274/MJ276 Pneumatic High-Speed Precision Cutting Saw | Automatic Square Timber Cross-Cut Saw
The cross-cut saw is primarily used for fast and precise cutting of various materials, including boards, logs, square timber, non-metal materials, plastics, and engineered wood.
It features dual operation modes: manual button control and foot pedal activation. The saw is characterized by high cutting efficiency, excellent safety performance, and easy operation.

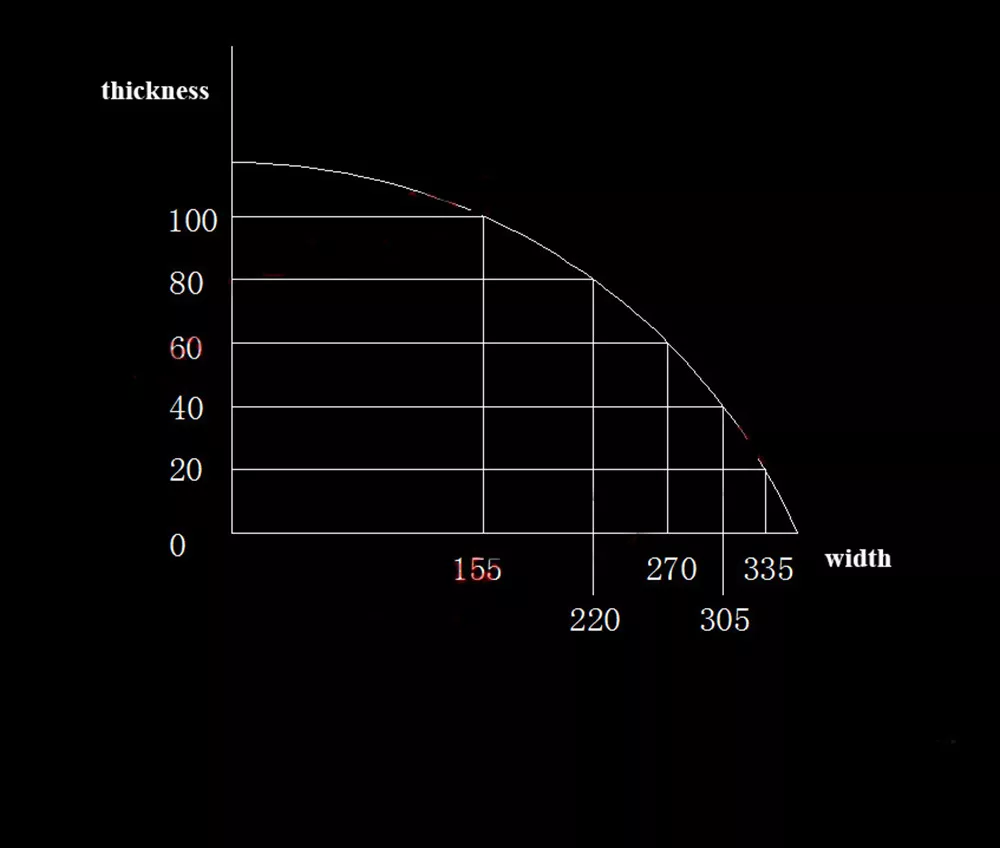

MJ274

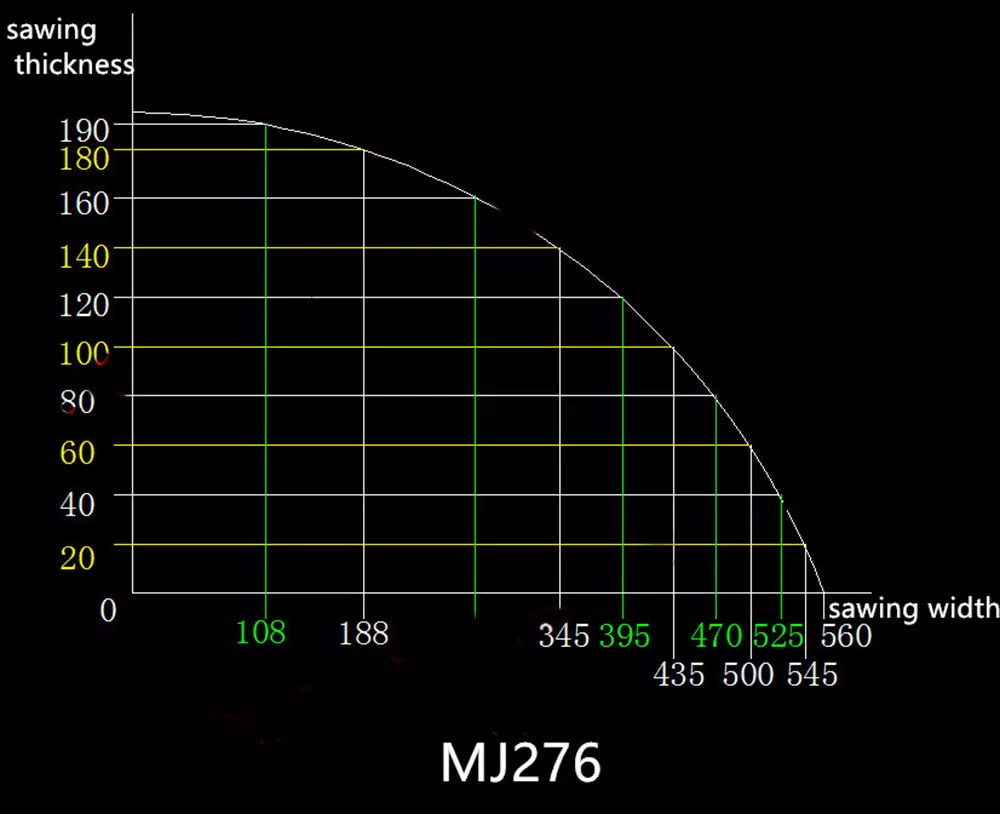

MJ276
