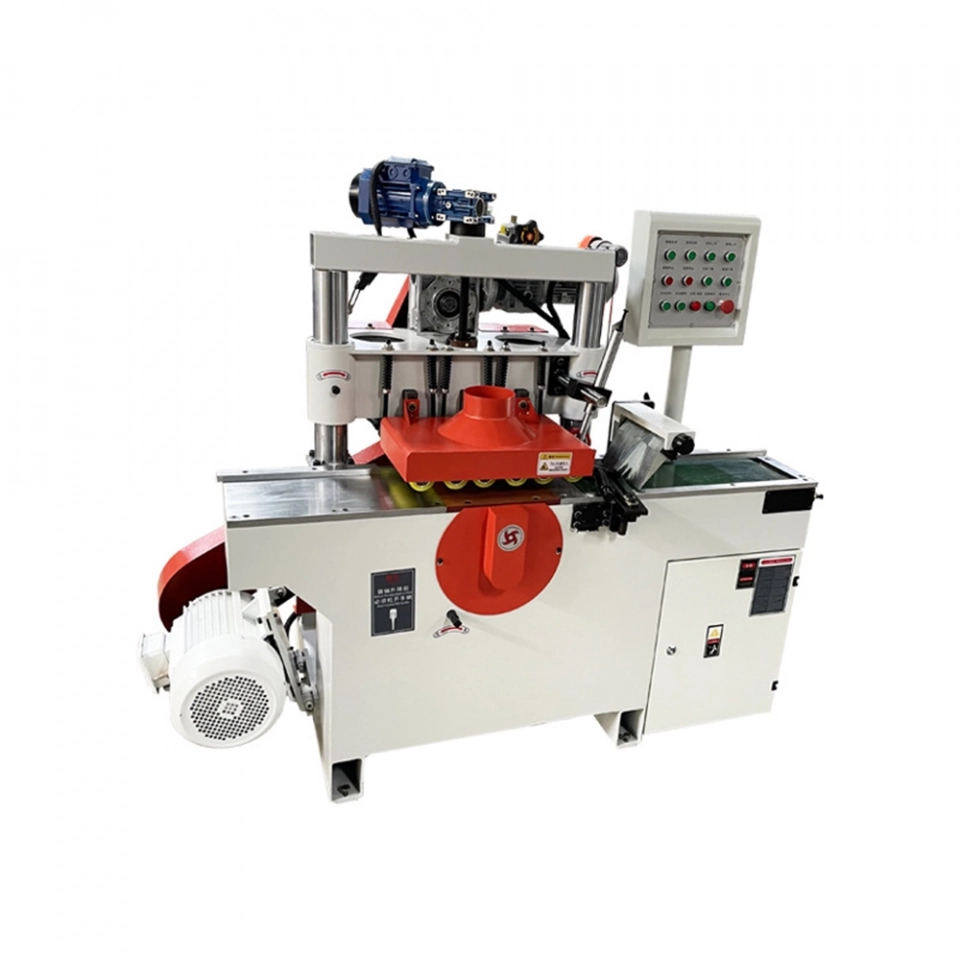

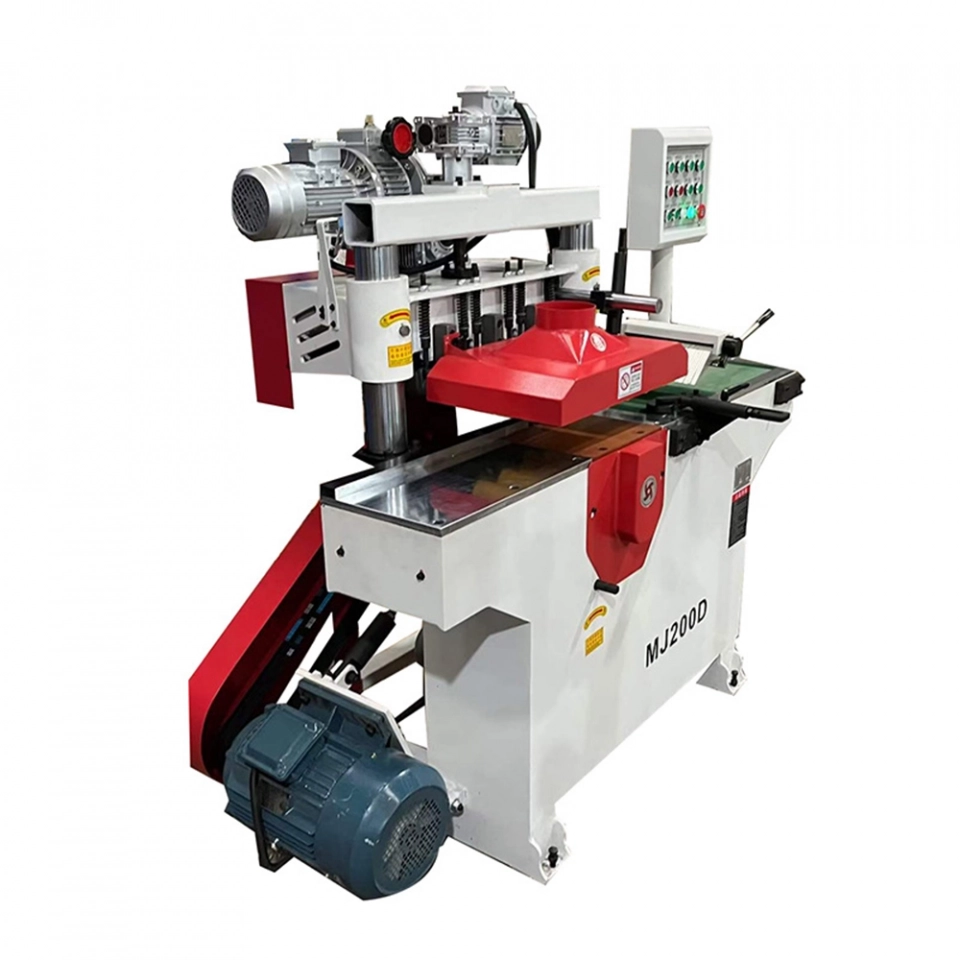

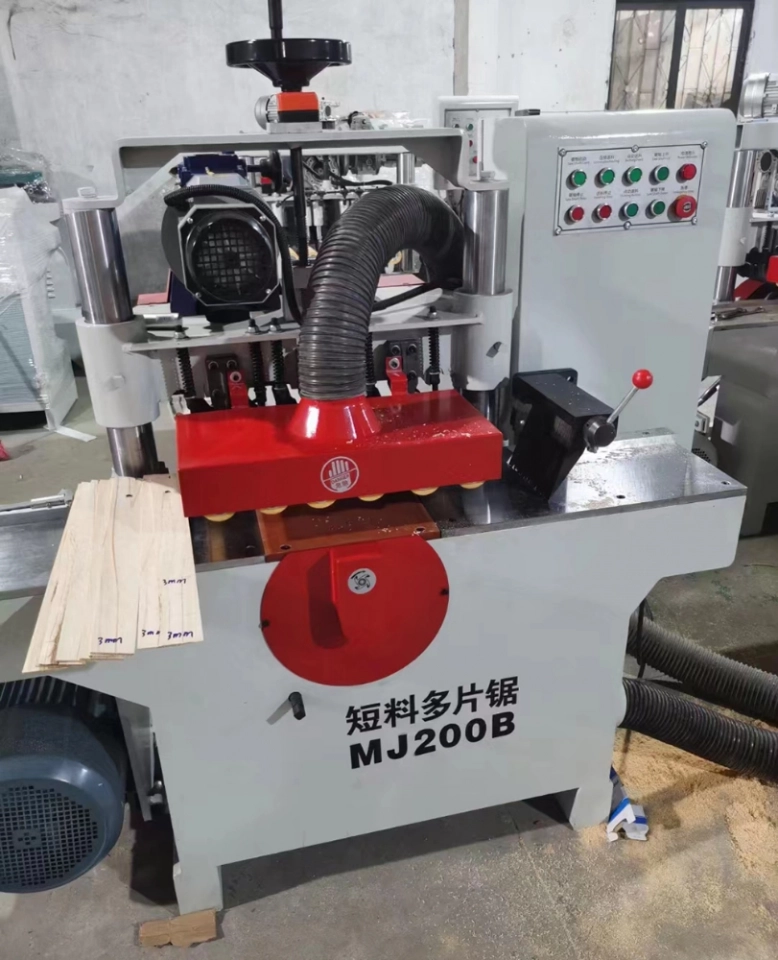

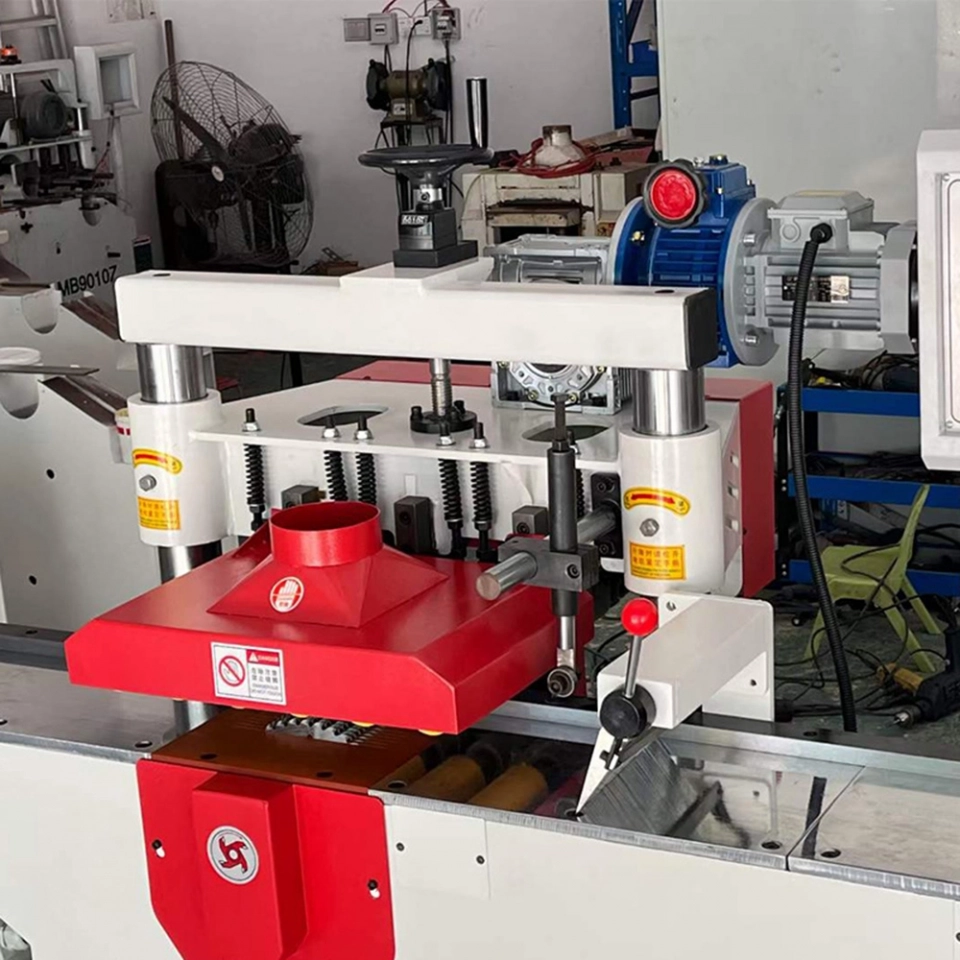

MJ200 Wood Working Sawing Machine Multi blade cut rip saw machine For Furniture
- Quantity
|
Model |
MJ200B |
MJ200C |
MJ200D |
|
Processing width |
10~200mm |
10~200mm |
10~200mm |
|
Processing length |
300~6000mm |
300~4000mm |
100~6000mm |
|
Processing thickness |
3~80mm |
5~75mm |
5~75mm |
|
Spindle speed |
3600r/min |
3600r/min |
3600r/min |
|
Feeding speed |
4~20r/min |
4~20r/min |
4~25r/min |
|
Saw motor power |
11kw |
11kw |
11kw |
|
Feeding motor power |
0.75kw |
0.75kw |
1.1kw |
|
Beam lifting motor power |
|
0.37kw |
0.37kw |
|
Main shaft motor power |
0.37kw |
0.37kw |
0.37kw |
|
Total motor |
12.12KW |
12.84kw |
12.84kw |
|
Max. Install blade diameter |
205mm |
230mm |
230mm |
|
Shaft diameter |
35mm |
35mm |
35mm |
|
Main shaft lift motor |
0.37kw |
0.37kw |
0.37kw |
|
Dimension(cm) |
150*100*150 |
175*85*155 |
175*85*155 |
|
Weight |
900kg |
900kg |
900kg |
|
Can also customized |
|||
