MB9015A/MB9016A/MB9018A/MB9020A 150/160/180/200mm Wood Line spindle moulding machine
- Quantity
MB9015A/MB9016A/MB9018A/MB9020A 150/160/180/200mm Wood Line spindle moulding machine
|
Model |
MB9015A |
MB9016A |
MB9018A/MB9020A |
|
Motor power(kw) |
4.75 |
5.5 |
7.5 |
|
Max. Working width (mm) |
150 |
160 |
180/200 |
|
Max. Working thickness(mm) |
150 |
160 |
180 |
|
Main shaft speed (r/min) |
6500 |
7000 |
|
|
Feeding seed (m/min) |
1~15 Stepless speed regulation |
||
|
Spindle diameter |
35/ 40 |
||
|
Dimension(mm) |
760*650*1200 / 950*700*1250 |
||

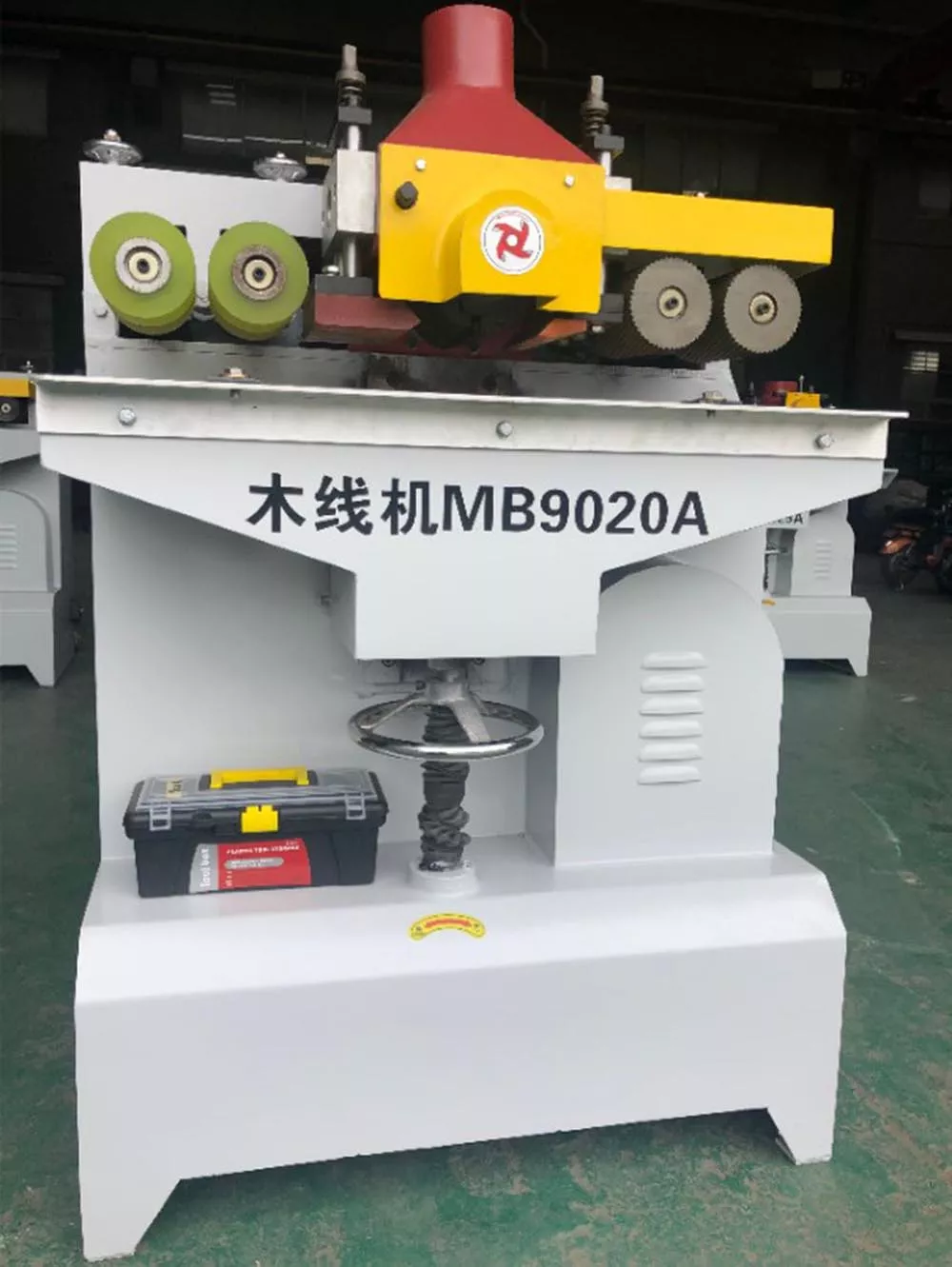

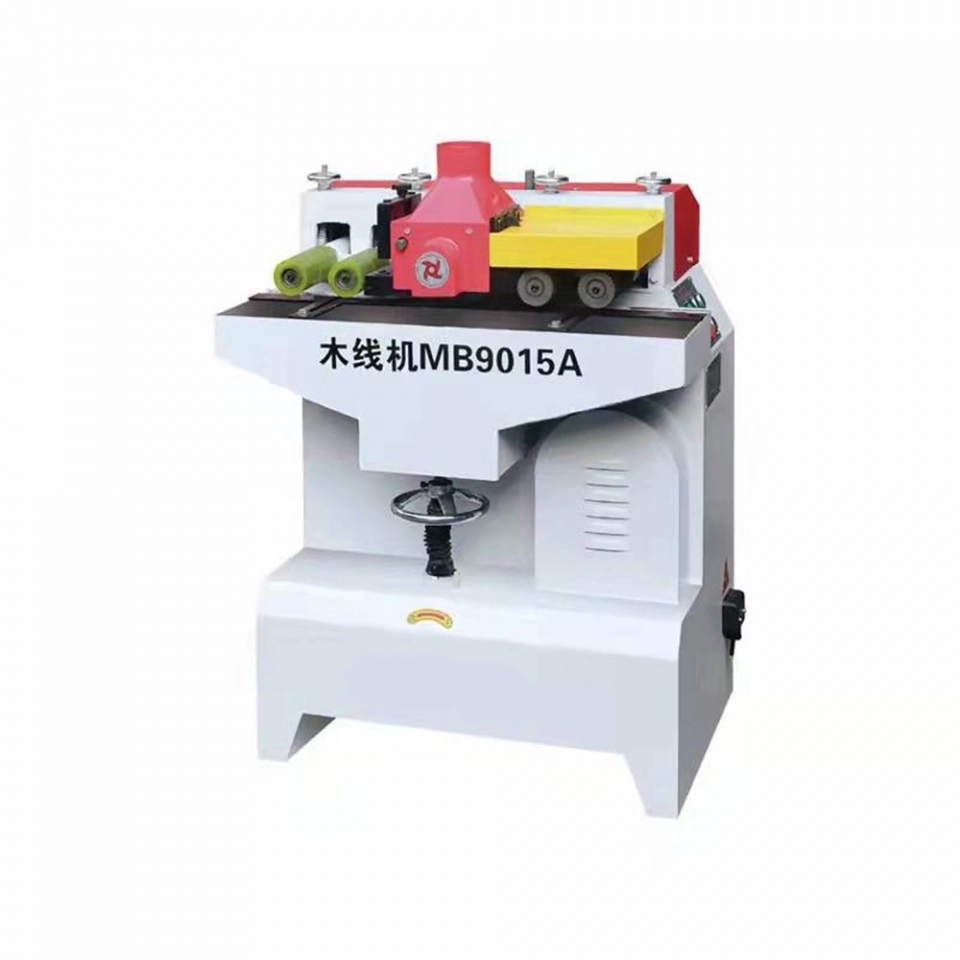

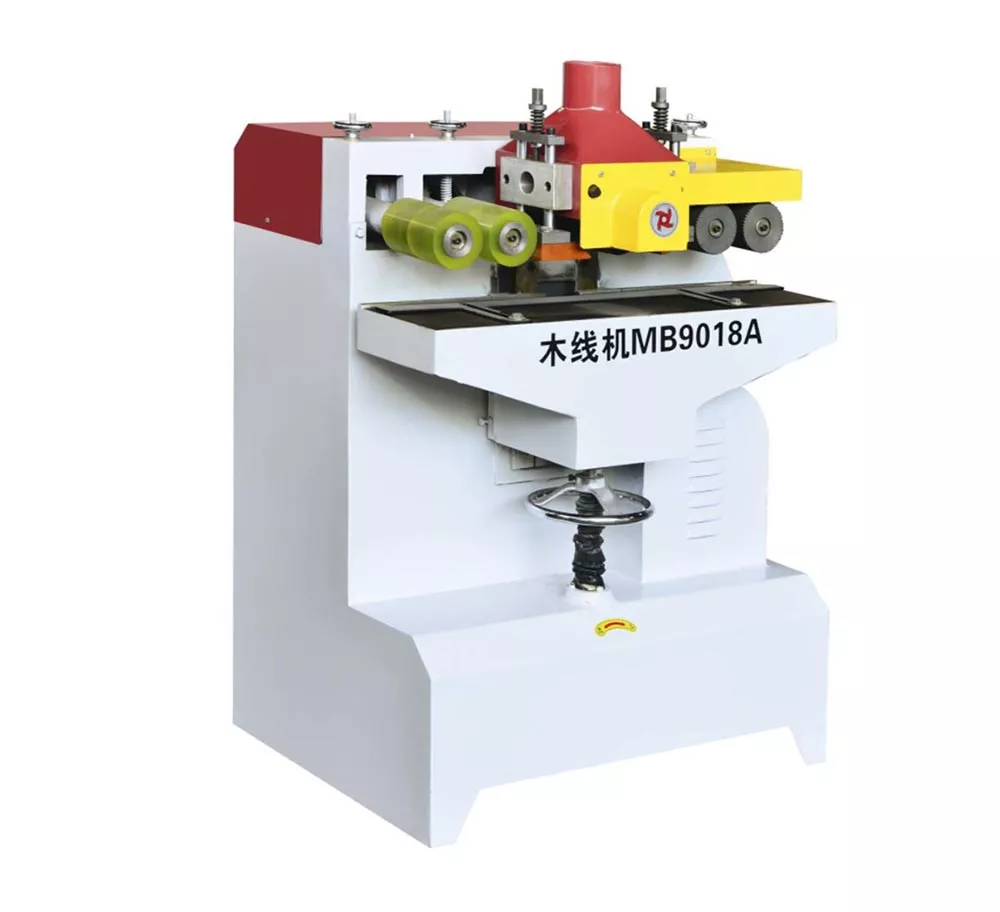

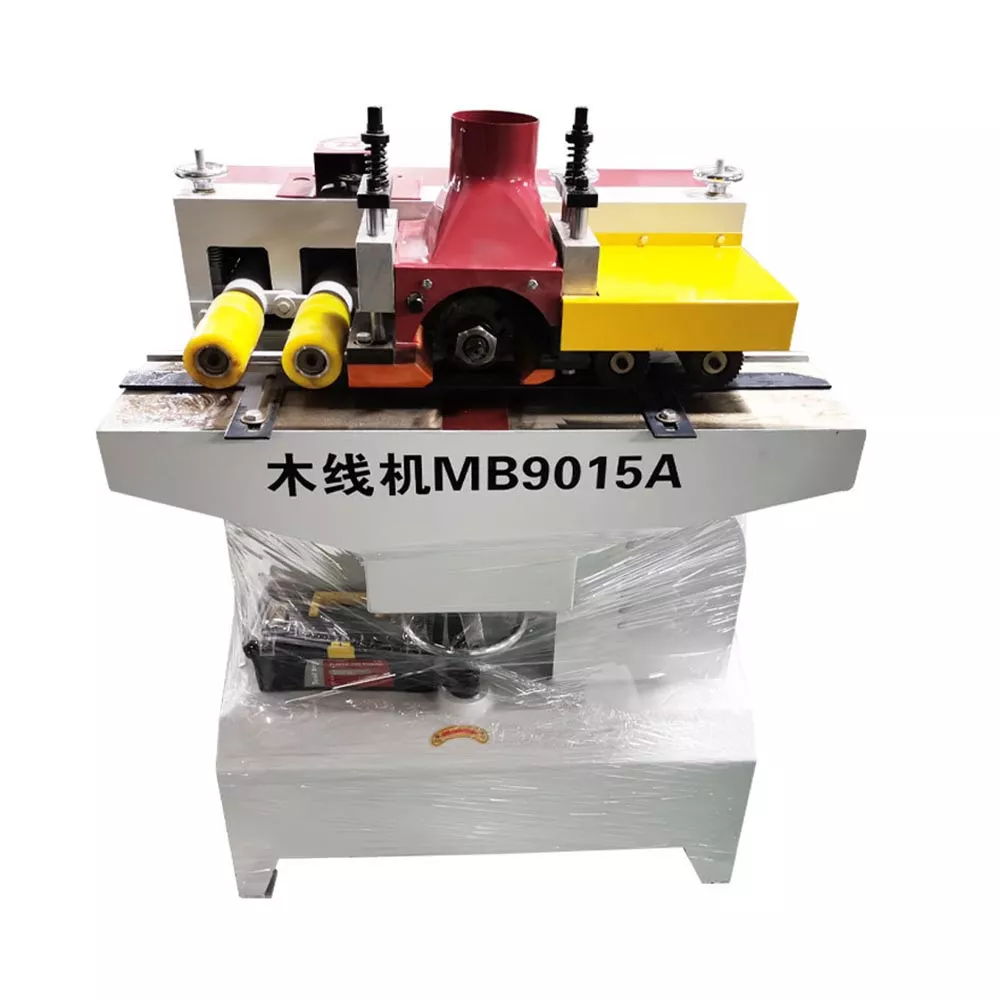

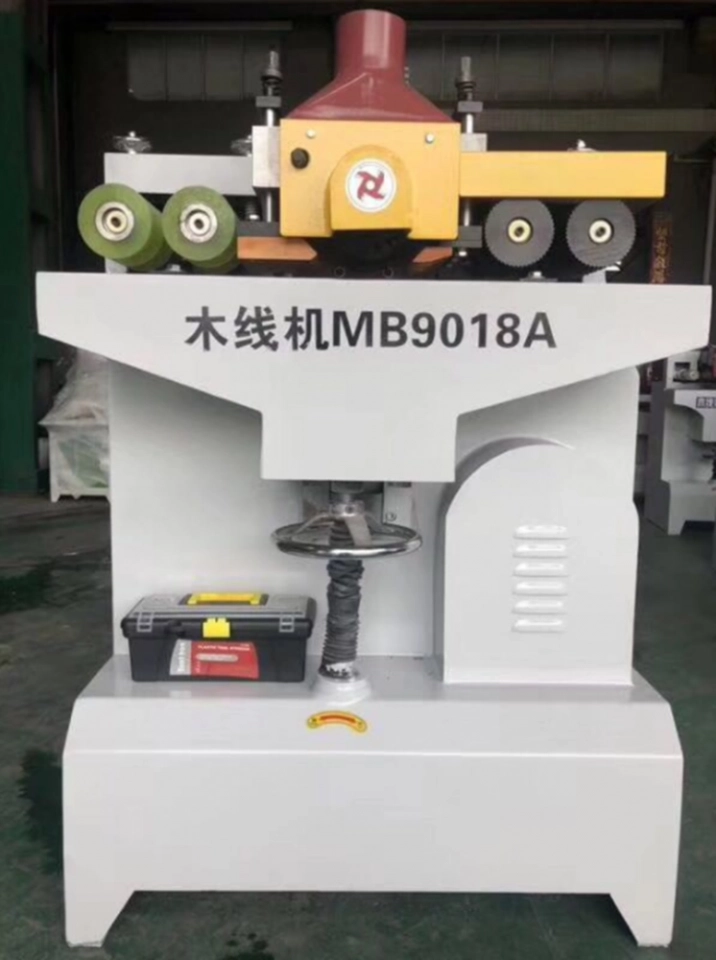

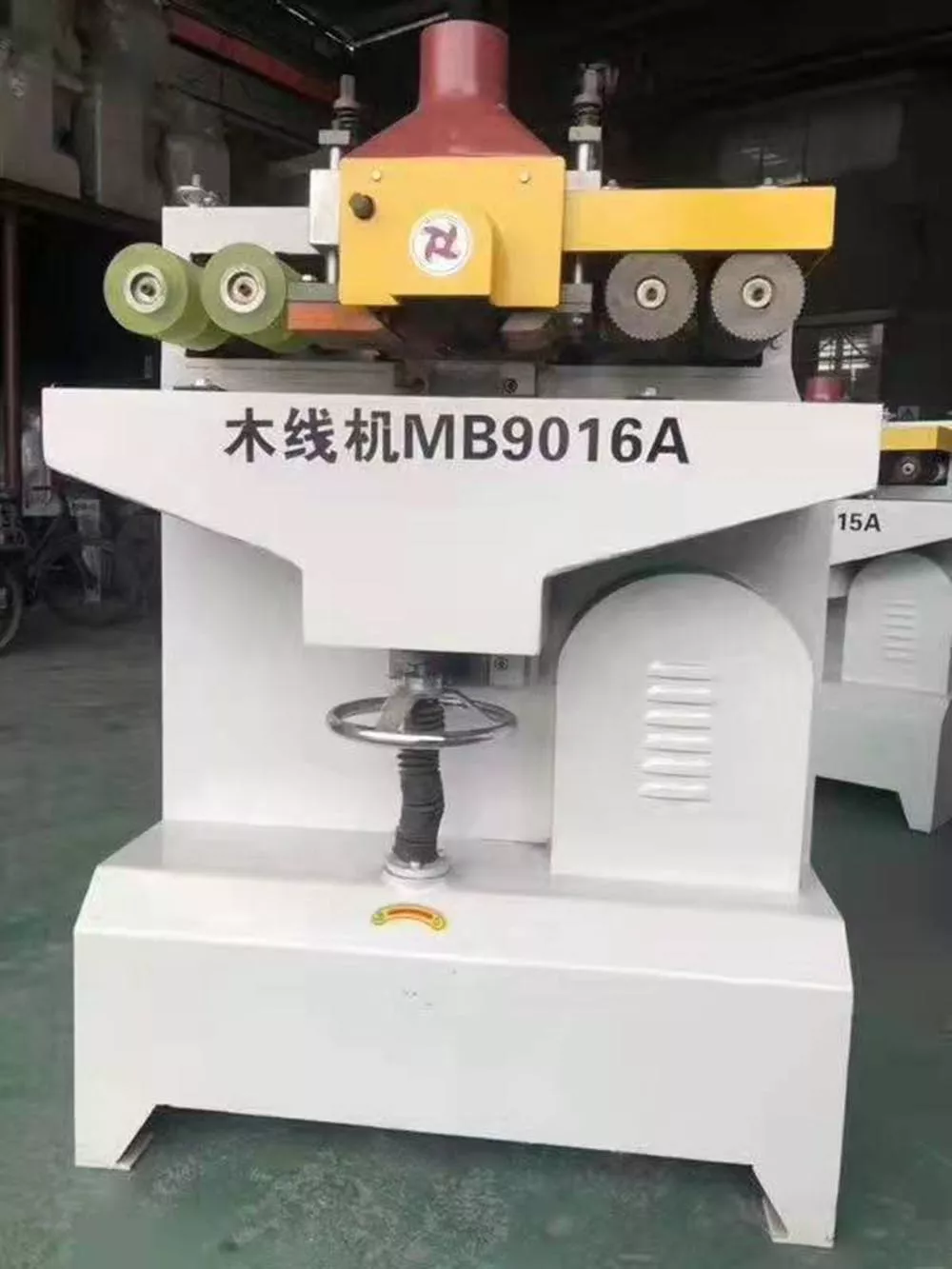

MB9015A/MB9016A/MB9018A/MB9020A 150/160/180/200mm Wood Line spindle moulding machine

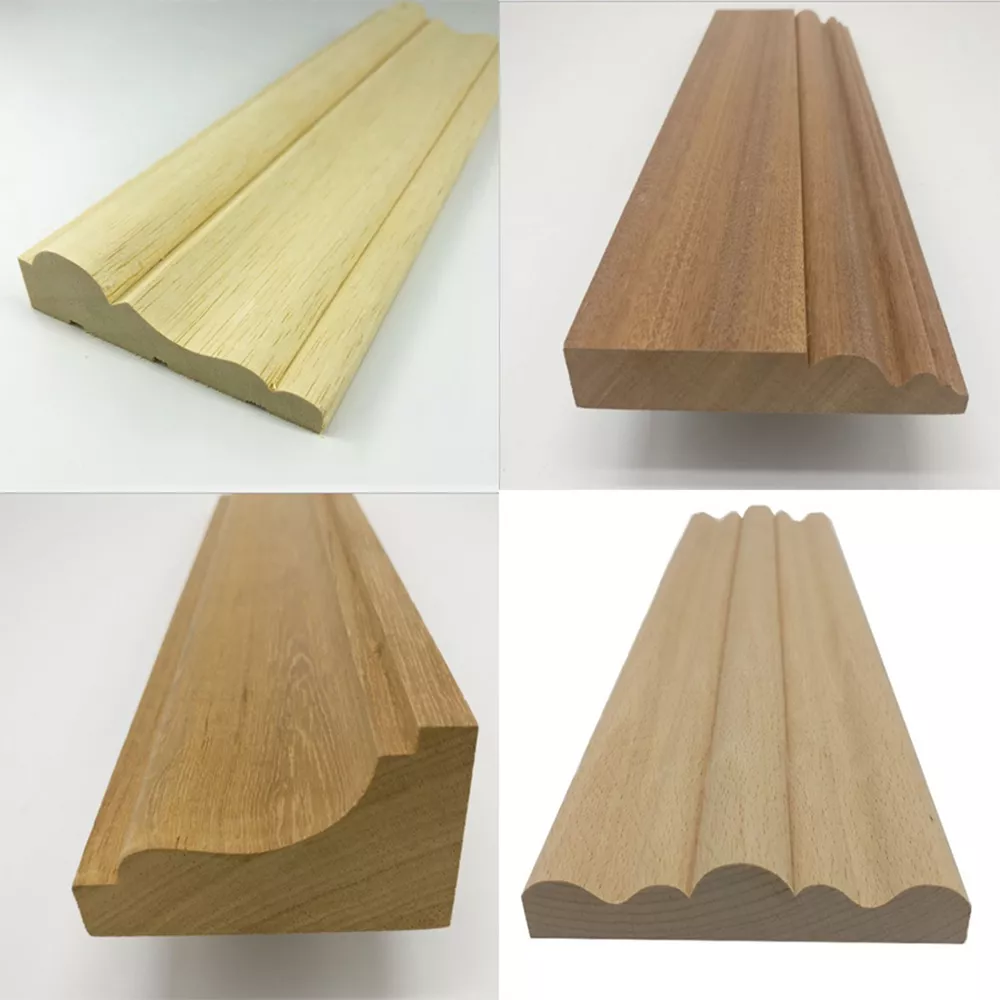

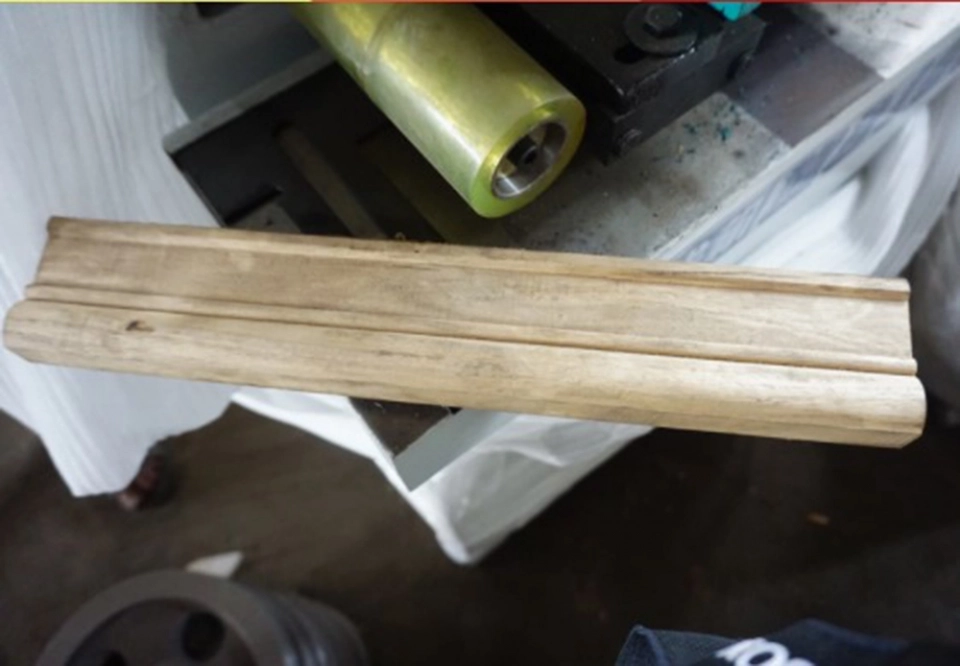

The wood line machine can be not only used for processing all kinds of wood lines and decorative wood lines, also be used as a small thickness planer.
It can planing thick plates and square wood. Stable and powerful feeding system, fine and accurate processing to make wood surface is smooth and clean.
With stable mechanical performance, safe and reliable use, easy to operate, to ensure the production of high quality wood.
Widely used in the furniture manufacturing industry (doors and windows, wardrobes, tables and chairs), photo frame manufacturing industry.
