MB503/MB504/MB505/MB506 300mm /400mm/500mm/600mm industrial wood surface jointer planer machine for furniture
high quality planers and jointers
- Quantity
Parameter of MB503/MB504/MB505/MB506 300mm /400mm/500mm/600mm industrial wood surface jointer planer machine for furniture
|
Model |
MB503 |
MB504 |
MB505 |
MB506 |
|
Max. Planing width(mm) |
300 |
400 |
500 |
600 |
|
Max. Planing depth(mm) |
4 |
4 |
5 |
5 |
|
worktable length(mm) |
1800/2200 |
1800/2200 |
1800/2200 |
1800/2200 |
|
Spindle speed (r/min) |
5800/6800 |
|||
|
Motor power (kW) |
2.2 |
3 |
4 |
5.5 |
|
Number of blades(PC) |
3 or 1 PC spiral cutting head |
|||
|
Dimension(mm) |
1800*650*1000 |
1800*750*1000
|
1800*850*1000 |
1800*950*1000 |
|
Weight(kg) |
280 |
350 |
420 |
470 |
MB503/MB504/MB505/MB506 300mm /400mm/500mm/600mm industrial wood surface jointer planer machine for furniture
High accuracy Processing of wood surface formation, wood can be inclined planing smooth. Professional bevel flat plane and flat-fell seam,
Widely used in integrated materials processing, furniture factory, construction industry, wood mold processing and other enterprises.
We provide more models of woodworking thicknesser planers, you can choose the thicknessing width with 300, 400, 500, 600 mm
Except Oblique flat planer, we also provide automatic feeding flat planer and Straight mouth planer.
Feature of MB503/MB504/MB505/MB506 300mm /400mm/500mm/600mm industrial wood surface jointer planer machine for furniture
1. Pure copper motor, safe and reliable, portable and long service life.
2. Humanized adjustment hand wheel and optional backing adjustment structure, easier to work.
3. Finely ground cast iron work surface to guarantee precision,with silencer lip to reduce noise.

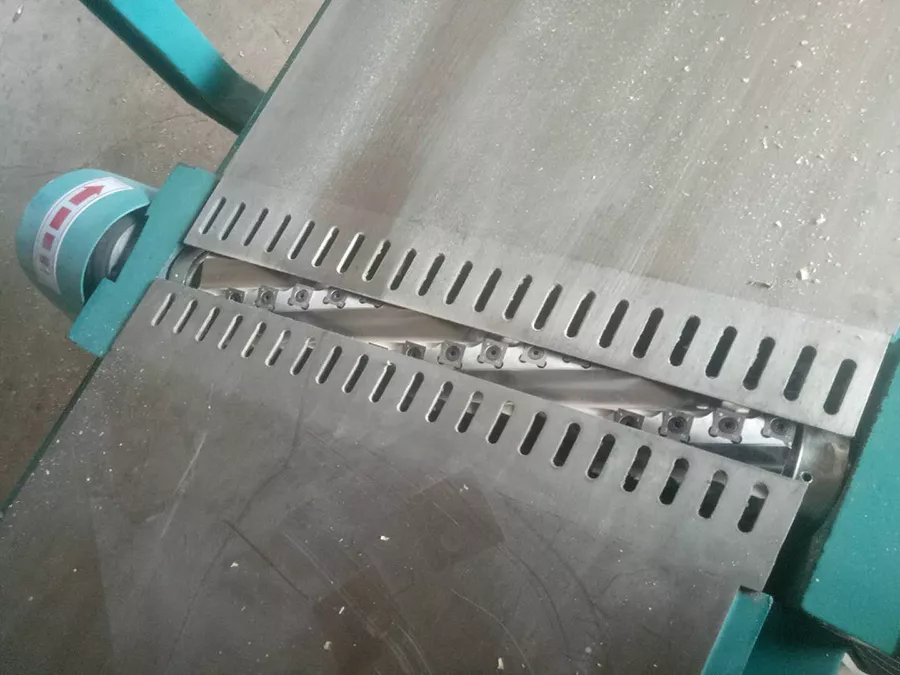

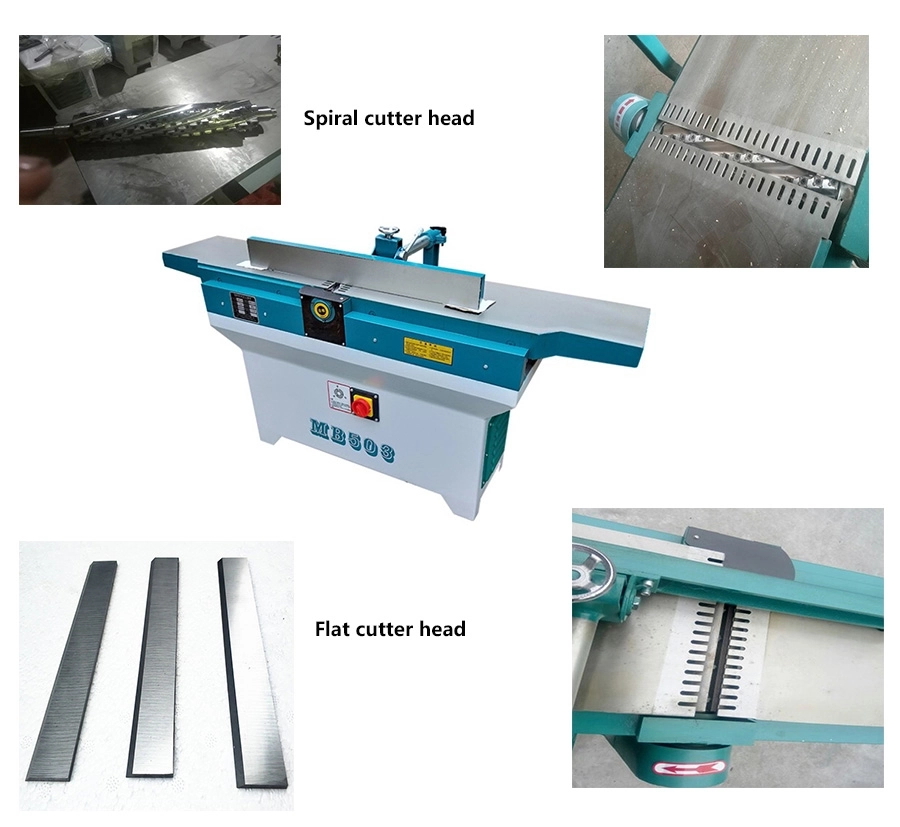

4. The inclined knife shaft can be installed with 3 blades for continuous cutting to improve the quality of wood planing, also have spiral cutting head for choose.
5. Cast iron is easy to tilt and operate.
6. With a dust outlet, the processed wood chips will be removed from the inclined dust outlet

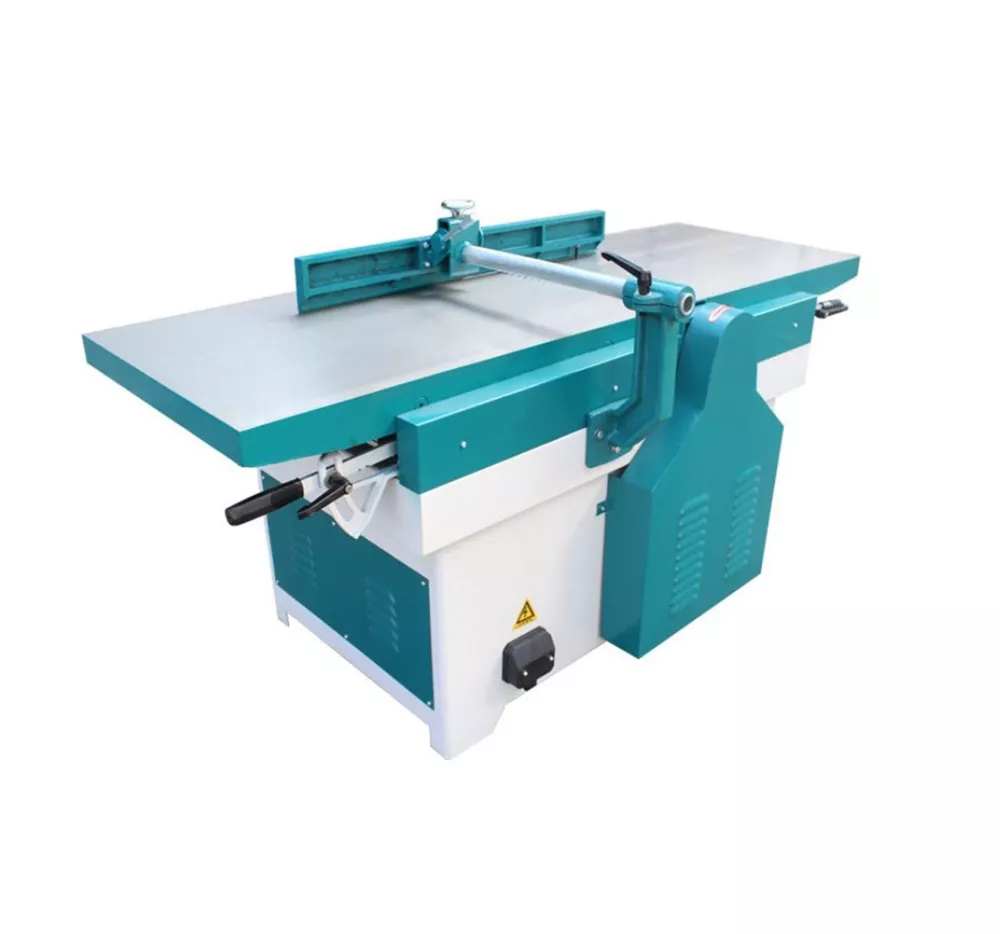

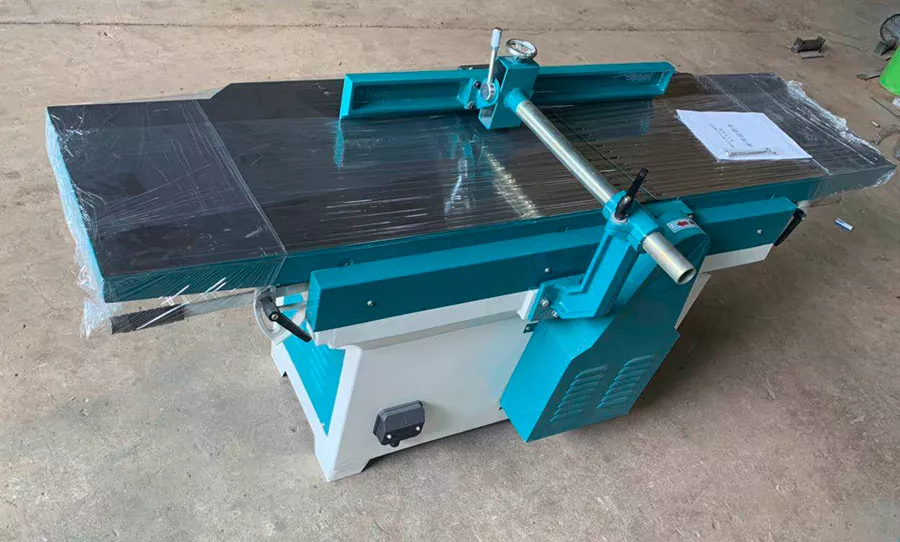

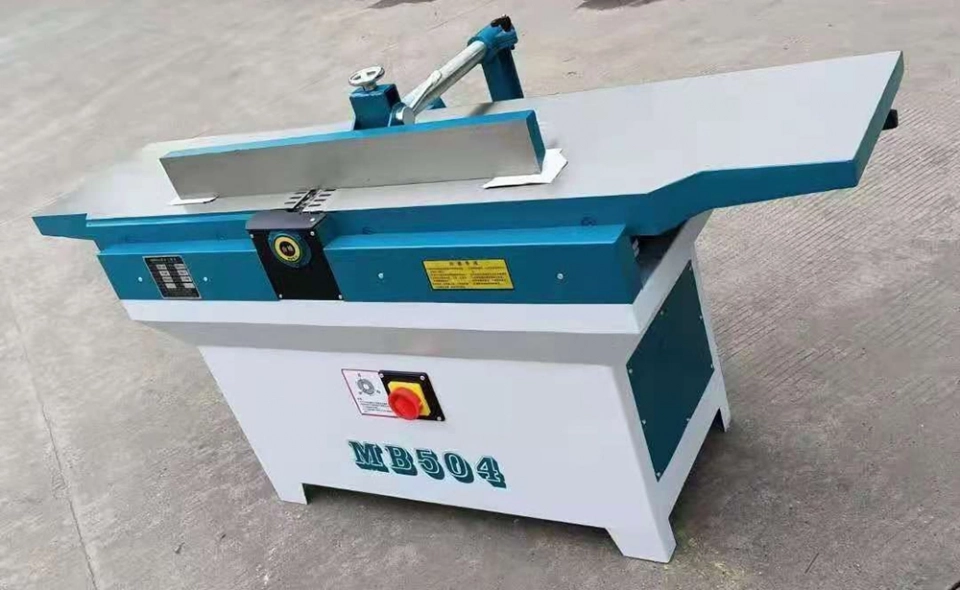

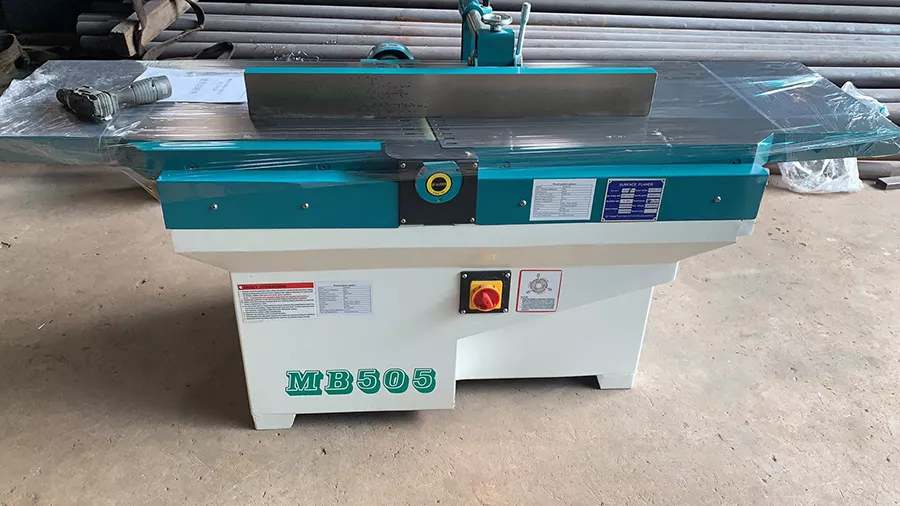

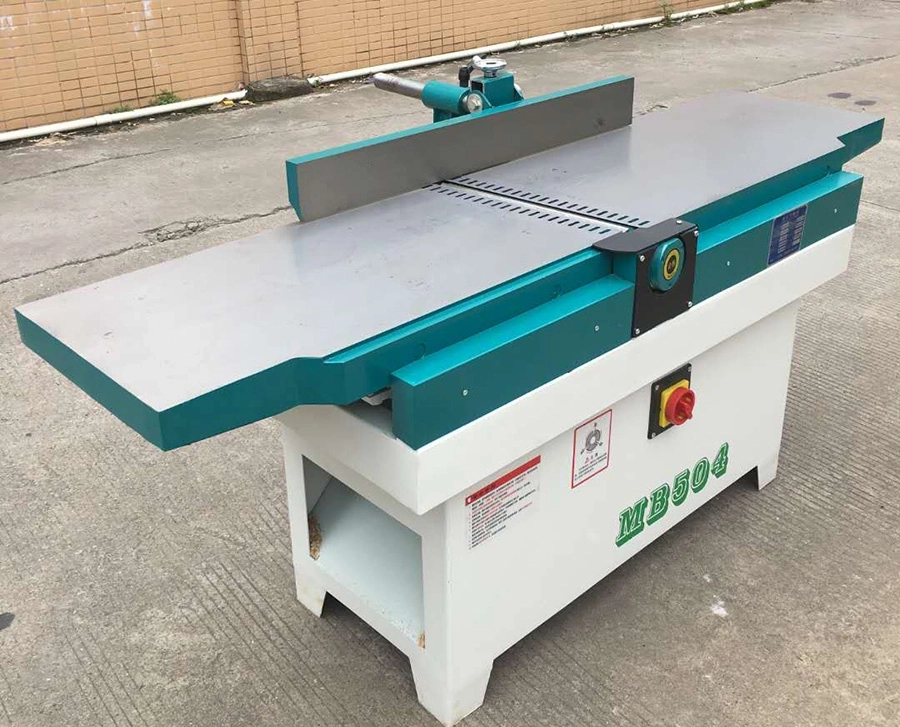

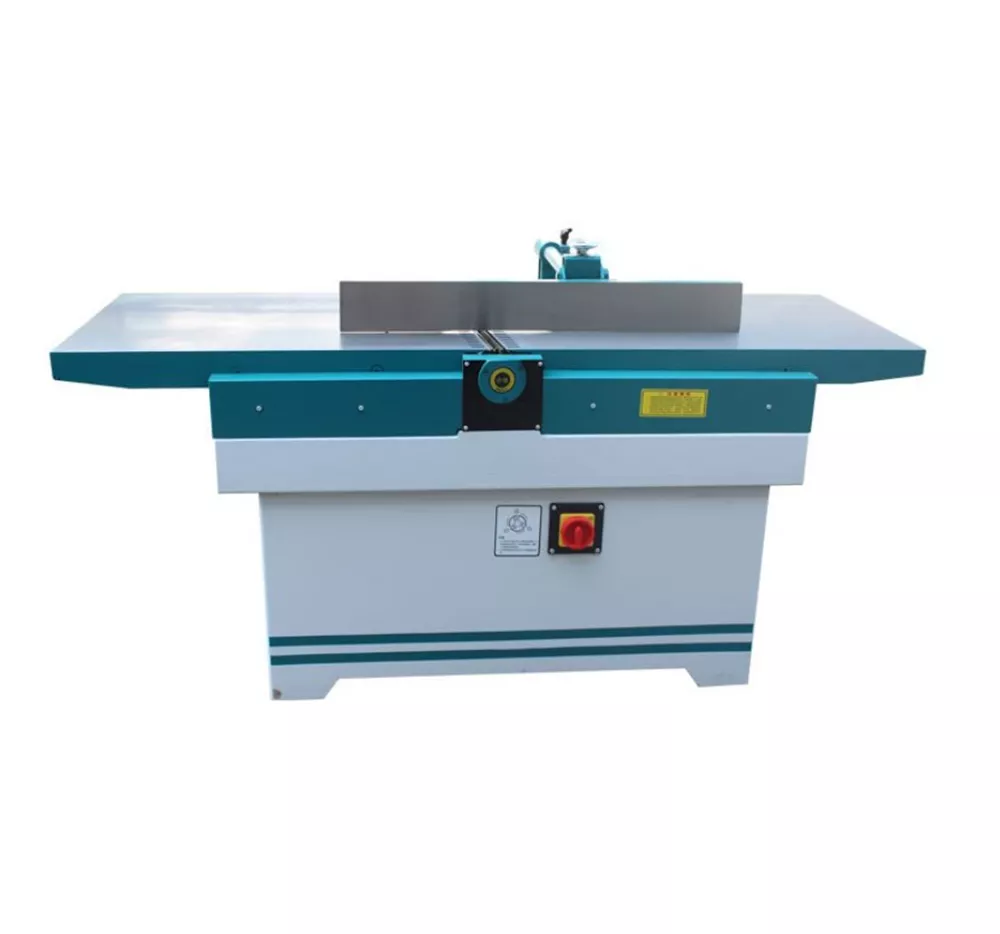

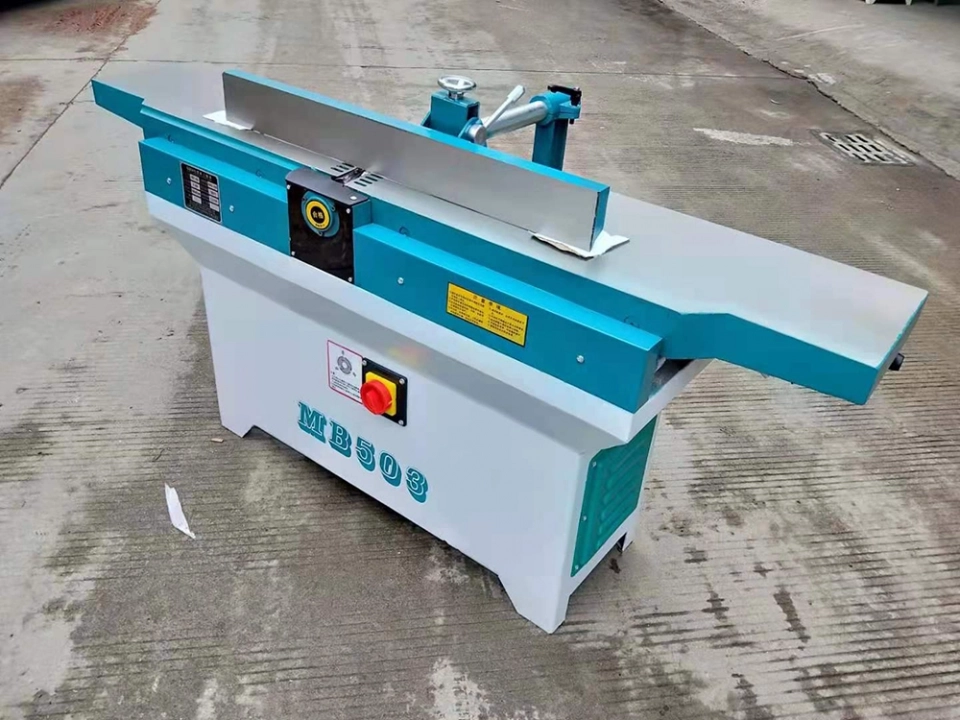

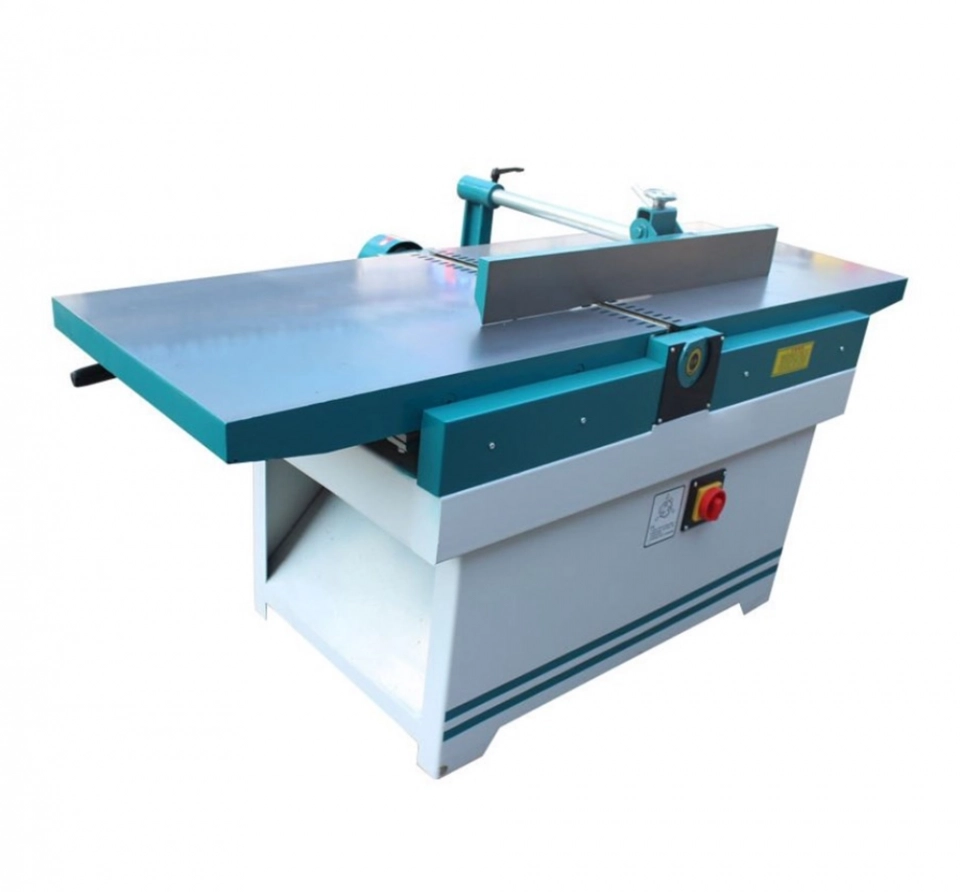

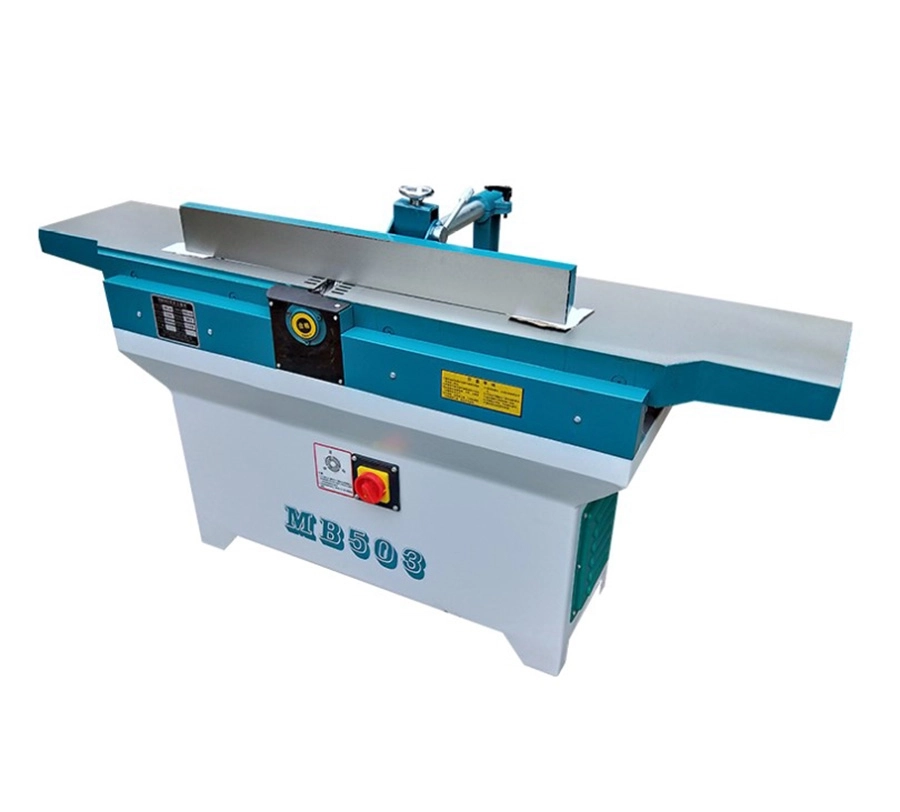

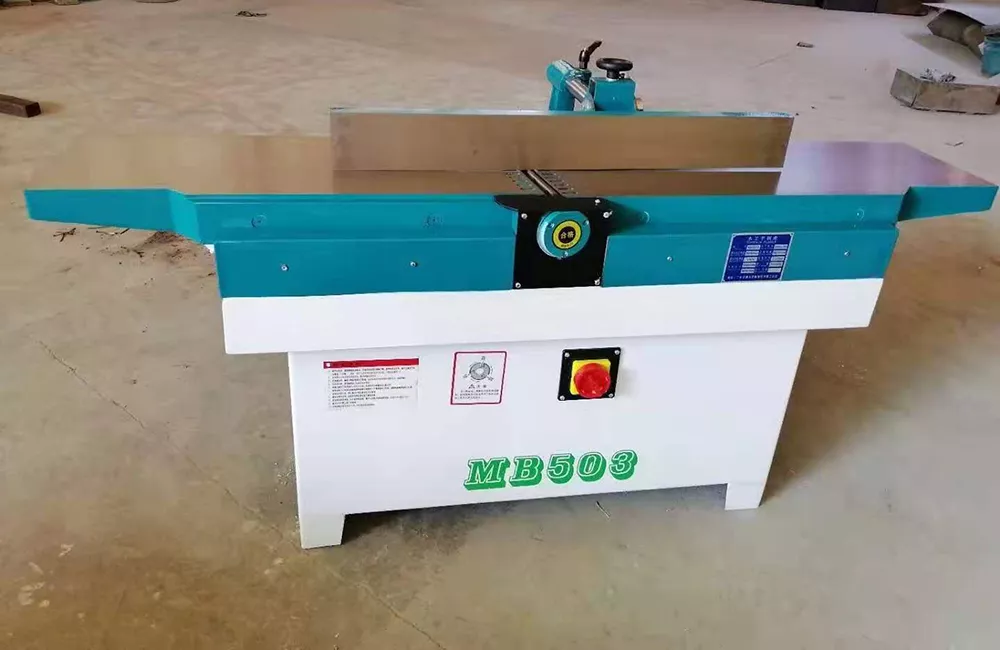

Photo of MB503/MB504/MB505/MB506 300mm /400mm/500mm/600mm industrial wood surface jointer planer machine for furniture
