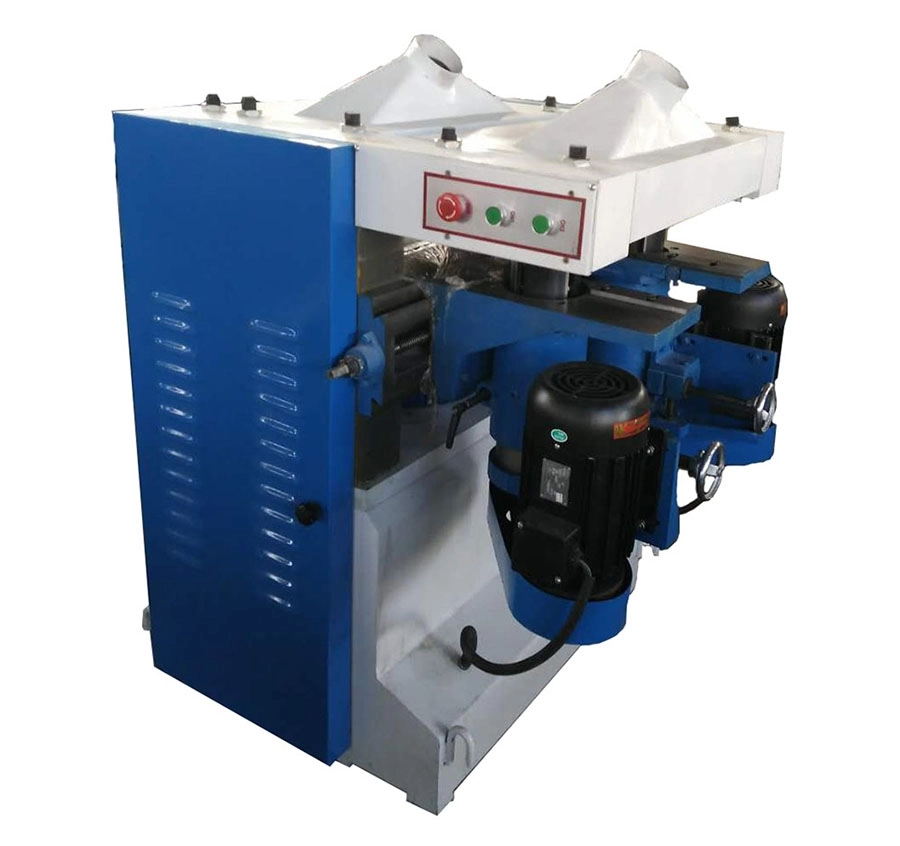

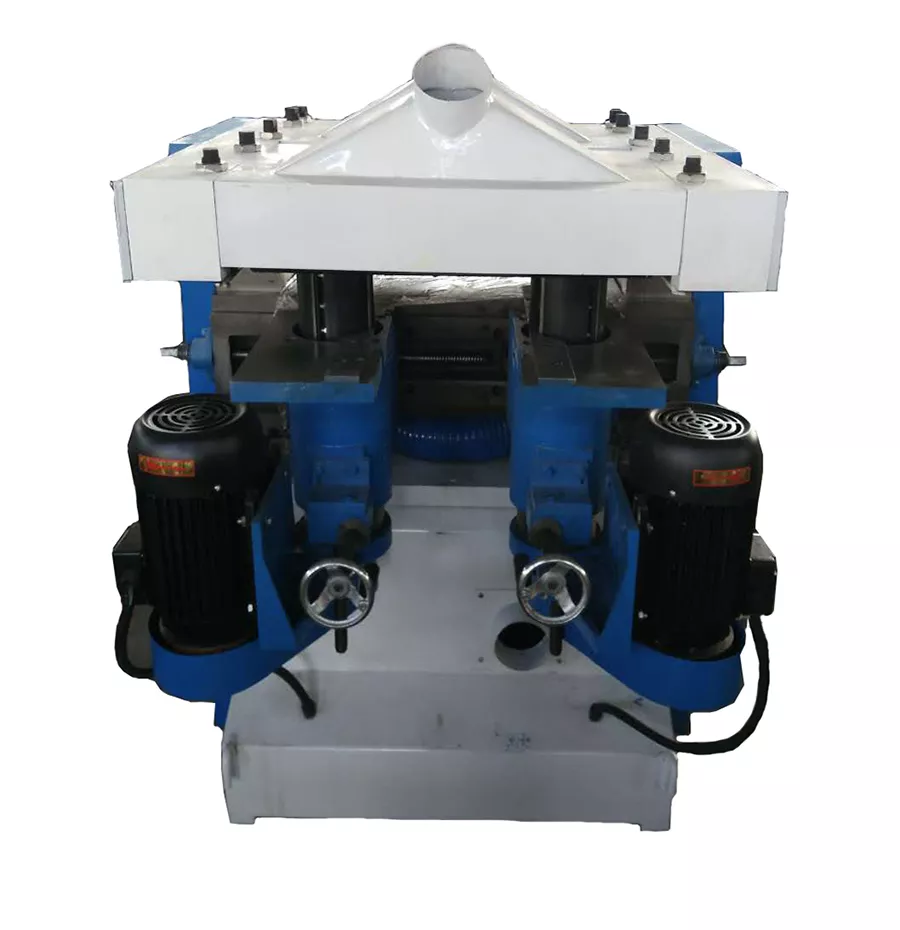

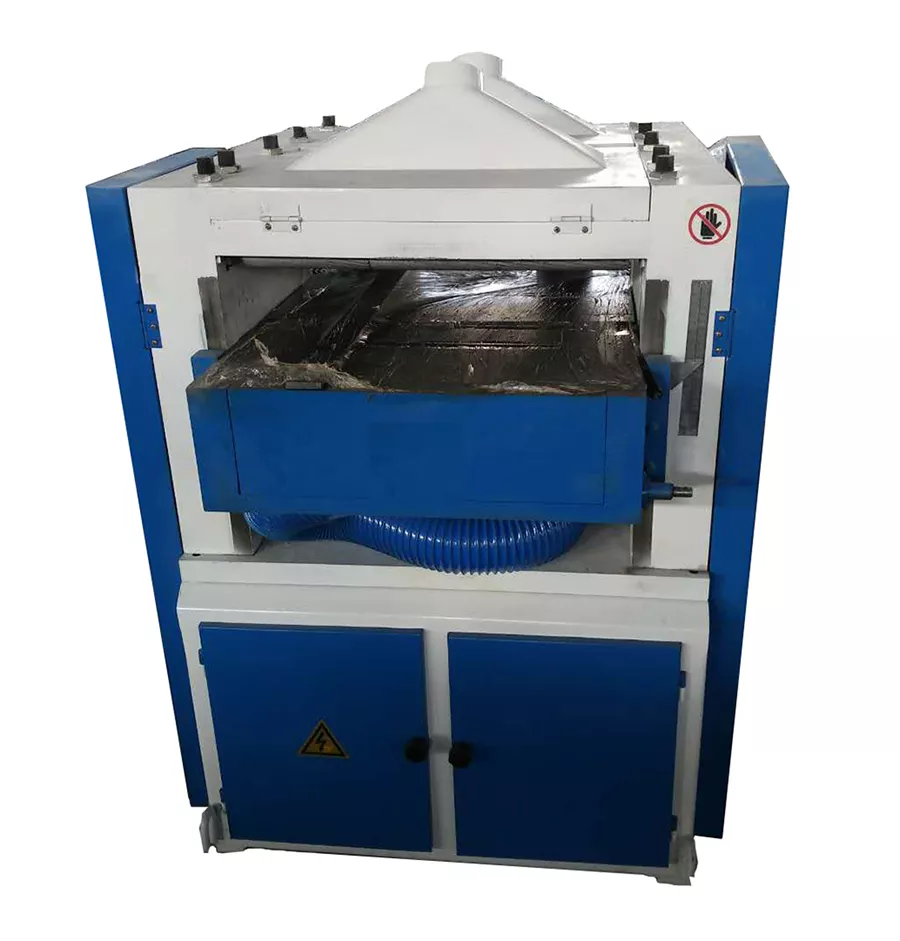

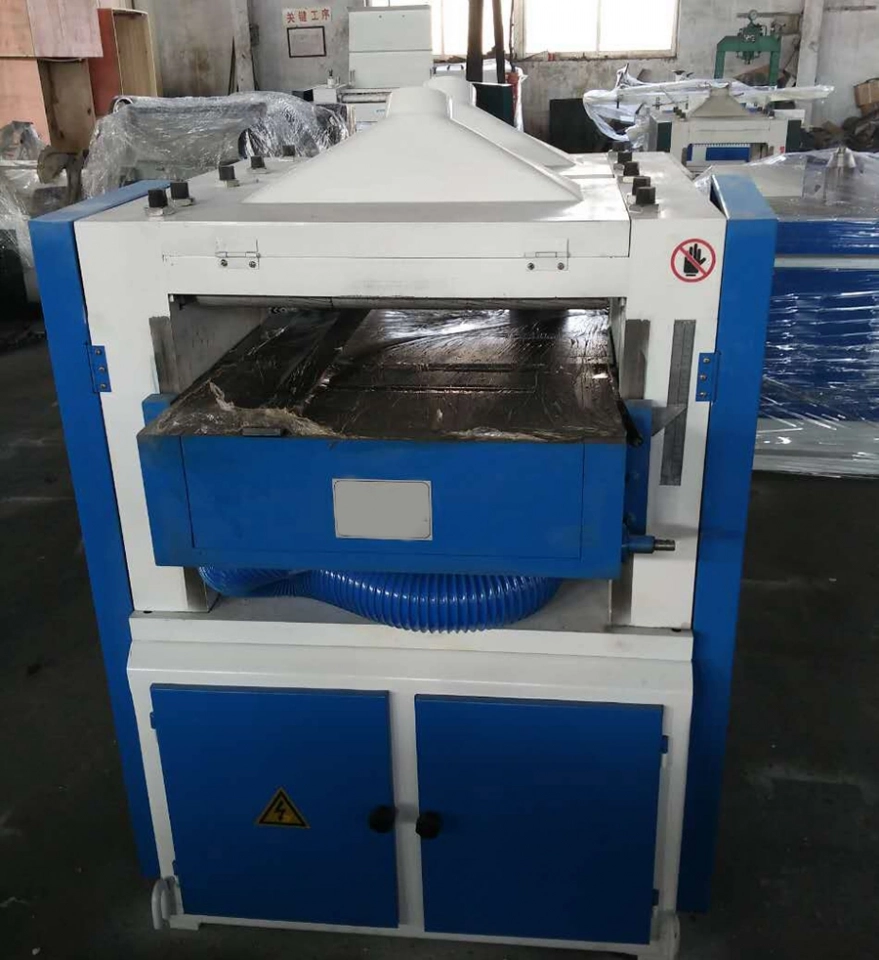

MB404/MB405/MB406/MB408 Woodworking Four Side Planer Moulder four side wood planer and moulder four sided planer thicknesser

Model

MB404/MB405/MB406/MB408

Max. Planing width (mm)

410/510/610/810

Min. Planing thickness (mm)

120

Max. Planing depth mm)

3~5

Min. Planing length(mm)

300

Spindle speed (r/min)

5200/5700/8000

Feeding speed (m/min)

7~10

Main spindle power

5.5kw/5.5kw

5.5 /4kw(up/down)

5.5/5.5kw (up/down)

Lift & down motor power

0.37~0.75kw

Left &right spindle power

(2.2~3)*2kw

Dimension(mm)

1060*850/950/1160*1300

Weight

700kg/750kg/870kg/900kg
