MB104F/MB105F/MB106F/Mb108F Heavy-Duty conveyor belt Woodworking press planer Planing thicknessing machine thicknesser
MB104F/MB105F/MB106F/Mb108F Heavy-Duty conveyor belt Woodworking press planer Planing thicknessing machine thicknesser
|
Model |
MB104F/MB105F/MB106F/MB108F |
|
Max. Planing width |
400/500/630/830 |
|
Planing depth |
3 ~180mm |
|
Min. Planing length |
250mm |
|
Feeding speed |
6 ~ 8m/min |
|
Max. Planing depth |
4mm |
|
Spindle speed (r/min) |
6500 |
|
Motor power |
4/5.5/7.5 |
|
Dimension (mm) |
(830/930/1050/1300)*760*1250 |
|
Weight(kg) |
400/500/550/750 |
|
We can also provide 1000mm, 1300mm and 1600mm planing width |
|
MB104F/MB105F/MB106F/Mb108F Heavy-Duty conveyor belt Woodworking press planer Planing thicknessing machine thicknesser

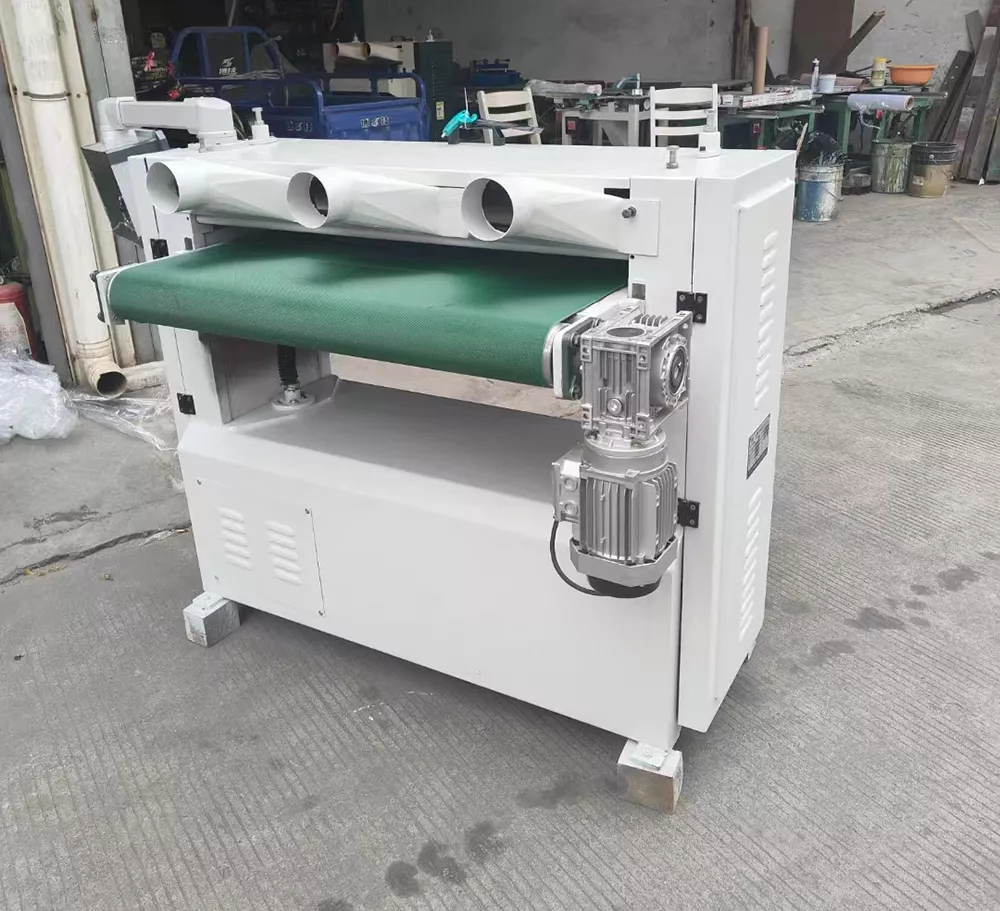

Product features: 1. The front of the conveyor belt is equipped with a safety cover device while increasing the length of the table surface. 2. The reducer drives the conveyor belt, and the speed of the conveyor belt can be adjusted on the control panel 3. The diameter of the suction tuyere is 100mm, and it is equipped with two tuyere to discharge wood chips smoothly 4. Screw manual lifting, the accuracy of the effective console surface, such as the two sides of the table are not parallel directly adjustable screw under the hex, easy to operate
