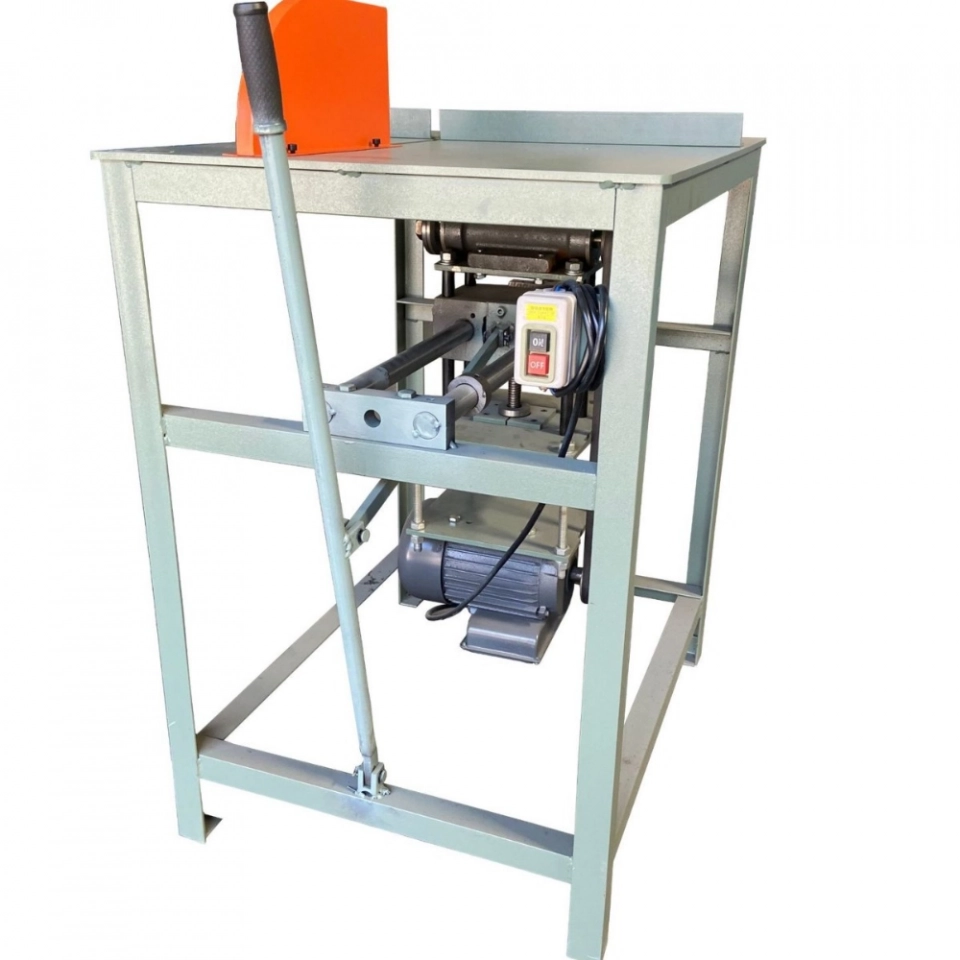

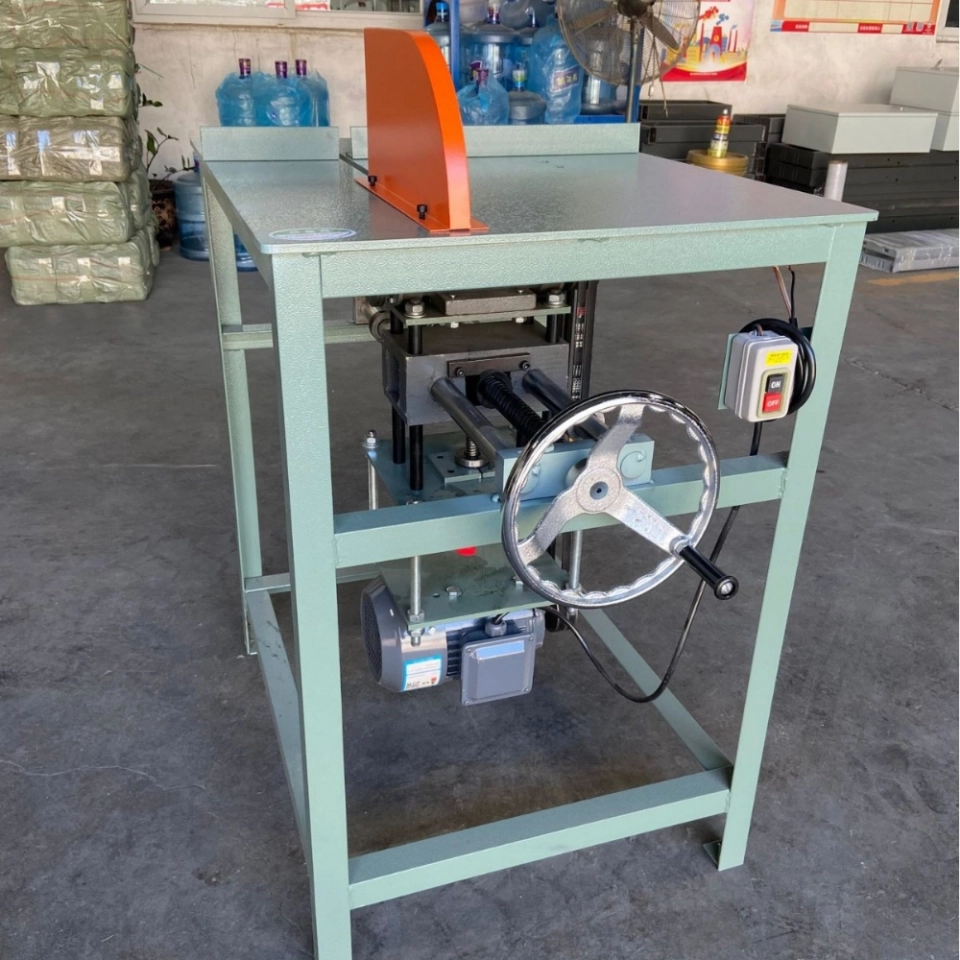

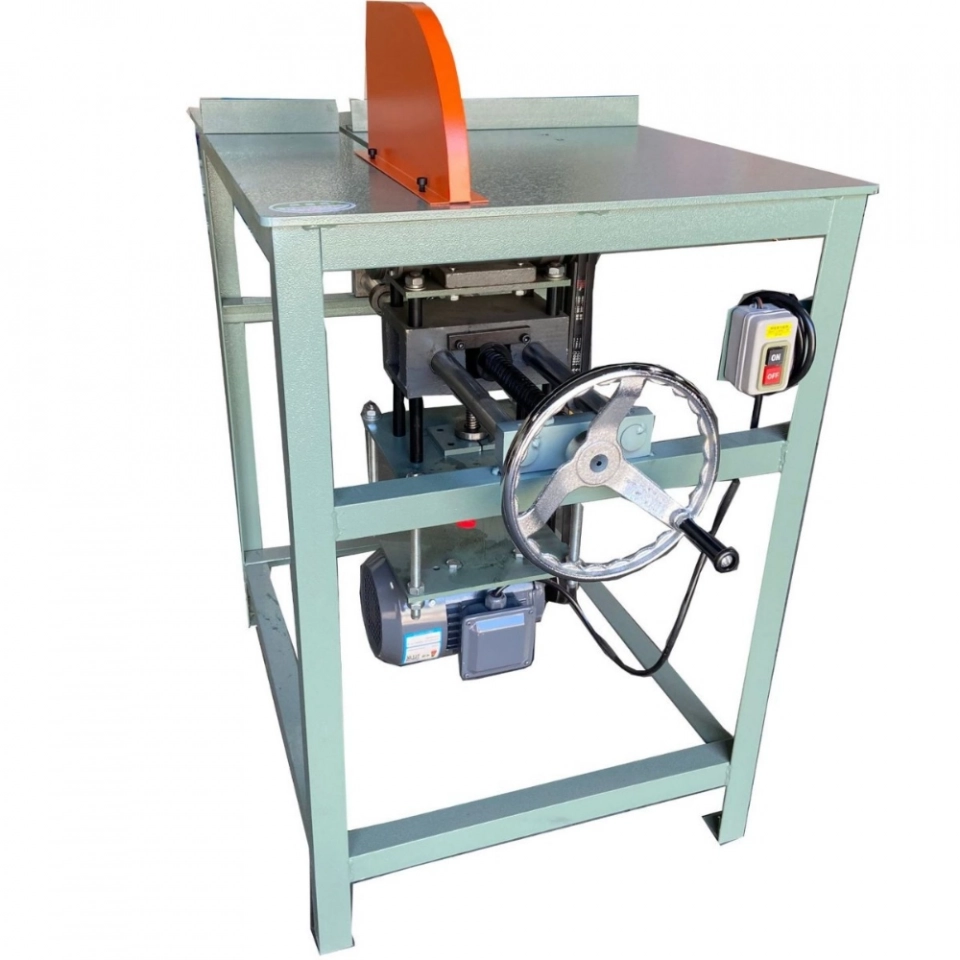

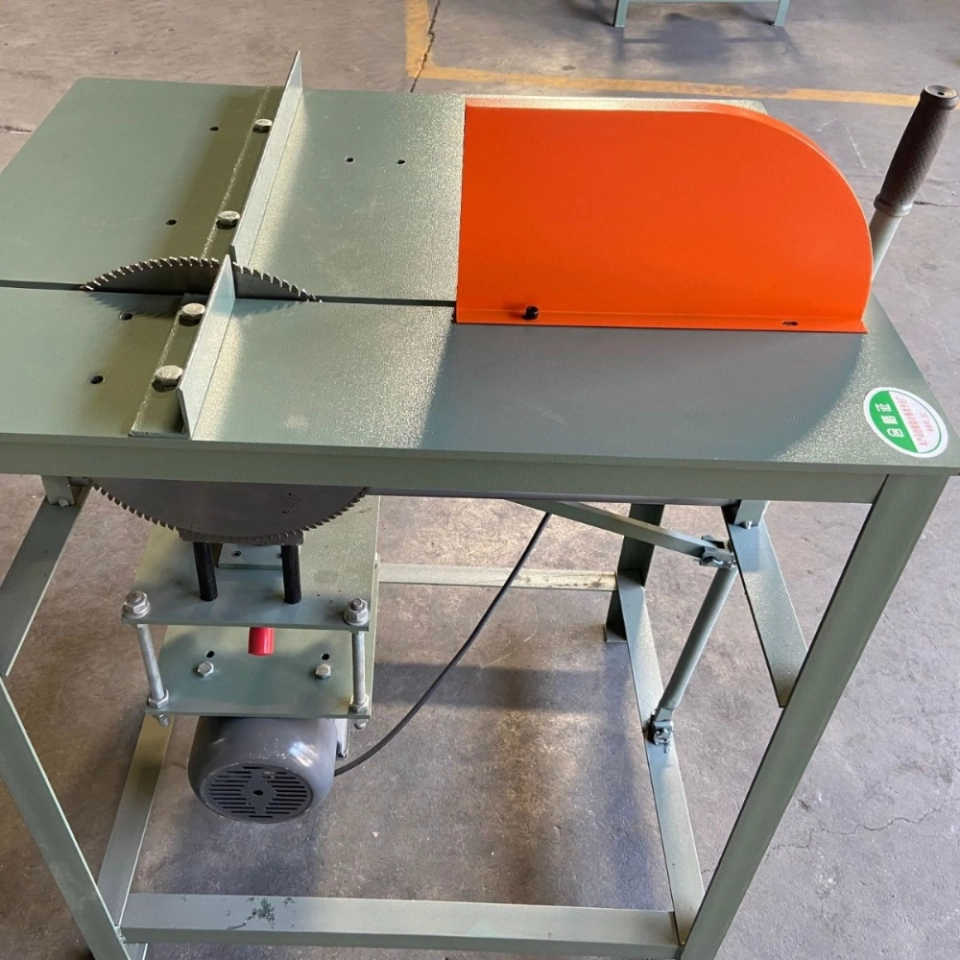

Manual Handwheel Aluminum Profile Cutting Saw 45°&90°

This manual handwheel aluminum profile cutting machine is designed for cutting aluminum profiles, PVC profiles and wood profiles. It supports 45° and 90° angle cutting, with stable structure, simple operation and low maintenance. Ideal for small workshops, DIY users, window and door frame processing industries. 1.5kW standard motor, 2.2kW optional for higher cutting efficiency.

Operation Type: Manual Handwheel Operated

Cutting Angle: 45° / 90° Adjustable

Suitable Material: Aluminum Profile, PVC Profile, Wood Profile

Max. Cutting Thickness: 120mm

Max. Cutting Width: 120mm

Motor Power: 1.5kW (Standard), 2.2kW (Optional)

Voltage: 220V / 380V Optional

Spindle Speed: 3200r/min

Saw Blade Inner Hole: 25.4mm

Saw Blade Size Range: Φ205mm - Φ350mm (16" 405mm supported)

Worktable Size: 610×750mm

Machine Dimension: 800×610×880mm

Net Weight: 120kg



Features: Easy Operation, Low Maintenance, Compact Structure
