W0102/W0102R/W0102S 8-Inch Jointer Planer for Precision Woodworking
8 inch jointer planer
- W0102
- 8inch/203mm
- W0102R/W0102S
- 8inch/203mm
- Quantity
Parameter of 8-Inch W0102/W0102R/W0102S Jointer Planer: Precision Woodworking Made Easy
|
Model |
W0102 |
W0102R/W0102S |
|
Blade |
8” striaght flat blade |
8inch Radius spiral cutter |
|
Motor power |
4HP/3KW (380V/220V) |
4HP/3KW ((380/220V) |
|
Max. planing width |
8”/203mm |
8”/203mm |
|
Max. Planing depth |
3.1mm |
3.1mm |
|
Rabbeting cut capacity |
12.7mm |
12.7mm |
|
Cutter head weight |
Spindle speed : 4800RPM |
Spindle speed : 4800RPM |
|
Blade number: 4PCS(high speed steel) |
Blade number: 5slots 52pieces/ 4slots 40pieces |
|
|
Blade size:205*20*3mm |
Blade size:15*15*2.5mm/14*14*2mm |
|
|
Shaft diameter: 75mm |
Shaft diameter: 75mm |
|
|
Working table |
Length:1930mm |
Length:1930mm |
|
Height from floor: 840mm |
Height from floor: 840mm |
|
|
Backing |
Size: 910*127mm |
Size: 910*127mm |
|
Angle: 45~135 degree |
Angle: 45~135 degree |
|
|
Appendix |

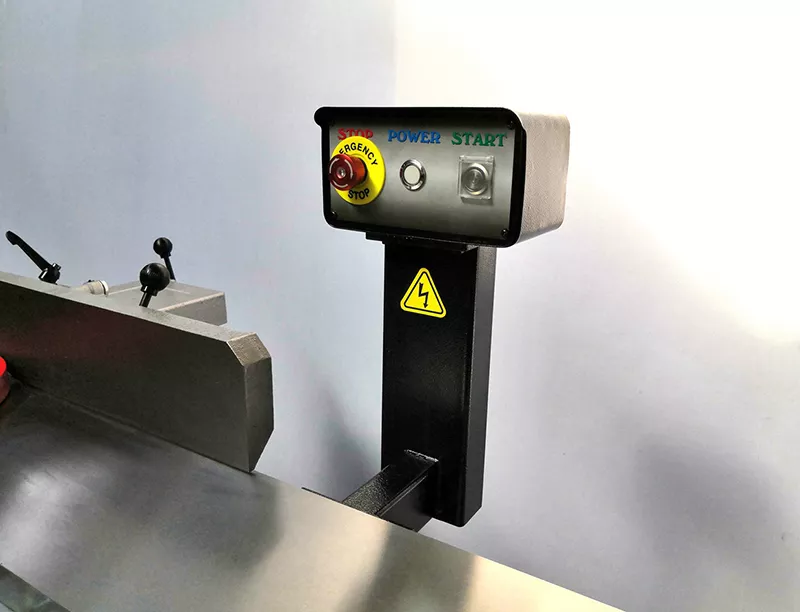

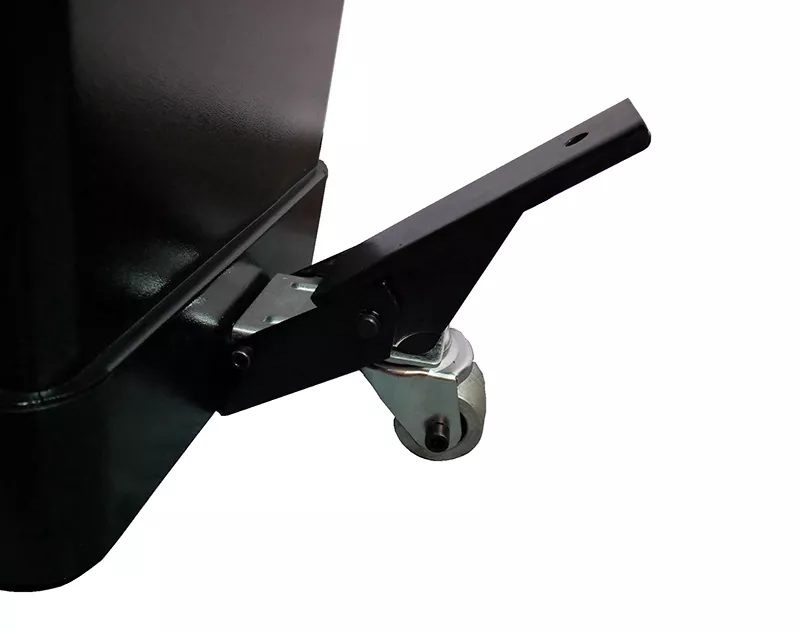

Pedal type movable casters, switch bracket, Taiwan magnetic starter, 100mm dust collection port, push handle*2 |
Pedal type movable casters, switch bracket, Taiwan magnetic starter, 100mm dust collection port, push handle*2 |
|
Feature |
Parallel lifting worktable lifting structure, pressure rod lifting, sliding seat backing system |
Parallel lifting worktable lifting structure, pressure rod lifting, sliding seat backing system |
|
Dimension |
1930*640*1190mm |
1930*640*1190mm |
|
Package size |
Working table : 2030*660*330mm Body:960*470*750mm |
Working table : 2030*660*330mm Body:960*470*750mm
|
|
weight |
Working table 150kg/ Gross weight 1800kg Body: 75kg/ Gross weight 90kg |
Working table 150kg/ Gross weight 1800kg Body: 75kg/ Gross weight 90kg |
8-Inch W0102/W0102R/W0102S Jointer Planer: Precision Woodworking Made Easy
Experience precision woodworking with our 8-Inch Planer featuring a unique parallelogram support system for efficient chip removal.
Its durable cast iron construction minimizes vibration and dust exposure. The extra-long, center-mounted fence and infeed table provide

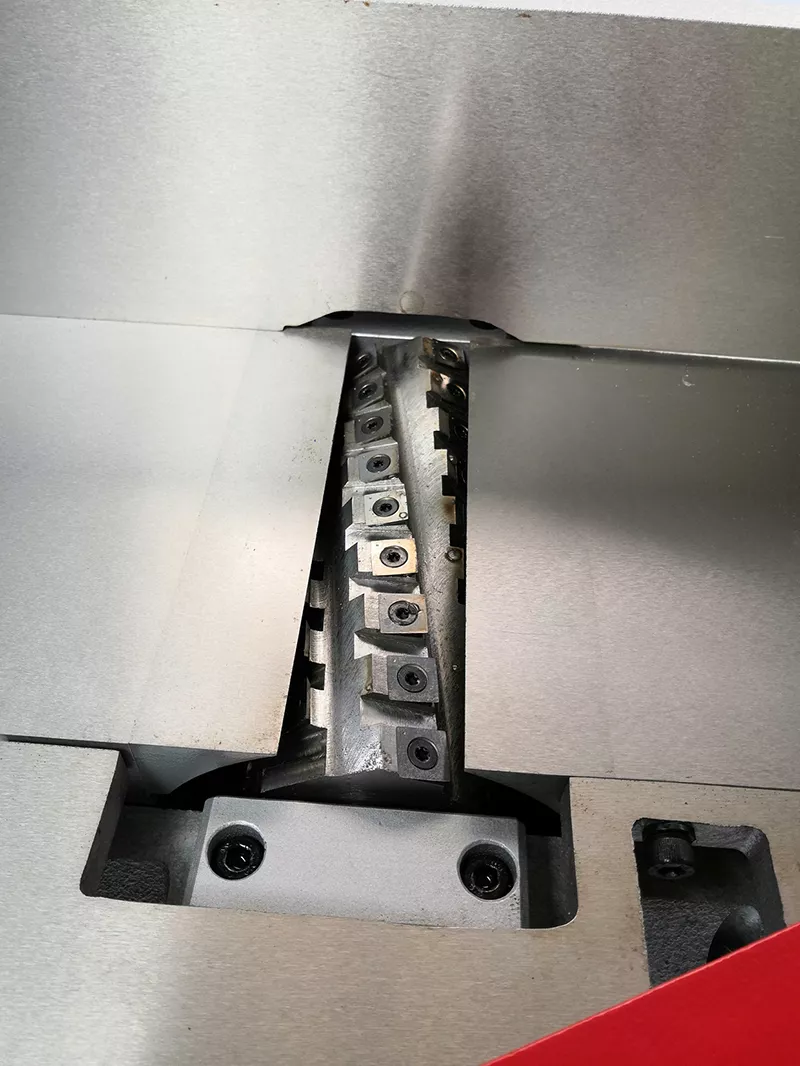

excellent support for various projects, while the modular cutterhead allows for quick knife replacement without downtime.

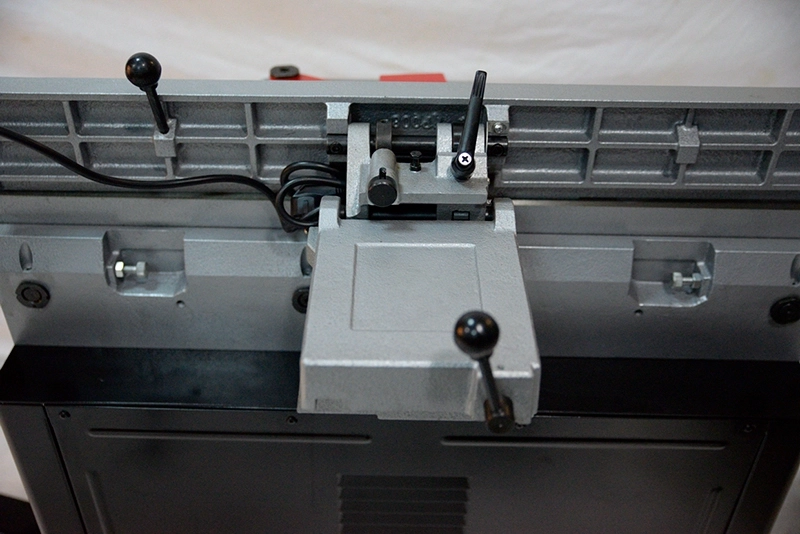

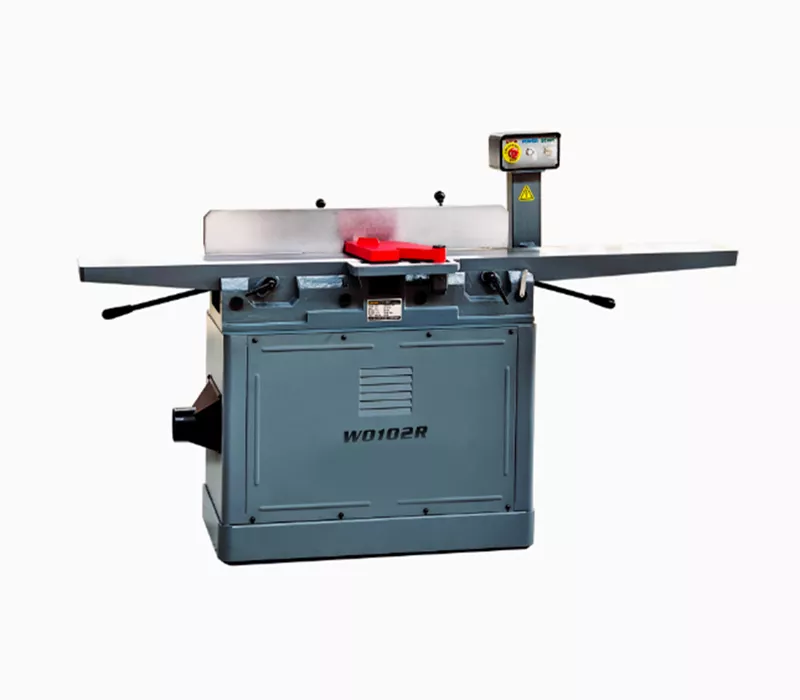

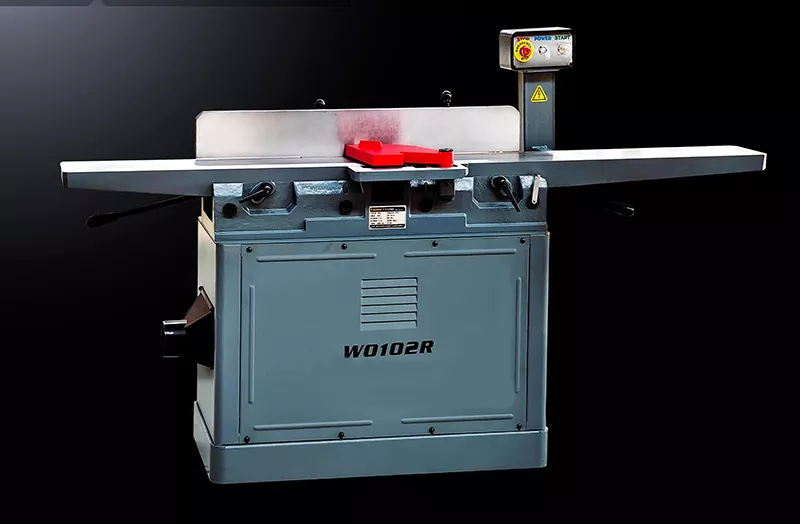

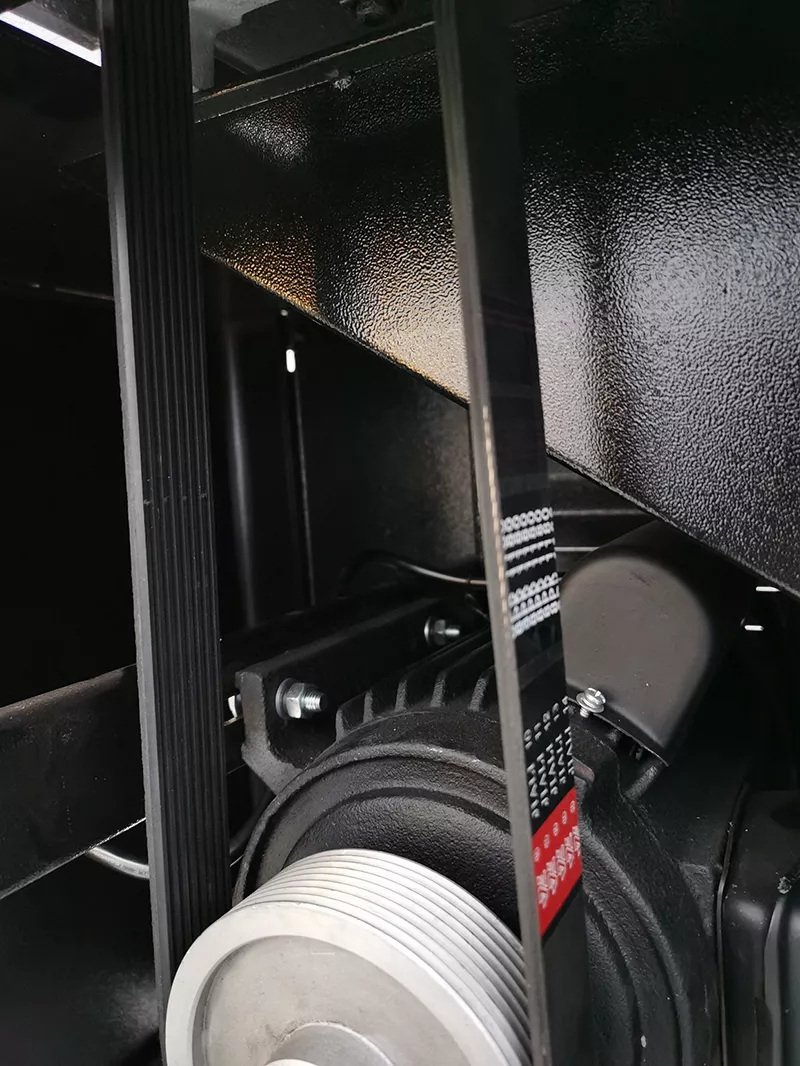

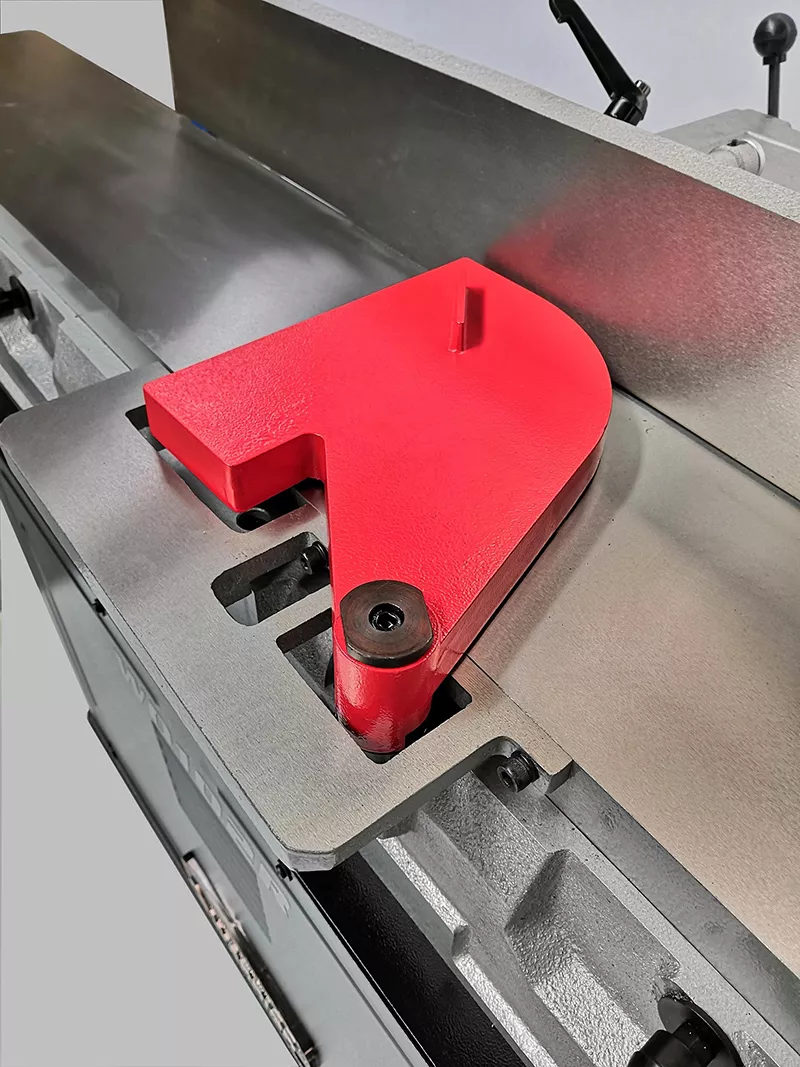

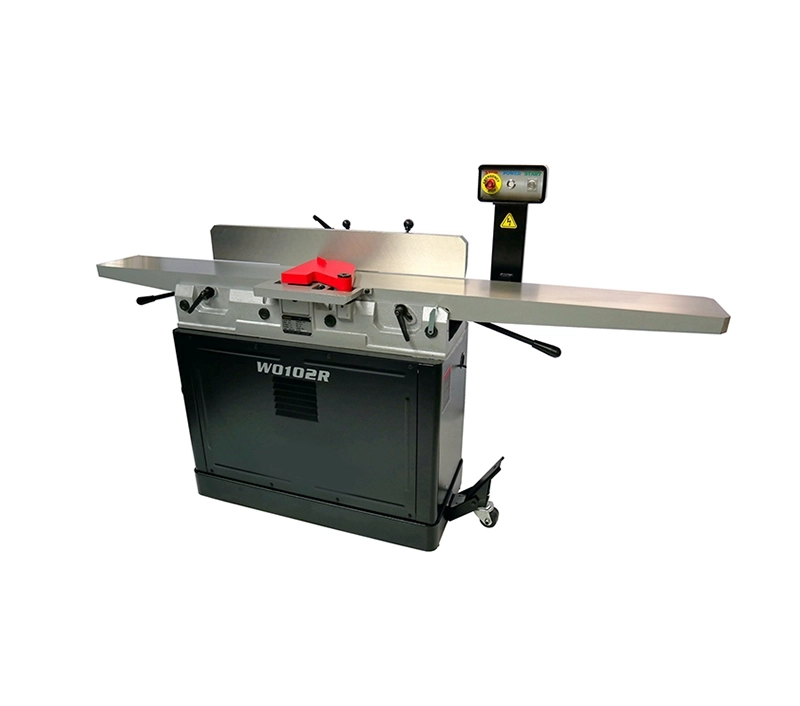

Photo of 8-Inch W0102/W0102R/W0102S Jointer Planer: Precision Woodworking Made Easy
