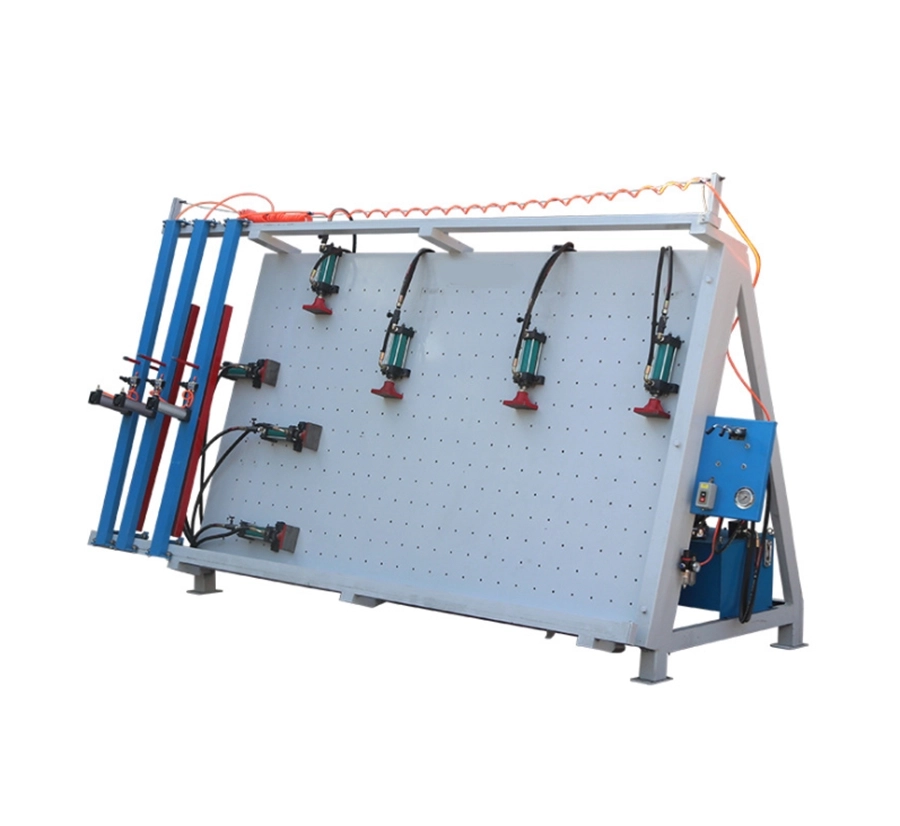

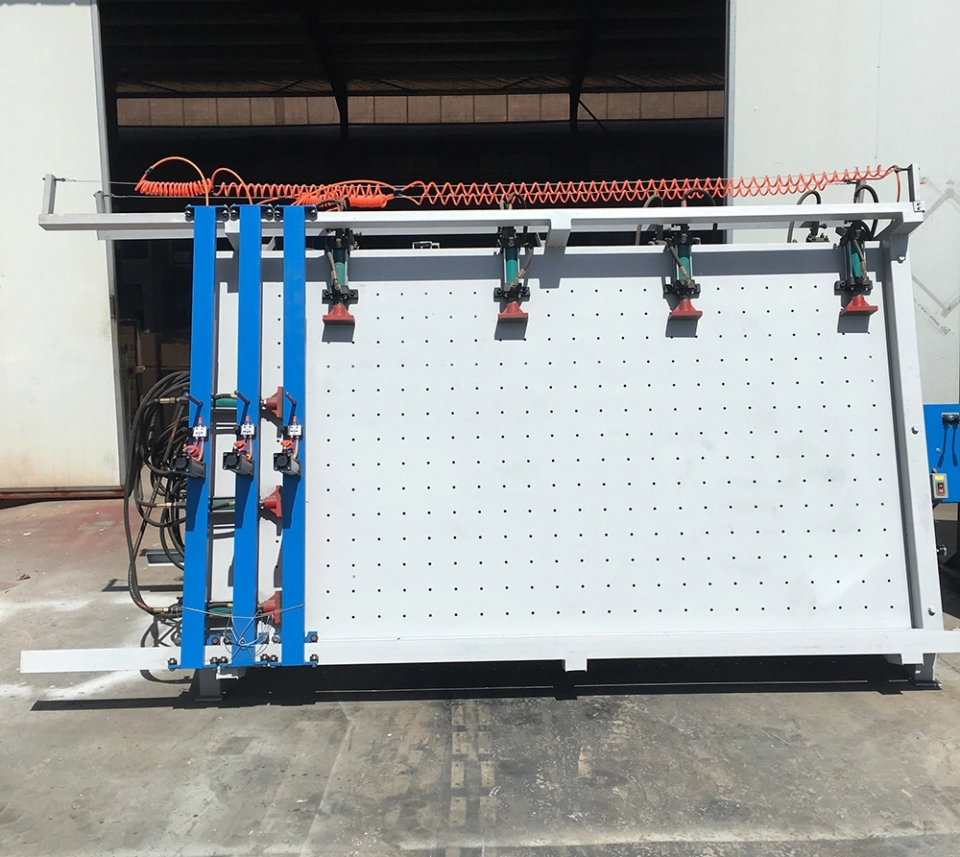

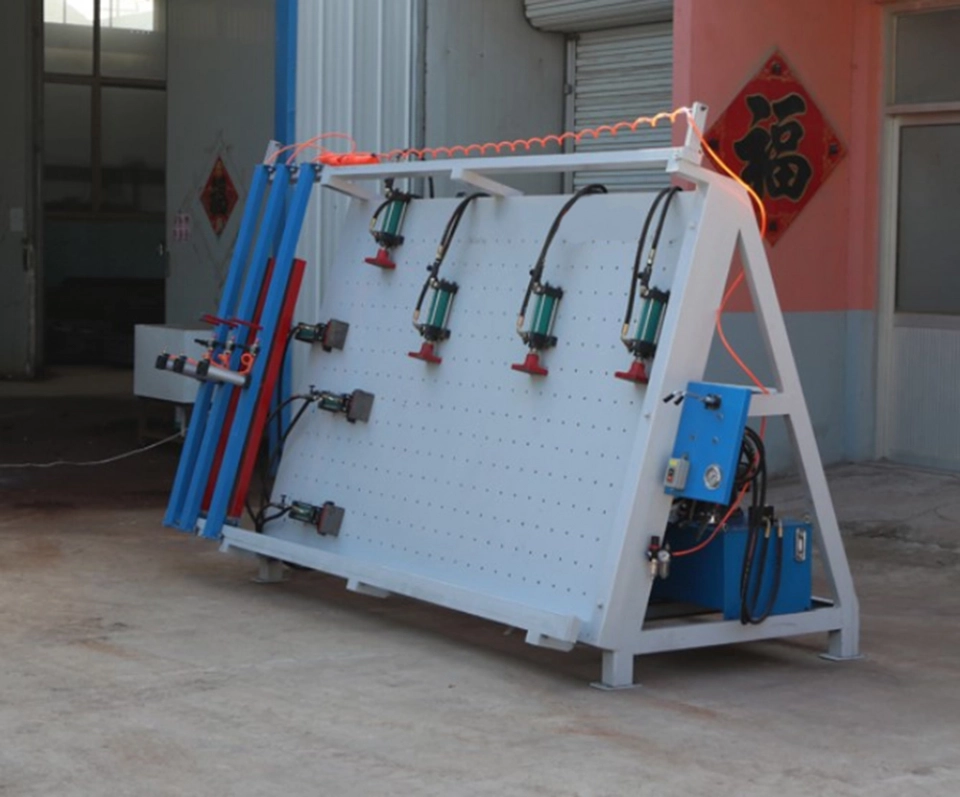

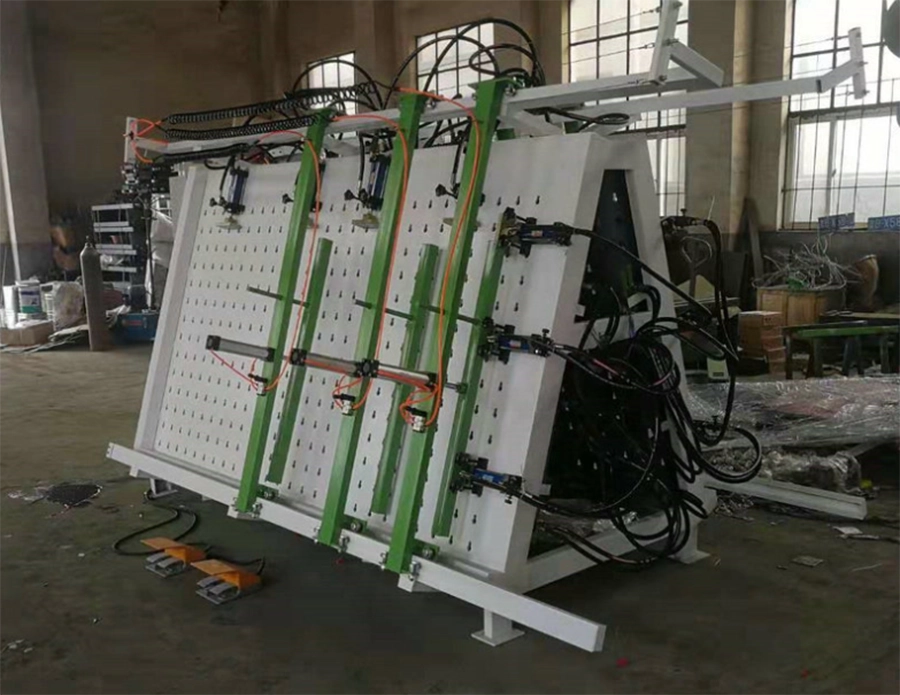

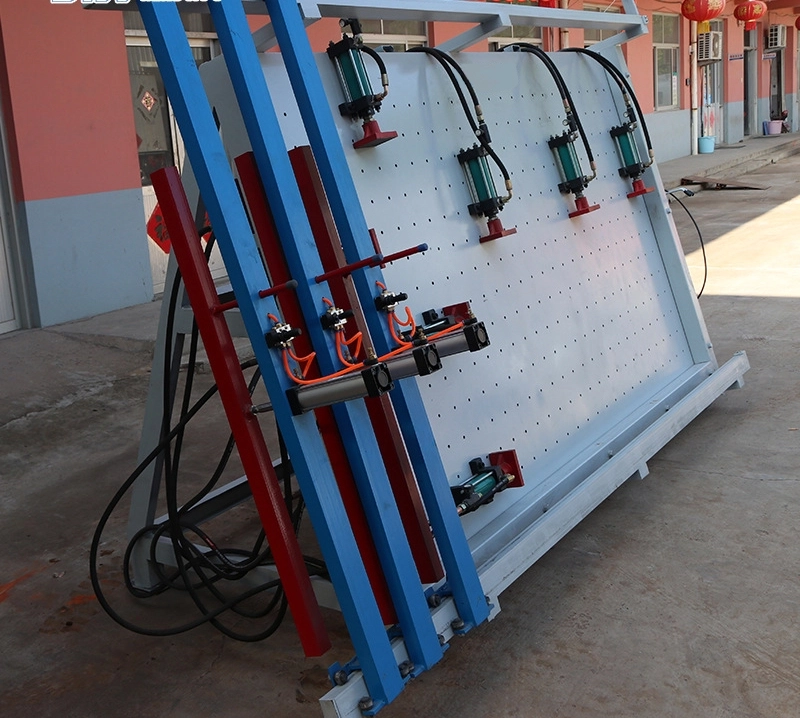

Hydraulic Door Press Woodworking frame assembly machine
- Quantity
|
Model |
MH2324A |
MH2324B |
|
Type |
Single side |
Double side |
|
Max. Assembly size |
1100*2200mm/1220*2400mm |
1100*2200mm/1220*2400mm |
|
Hydraulic pump cyinder |
1.5kw |
2.2kw |
|
Upper hydraulic cylinder |
50mm*100mm*4PCS |
50mm*100mm*4PCS*2 |
|
Side hydraulic cylinder |
50mm*100mm*3PCS |
50mm*100mm*3PCS*2 |
|
Working air pressure |
0.6~0.8Mpa |
0.6~0.8Mpa |
|
Dimension(L*W*H) |
2400*1200*2200mm |
3200*2000*1500mm |
|
Weight(kg) |
1200 |
2800 |

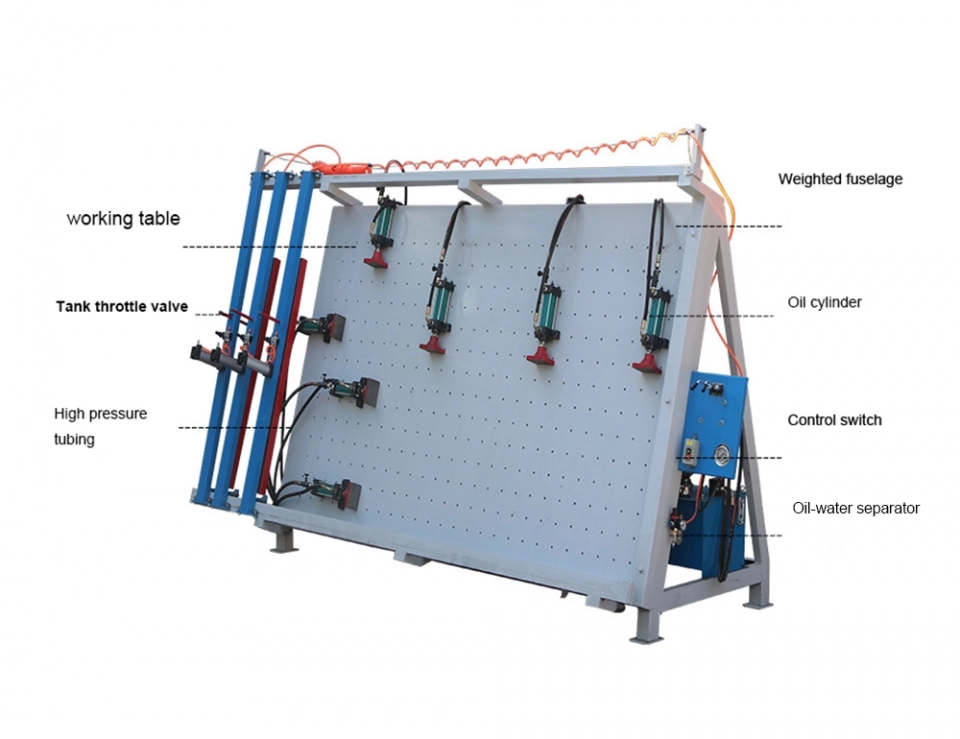

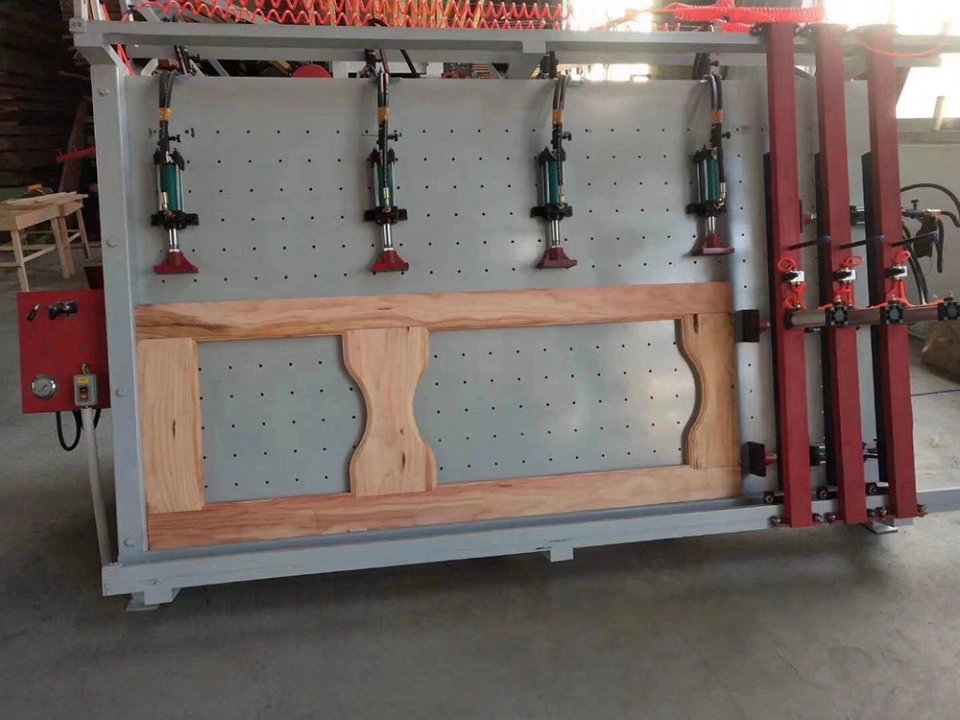

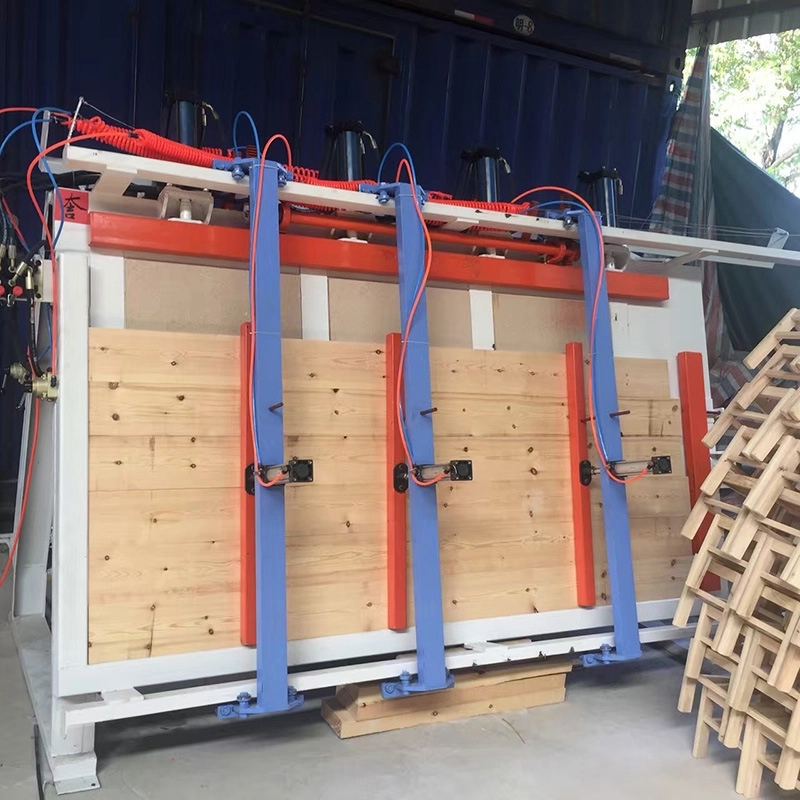

Woodworking frame assembly machine is a woodworking machine that assembles and presses various frames such as solid wood doors and windows, composite doors and windows, wood frames, cabinet door frames, etc. It mainly adopts gas-liquid control mode, simple operation, convenient maintenance, and has good combined quality and efficiency. High features. It is widely used in furniture manufacturing industry and other professional manufacturers of doors and windows.
