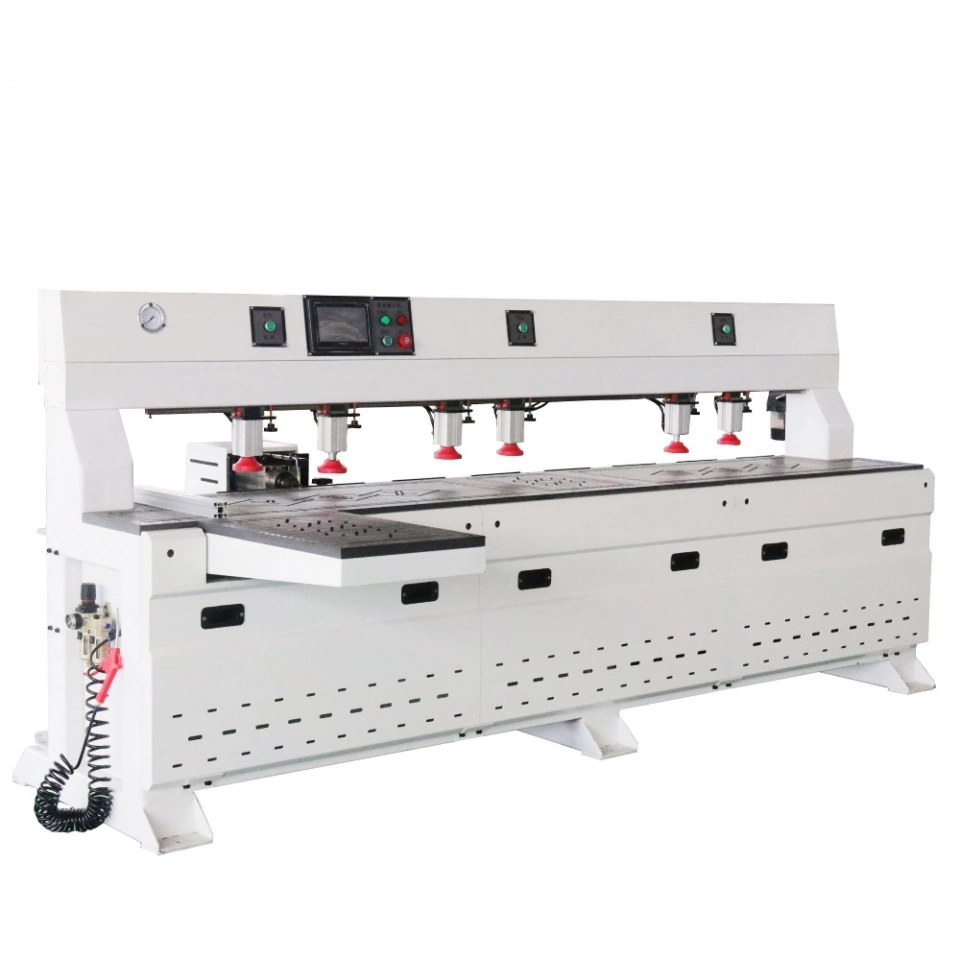

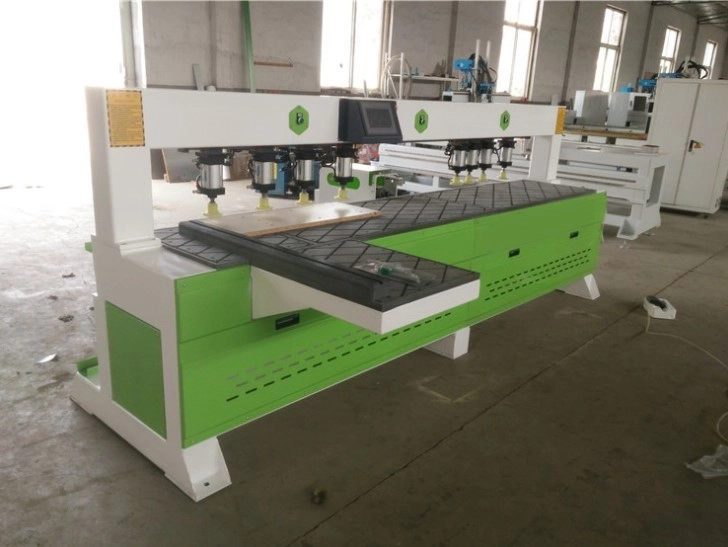

Fully Automatic CNC Infrared Laser Side Hole Drilling Machine for Panel Furniture
- Quantity
|
Product name |
Automatic multifunction side drilling machine |
|
Working travel |
2500/2600mm |
|
Sensor |
Laser probe |
|
Processing speed |
105m/min |
|
Spindle speed |
24000r/min |
|
Idle speed |
150m/min |
|
Motor power |
2.2kw/2.2kw*2 |
|
Drive motor power |
750W+400W |
|
Work table height |
800/1000mm |
|
Repeat positioning accuracy |
±0.02mm |
|
Dimension |
3000*1700*1500mm |
|
Weight |
1000kg |

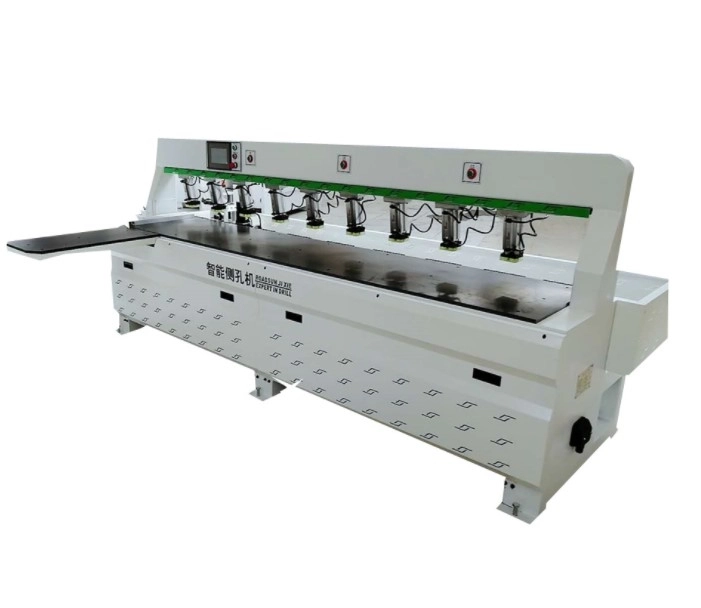

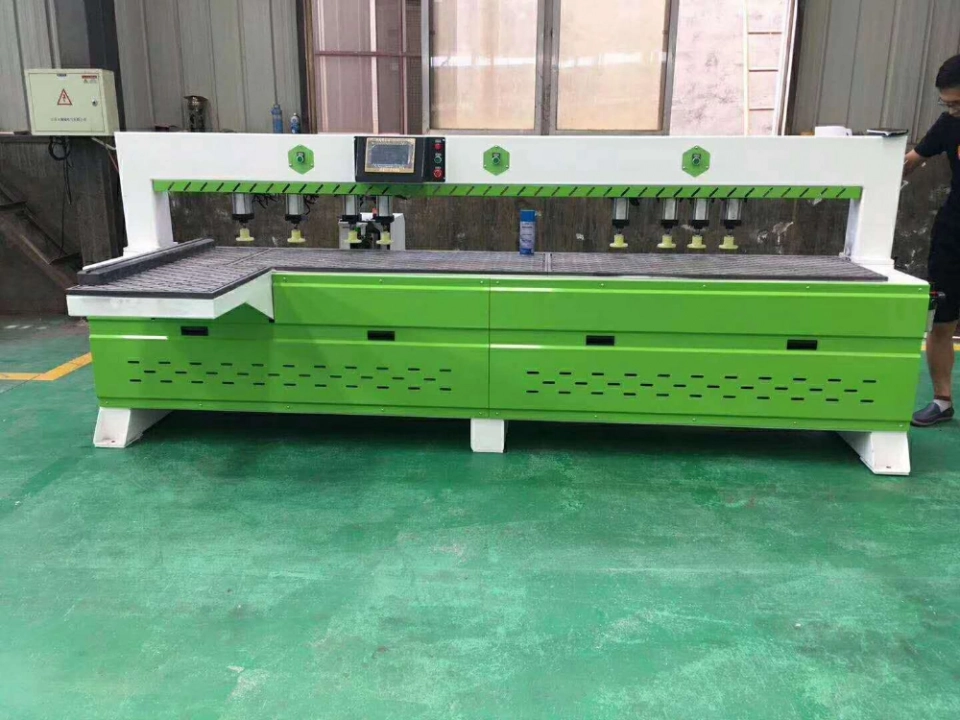

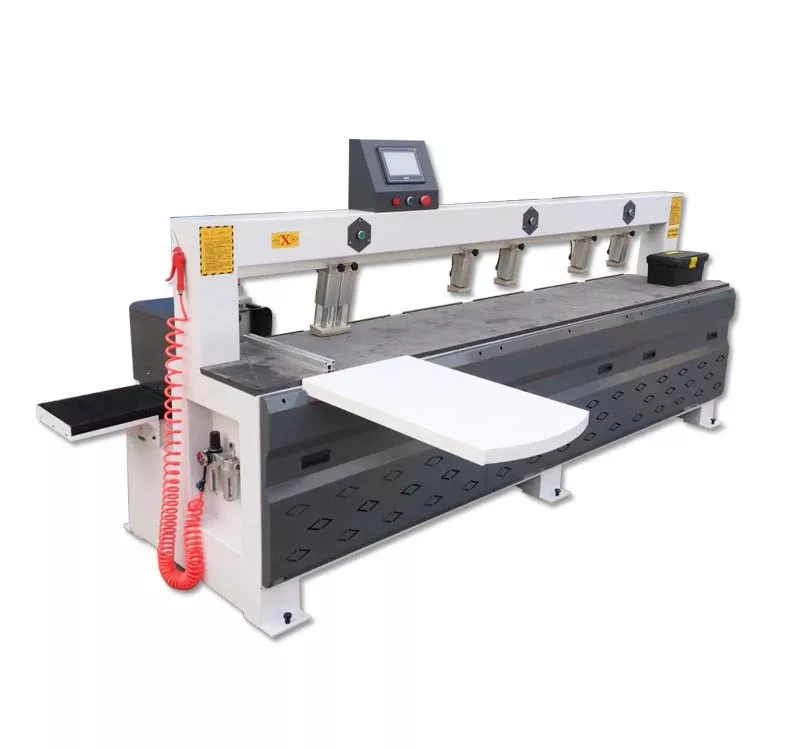

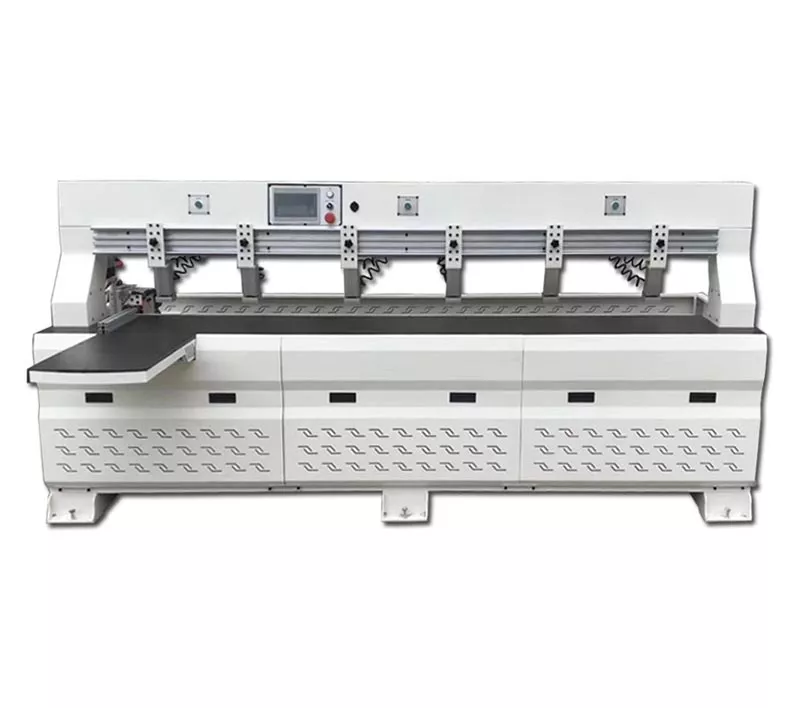

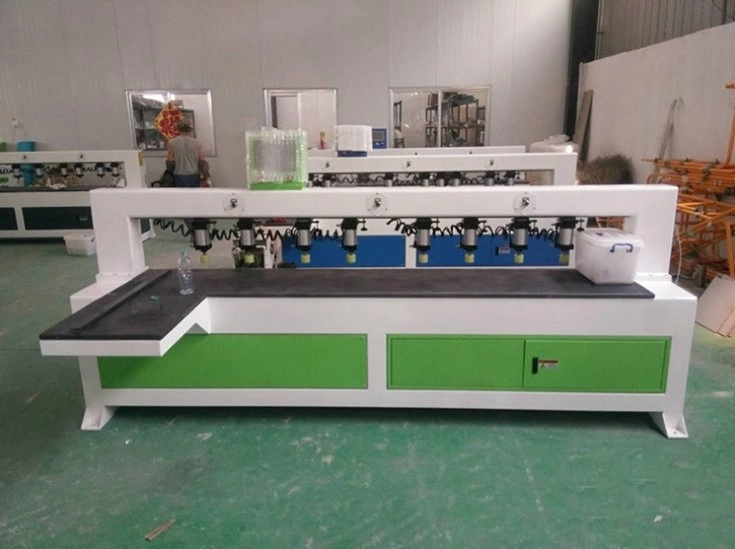

Fully Automatic CNC Infrared Laser Side Hole Drilling Machine for Panel Furniture

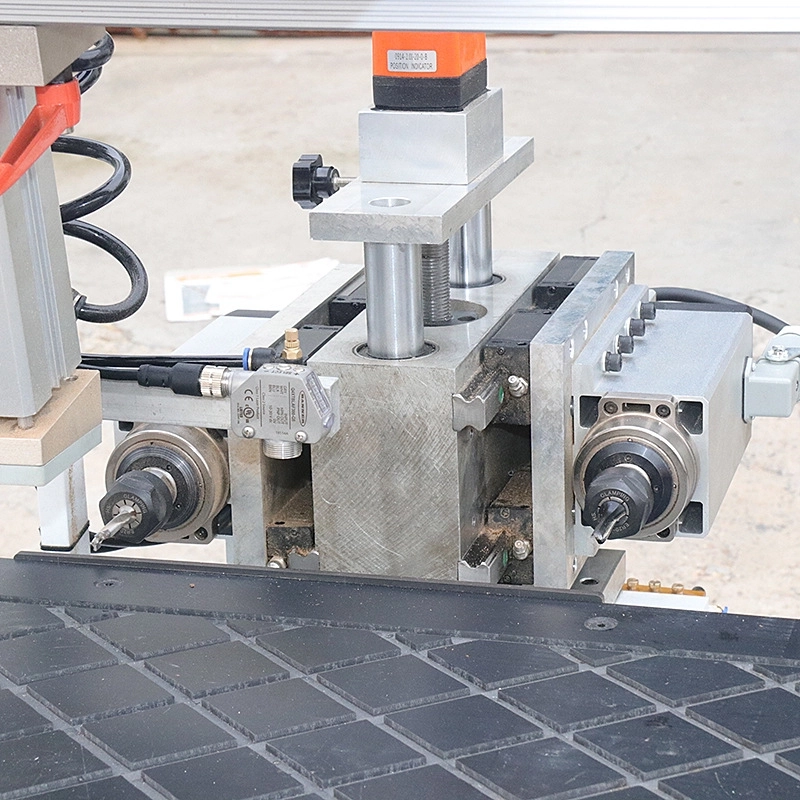

This machine is a high-speed, fully automatic CNC side hole drilling solution designed specifically for panel furniture production. Equipped with advanced infrared laser positioning and dual-head tabletop configuration, it ensures accurate, efficient, and automated drilling operations for a wide range of applications.
Features:

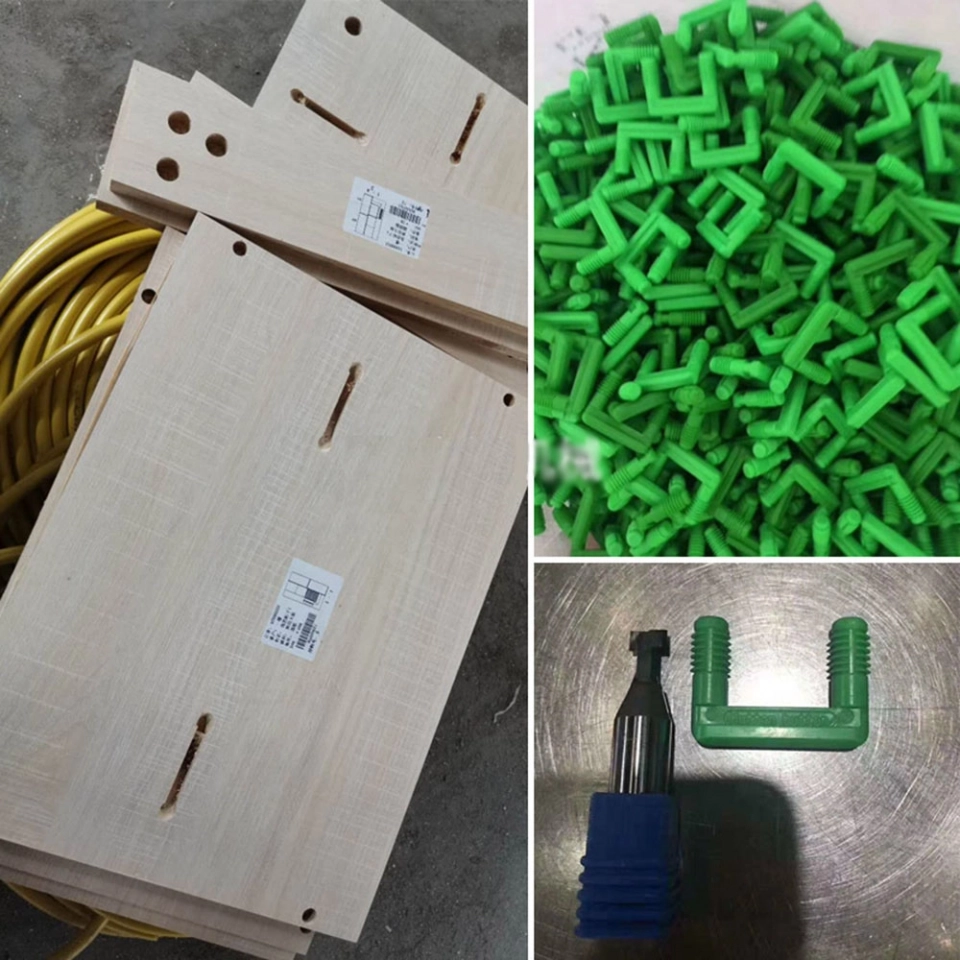

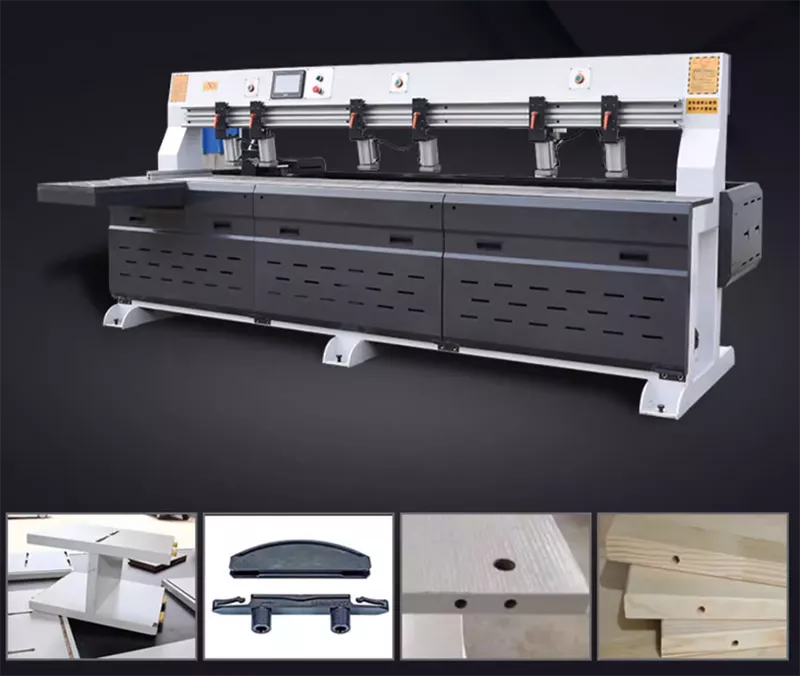

1. Supports various hole types: three-in-one connector holes, wood dowel holes, blind holes, through grooves, positioning slots, and combined hole-slot operations
2. Compatible with all kinds of invisible connectors, including Lamino fittings and three-in-one fasteners
3. Optional barcode scanning mode for automatic workpiece recognition and quick program switching
4. Ideal for batch processing with high speed and stability thanks to its dual-head design
Applications:
Perfect for processing panel furniture, office furniture, solid wood doors, cabinets, wardrobes, and more. It is an ideal choice for manufacturers looking to improve accuracy, reduce labor, and streamline production.
