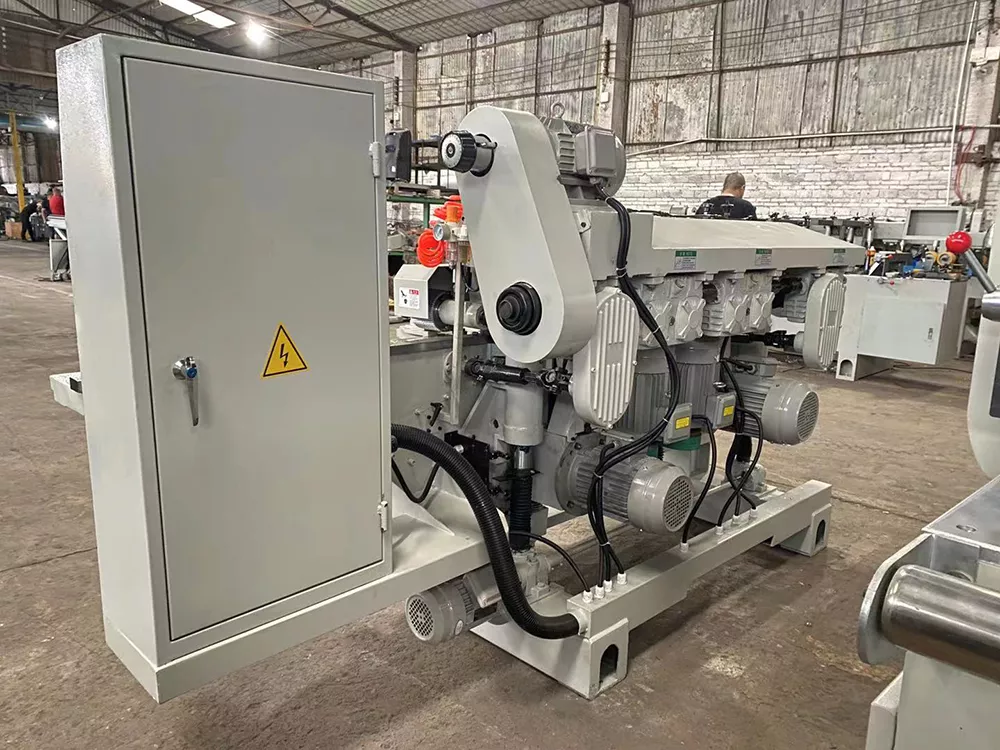

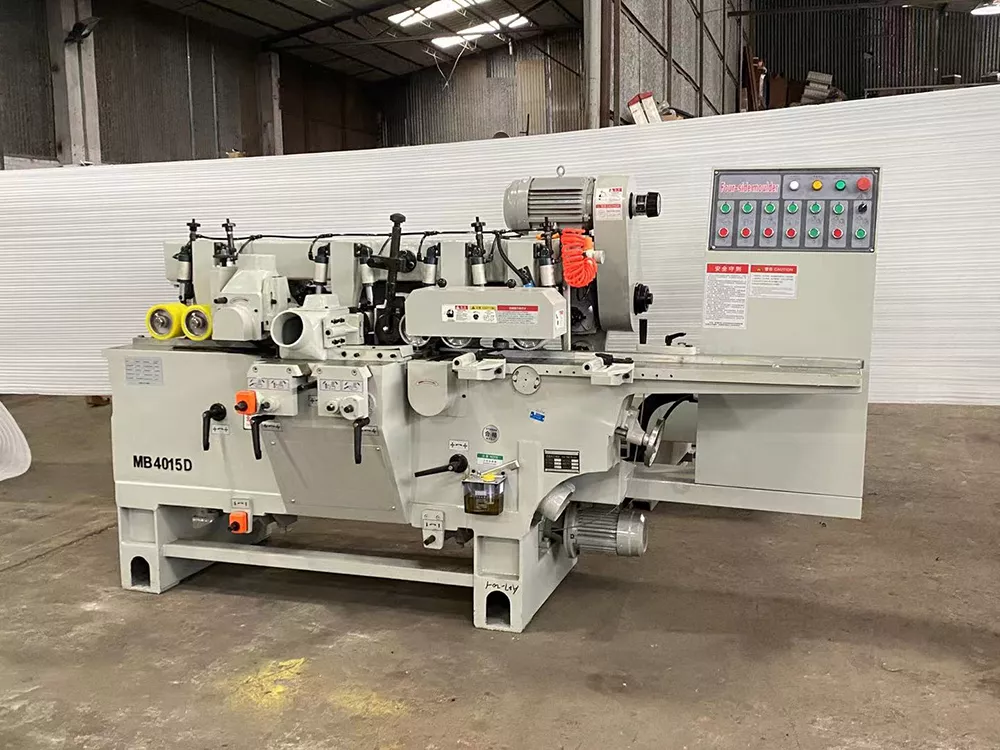

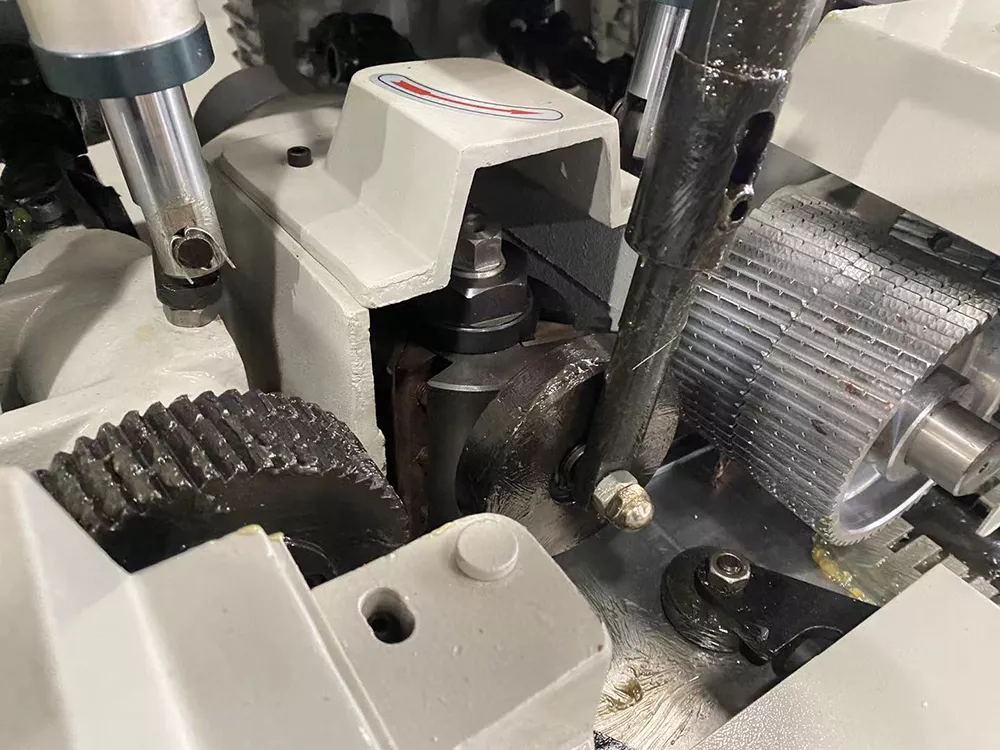

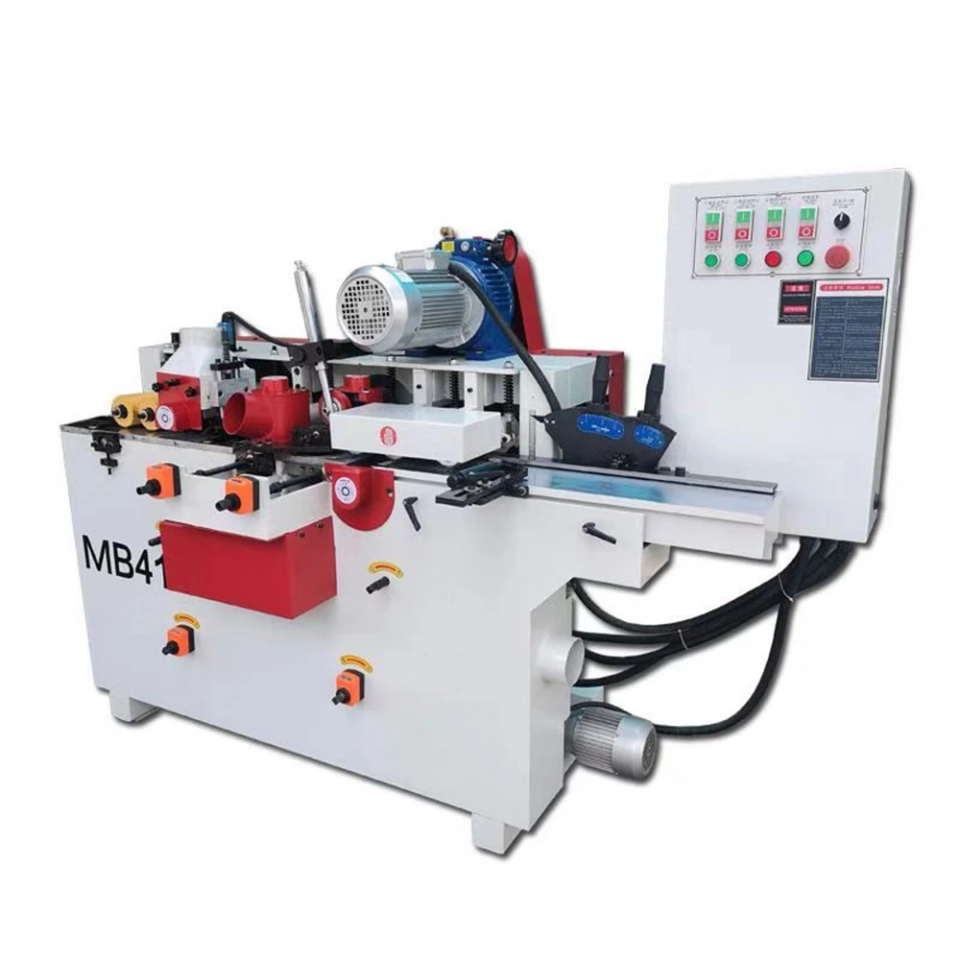

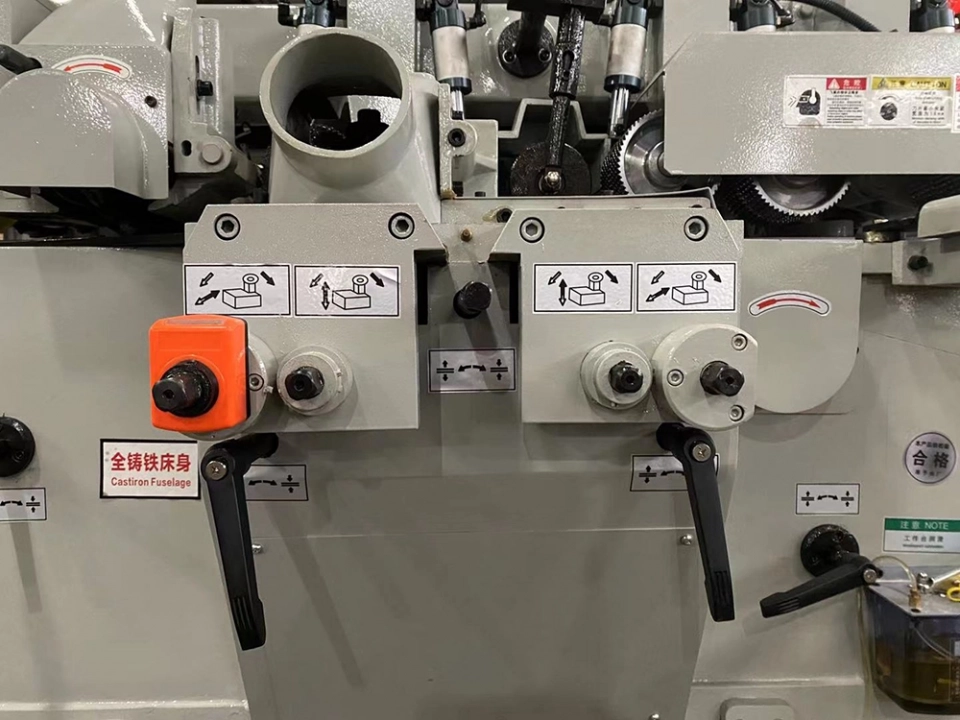

High Accuracy Wood Planer Thickness Planer Automatic High Speed Four Side Moulder

Model

MB4023

Working width

20-230mm

Working thickness

10-125mm

Feeding speed

5~20m/min

Main spindle diameter

40mm

Spindle rotation speed

6000r/min

Feeding motor

2.2kw

First bottom spindle motor

4kw

Right vertical spindle motor

5.5kw

Left vertical spindle motor

5.5kw

First top spindle power

7.5kw

Beam lifting power

0.75kw

Total power

25.45kw

Air pressure

0.4Mpa

Dimension

3100*1600*1600mm

Net weight

2500KG
