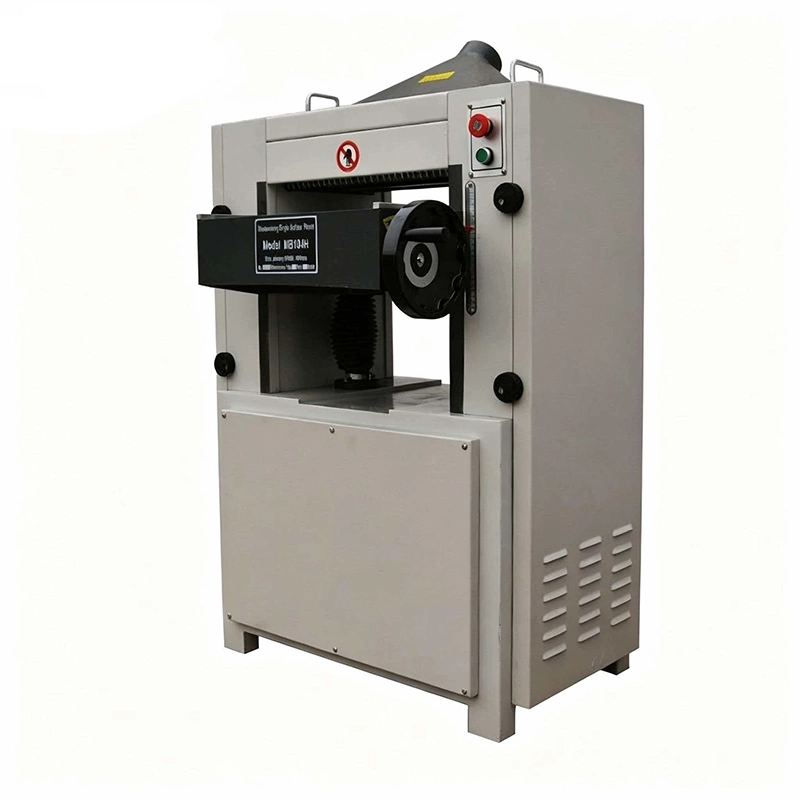

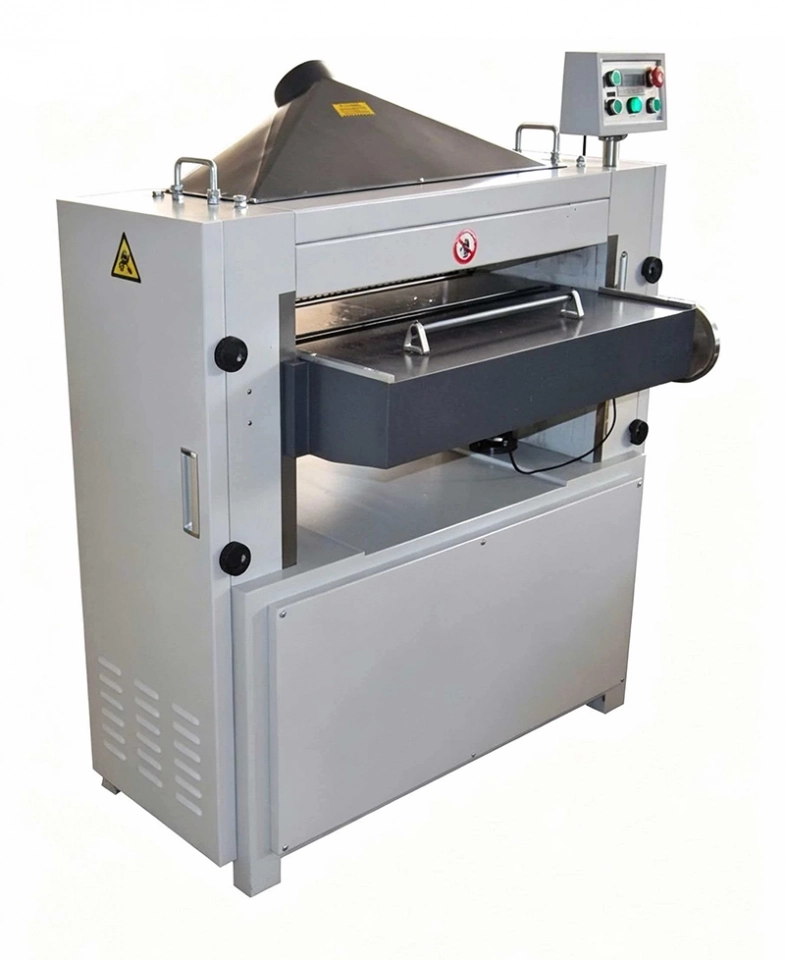

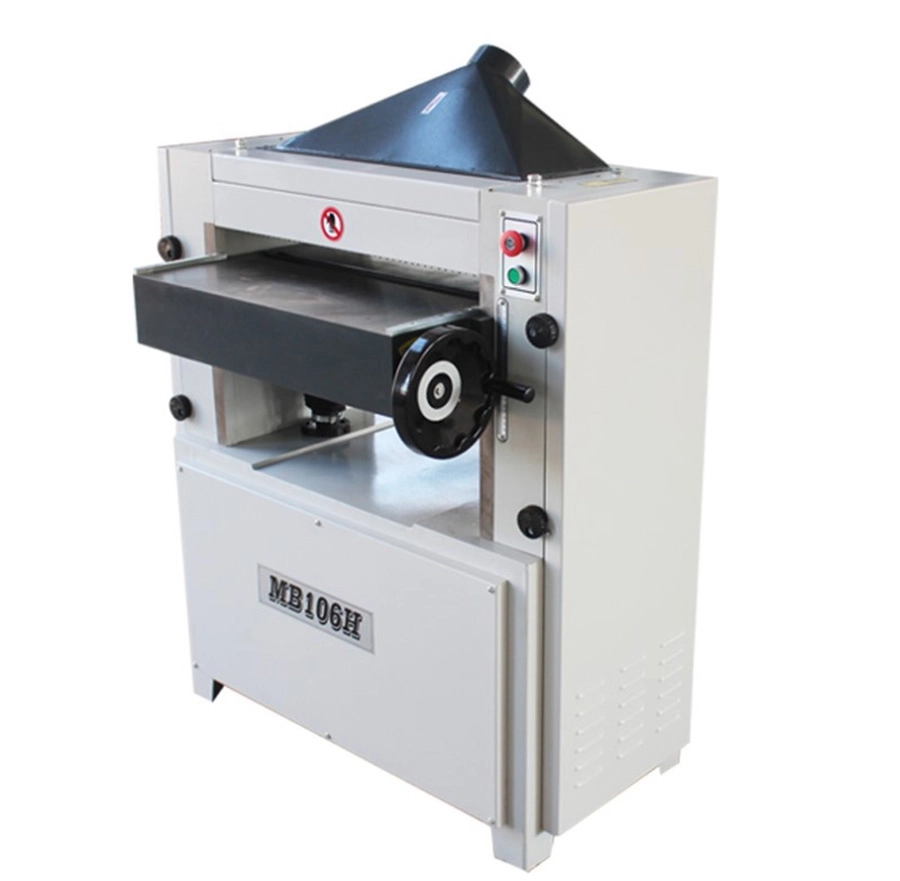

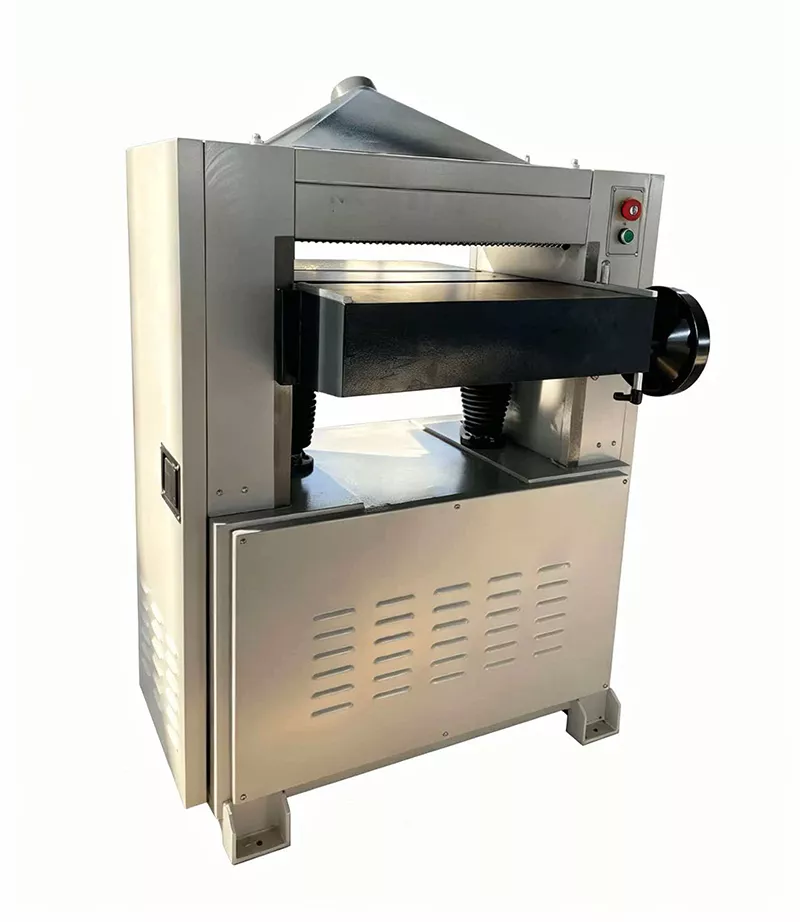

Heavy Duty Woodworking Thickness Planer MB104H MB105H MB106H MB107H
Chat with us on Whatapp for instant quotes& support
Technical parameter
Item: MB104H/MB105H/MB106H/MB107H
Max. Planing Width: 400/500/630/700mm
Max. Planing Thickness: 200mm
Min. Planing Thickness:8mm
Min. Workpiece Length: 220mm
Feeding Speed: 8,10,12m/min
Max. Cutting Depth: 5mm
Cutter Shaft Speed: 4800RPM
Number of Blade: 4PCS
Cutter Shaft Diameter: 105/123mm
Motor Power: 4/7.5KW
Dust Outlet Diameter: 100mm
Overall Dimension (L×W×H)( 850/950/1080/1150)×830×1250mm
Net Weight: 445/476/553/663 KG

Heavy‑duty single‑sided woodworking thickness planer is widely used in furniture, construction, wood mould and other fine woodworking industries.

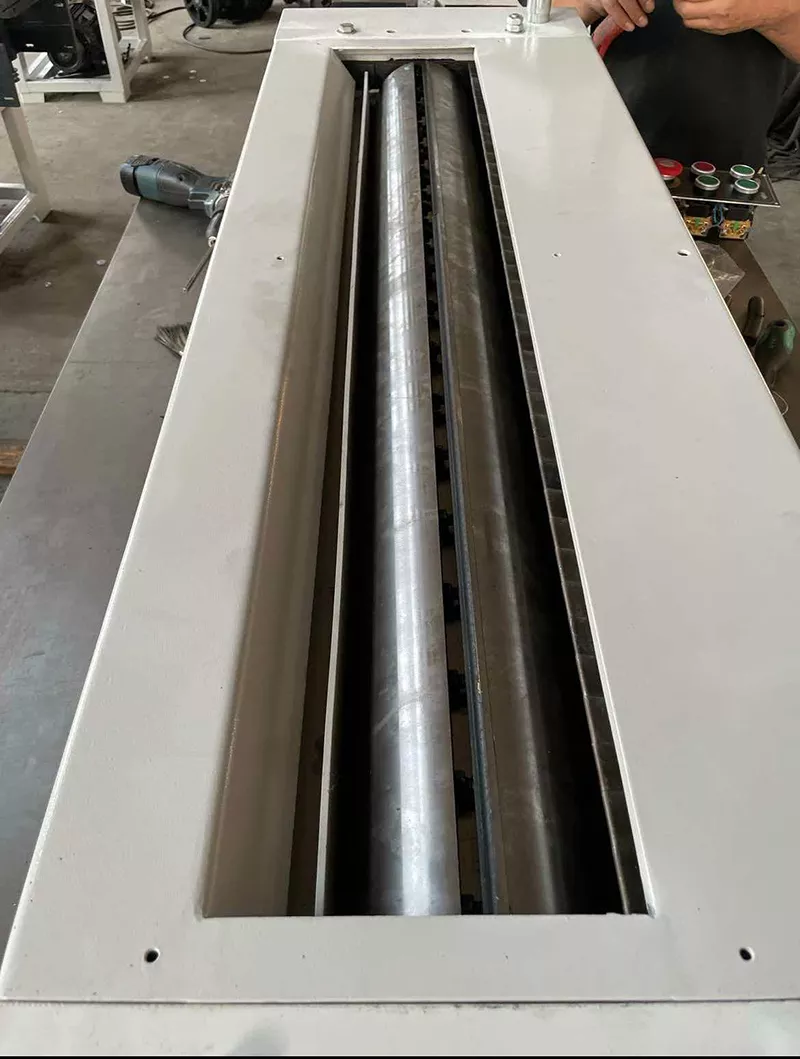

It features stable feeding performance. The front pressure roller adopts segmented movable structure, which can feed multiple workpieces with thickness difference within 3mm at the same time. Front and rear pressure regulators are easy to adjust, suitable for thin board processing.
The worktable lifting device is reasonable in structure, smooth and light in operation. Unique spindle structure ensures good processing quality. It is equipped with 3‑level feeding speed to meet different processing requirements.

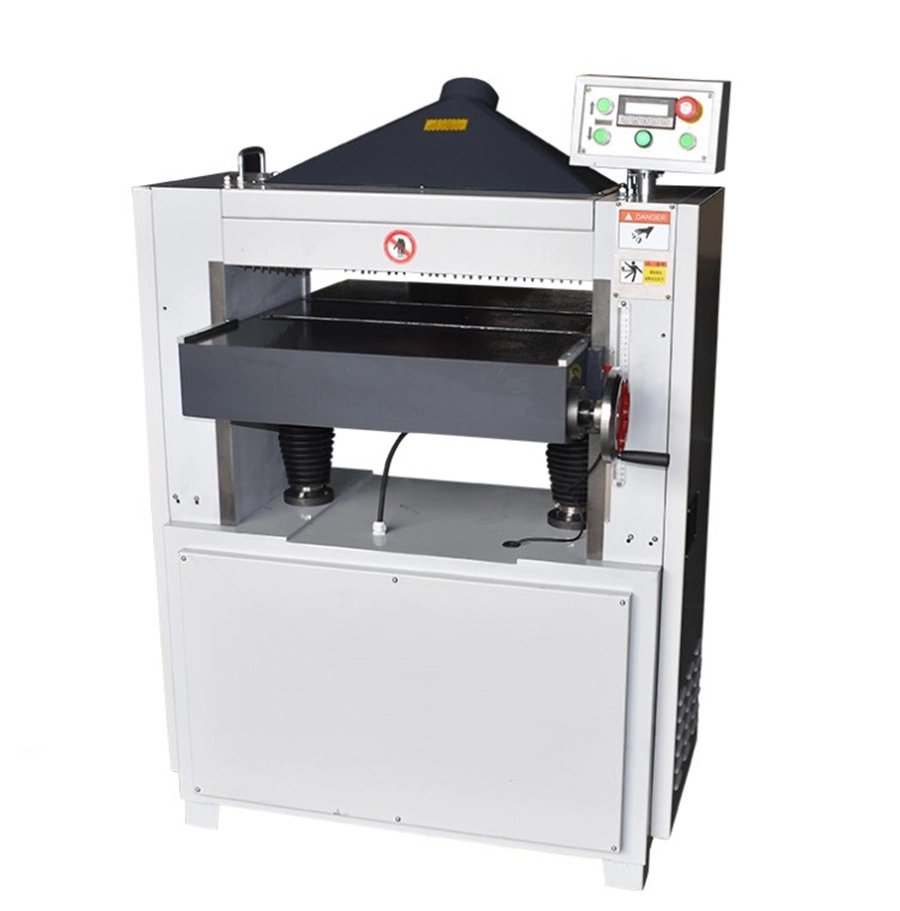

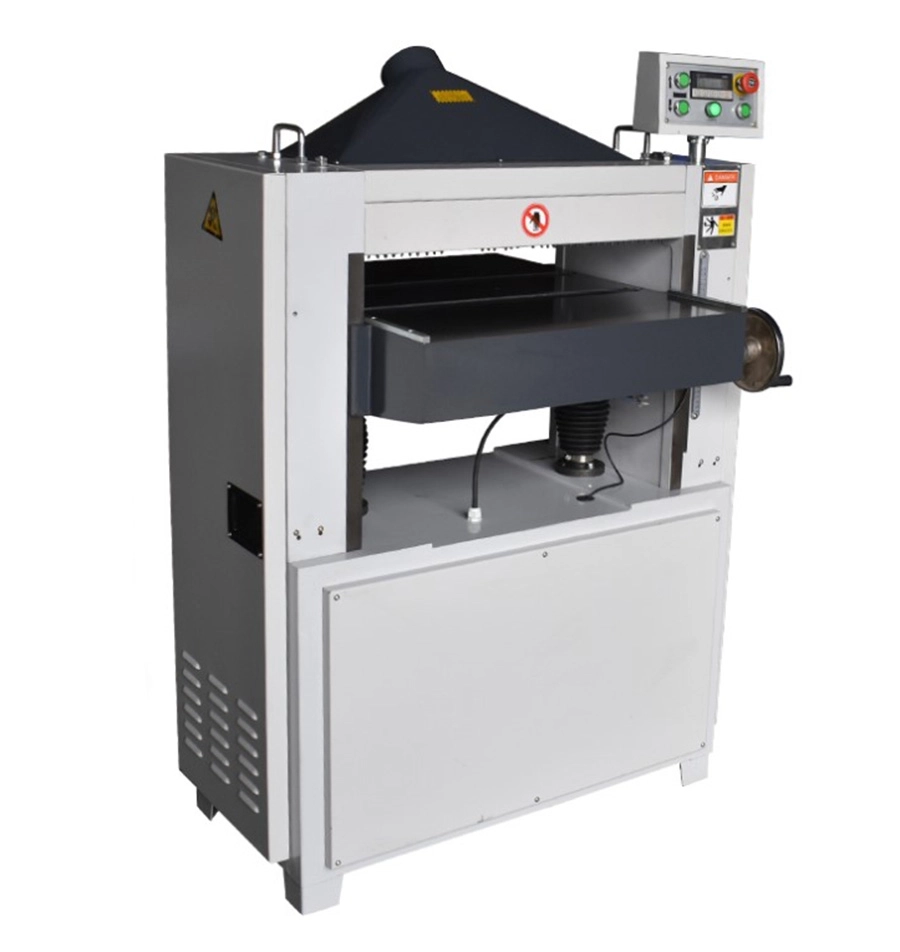

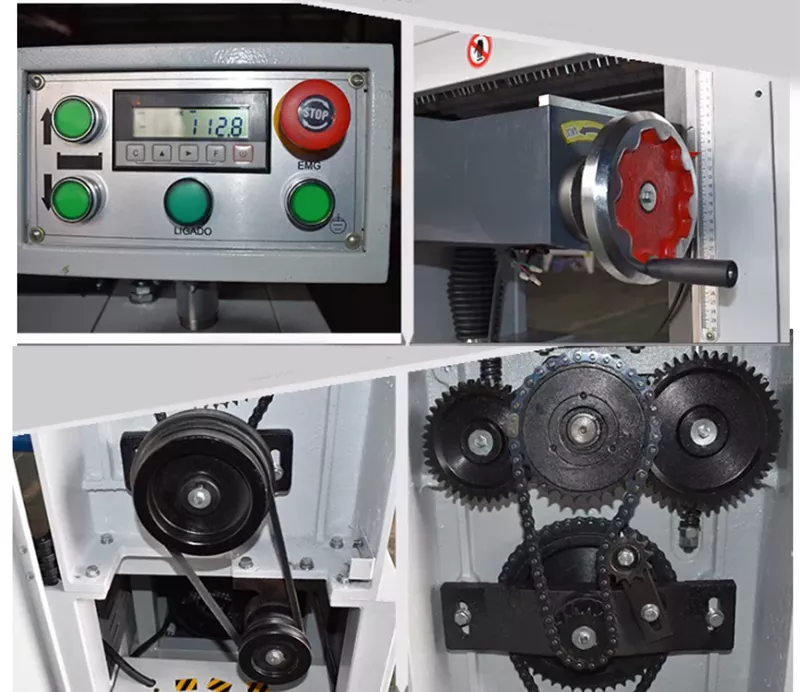

Electric lifting with manual fine‑tuning and digital display for real‑time thickness reading are optional, which greatly improves operation convenience.
Feature

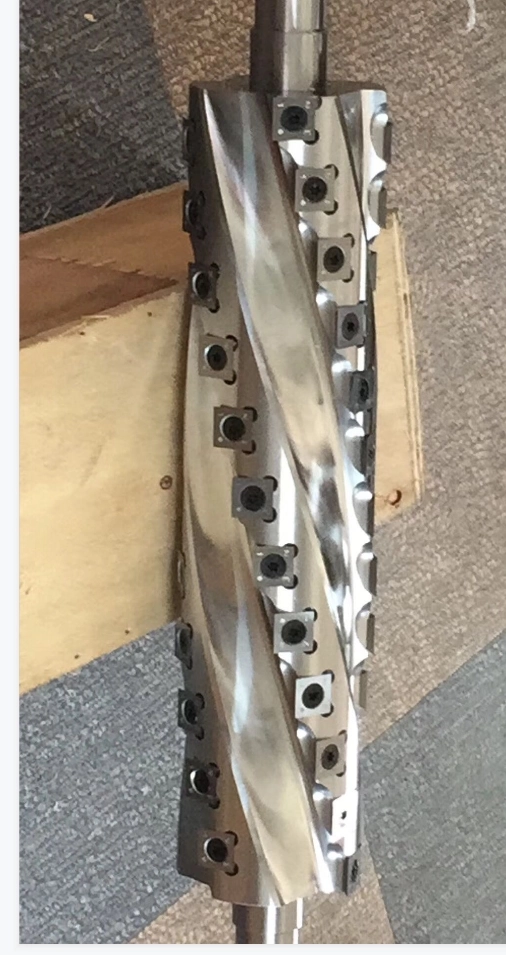

1. Pure copper motor, optional spiral cutter head.
2. The cutter shaft is thickened and 4 blades are configured by default for better planing effect.
3. The upper cover is equipped with a stabilizer to make the wood planer smoother and adopt a fully enclosed structure.

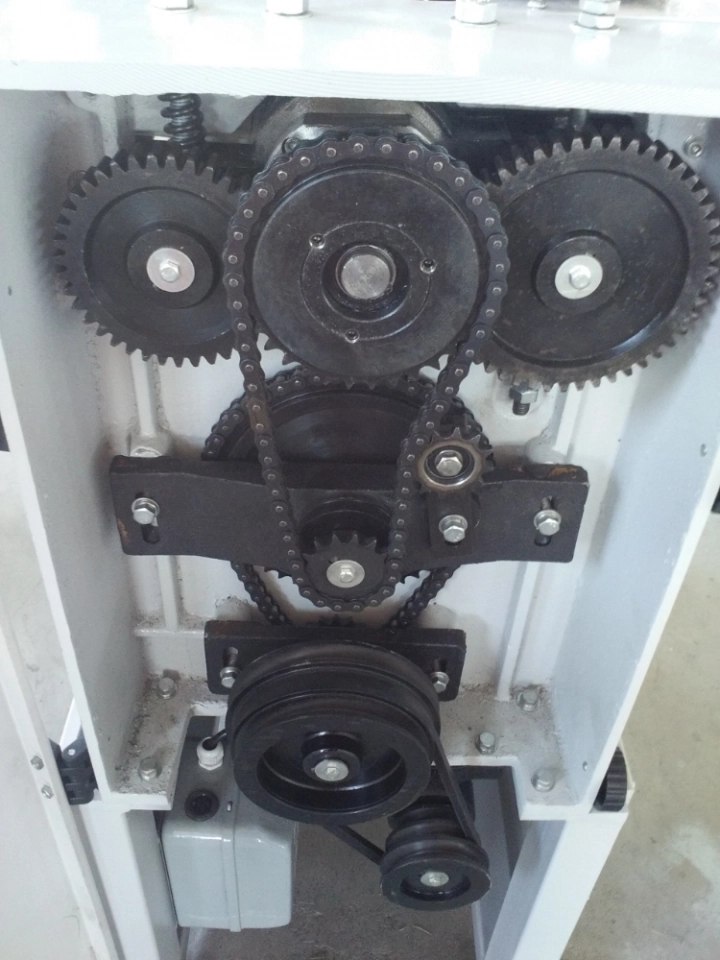

4. The equipment adopts gear transmission, with longer service life, more durable and more accurate
