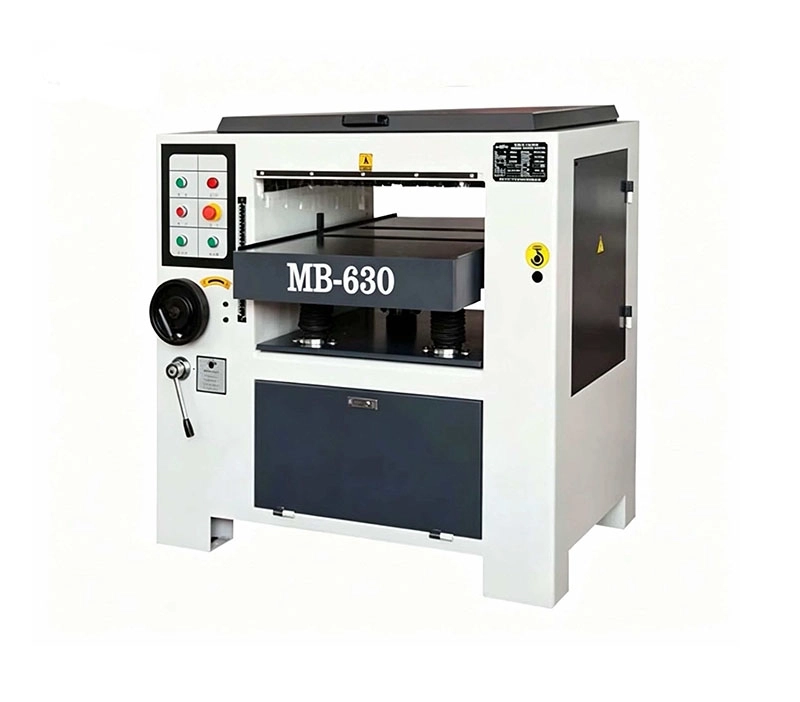

Heavy-Duty Single Side Woodworking Thickness Planer MB403/MB503/MB603/MB803
MB403-MB803 Heavy duty Thickness planer
Chat with us on Whatapp for instant quotes& support
MOQ : 1 set 1 year warranty
(Price varies based on configuration & quantity)
This series of heavy-duty single side woodworking thickness planers features solid steel structure, four-pillar lifting design, and strong stability. Equipped with adjustable feeding speed and high-precision spindle, it ensures smooth planing, low noise, and long service life. Ideal for processing solid wood, boards, panels, and various wood materials with high efficiency and reliable performance.
Technical parameter
| Model : | MB403/MB503/MB603/MB803 |
| Max. Planing Width: | 430mm/530mm/630mm/830mm |
| Max. Planing Thickness: | 270mm |
| Min. Planing Thickness: | 8mm |
| Max. Planing Depth: | 5mm |
| Spindle Speed: | 5600/5200/4900/4500r/min |
| Main Motor Power: | 4.0KW/5.5KW/7.5KW |
| Lifting Motor Power: | 0.75KW |
| Feeding Speed: | 5 / 8 / 12 / 18 m/min |
| Overall Dimensions: | 1000×(1015/1115/1215/1415)×1150mm |

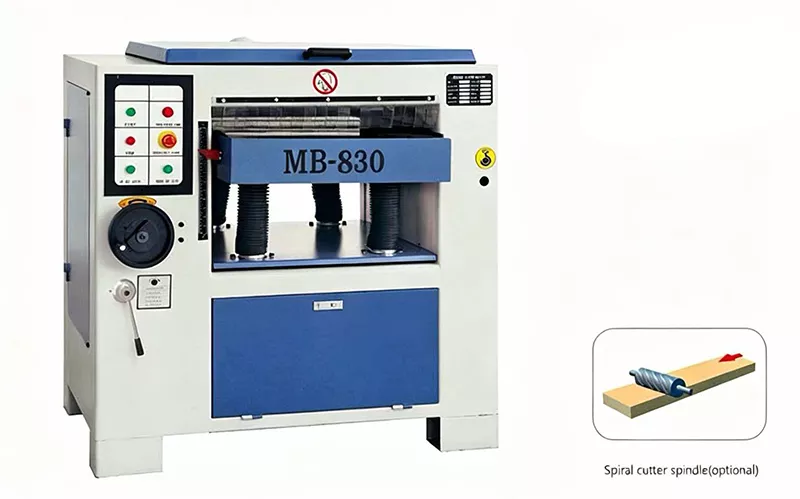

MB430 / MB530 / MB630 / MB830 Heavy‑Duty Single‑Side Woodworking Thicknesser
Product details
Advantages
Four‑Column Motor Lifting

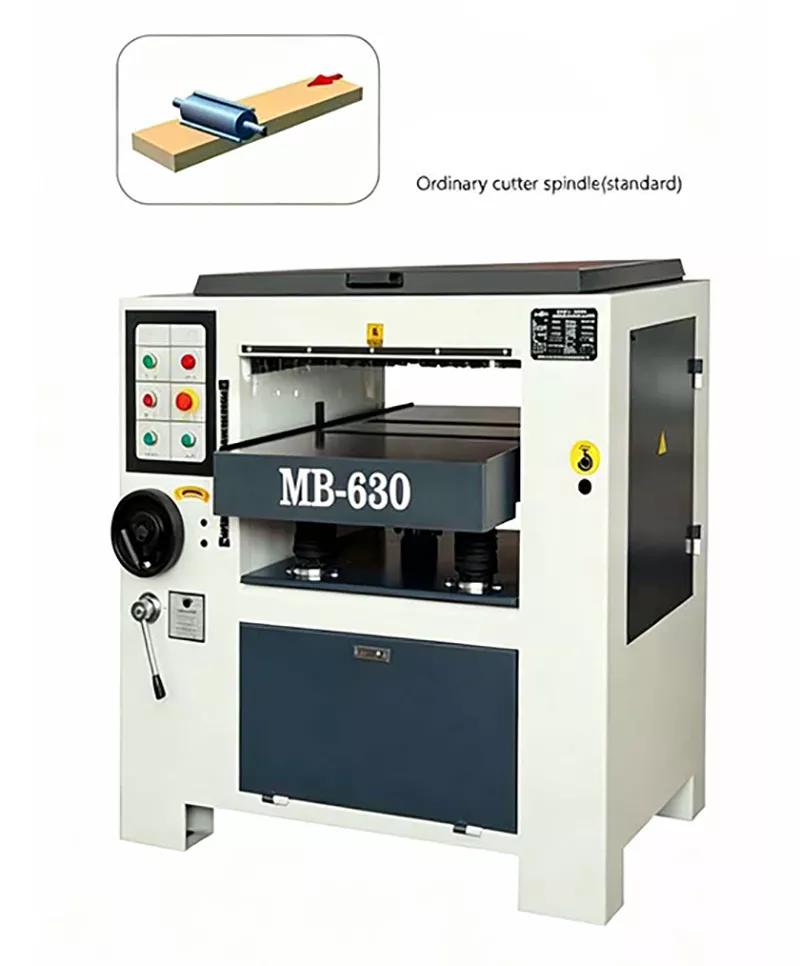

Ordinary Cutter Spindle (Standard Configuration)
Product Feature
1. The machine body adopts heavy‑duty steel with special heat treatment for higher stability and lower noise.
2. Stable high‑speed feeding system (18 m/min) with a 4‑speed gearbox, allowing easy feed‑rate adjustment according to workpiece requirements to improve production efficiency.
3. The worktable undergoes special heat treatment for long‑term durability and no deformation.

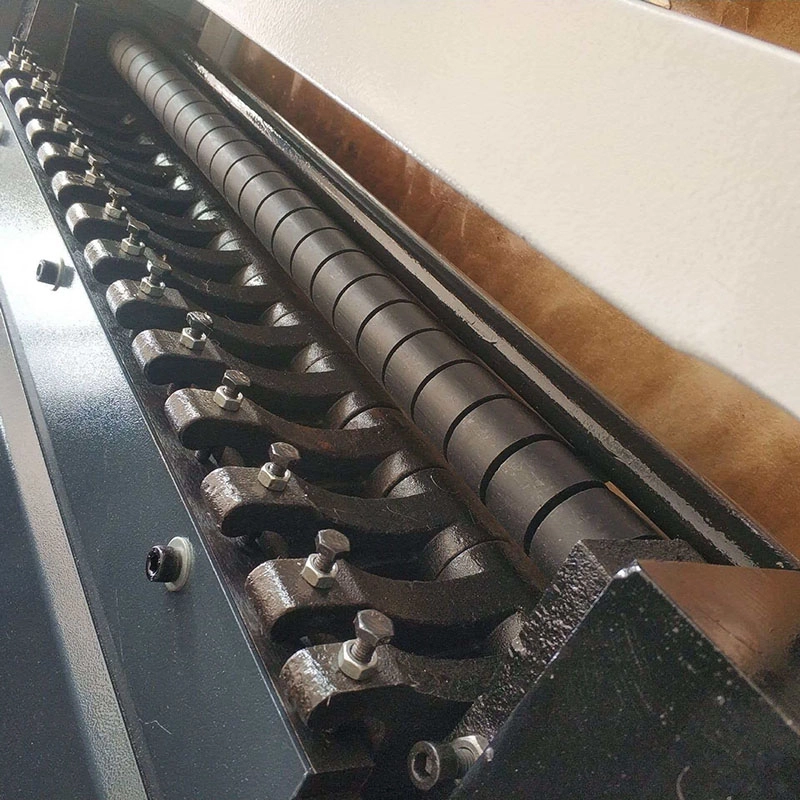

4. Segmented feeding system with helical segmented wheels ensures smoother and more powerful feeding.
5. The heavy‑duty cutter spindle is equipped with SKF high‑speed bearings for stable cutting and further noise reduction.
6. Key components are precision‑processed by CNC centers, ensuring stable and efficient machine operation.
7. Strict assembly standards guarantee all performance indicators meet specifications.
8. Four‑pillar lifting structure for the worktable greatly enhances machine stability.
Please contact us for the exact price and detailed configuration.
We support 1 set trial order, 1 year warranty and quick after-sales service.
