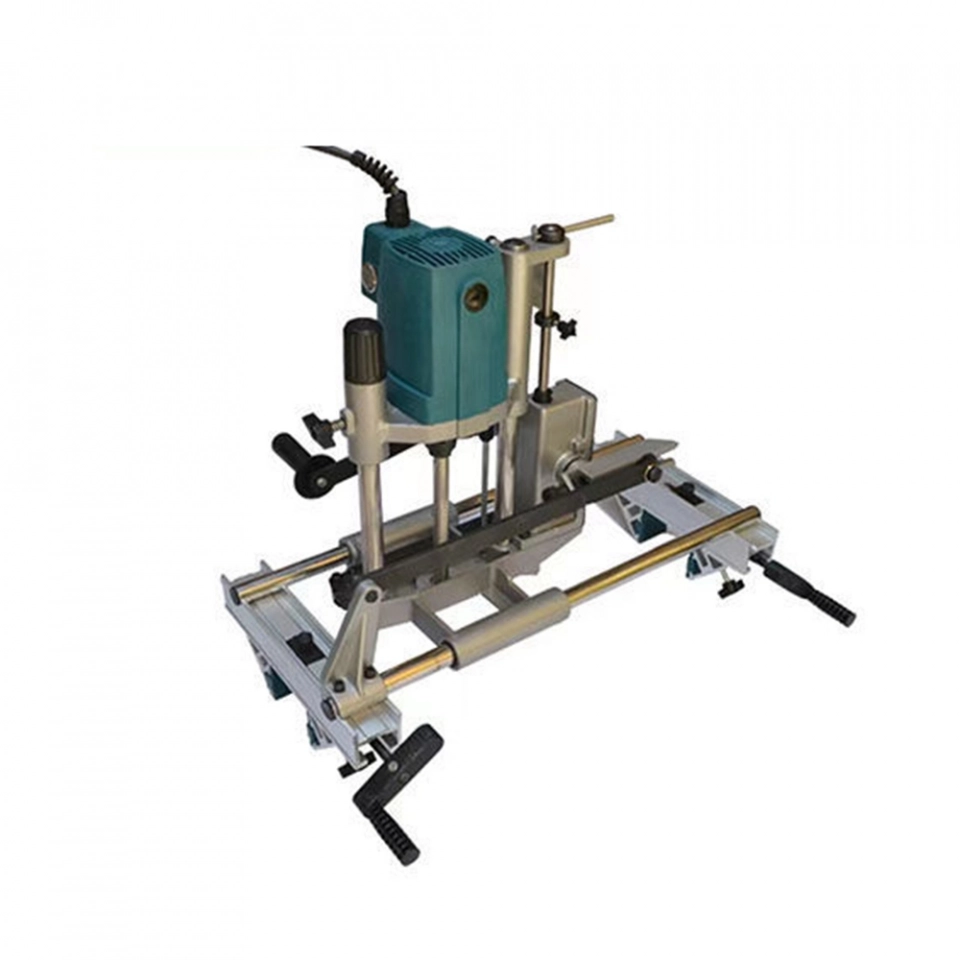

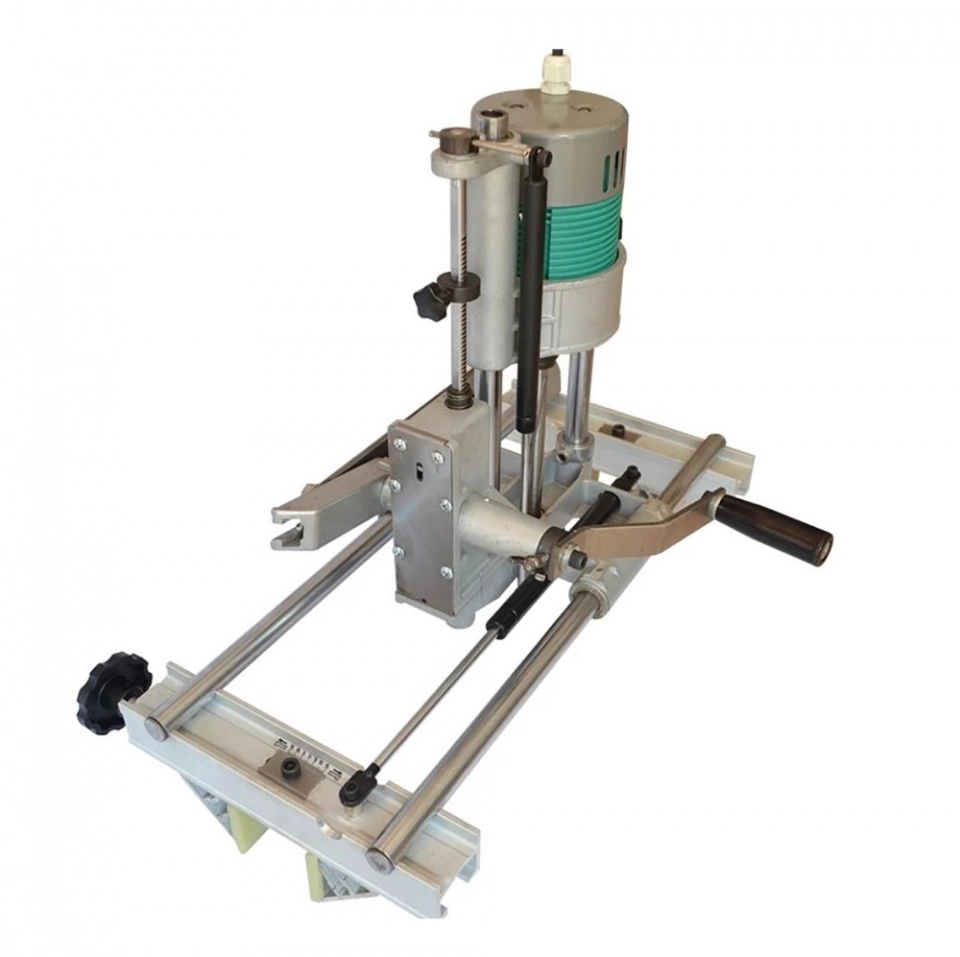

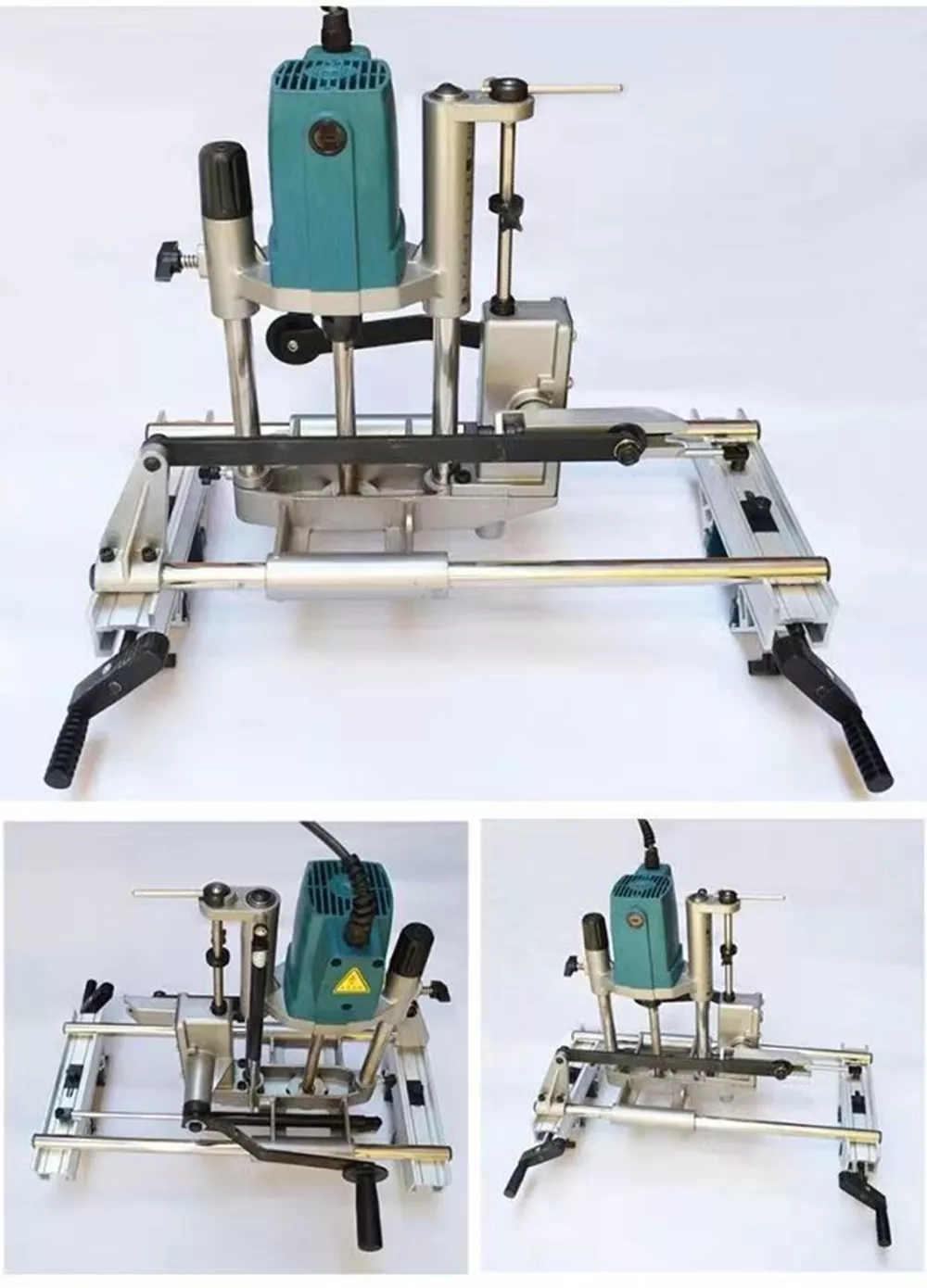

FC16S Handle easy operate Wooden door lock mortise machine
- Quantity
FC16S Handle easy operate Wooden door lock mortise machine
|
Model |
FC16S |
|
Product name |
Wood door mortiser machine |
|
Processing length |
175mm |
|
Processing depth |
130mm |
|
Motor power |
1100W |
|
Clamp Max. Opening size |
190mm |
|
Spindle speed |
23000RPM |
|
Mortiser depth |
0~125mm |
|

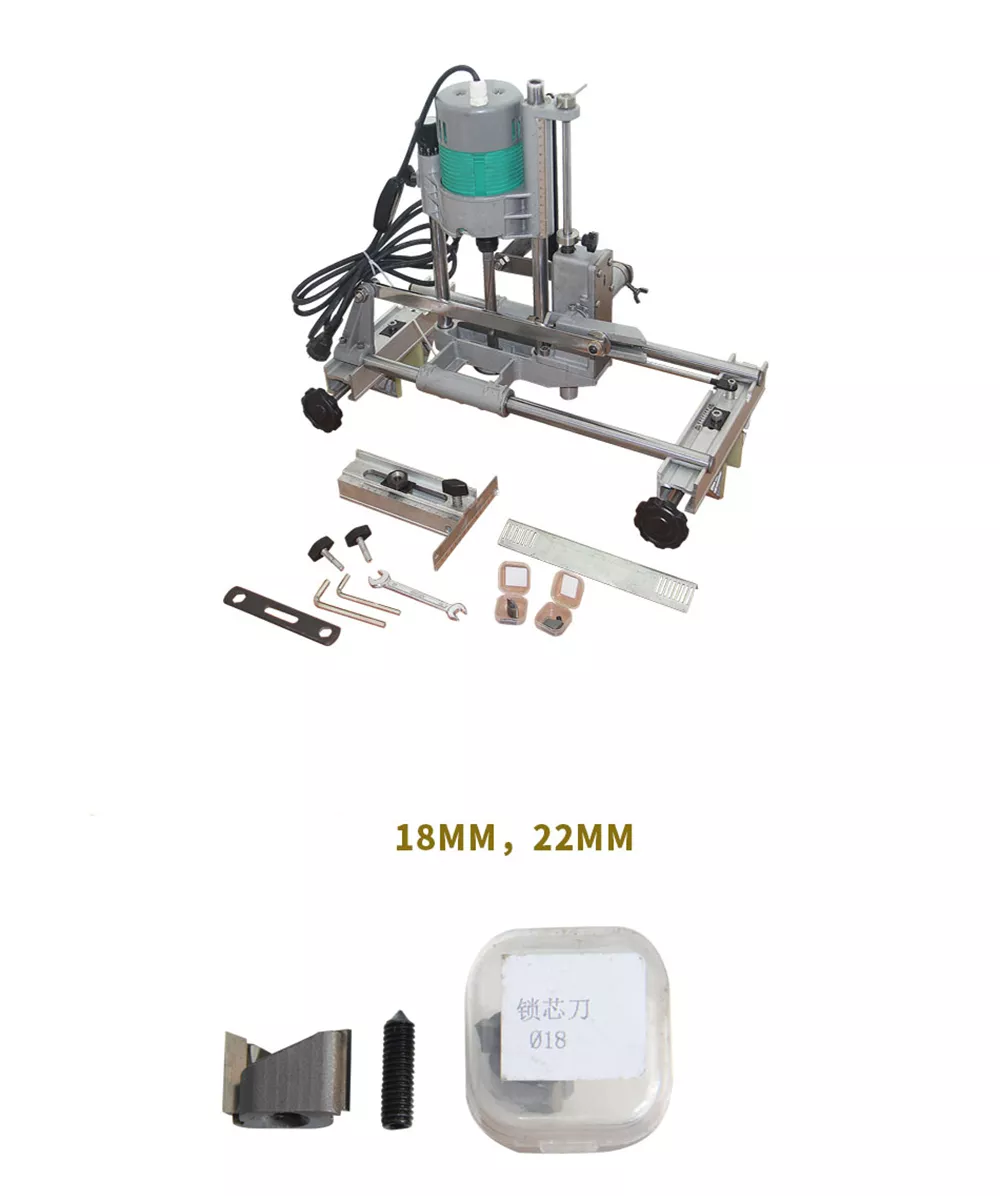

Cutter Blade size |
16、18、20、22、25、28、30、32mm |
|
Dimension |
530*260*440mm (600*350*530mm) |
|
Weight |
11.2kg/16.5kg |
|
Machine body |
Aluminum alloy housing |
FC16S Handle easy operate Wooden door lock mortise machine
Wooden door lock mortise machine FC16S: specially designed for the processing surface of wooden door lock mortise and tongue,

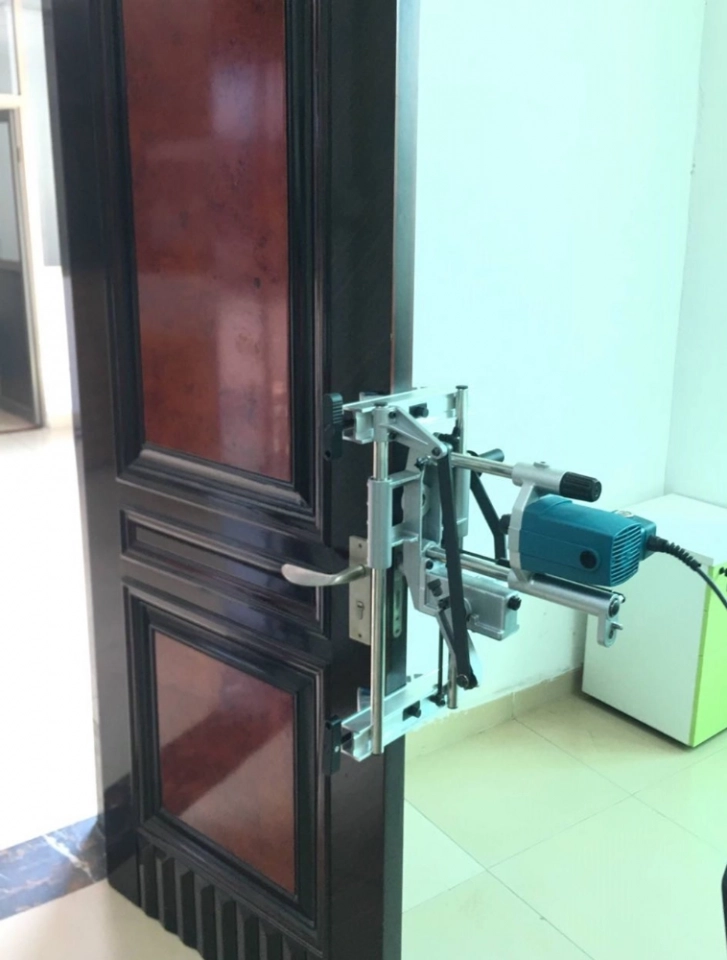

can work horizontally and vertically, suitable for all kinds of door lock installation, can work accurately and quickly,
suitable for different construction sites, convenient, fast, trouble-saving and labor-saving.

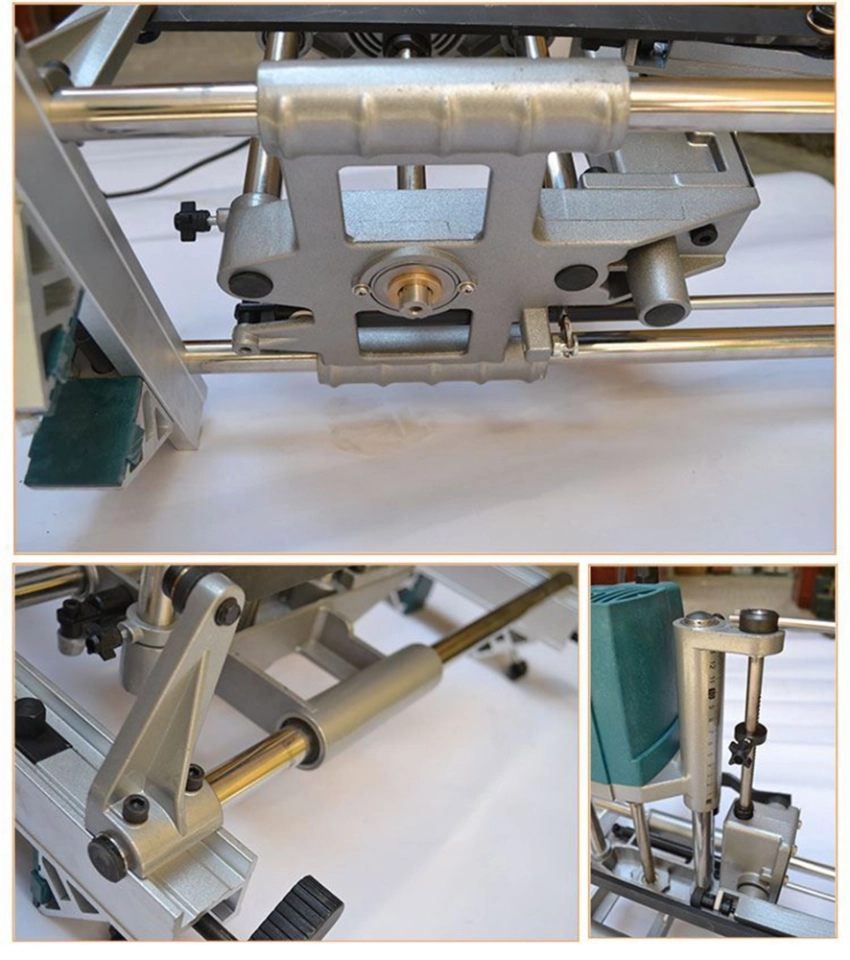

A special fixing system allows the machine to be suspended while drilling the mortise without damaging the workpiece surface.
Ability to work horizontally. Drill bits are available in a variety of different sizes and are easy to replace.
