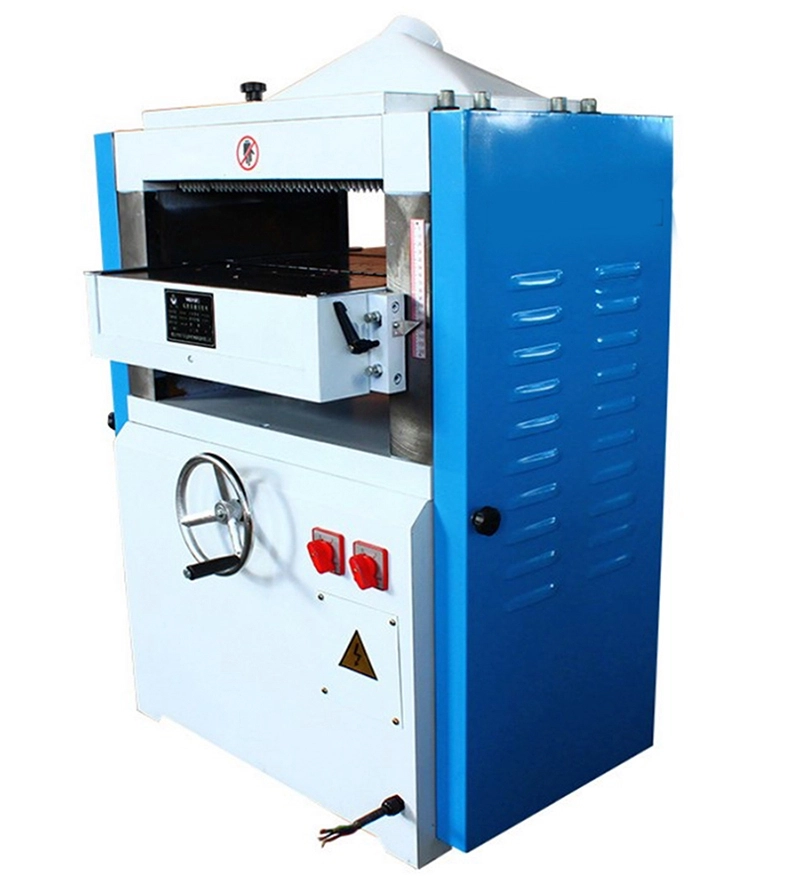

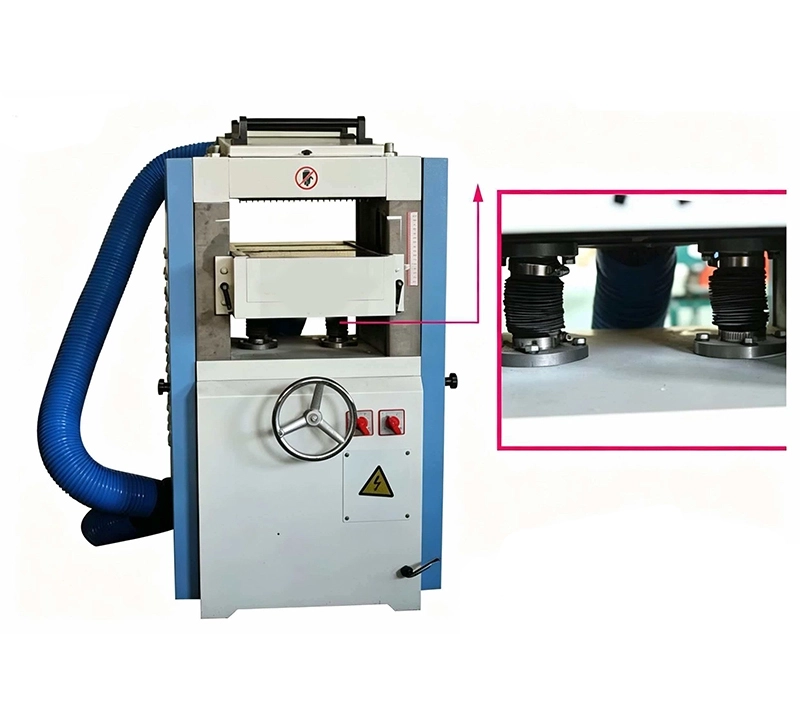

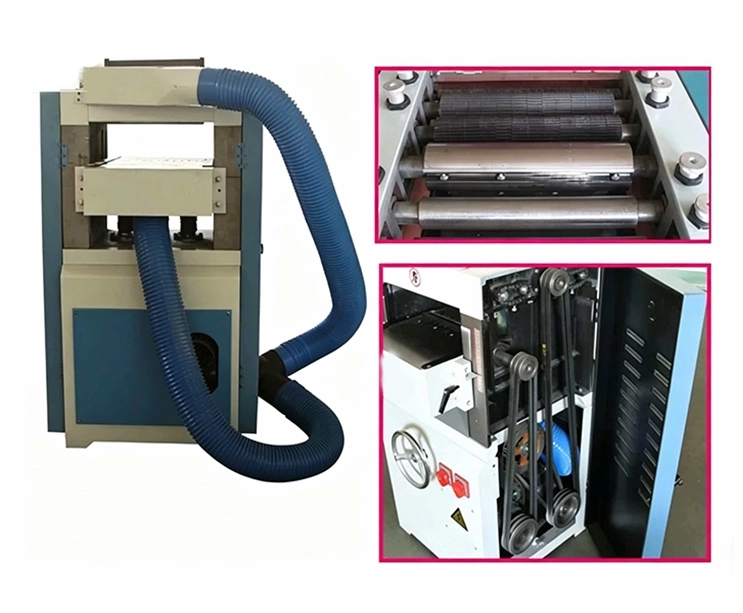

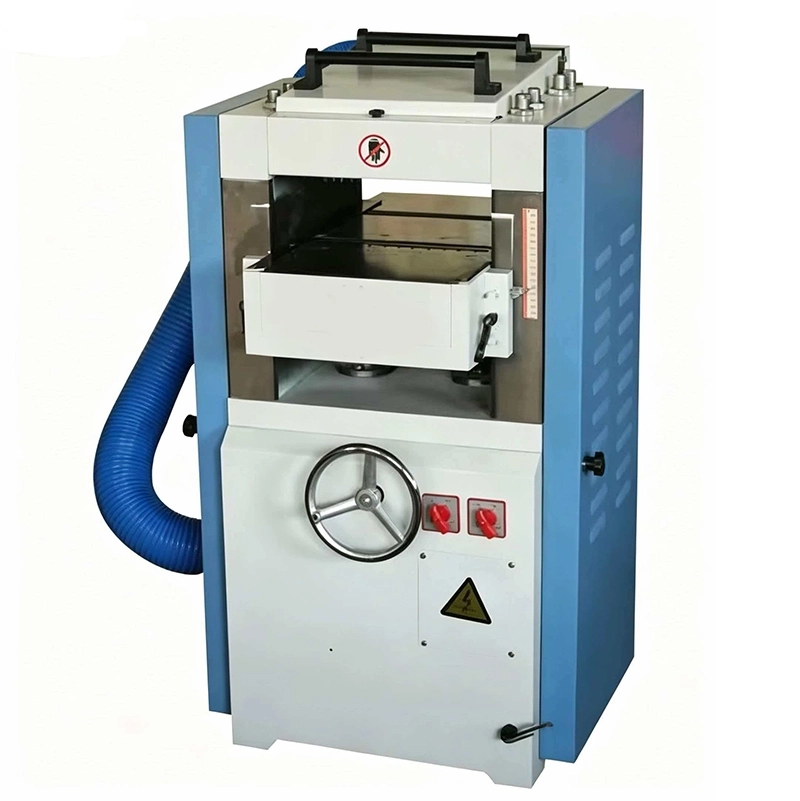

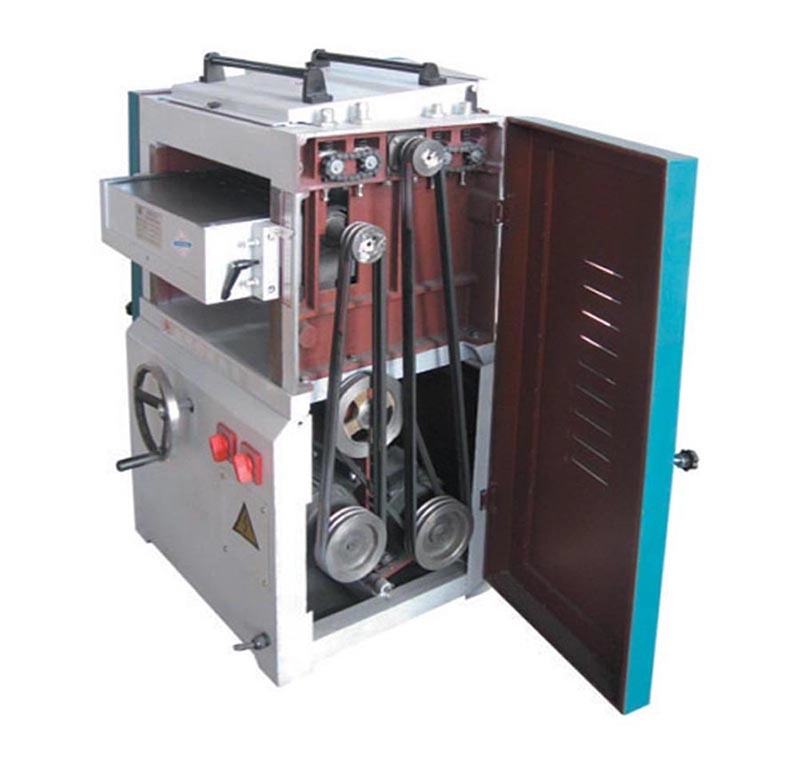

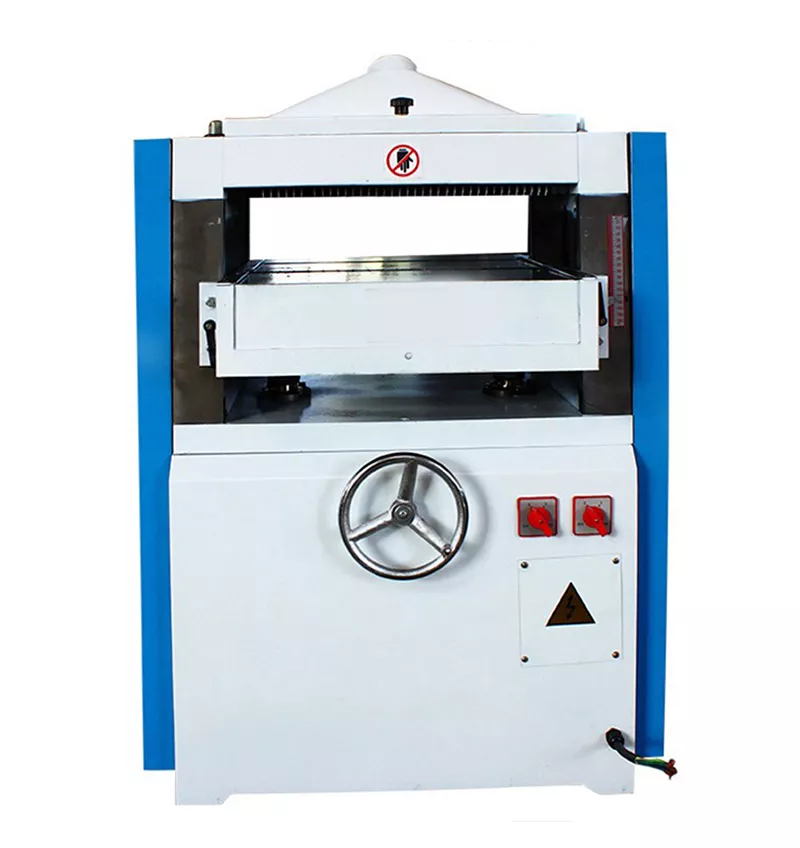

Double Side Wood Thickness Planer MB202B/MB203B/MB204B/MB206B High Speed Light Duty
Chat with us on Whatapp for instant quotes& support
High-efficiency double side wood planer with dual feeding speed, lightweight design, stable performance, ideal for small woodworking workshops worldwide.
Technical Parameters
Spindle Speed: 8000r/min
Feeding Speed: 7.5/9.2m/min
Max Cutting Depth: 4/2mm

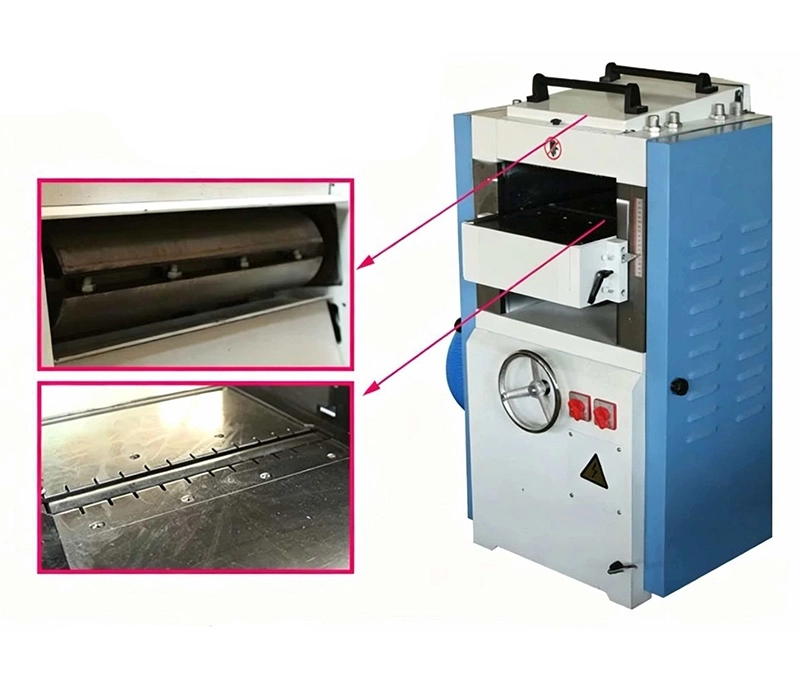

Blade Quantity: 3pcs Upper + 3pcs Lower
Single Motor Models
MB202B: Max Width 200mm, Motor 3kW/380V, Weight 250kg
MB203B: Max Width 300mm, Motor 4kW/380V, Weight 280kg
MB204B: Max Width 400mm, Motor 5.5kW/380V, Weight 310kg
Dual Motor Models
MB203B: Max Width 300mm, Motor 2.2kW×2/380V, Weight 280kg
MB204B: Max Width 400mm, Motor 3kW×2/380V, Weight 310kg
MB206B: Max Width 600mm, Motor 4kW×2/380V, Weight 550kg
we can also provide MB208B 800mm type

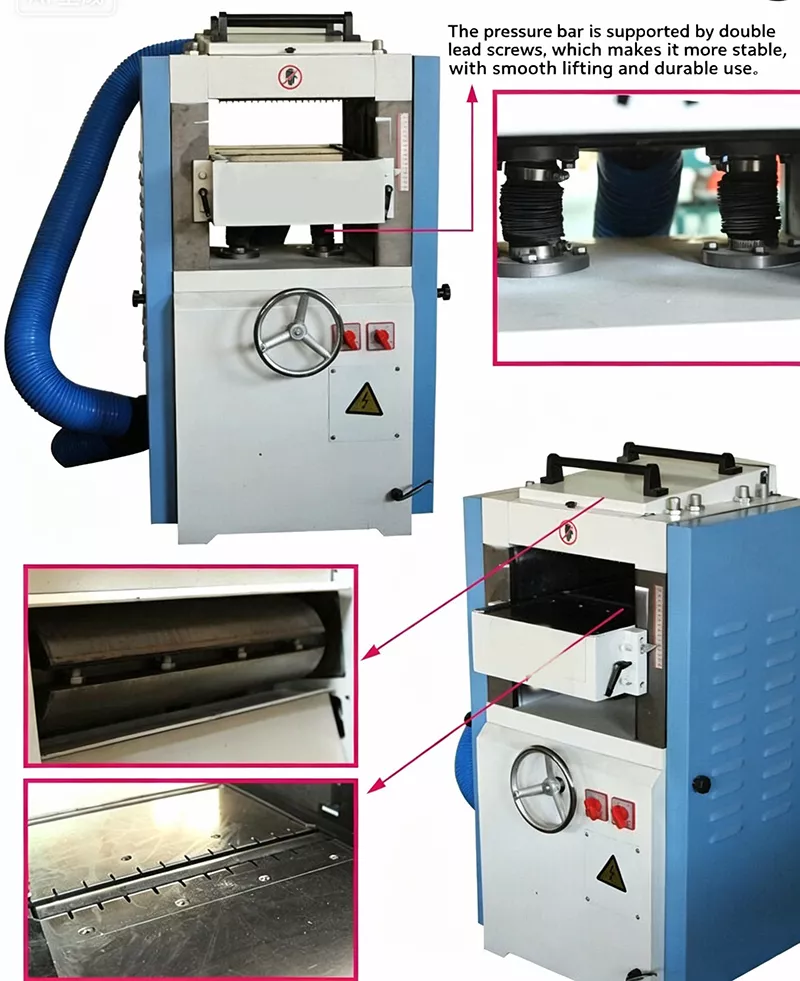

High speed double side thickness planer, features sturdy structure, smooth feeding, no sniping or tailing. Equipped with upper and bottom 3 blades, ensures smooth planing surface. Compact size, easy installation and low maintenance, perfect for furniture making and wood processing.
