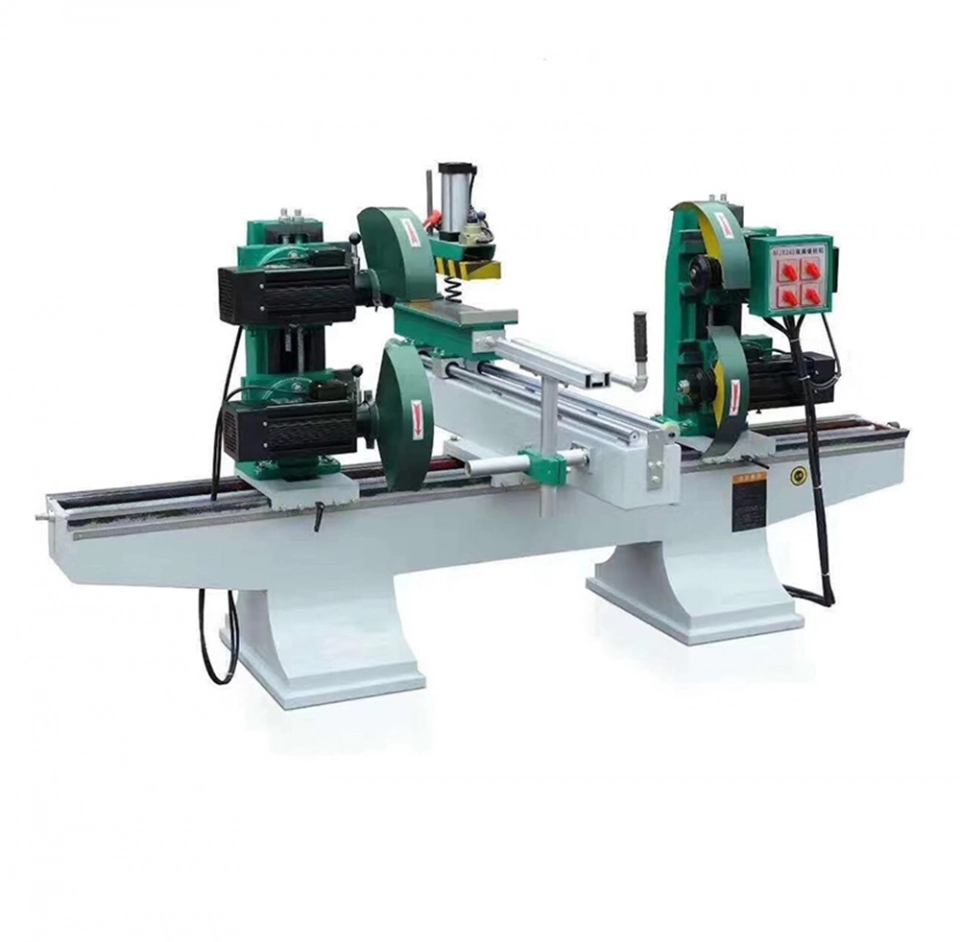

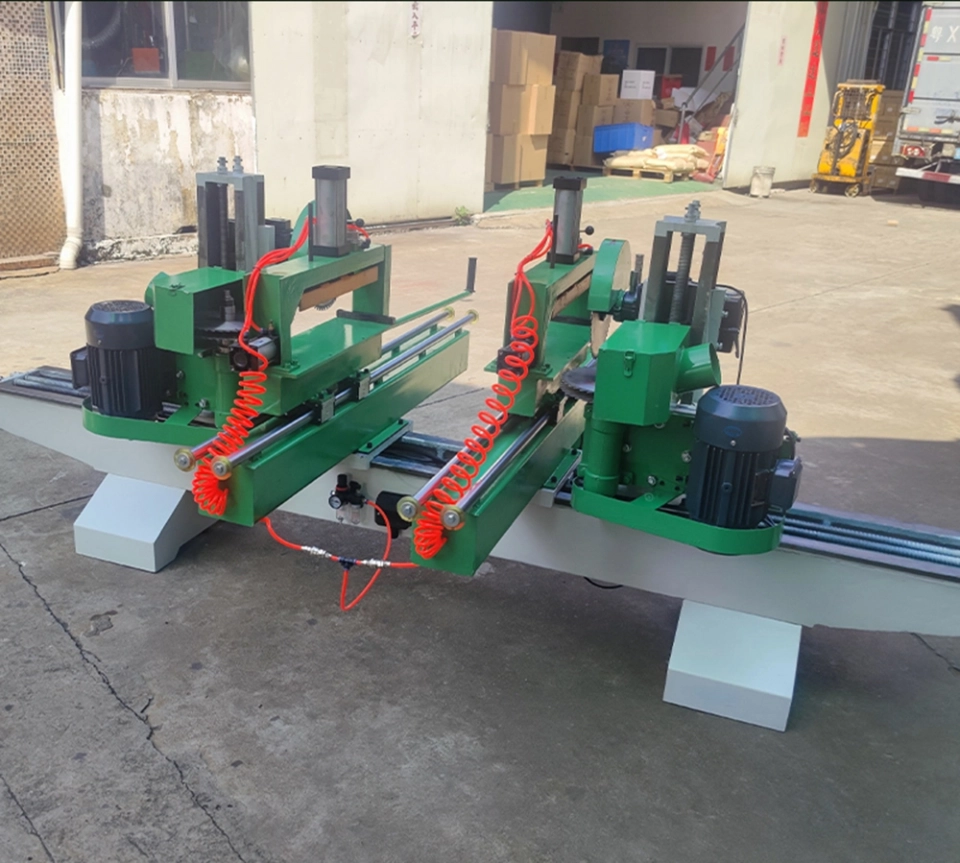

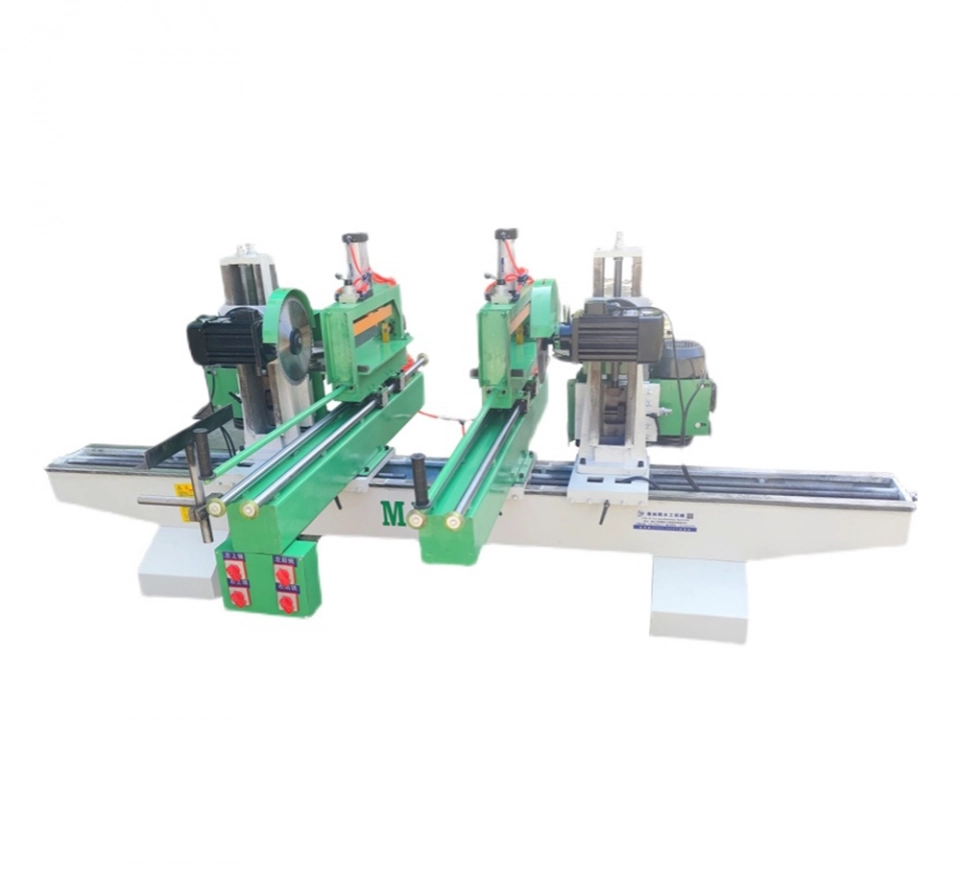

Double End Tenoner and mortiser Double-end cutting milling trimming saw machine
- Quantity
|
Model |

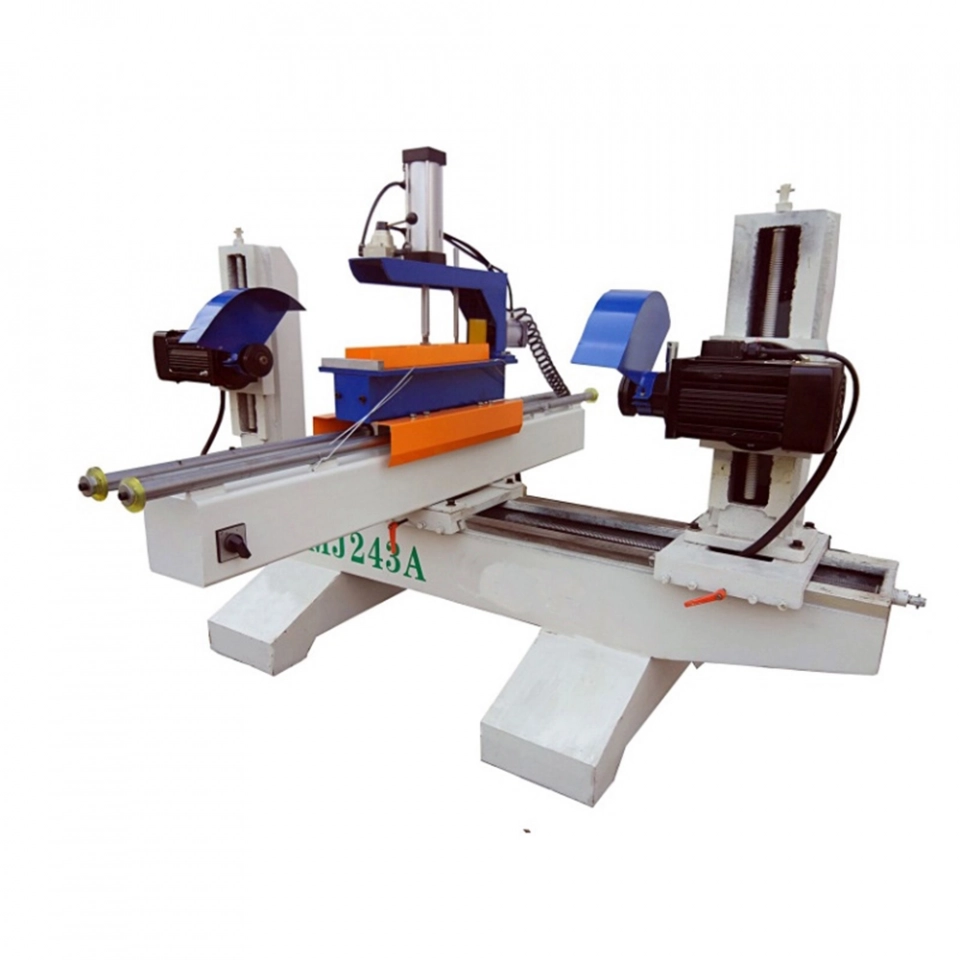

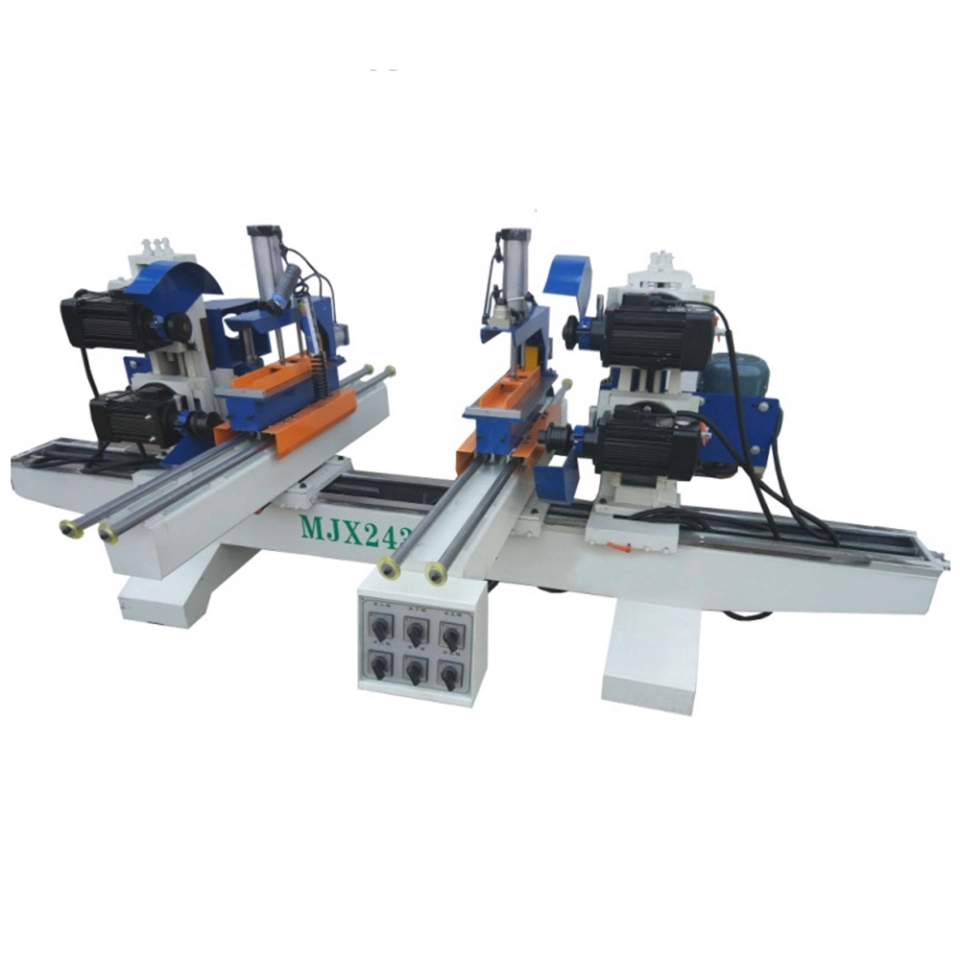

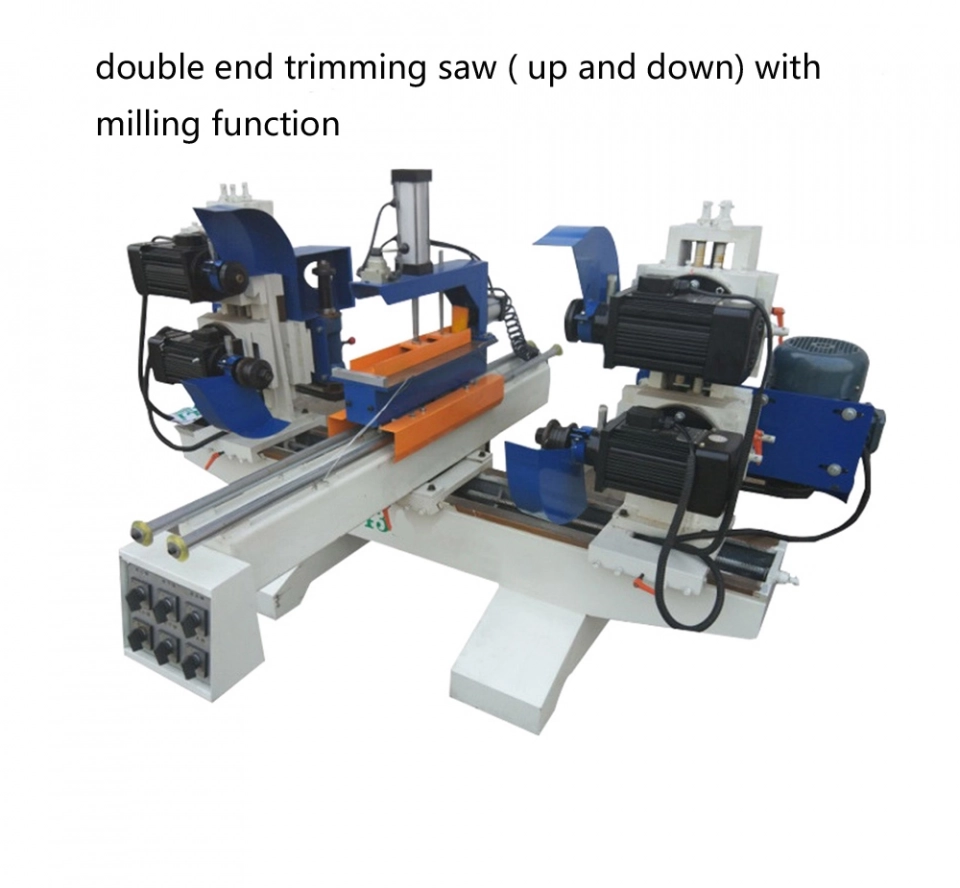

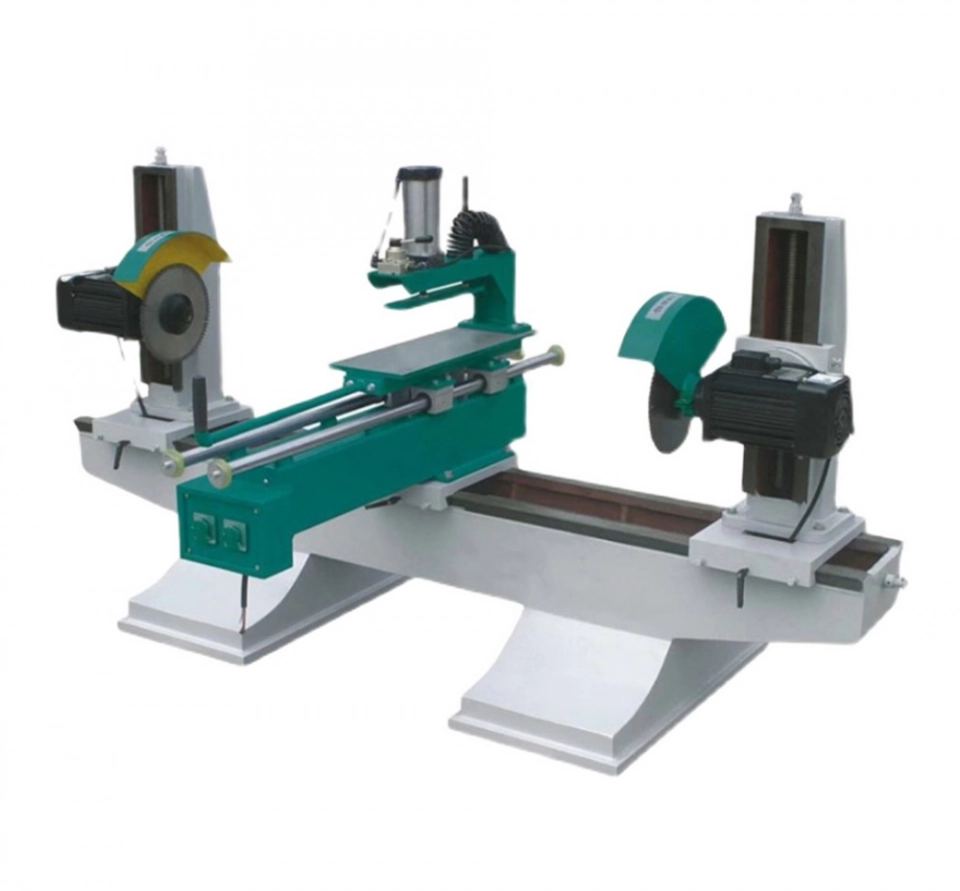

MJX234A Double-end adjustable trimming saw(angle adjustable) MJX234B Double-end end trimming saw upper and lower saw with vertical shaft milling saw (angle adjustable) MJX234C Double-end end trimming saw upper and lower saw with vertical shaft milling saw (double guide ) |
||
|
Processing width |
450mm |
450mm |
450mm |
|
Processing length |
300~1200mm /1600mm/2400mm |
300~1200m /1600mm/2400mm |
700~1200mm /1600mm/2400mm |
|
tenoner depth |
60mm |
60mm |
60mm |
|
Motor power |
4kw(2.2kw *2) |
12.8kw(4KW+2.2kw*4 ) |
16.8kw(4kw*2+2.2kw *4) |
|
Beam length |
2000mm |
2000mm |
3200mm |
|
Circular saw size |
305*25.4/30mm |
305*25.4/30mm |
305*25.4/30mm |
|
Processing thickness |
100mm |
100mm |
100mm |
|
Spindle speed |
2840RPM |
2840RPM |
2840RPM |
|
Saw blade tilting angle |
45degree |
45degree |
45degree |
|
Dimension |
2500*1700*1300mm |
2500*1700*1300mm |
3500*1700*1300mm |
|
Weight |
390kg |
390kg |
500kg |
