C300/ C400 Combination Universal 5 Multi-function Woodworking Machine
- Quantity
C300/ C400 Combination Universal 5 Multi-function Woodworking Machine
|
Planer |
C300 |
C400 |
|
Working Table |
300*1500 mm |
400*1800 mm |
|
Cutter block diameter |
70 mm |
70 mm |
|
Cutter block rotation speed |
5700 r. p. m |
5700 r. p. m |
|
Dimension knives(3 knives) |
300*20*3 mm |
400*25*3 mm |
|
Max table adjustment |
4 mm |
4 mm |
|
Thickness |
C300 |
C400 |
|
Working Table |
300*660 mm |
400*760 mm |
|
Feeding Speed |
7 m/1’ |
7 m/1’ |
|
Working Height |
4-220 mm |
4-220 mm |
|
Cutter block Rotation Speed |
5700 r. p. m |
5700 r. p. m |
|
Max. Cutting Depth |
4mm |
4mm |
|
Mortiser |
C300 |
C400 |
|
Working Table |
250*500 mm |
250*500 mm |
|
Longitudinal /Trasversal /Vertical Stroke |
205/95/90 mm |
205/95/90 mm |
|
Churck ( M18*1.5-S) |
0-16 mm |
0-16 mm |
|
Churck Rotation speed |
5700 r. p. m |
5700 r. p. m |
|
Circular saw |
C300 |
C400 |
|
Working table |
220x1000 mm |
326x1112 mm |
|
Shaft rotation speed |
4500 r. p. m |
4500 r. p. m |
|
Blade diameter |
250 mm |
300 mm |
|
Blade bora diameter |
30 mm |
30 mm |
|
Cutting height 90° |
80 mm |
100 mm |
|
Max. distance between blade and fence |
500 mm |
730 mm |
|
Blade inclination |
45° |
45° |
|
Max cutting height 45° |
50 mm |
50 mm |
|
Shaft rotation speed engraver |
7000 r. p. m |
7000 r. p. m |
|
Engraver blade diameter |
90 mm |
90 mm |
|
Engraver blade bora diameter |
22 mm |
22 mm |
|

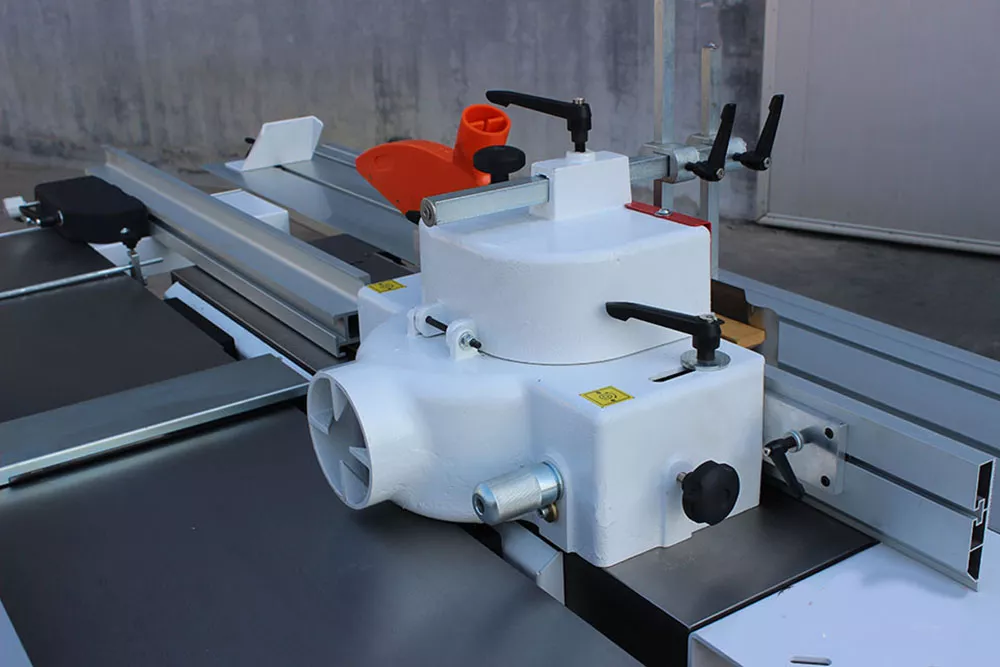

Shaper |
C300 |
C400 |
|
Working tables |
220x1000 mm |
326x1112 mm |
|
Shaft rotation speeds |
2000/3100/4400/7000 r. p. m |
2000/3100/4400/7000 r. p. m |
|
Standard shaft diameter |
30 mm |
30 mm |
|
Spindle lenght |
105 mm |
105 mm |
|
Shaft vertical stroke |
115 mm |
115 mm |
|
Max. tool diameter |
160 mm |
180 mm |
|
Max. tenoning depth |
55 mm |
65 mm |
|
|
C300 |
C400 |
|
3-phase motor |
3.0 HP/2.2 KW |
4 HP/3KW |
|
Weight |
550 kgs |
650 kgs |

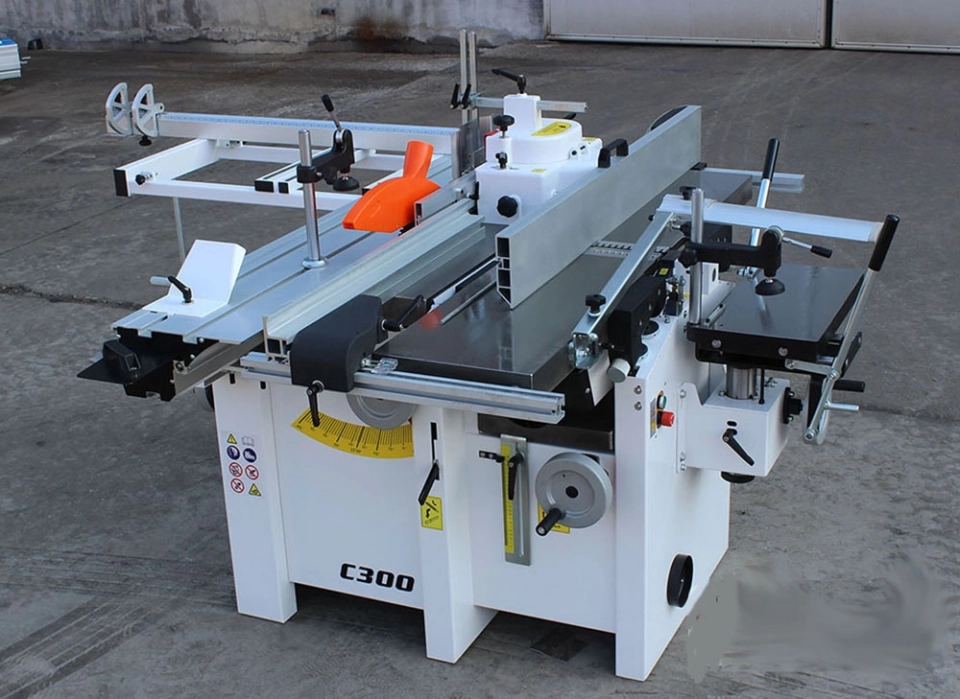

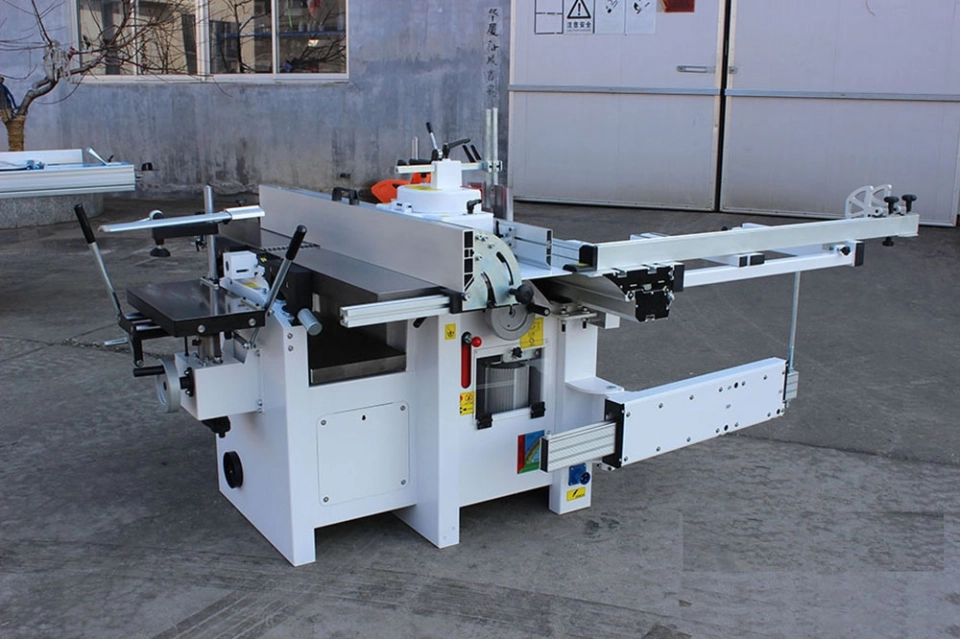

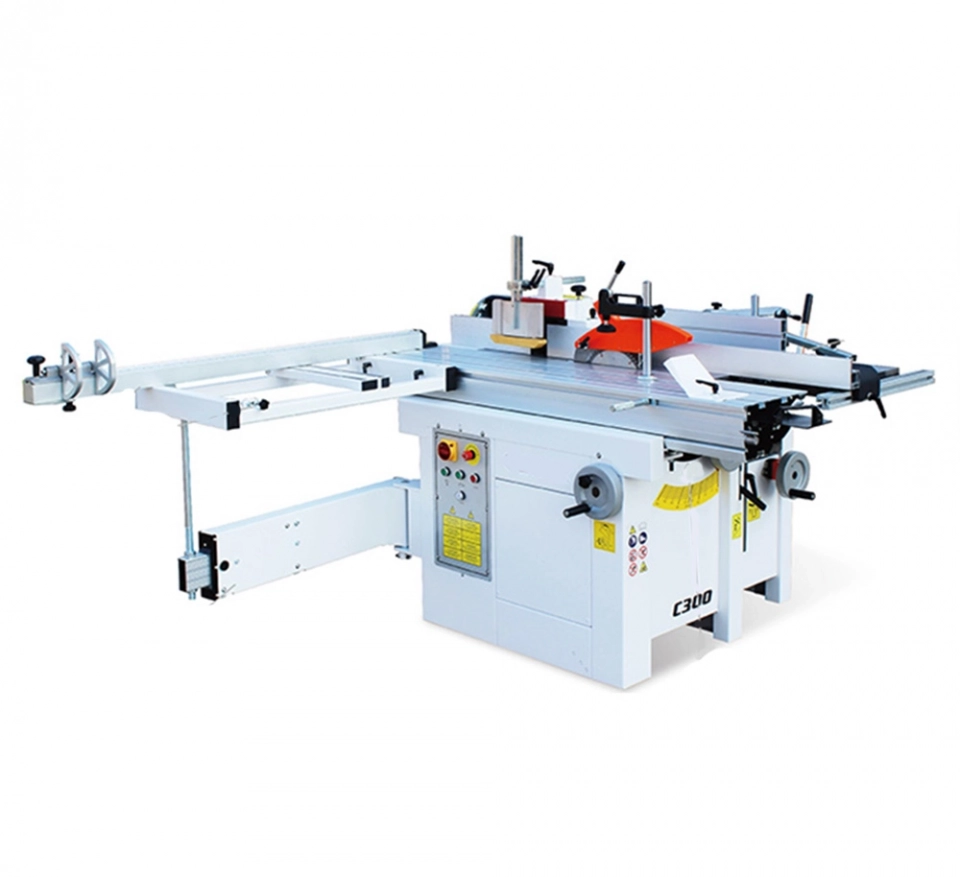

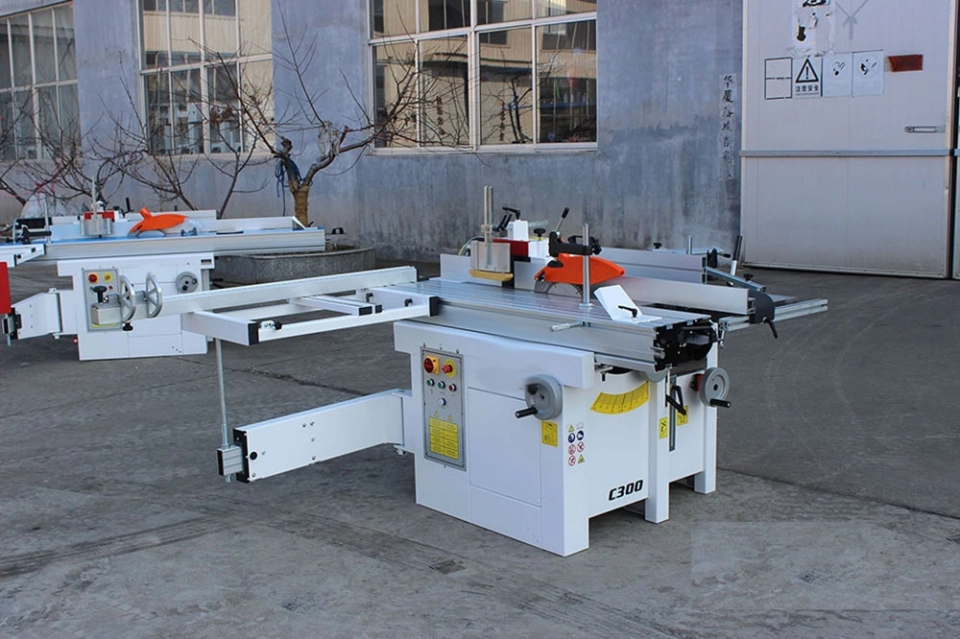

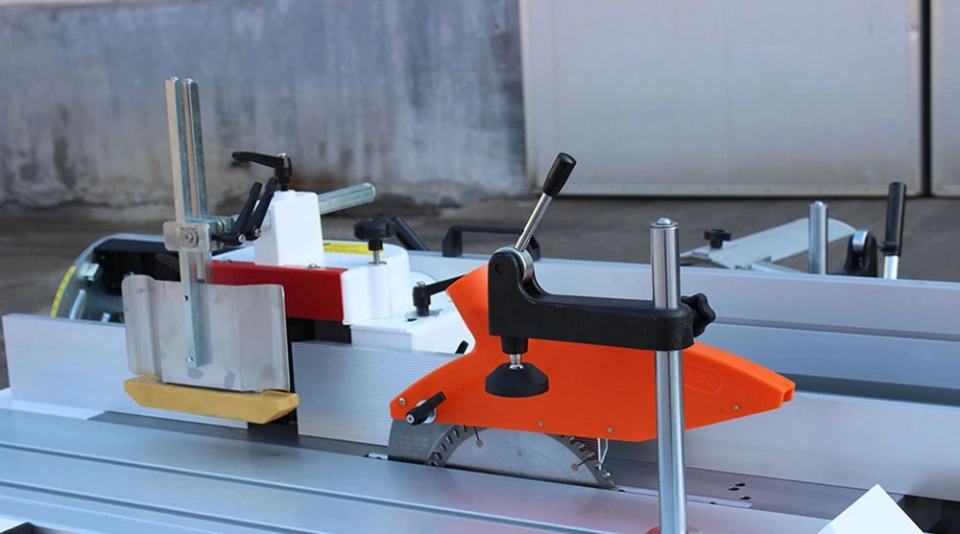

C300/ C400 Combination Universal 5 Multi-function Woodworking Machine
Combined 5 operations
Planer - Thicknesser - Mortiser - Sliding table saw - Spindle moulder

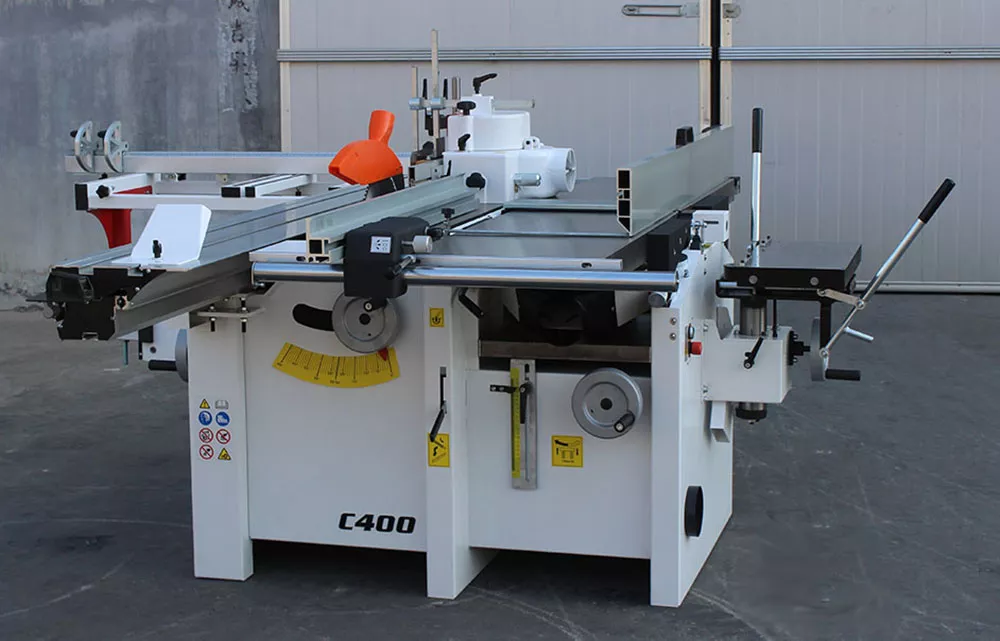

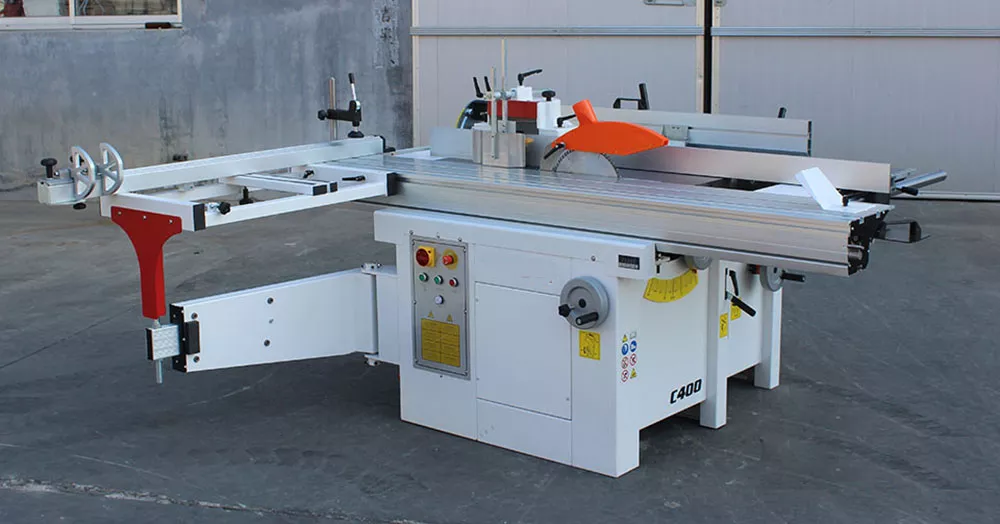

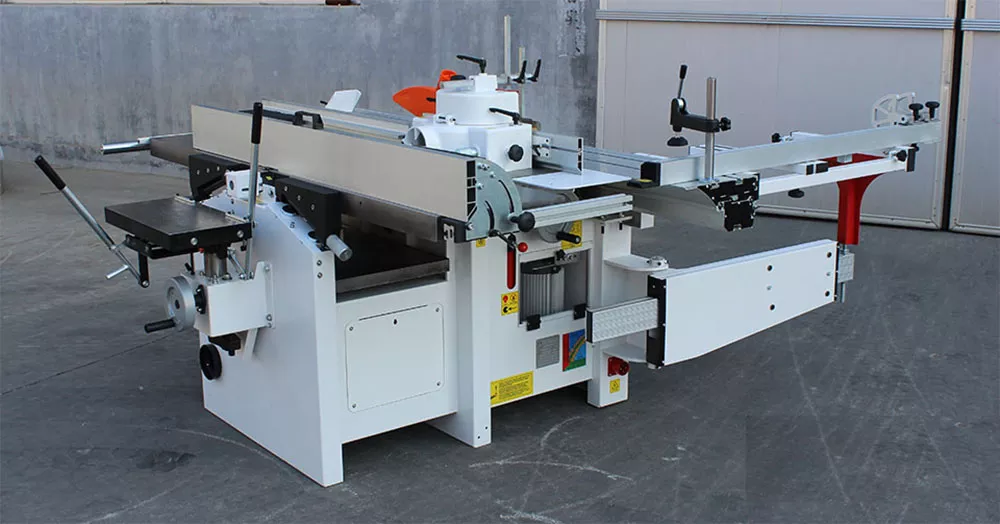

The C400 Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory and small professional workshop.
This industrially rated machine features a table saw and sliding table, planer, thicknesser and spindle moulder unit.
The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own.
