butt welder welding machine for band saw blade/Flash Seal-welding Machine
- Quantity
|
Technical Parameter |
UN50 |
UN100 |
UN125 |
UN150 |
|
Welding Saw Blade Width (MM) |
12-65 |
30-125 |
50-150 |
75~200 |
|
Welding Saw Blade Thickness (MM) |
0.5-1.15 |
0.7-1.25 0.7-1.25 |
||
|
Voltage |
380V 50 HZ |
|||
|
Machine Weight (KG) |
110 |
240 |
308 |
|
|
Machine Size(MM) |
650*350*800 |
850*500*1050 |
850*450*1180 |
|
butt welder welding machine for band saw blade/Flash Seal-welding Machine

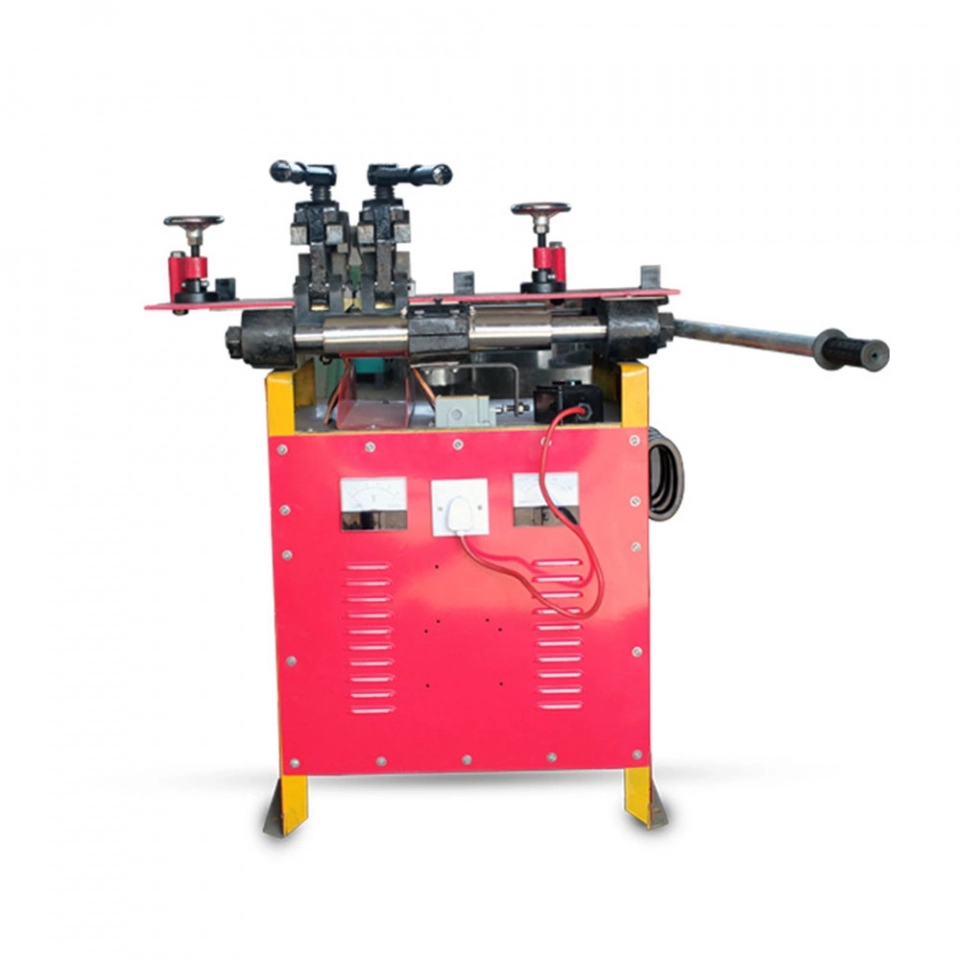

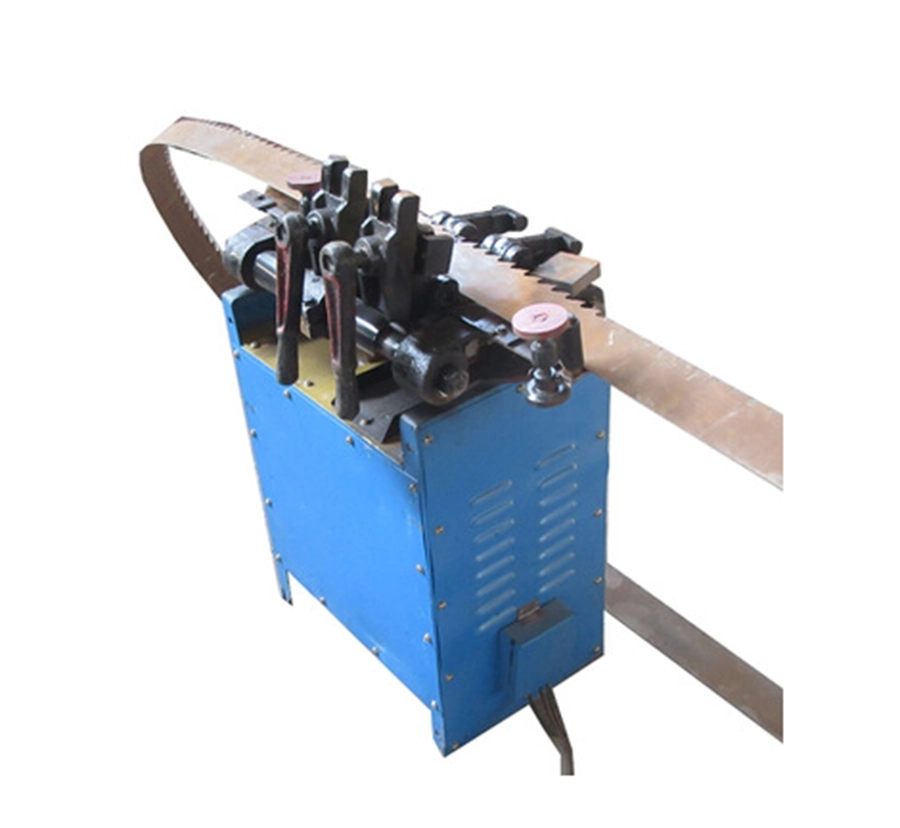

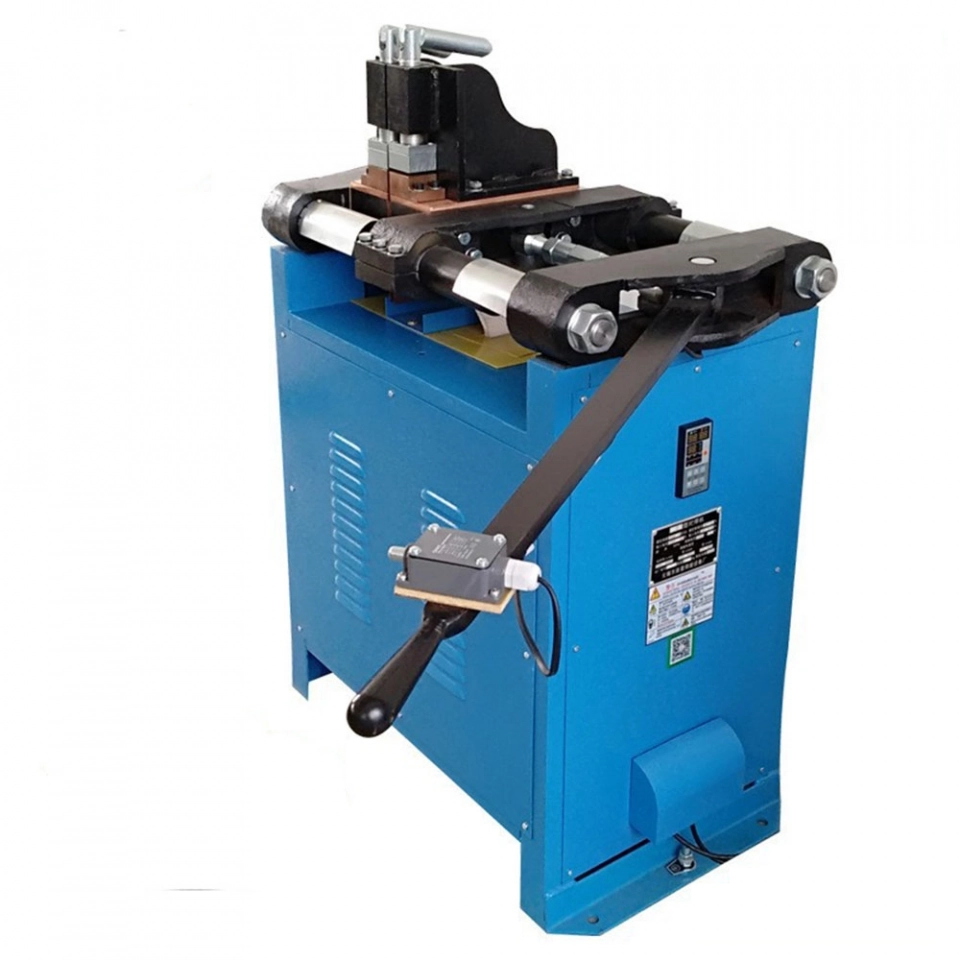

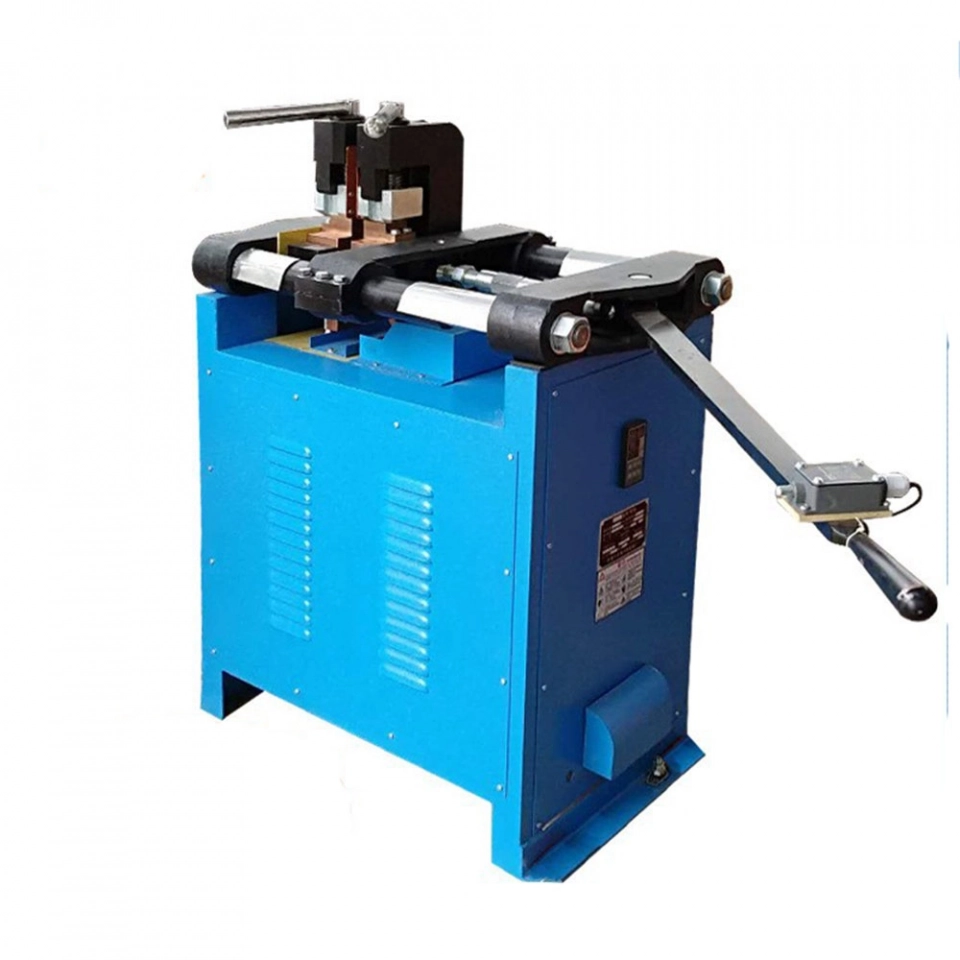

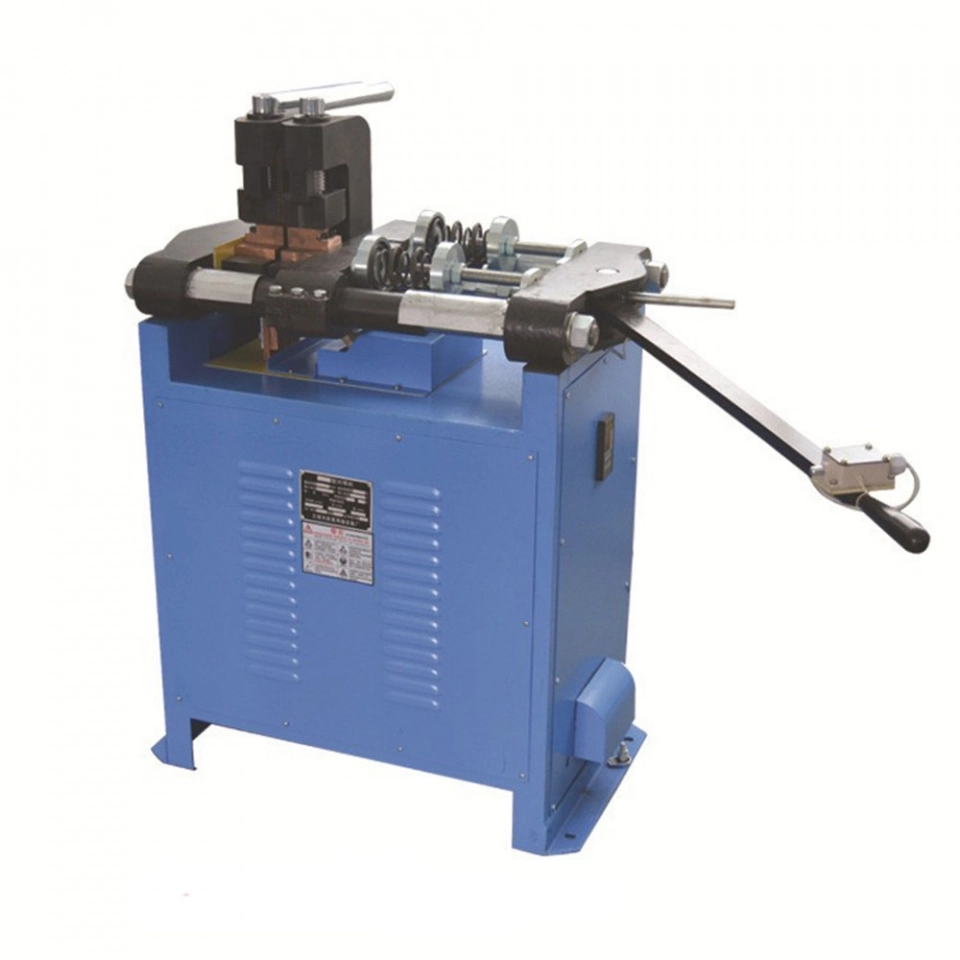

This welder is a special lever pressure type saw blade purpose welding machine,and during welding of saw blades,it needs no weld paste or solder.
It is characterized by an extremely short welding duration and the low energy consumption,and in merely several seconds after being energized,it can surely weld saw blades together.
It is low in cost and the quality of the resulted weld is much superior to that generated by traditional silver soldering or oxygen welding procedures.
